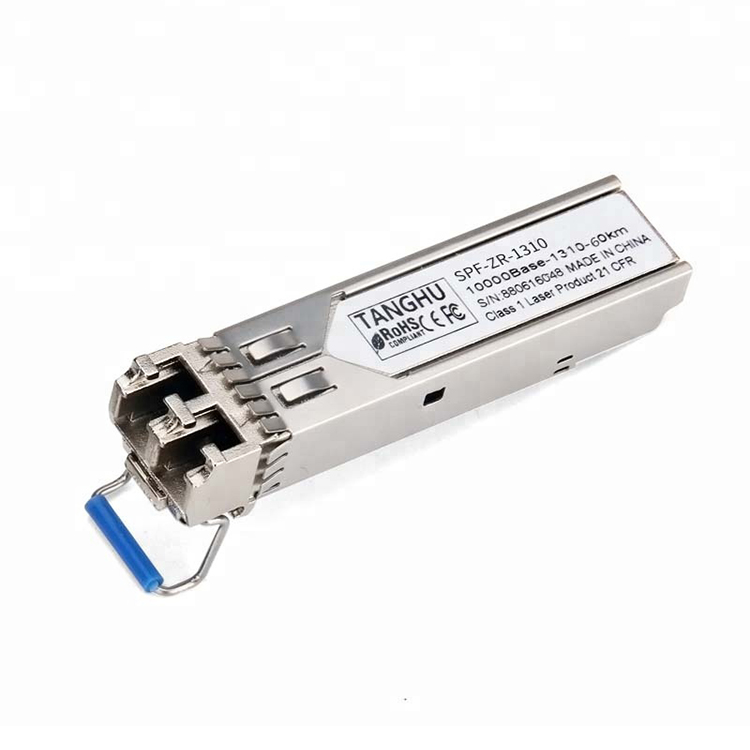

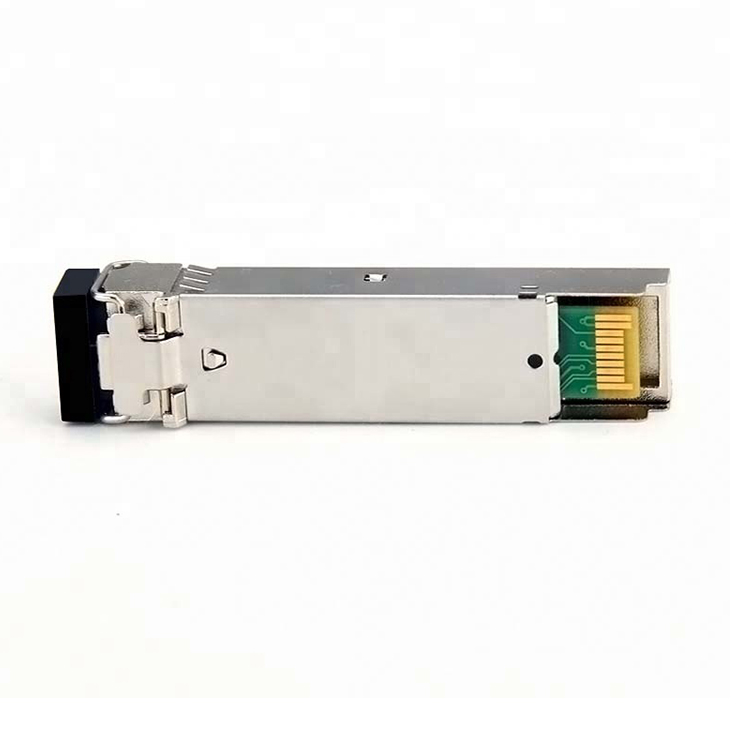

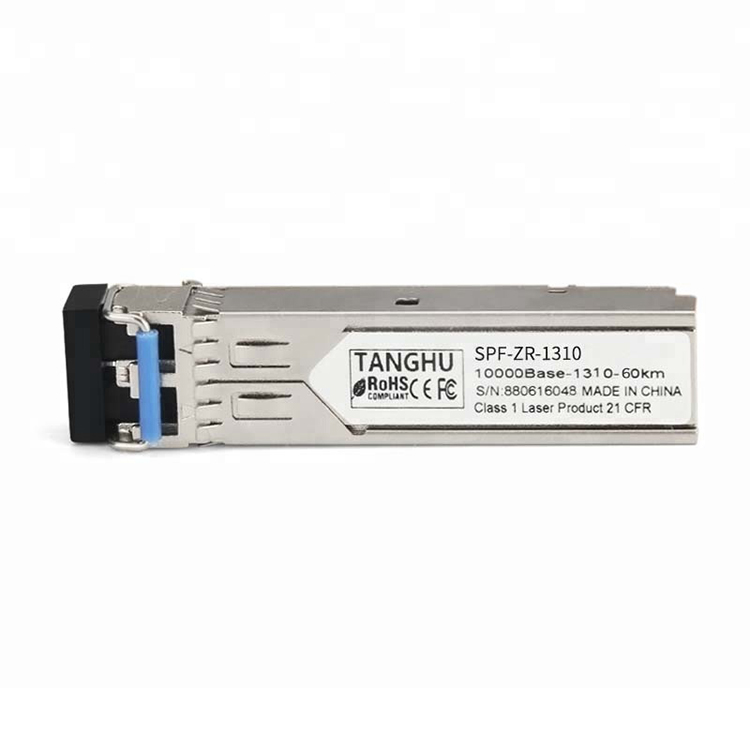

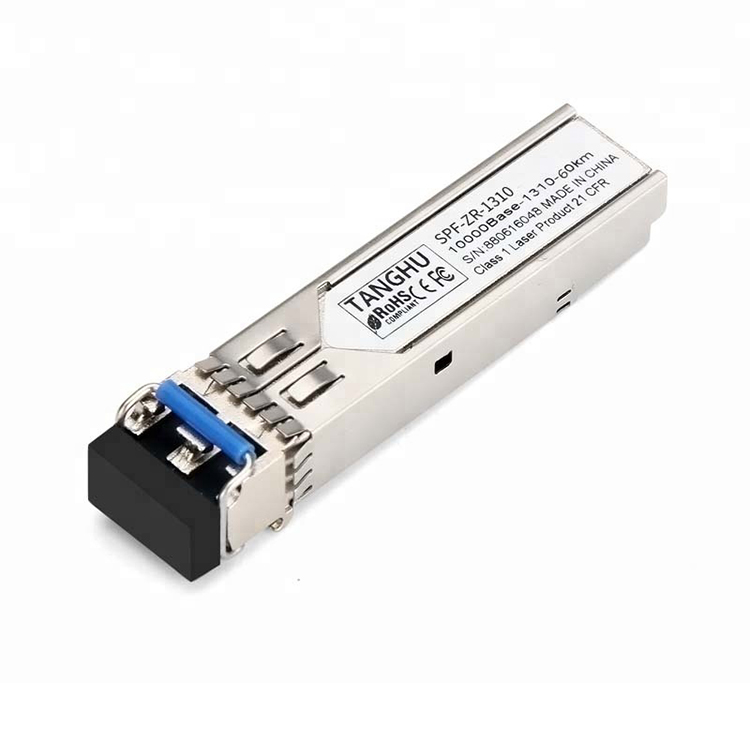

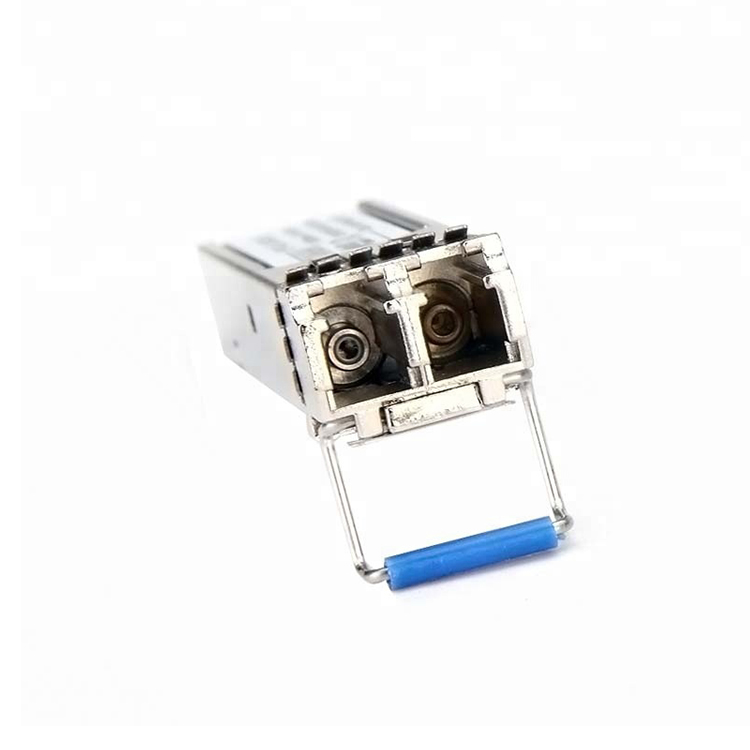

60KM 10G LC Connector Dual Fiber SFP Module

This 10GBase-LR 1310nm DFB SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length of 20/40/60km.

Inquire Now Next Product

Features

1.Optical interface compliant to IEEE 802.3ae 10GBASE-LR

2.Electrical interface compliant to SFF-8431

3.1310nm DFB transmitter, PIN photo-detector

4.Applicable for 10km/20km SMF connection

5.All-metal housing for superior EMI performance

6.Advanced firmware allow customer system encryption information to be stored in transceiver

7.Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Applications:

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other optical links

Specifications

Data Rate	10G	Fiber Mode	Single Mode Fiber (SMF)
Types of Interface	LC	Types of Laser	DFP
Operating Temperature	Standard 0~70°C	Operating Humidity	0%~90% RH (non condensing)
Transmission distance	20/40/60km	Modes of Communications	Duplex
Wavelength	1310nm	Condition	New
Receiver Sensitivity	<-14.4dBm	Extinction Ratio	>3.5dB
Saturated Optical Power	-3dBm	Power Consumption	<2W
Weight	0.024kg	Power Supply	+3.3V
Hot Pluggable Times	200	Average Output Power	-8.2 ~ -0.5dBm
