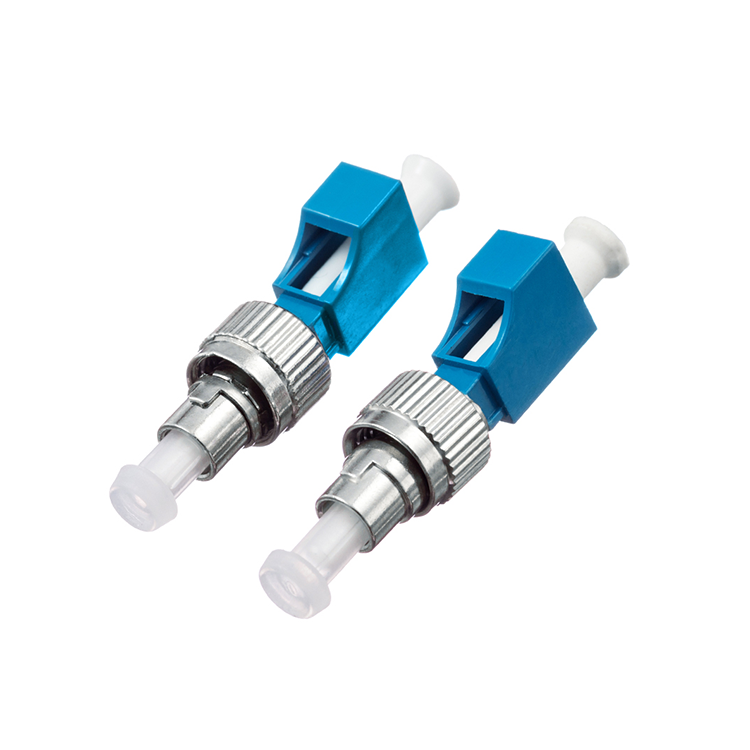

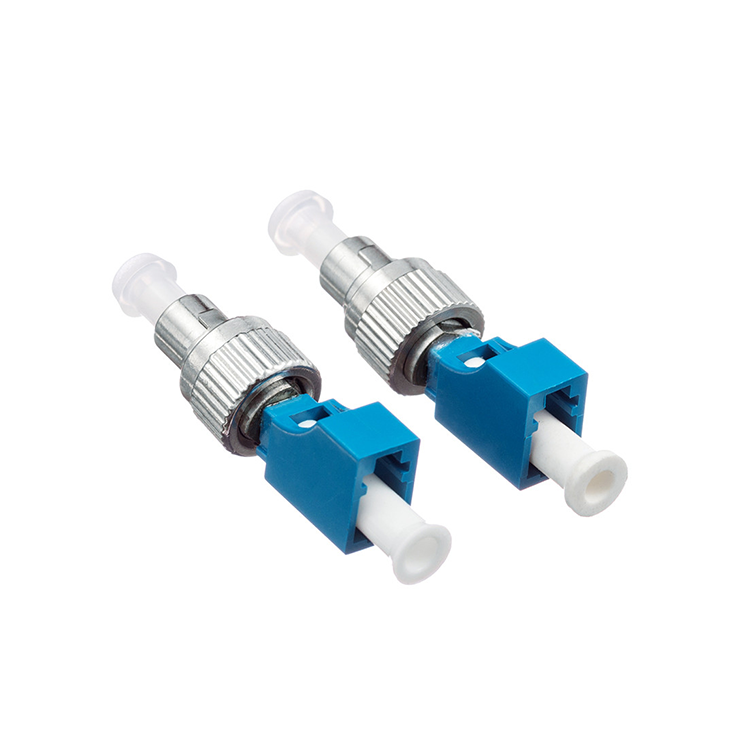

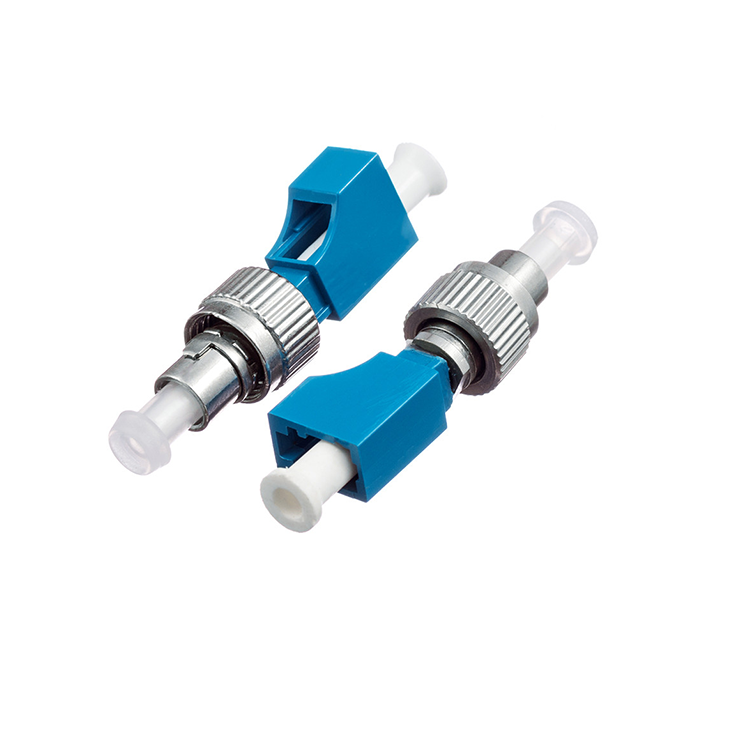

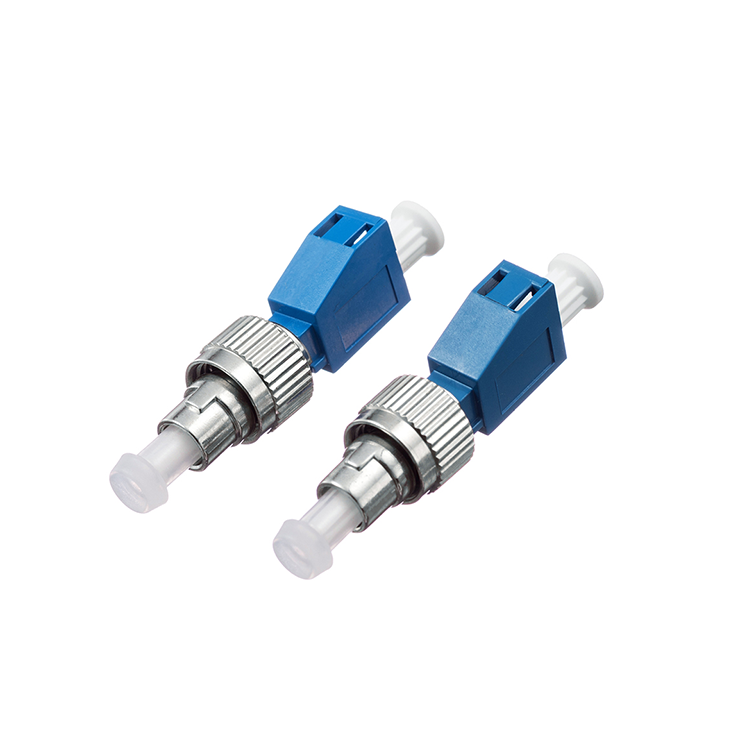

LC-FC Flange Coupler Fiber Adapter

Excellent changeability and directivity
Accurate external size
Individually packaged
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule
Zirconia sleeves or Phosphor bronze sleeves
D-shaped easily installs into panel mount




Share:
Features

Telecommunication Networks
Local Area Network
FTTH and FTTx
Testing Instruments
CATV System
High speed transmission systems
Fiber optic sensing
Industtial, Mechanical and Military

Specifications
Hybrid adapter typeLC(Female) to FC(Male)
Fiber tyleSM 9/125 Fiber.
Insertion Loss(db)Less than 0.50
Repeatability(db)Greater than 0.38
Interchangeability(db) Less than 0.20
Sleeve Socket MaterialZirconium dioxide ceramic
Working temperature-25C to +75C.
Storage temperature25C to +75C.
