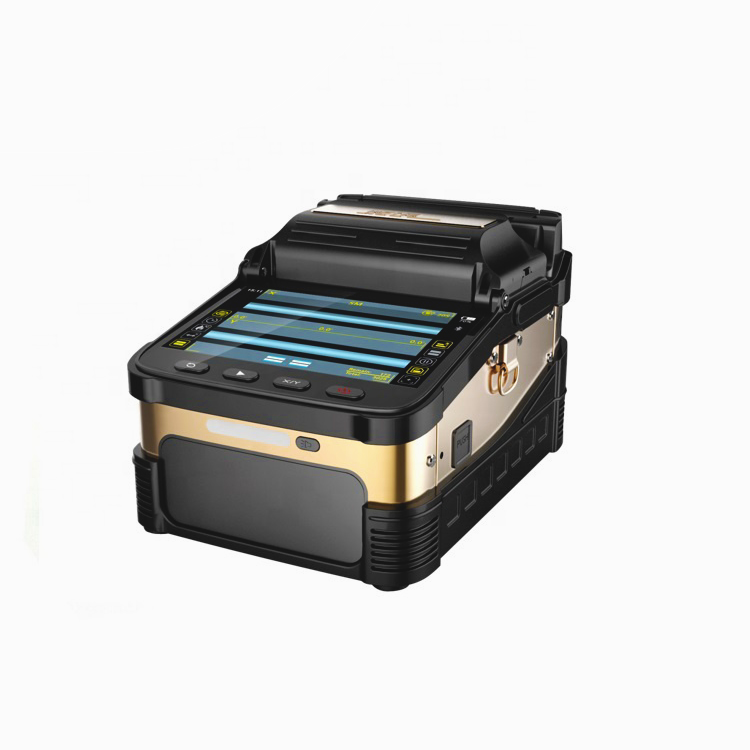

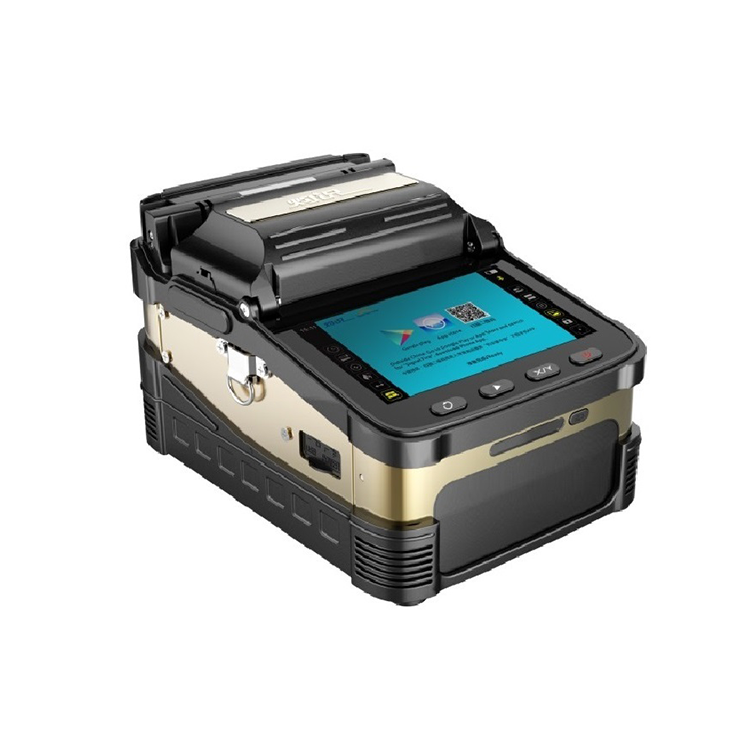

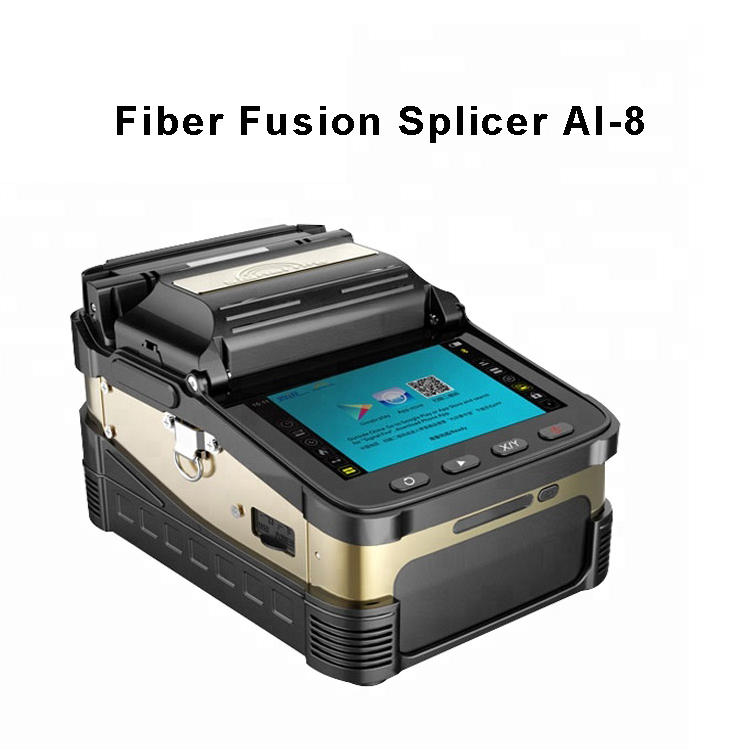

AI-8 Fiber Fusion Splicer

AI-8 Fusion Splicer Splicing Machine adopts the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response


With 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50%


Share:
Features

- Six motors

- Core alignment

- 6 seconds fast splicing

- 15 seconds fast heating

- Disassembly free three-in-one fiber holder

- 7800mAh large capacity battery

- 300 times magnification auto focus

- Once splicing reaches to 50,000 times free replacement a new machine

Specifications
Fiber AlignmentCore/cladding alignment/manual alignment
Splicing time 6S
Heating time 15S
Boot time1 second
Heating Mode Automatic heating(Preheating
Focus Mode Six motors Auto focus
Applicable Fibers SM(G652,G657),MM(G651),DS(G657),NZDS(G655)
Splicing loss )0.025dB(SM),0.01dB(MM),0.04dB(DS/NZDS)
Return loss Better than 60dB
Fiber Diameter

Cladding diameter:80-150μm

Coating diameter:100-1000μm

Fiber Cleave Length

Coating less than 250μm:8-16mm

Coating less than 250-1000μm:16mm

 Built-in battery7800mA high-capacity lithium battery
 Fiber holders3 in 1 fiber holder, SM, MM, bare fiber, pigtail,rubber-insulated, multi fiber cable
