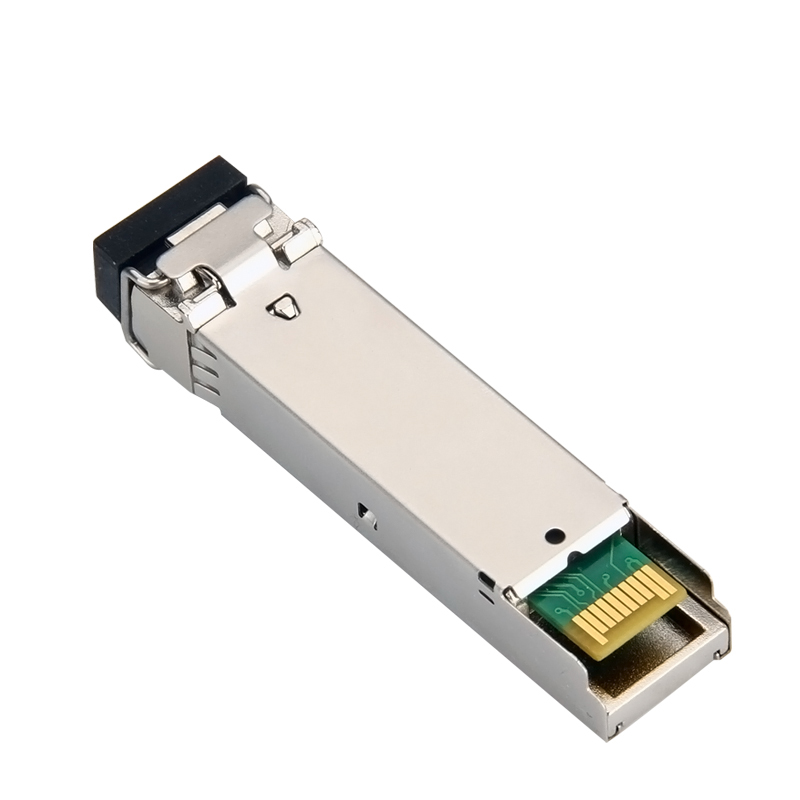

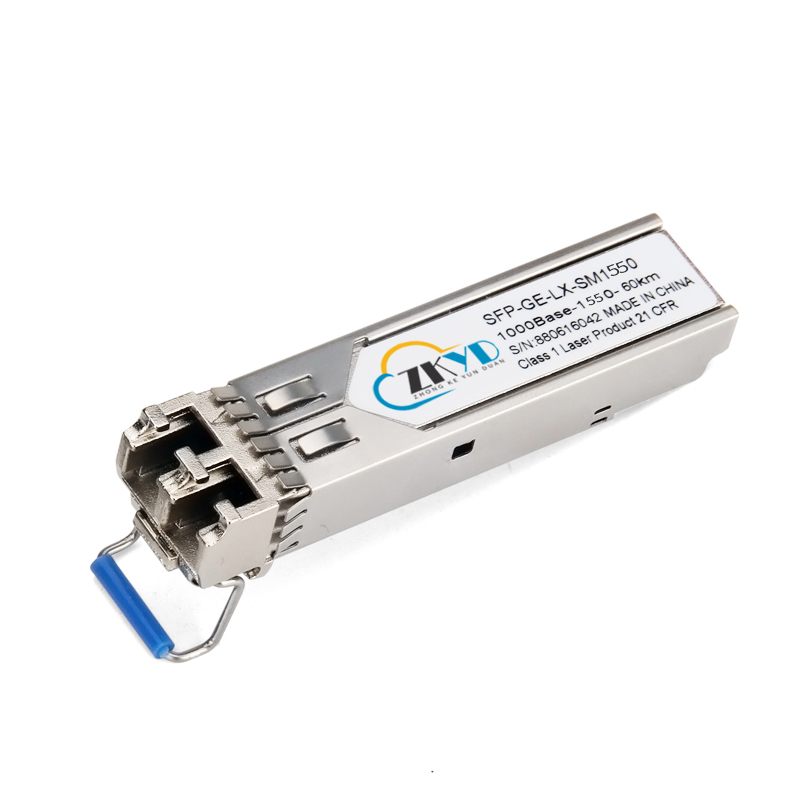

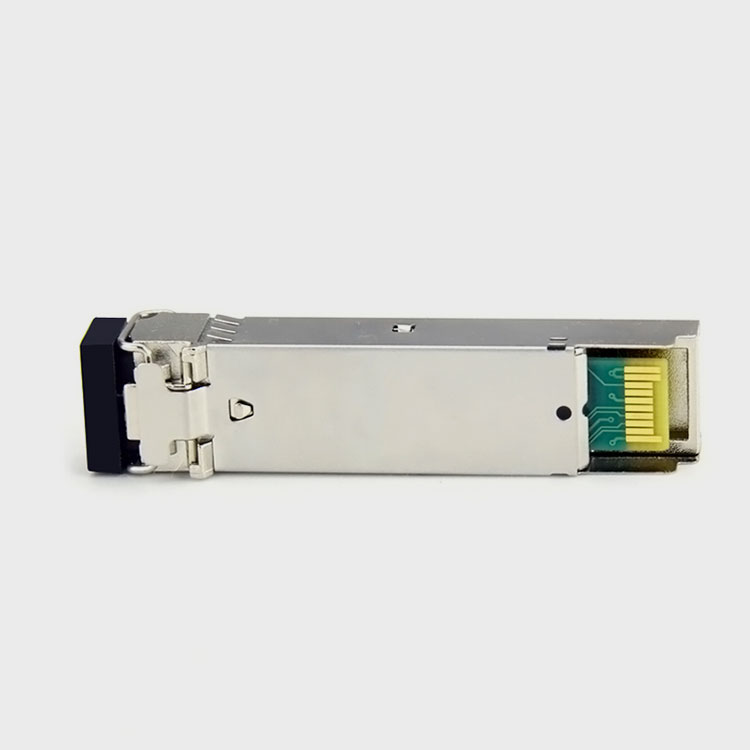

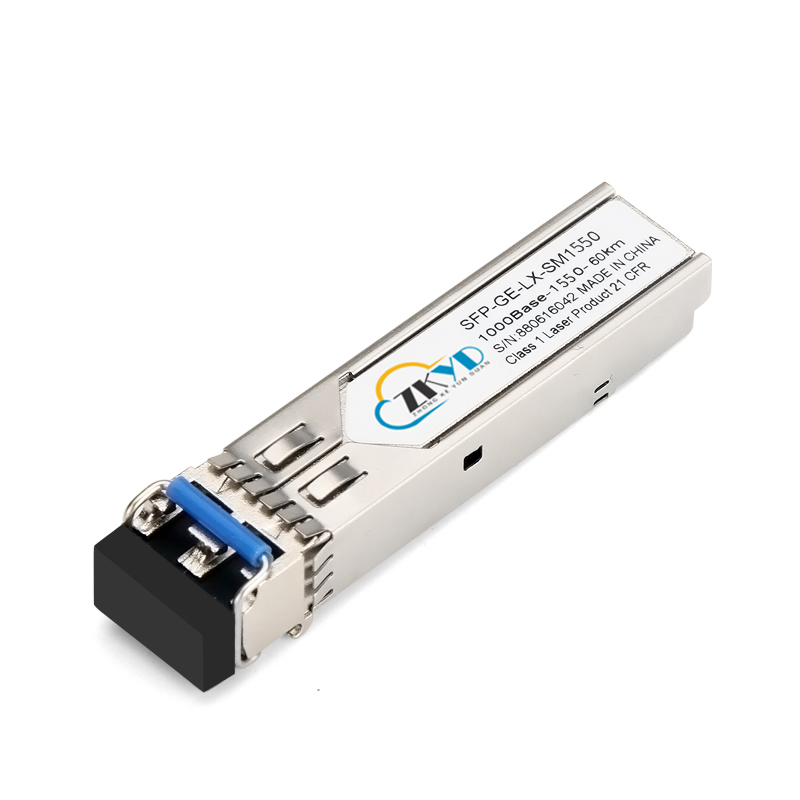

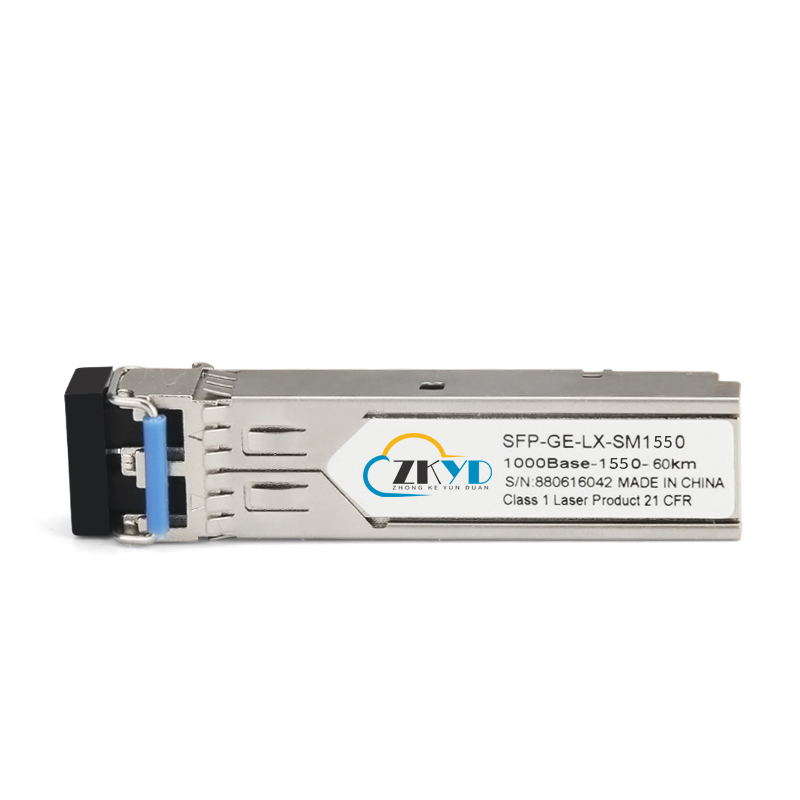

MOREThe SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
1.Data-rate of 1.25Gbps operation
2.1550nm DFB laser and PIN photodetector for 50km transmission
3.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
4.Digital Diagnostic Monitoring: Internal Calibration or External Calibration
5.Compatible with SONET OC-24-LR-1
6.Operating case temperature: Standard: 0 to +70°C, Extended: -20 to +85°C
Applications:
1.Gigabit Ethernet
2.Fiber Channel
3.Switch to Switch interface
4.Switched backplane applications
5.Router/Server interface
6.Other optical transmission systems
Data Rate | 1.25G | Fiber Mode | Single Mode Fiber (SMF) |
Types of Interface | LC | Types of Laser | DFP |
Operating Temperature | Standard 0~70°C | Operating Humidity | 0%~90% RH (non condensing) |
Transmission distance | 60/80km | Modes of Communications | Duplex |
Wavelength | 1550nm | Hot Pluggable Times | 200 |
Receiver Sensitivity | <-23dBm | Extinction Ratio | >9dB |
Saturated Optical Power | -3dBm | Power Consumption | <3W |
Weight | 0.024kg | Power Supply | +3.3V |
Hot Pluggable Times | 200 | Average Output Power | 0 ~ 5dBm |
