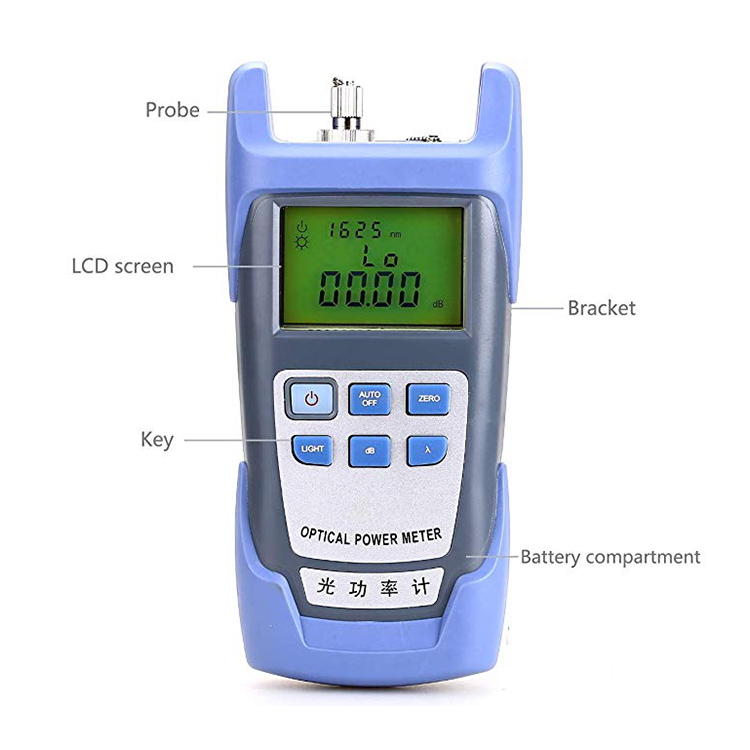

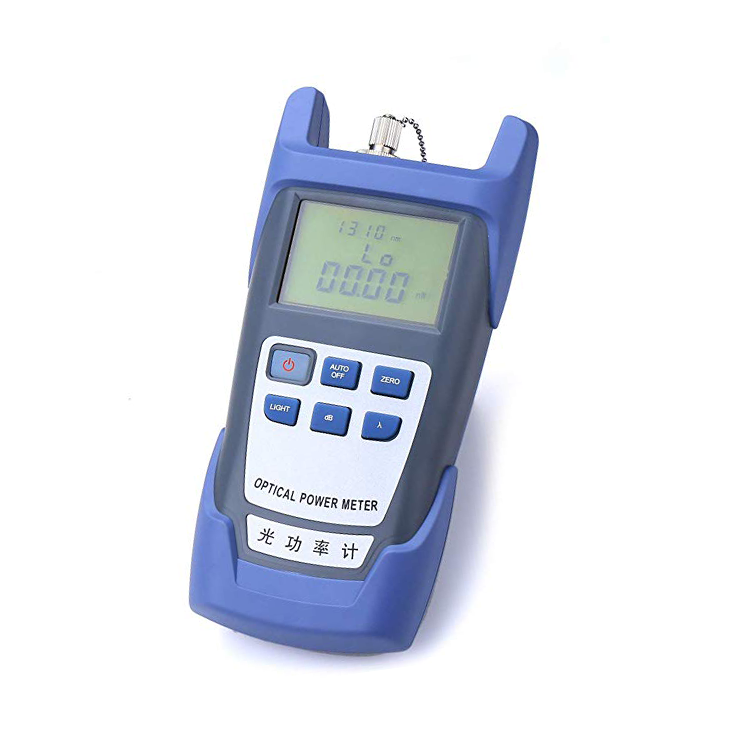

Fiber Tester Optical Power Meter

- self calibration

- apply replaceable or rechargeable batteries

- more than 40 hours continuous working time

- Linear Display (mW) and Logarithmic display (dB) show on the same screen

- support FC/SC/ST interface and quick switch

- Auto switch

- backlight available


Fiber CATV Test Engineering,
Optical fiber CCTV Test communication engineering,
Integrated wiring system,
Optical device production and research,
Optical communication teaching and testing,
Other fiber optic engineering, etc.

Test Range-70~+10db
Probe TypeInGaAs
Wavelength Range800~1700nm
Standard Wavelength850/980/1300/1310/1490/1550/1625
Display ResolutionLinear Display 0.1%; Logarithmic display 0.01dB
Working Temp(℃)-10~+60℃
Storage Temp(℃)-25~+70℃
Auto Switch-off Time(min)10min
Battery working periodNo less than 40 hours
