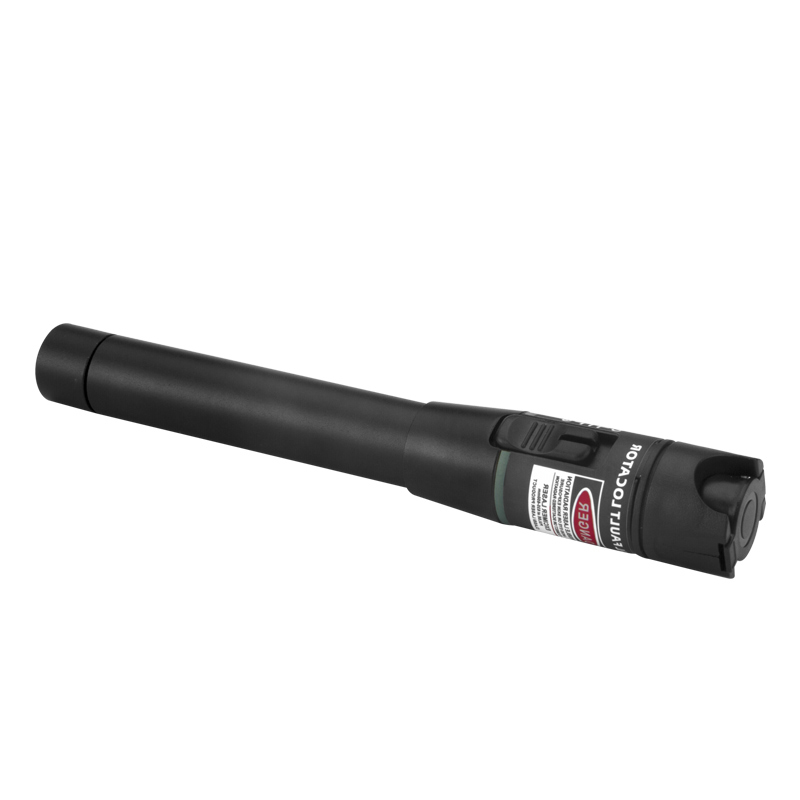

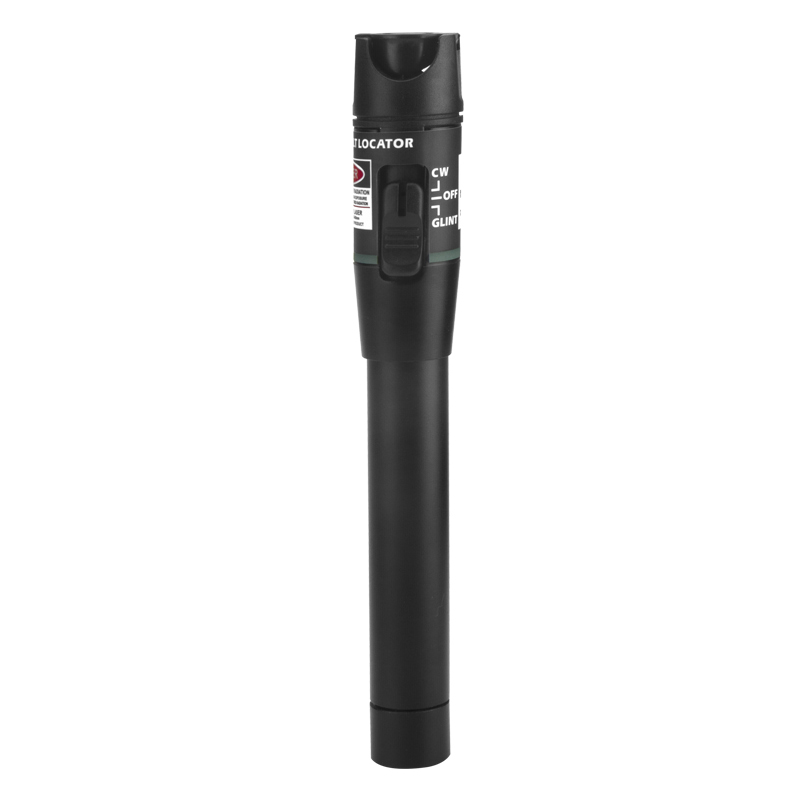

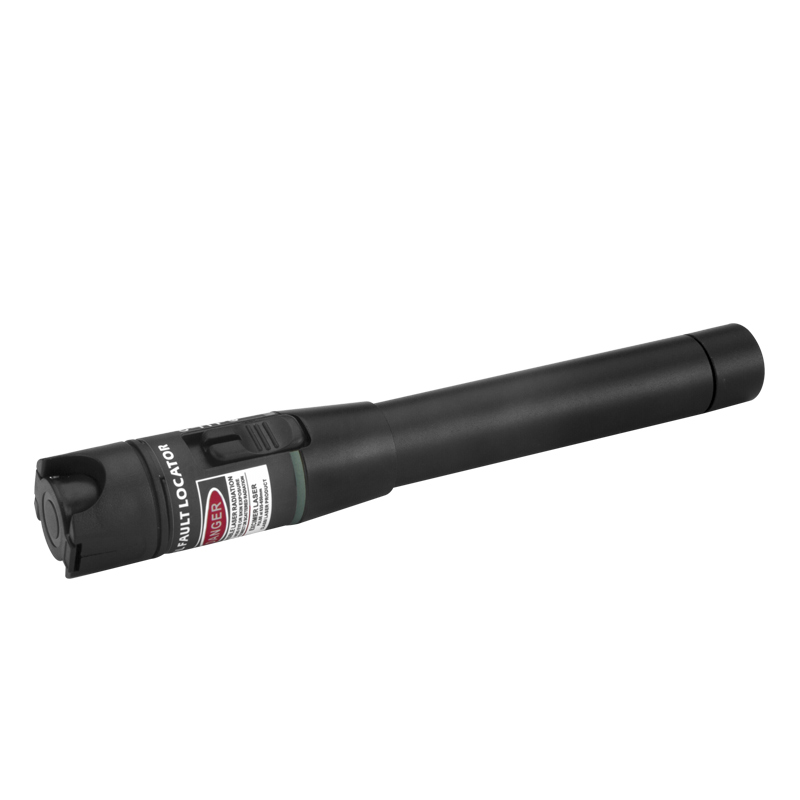

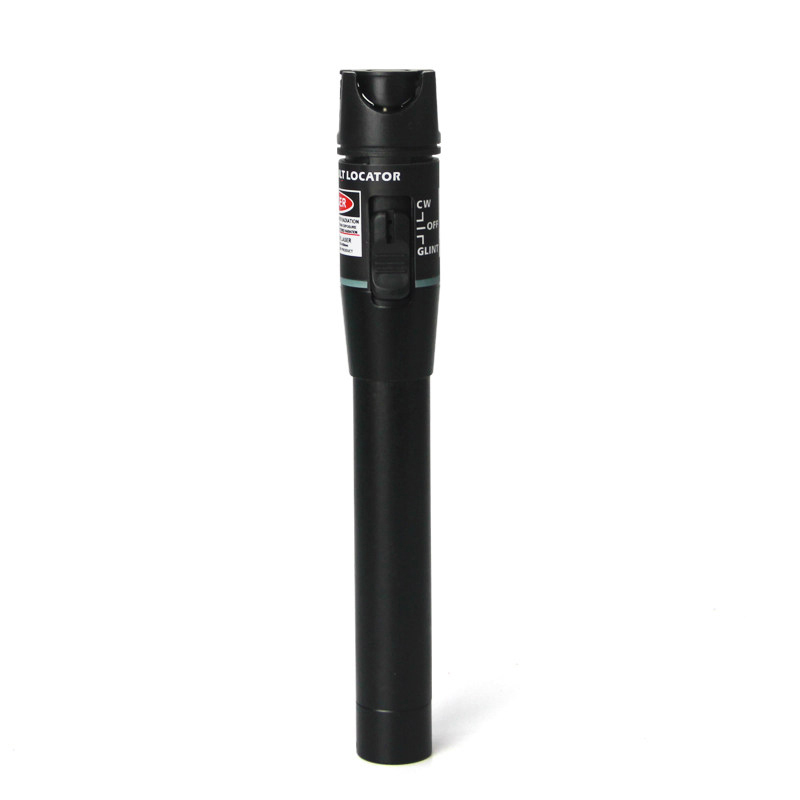

30mw 30km Visual Fault Locator

Pen type VFL are compact but powerful Visual Fault Locator, with an output power up to 30mw, could be used to locate bends & breaks in jacked or bare fiber within 30Km. It could also be used to identify the connectors in patch panels and identify the fibers during splicing operation.
pen-type red light emitting device by using 650nm semiconductor laser to emit red light, stable, and optical interface is connected into the multimode and single-mode optical fiber cable, optical fiber jumper fault detection function.Optical engineering construction, network maintenance, fiber optical devices indispensable production and research tools

Inquire Now Next Product

Features

2.5mm universal connector

2Hz glint or continuous optput

Operates either in CW or Glint

Small size, easy to field test

High quality pen type visual fault locator

Easy identification of fiber break,bend, you can protect the fiber layer

To-end fiber identification

Complete mechanical connecting point detection and optimization

Crash-proof and dust-proof design for laser head

Portable and rugged, easy to use

Possess a power saving mode, the instrument automatically shut off the power after idle for 10 minutes.

Application:

- Telecom, CATV engineering and maintenance

- integrated wiring construction and maintenance

- The production and research of optical devices

- other optical engineering

Specifications

Output Optical Power	>30mW
Output wavelength	650nm
Product size:	1752626mm
Battery type	Two batteries of 5th battery
Features	Constant output power Long battery life Portable, easy to use.
