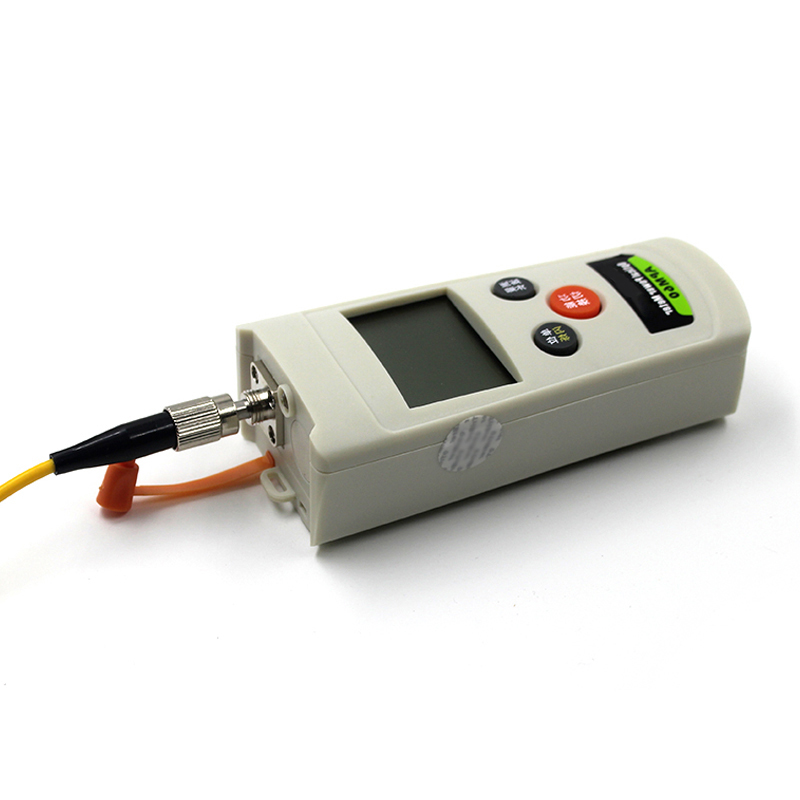

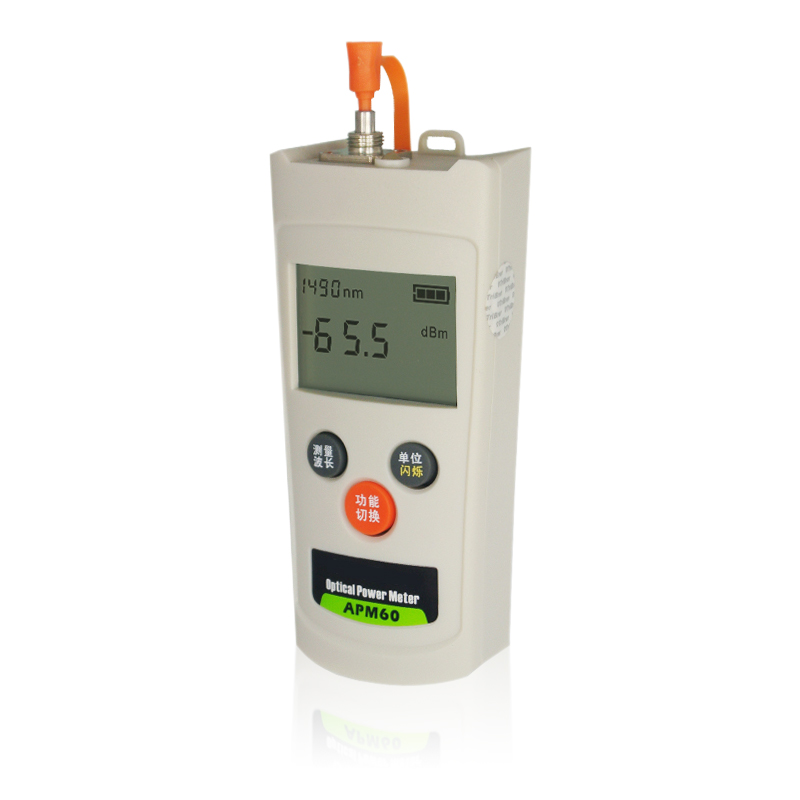

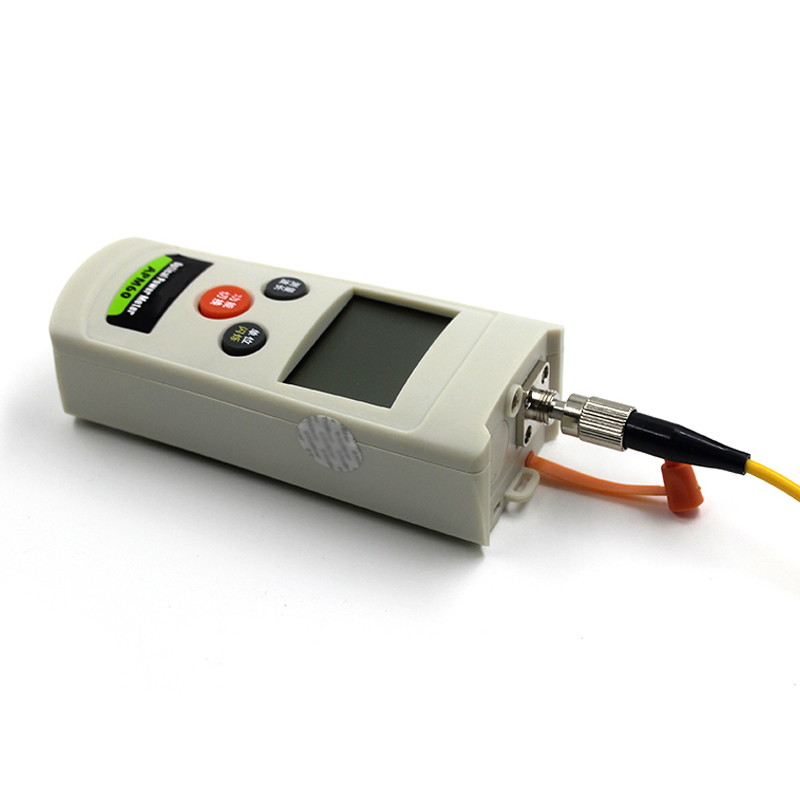

Fiber Optic Power Meter

1.Self calibration

2.More than 48 hours continuous working time

3. Linear Display (mW) and Logarithmic display (dBm) show on the same screen

4.Support for FC/SC/ST interface and quick switch

5.Auto switch


Share:
Features

 Model

APM60T

 APM60C

Display Range

 1310/1490/1550/1625: +10 ~ -70dBm

 1310/1490/1550/1625: +26 ~ -50dBm

 850/1300: +10 ~ -60dBm

850/1300: +26 ~ -40dBm

Accuracy

 ± 0.2 dB

Calibrated Wavelengths

850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm

Display Resolving Power

 0.01dB

Linearity

±0.1dB

OPM Connector

2.5mm universal and FC (SC, ST adapter optional)

VFL Connector(Optional)

2.5mm universal

VFL Output(Optional)



1mW or 10mW, CW and Glint



 LED Light



SOS code output



Automatic Power Off



No operation in 10 minutes (can be cancelled), Low battery energy



Battery Charge



Yes

Battery Life

Above 100 hours (OPM)

Power Supply

AA * 2 batteries or AC/DC power supply adapter
