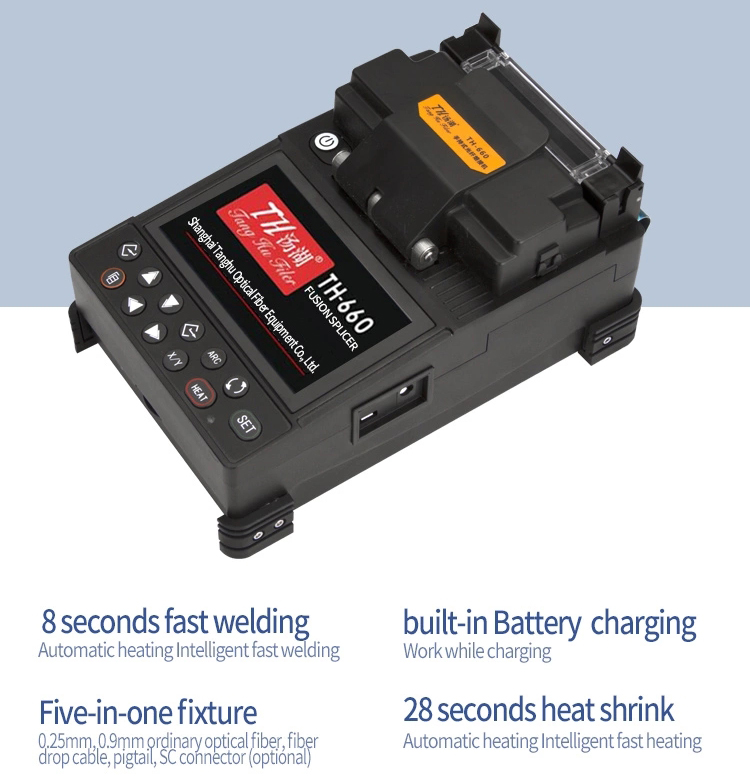

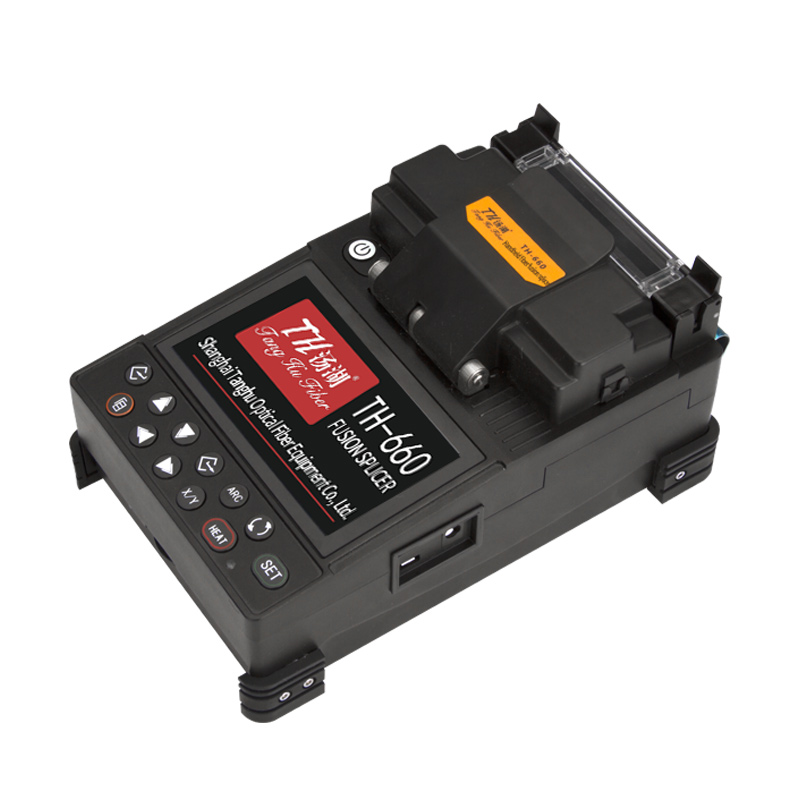

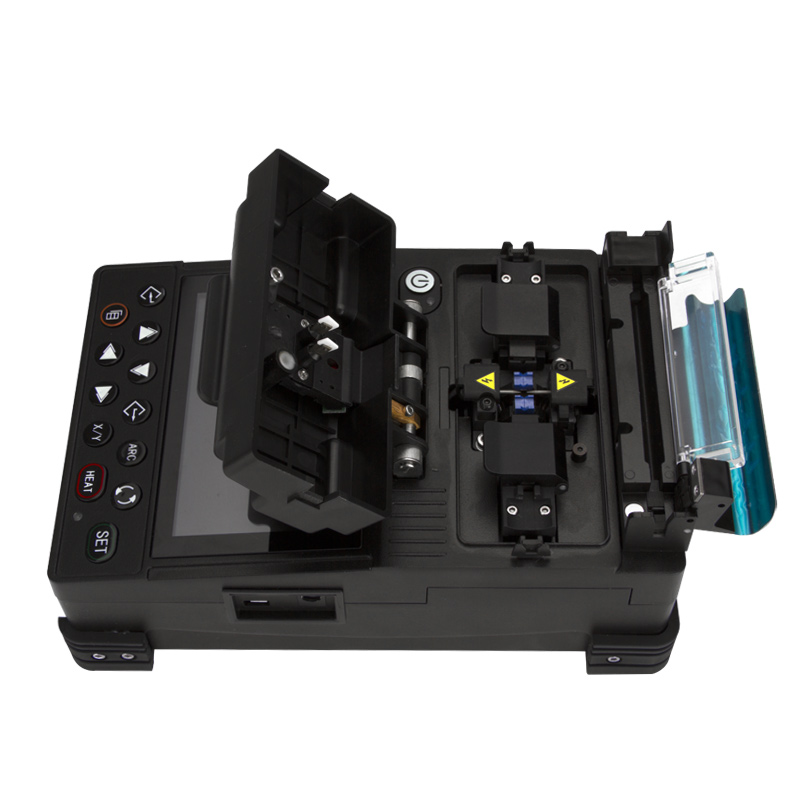

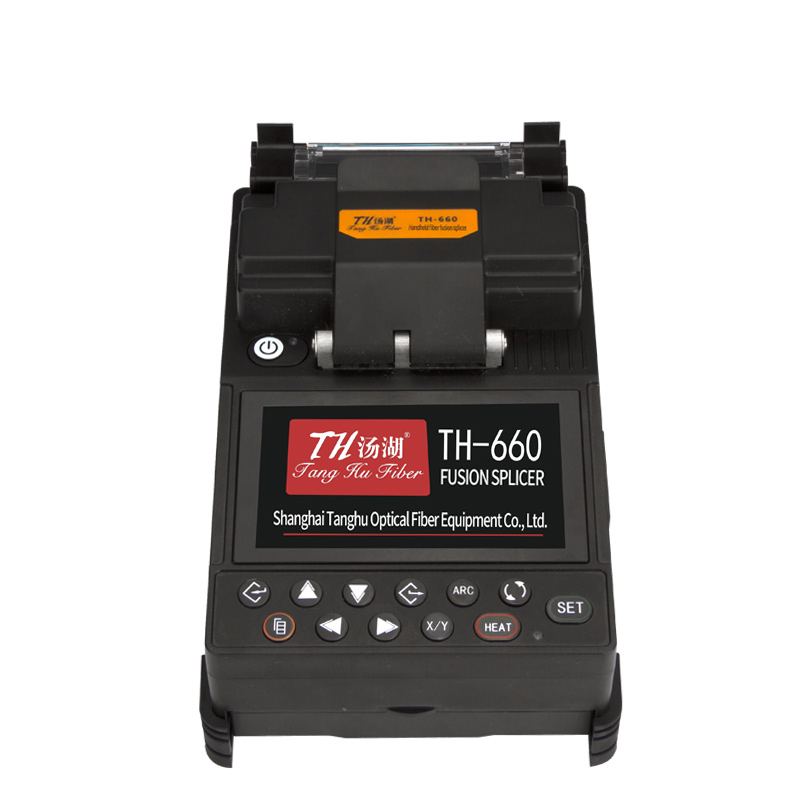

TH-660 Fiber Splicing Machine

Fusion Splicing is a preferred way to join two fibers together by using heat. Whether the fiber was broken or not long enough, a fusion splicer will make your job easier. Splicing fiber optic cable is a fairly simple procedure. Prepared fiber ends are placed in the splicer and automatically aligned and then fused together. This method ensures greater reliability with less light being scattered or reflected back by the splice and with the splice itself being as strong as the original optical fiber.


The process of fusion splicing normally involves heat to melt or fuse the ends of two optical fibers together. The splicing process begins by preparing each fiber end for fusion.

1, Stripping the fiber

Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing.

2, Cleaning the fiber

The customary means to clean bare fibers is with alcohol and wipes.

3, Cleaving the fiber

The fiber is then cleaved using the score-and-break method so that its end-face is perfectly flat and perpendicular to the axis of the fiber.

4, Splicing the fibers

Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y plane, then are fused together.



TH-660 Fiber Splicing Machine

Fiber Type

SM , MM , DS , NZDS

Connection loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZ0S)

Return Loss

Greater than 60dB

Fiber Alignment

Fiber core alignment, Cladding alignment, Manual alignment

Operation method

Manual, semi-automatic, fully automatic

Applicable to optical fiber

Plint cable, and 0.25mm, 0.9mm ordinary fiber SC and other connectors (optional)

Welding time


Heating time


Cutting length



300/150 times

Image display

High-performance 4.3inch liquid screen with clear and detailed image display


Splice: Fixed-12sets, Option-50sets; Heating: No limitation



Tension Test

Standard 2N (optional)

Heat Shrink Tubing

60mm, 40mm and a Series of Heat Shrink Tubing

Battery capacity

Typical welding 300 times, charging time is about 3 hours (can be used when charging)

Battery Life

Cycling Recharging 300~500 times, easy to replace

Electrode life

3000 typical values, easy electrode replacement


USB, convenient data download and software updates

Construction lighting

uilt-in high-brightness, wide-range lighting for night operation

Power supply

Built-in lithium battery 11.1V5200mAh ; external adapter, input: AC100-240V, output: DC13.5/|4.5A

Working environment Temperature



1.6kg (with battery), 1.1kg(without battery)
