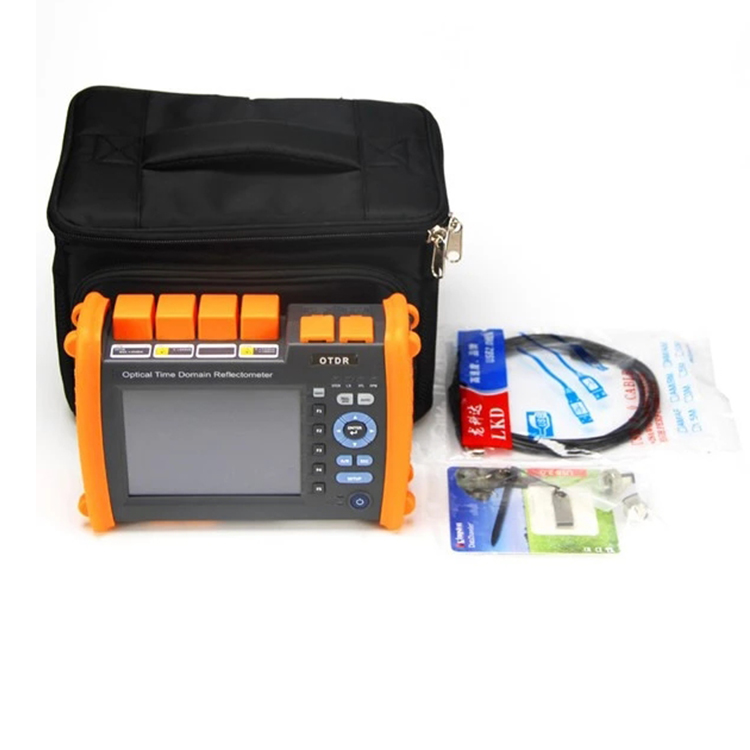

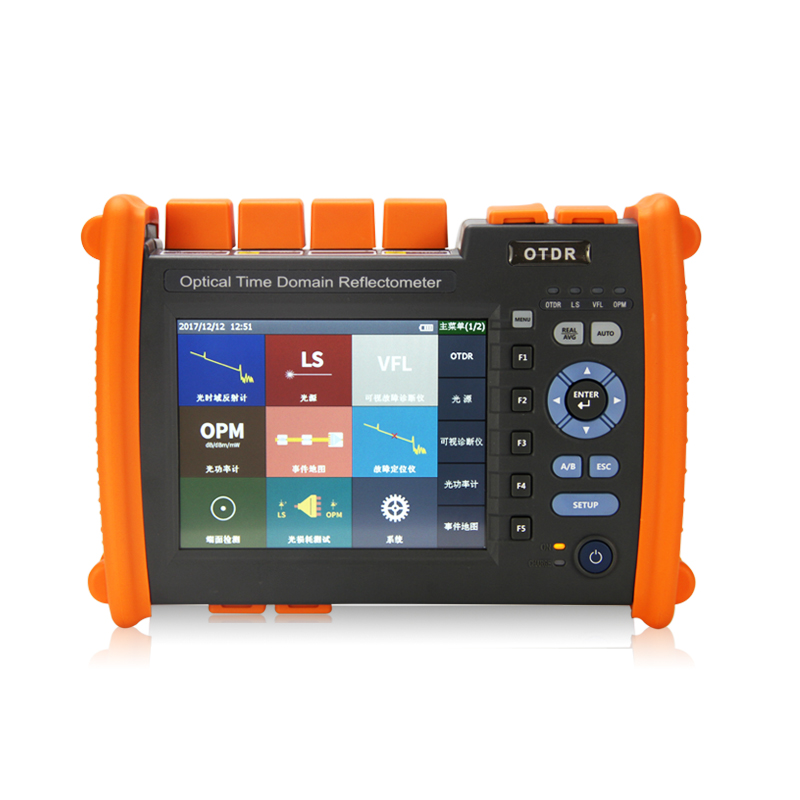

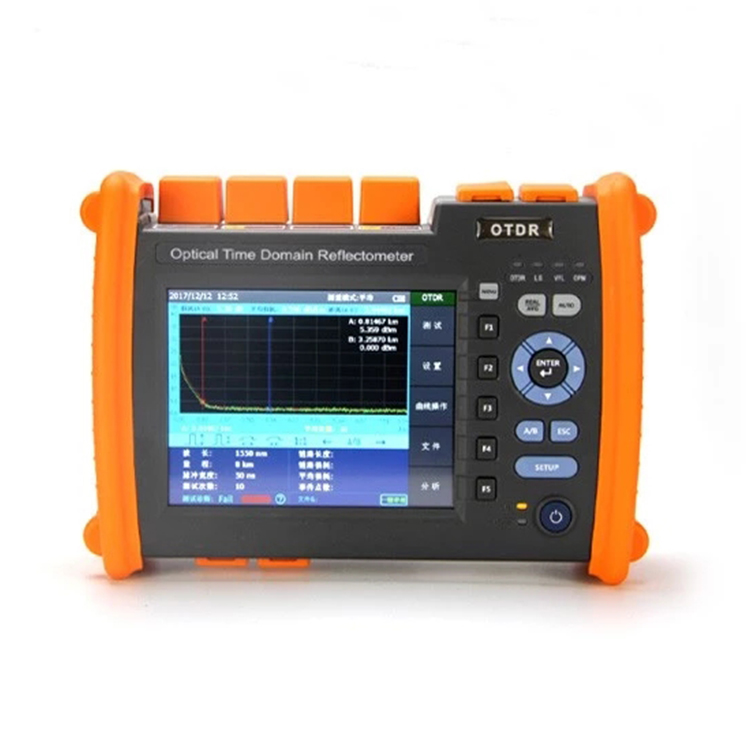

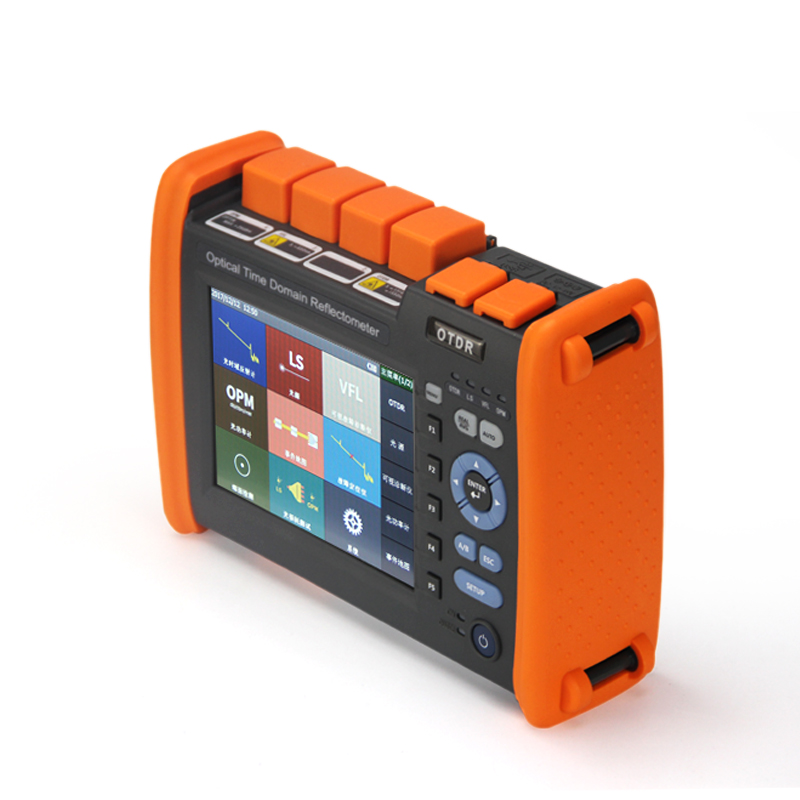

Optical Time Domain Reflectometer

1.The most advanced technology of double color & material integrative mould, strong and firm;

2.Advanced antireflection LCD, clear display interface in field;

3.0.8m ultra-short event dead zone, easy to test optical fiber jumper;

4.Automatic & manual test function;

5.Automatic detection of the communication light signal;

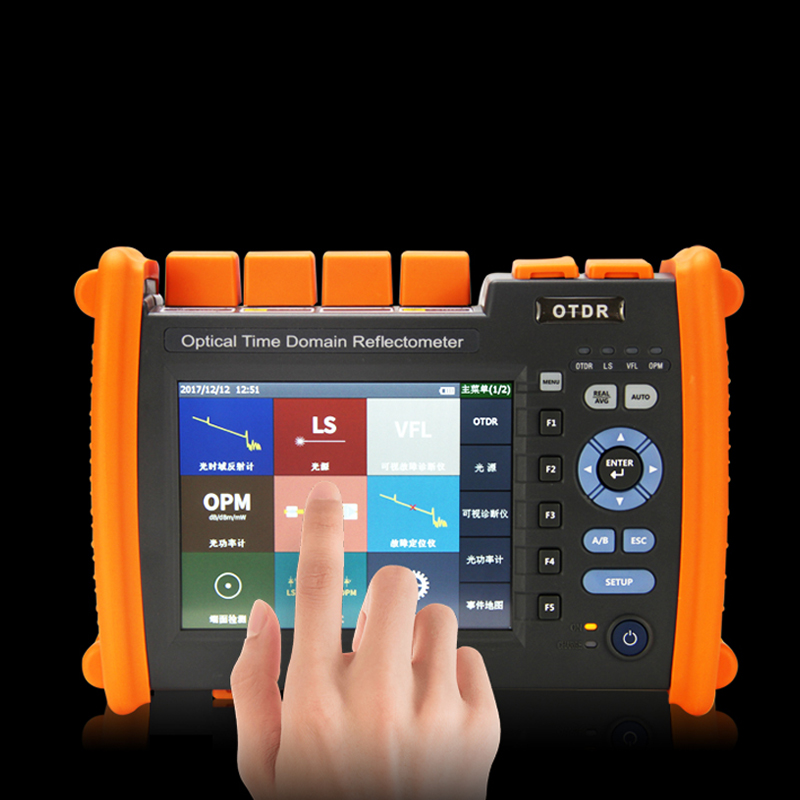

6.Touch screen and keyboard operation;

7.Two USB interfaces: can connect to the external U disk, or communicate with PC through SyncActive software;

8.Support Bellcore GR196 and SR-4731 file format;

9.Intelligent indication of battery capacity, alarm when the battery is running out;

10.WinCE window operation system, Chinese/ English operation interface;

11.Large capacity lithium battery to support over 10 hours of operation, suitable for long-time filed work;

12.Built-in visible fault locator (VFL) function;

13.The OTDR optical output connectors are exchangeable, so it is more convenient to clean the end surface;

14.Application software on-line upgrading, no need to return back to factory.


Share:
Specifications
ModelOTDR
Display5.7 inch color LCD with touch
Dynamic Range32/30dB
Distance range  400m/800m/1.6Km/3.2Km/6.4Km/16Km/32Km/64Km/128Km/256/512Km
Measuring Pulse Width5ns/10ns/30ns/100ns/275ns/500ns/1000ns/5000ns/10000ns/20000ns
Ranging Accuracy±(1m+Sampling interval+0.005%×Test distance)
Degree of Linearity±0.05dB/dB
Resolution Ratio Loss0.001dB
Event Dead Zone0.8m
Waveform Data Storage≥1000
Interface TypeFC/PC(Replaceable SC,ST)
Communication InterfaceUSB mini-USB 10M/100M Ethernet
VFL Output≥5mW
OPMWavelength range: 1200nm~1650nm, Power range: -50dBm~+26dBm
Stable Light Source1310/1550nm: -5dBm, CW (270Hz, 1K270Hz, 2K270Hz)
Power Supply modeOutput: 19V, 1.31A ; Lithium battery:7.4V 6300mAh
Operating Temperature-5°C~50°C
 Storage   Temperature-20°C~70°C
Relative Humidity0~95°C Non condensation
Weight1.5kg
Dimensions215mm×150mm×70mm
