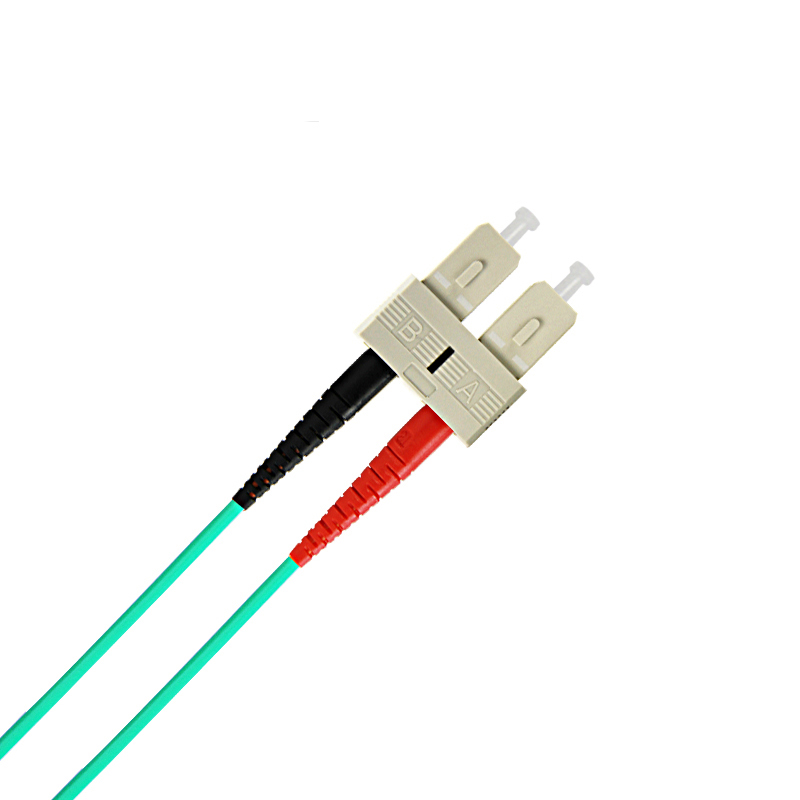

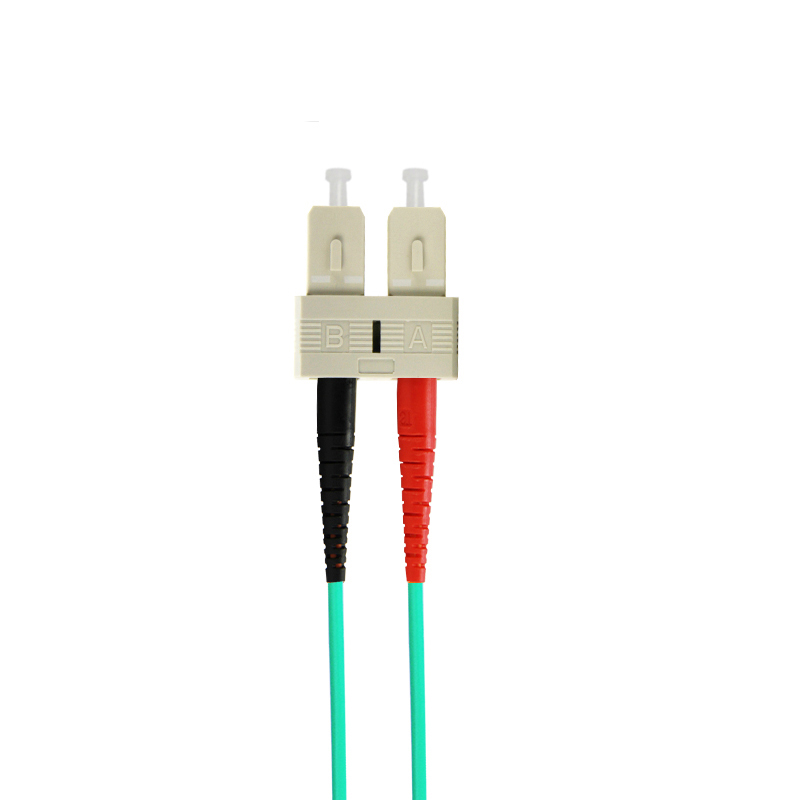

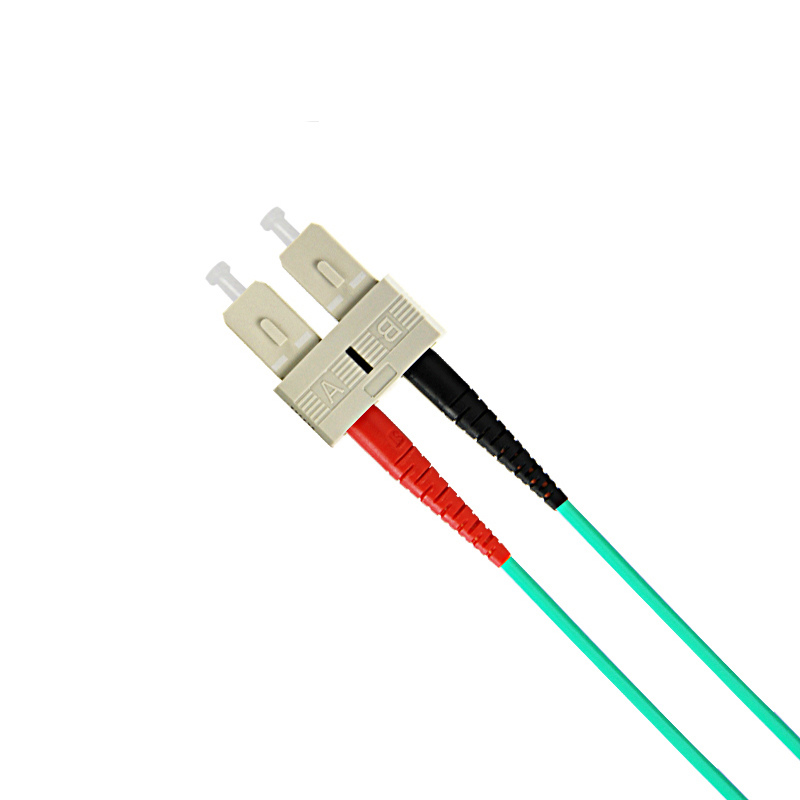

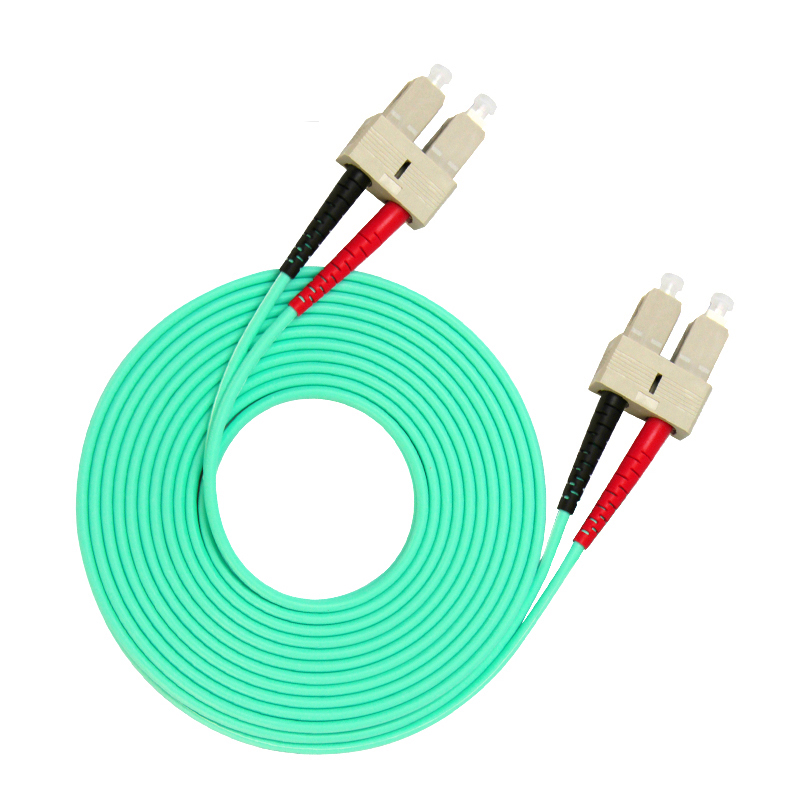

10 Gigabit Multi Mode SC TO SC Fiber Optic Patch Cord

1) Connector type: FC, SC, LC, ST

2) Ferrule End-face: PC, UPC, APC

3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4) Cable Quantity: Simplex, Duplex

5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm

6) Cable Length: 3,5,10,15 meter or customized

7) Cable type: PVC, LSZH.Armored

8) patch cord/pigtailSupport Ordering Parameters:


Share:
Features

1)Low Insertion loss

2)High return loss

3)Good Repeatability

4)Good Interchange

5)Excellent Environmental Adaptability


 Application

1)Communication rooms

2)FTTH (Fiber to The Home)

3)LAN (Local Area Network)

4)FOS (fiber optic sensor)

5)Fiber Optic Communication System

6)Optical fiber connected and transmitted equipment

7)Defense combat readiness


Specifications

Connetor Type

FC-FC FC-SC FC-LC FC-ST LC-LC
LC-SC LC-ST SC-SC SC-LT ST-ST

Number of plugs

>1000 times

Tensile strength

≥200N

Bending radius

>3.8cm

Light decay

<0.1dB

Repeatability

Less than 0.2dB

Exchangeability

Less than 0.1dB

Length

3M or Customized

Wavelength

1310nm or 1550nm

Fiber



10G OM3

10G OM4

Connector

LC,FC,SC,ST

Insertion Loss

Less than 0.3dB





Return Loss





UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Cable

Simplex, Duplex

Φ3.0mm, Φ2.0mm, Φ0.9mm

PVC or LSZH
