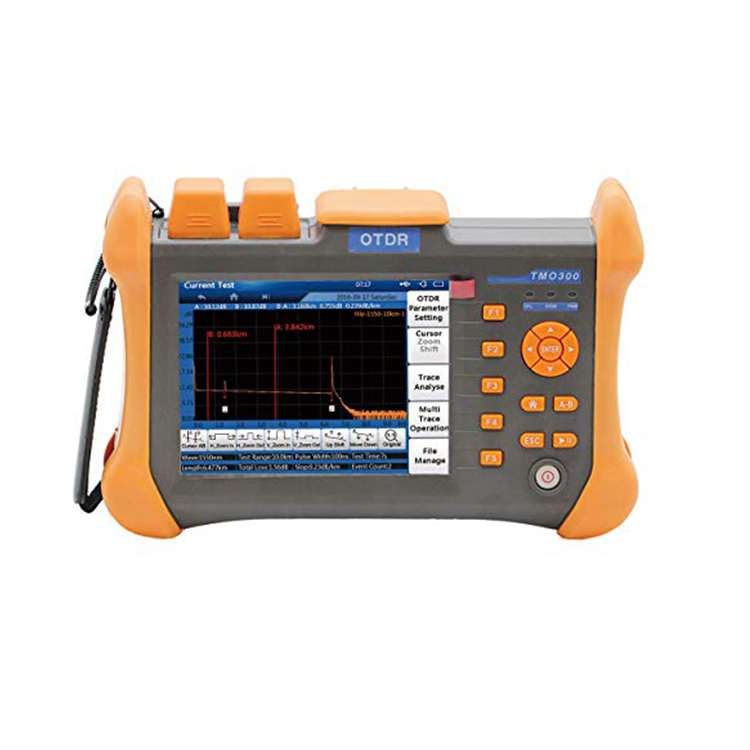

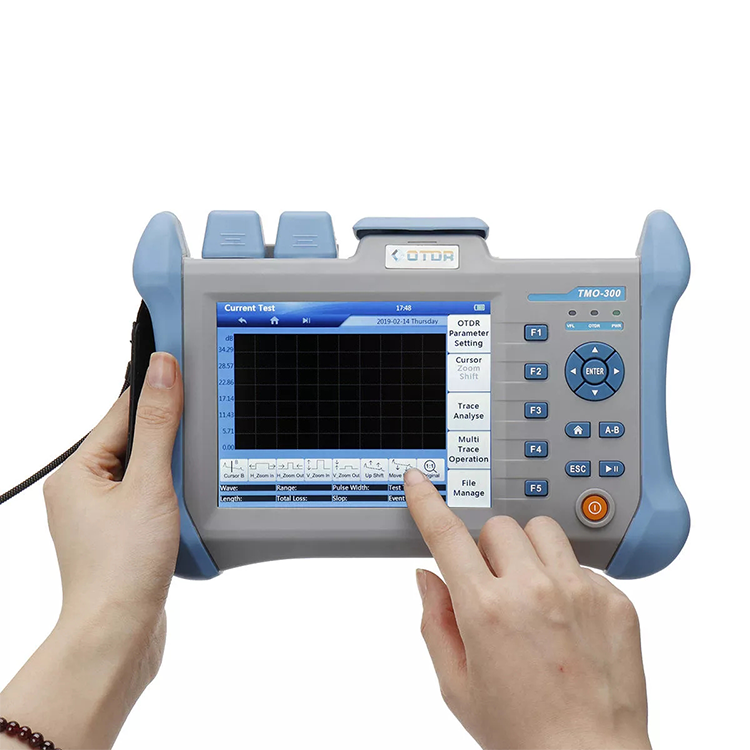

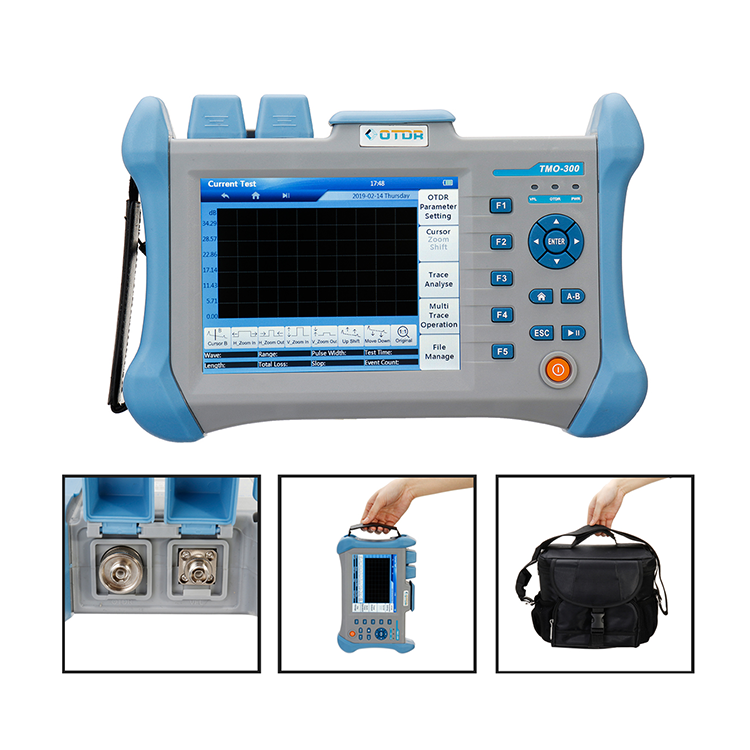

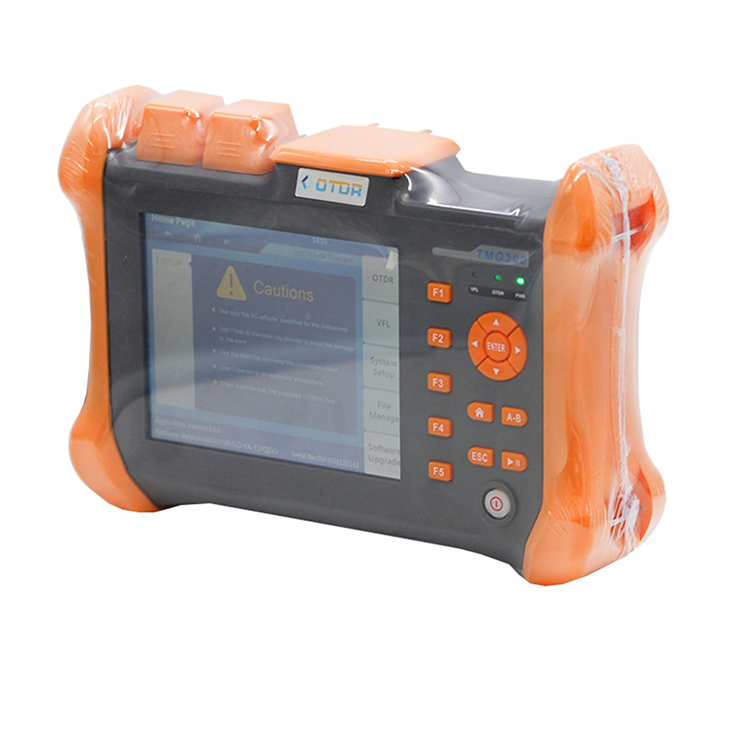

TMO-300 OTDR Tester

1. 5.6-Inch outdoor-enhanced touchscreen, 7.4V/4.4Ah Lithium battery.

2. Event Dead zone as lower as 1.5meter.

3. Combined multi-dynamic range and wavelengths.

4. Muti measurement mode, support Touching LCD and pressing keys.

5. Warning function could prevent OTDR module from being damaged by optical signal in fiber.

6. Realtime measuring function, convenient to monitor the splicing process.

7. Integrated Visual Fault Locator.

8. Support English/ Chinese input, adopts friendly input interface, totally simulate the computer keyboard input.

9. Integrated with 8GB internal memory, more than 80,000 groups curve storage.

10. PC remote access and control function is available, which support the printing work of the measurement report.


Share:
Specifications
Pulse Width(SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs
(MM 850/1300NM) 5ns 10ns 20ns 50ns 100ns 500ns 1us
Distance Range(SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km,20km,40km, 80km, 120km.
(MM 850/1300NM):100m, 400m, 1.3km, 2.5km, 5km, 10km, 20km, 40km, 80km.
Sampling ResolutionMinimum 0.05m
Sampling Point128,000
Linearity≤0.05dB/dB
Loss Threshold0.01dB
Loss Resolution0.001dB
Distance Resolution0.01m
Distance Accuracy±(1m+measuring distance×3×10 +sampling resolution)
Data Storage20000 groups of curve
VFLten mW, CW/2Hz
Interface3 USB ports(Type A×2,Type B×1)
Display5.6 inch TFT-LCD, Touching screen
Battery7.4V/4.4Ah lithium battery, support 8 hours continuous working
Working Temperature-10℃~+50℃
Storage Temperature -20℃~+70℃
Humitity≤95%(non-dew)
Measure Range80-120km
