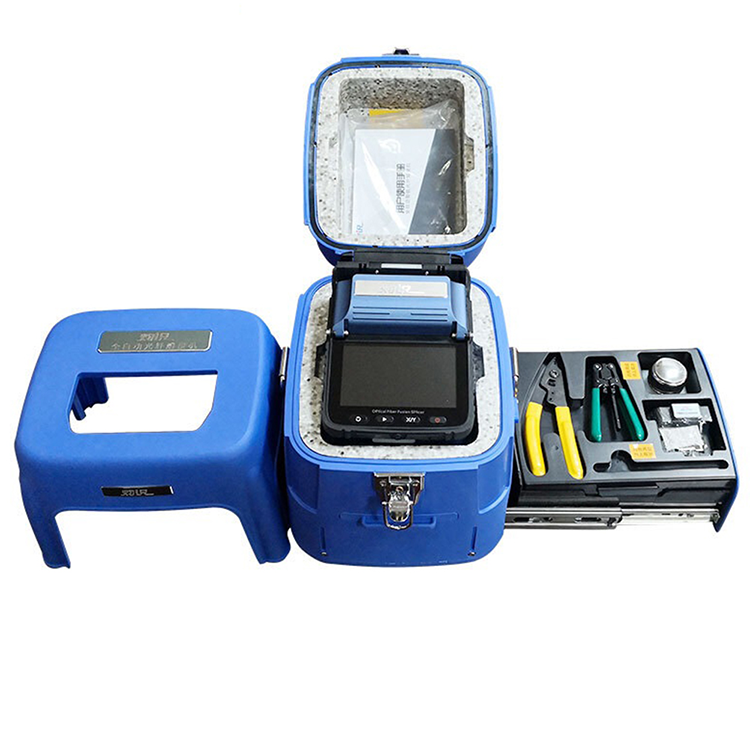

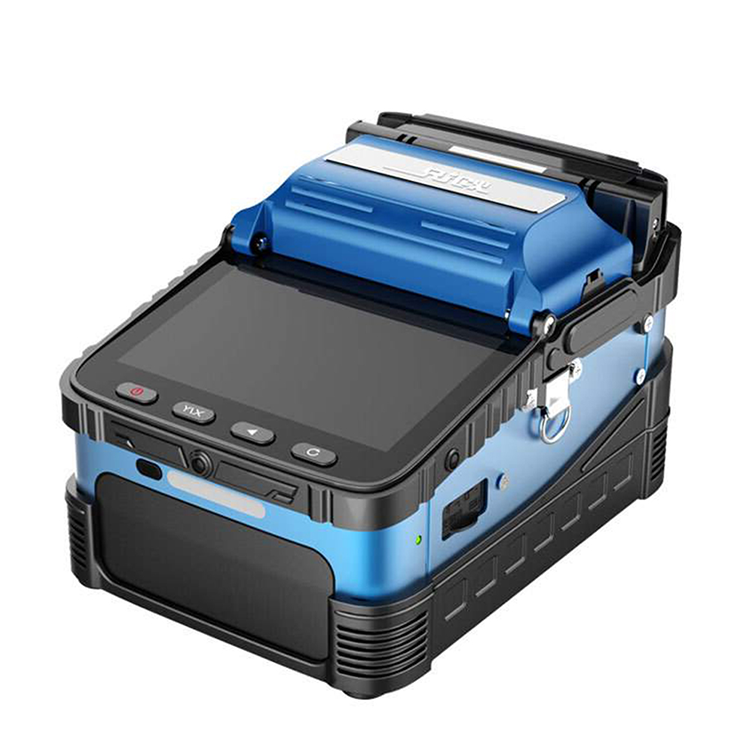

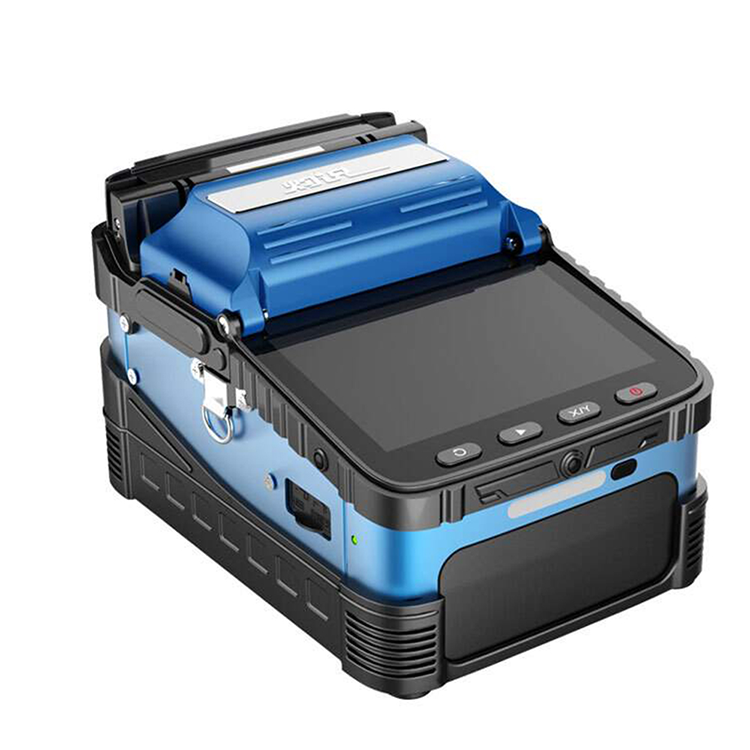

AI-7S Fiber Fusion Splicer

Signal Fire AI-7S adopts the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market


With 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.


Share:
Specifications

Fiber alignment

Core/cladding alignment/ manual alignment

Splicing time

6s

Heating time

15s

Heating mode

Automatic heating (preheating)

Focus mode

Six motors auto focus

Applicable fibers

SM MM DS NZDS

Splice loss

0.025db(sm) 0.01db(mm) 0.04db(ds/nzds)

Control technology

Real-time control and calibration of fusion ARC

Return loss

Better than 60db


Fiber diameter

Cladding diameter:80-150um

Coating diameter:100-1000um



Fiber cleave length

Coating less than 250um:8-16mm

Coating less than 250-1000um:16mm

Software update lengthAutomatically update,update by a key
 Boot time1 second
Built-in lightingEasy for night operation
 Tension testStandard 2N

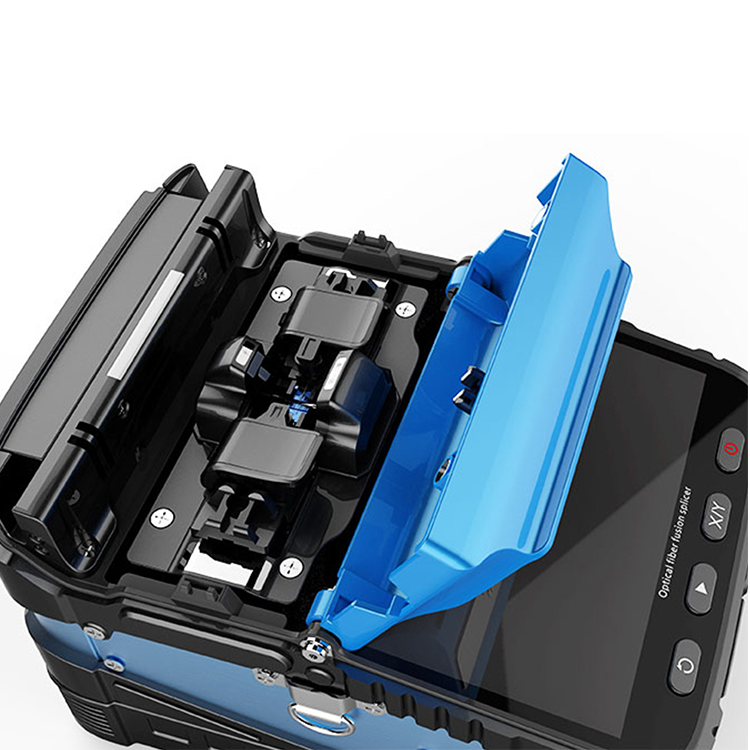

Fiber holders3 in 1 fiber holder,sm,mm,bare fiber,pigtail,rubber-insulated,multi fiber cable
 Magnification300 for x or y view,150 for x or Y view
 Screen5 inch TFT color display
Splicing ModeNormal/high precision splicing
Splicing methodFully automatic,step by step splicing
 Splicing record  storageSynchronize to the phone ,the server to cloud storage unlimited
Built-in battery7800 mA high-capacity lithium  battery,charging time<=3.5 hours

Continuous splicing and heating about 200 times

Power supplyInput AC 100-240V 50/60HZ Output DC13.5v/4A,the current power mode can be identified,real-time detection of battery power
Operating conditionsTemperature -15~+50°C ,humidity:<95% RH

(no condensation)  Working altitude:0~5000m,resist max,wind speed:<=15m/s

Shrinkable tube60mm,50mm,40mm,25mm
Product protectionWaterproof,dust proof,shock-resistant
