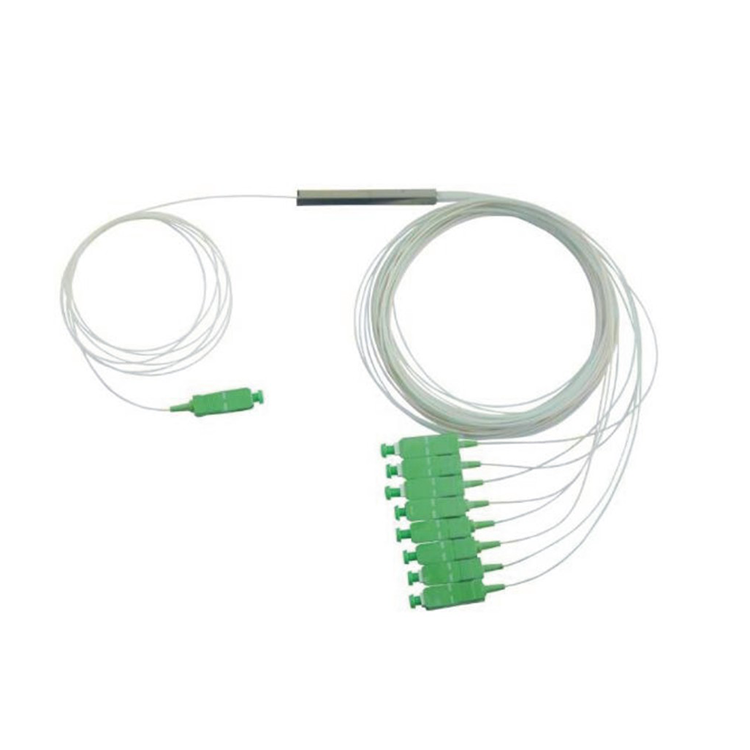

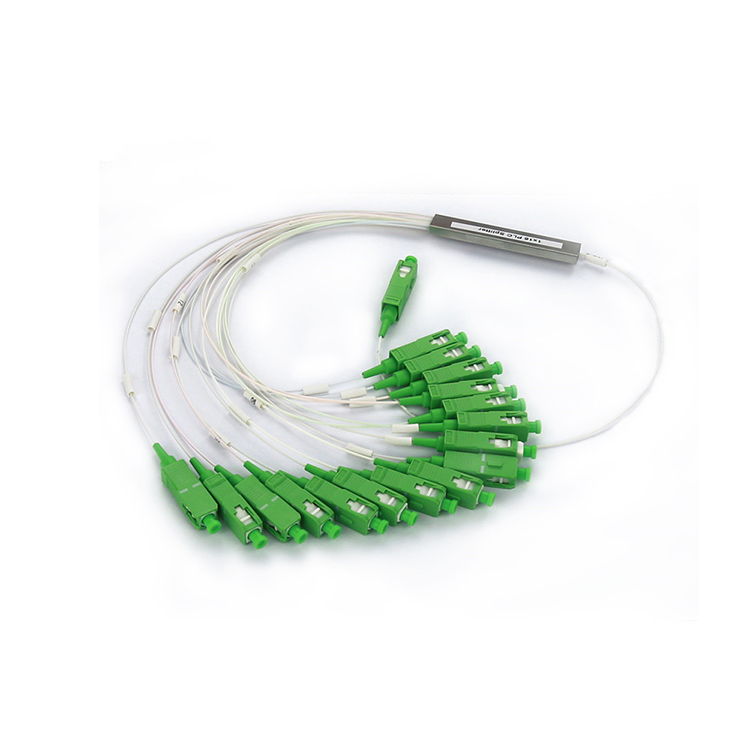

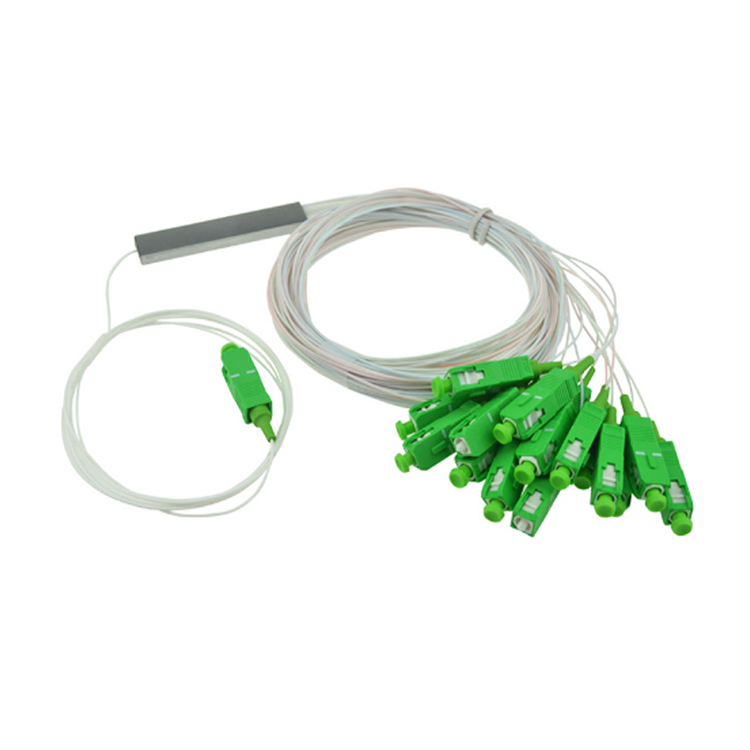

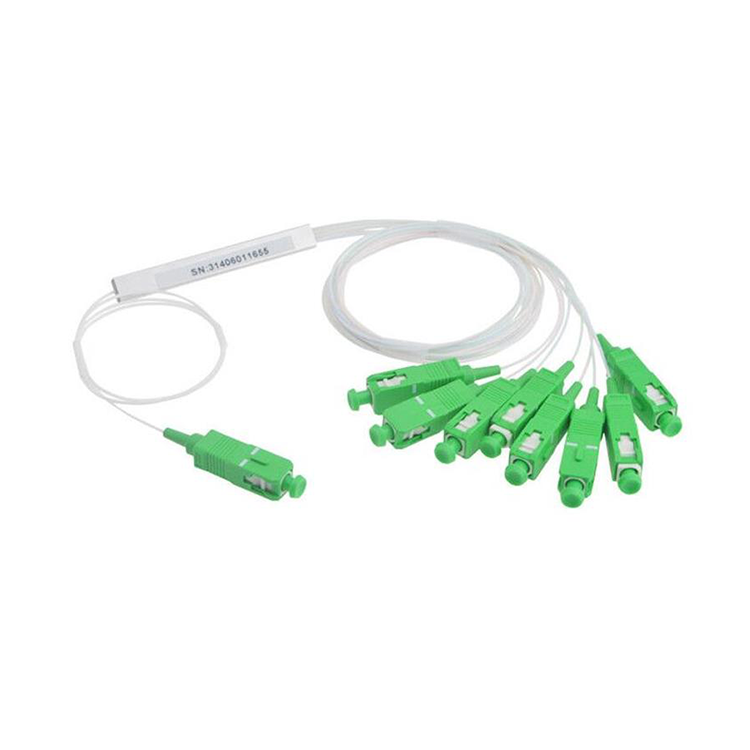

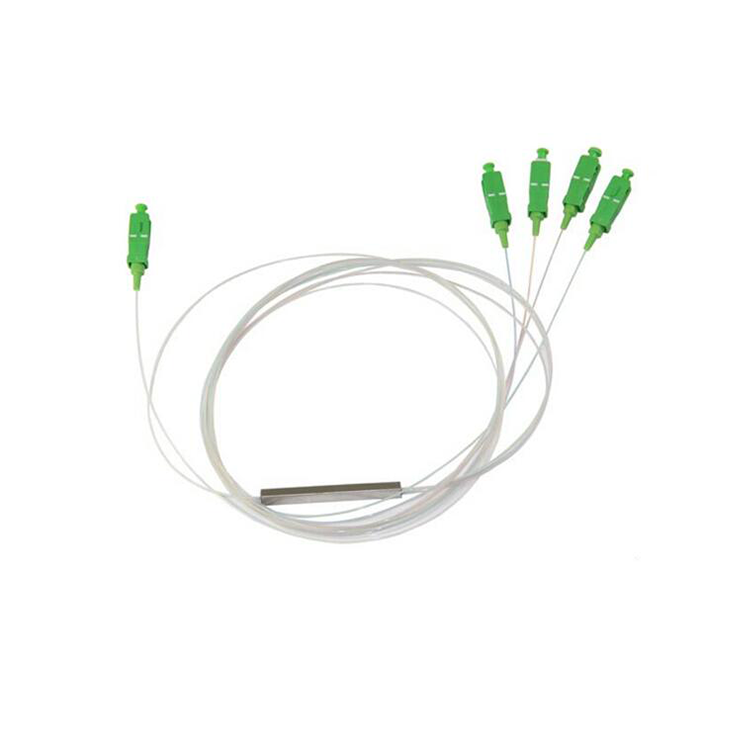

1x2,1x4,1x8,1x16,1x32 1x64 Fiber Optic PLC Splitter

1x2,1x4,1x8,1x16,1x32 1x64 Fiber Optic PLC Splitter

FTTx (FTTB, FTTH, FTTC)

Passive optical networks (PON)

Local area networks (LAN)

CATV systems

Test equipments


Share:
Inquire Now Next Product
Features

Low insertion loss

Low PDL

High return loss

Uniform power splitting

Compact design

Wide operating wavelength

Wide operating temperature

Excellent environmental &mechanical stability

Qualified under telcordia GR-1221 and GR-1209


Specifications
Number of Channels1x21x41x81x161x321x642x22x42x82x162x322x64
Operating Wavelenth1260 to 1650
P Level Insertion Loss47.410.513.71720.34.47.610.814.117.420.7
S Level Insertion Loss4.27.610.71417.317.34.67.911.21518.121.7
Uniformity0.40.60.811.21.60.811.21.51.82
PDL0.20.30.30.30.30.30.30.30.30.30.30.5
Return LossMore than 55
DirectivityMore than 55
Type of fiberITU G657A
Operating temperature-40 to 85
Pigtail length1m or 1.5m or customized
