MORE1. Optical Fiber Communication Systems
2. Optical Fiber CATV
3. Passive Optical Network (PON)
4. Optical Amplifiers
5. Optical Access Networks/LAN
6. Monitoring Systems
7. Optical Fiber Sensor
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability Telcordia GR-1221 and GR-1209

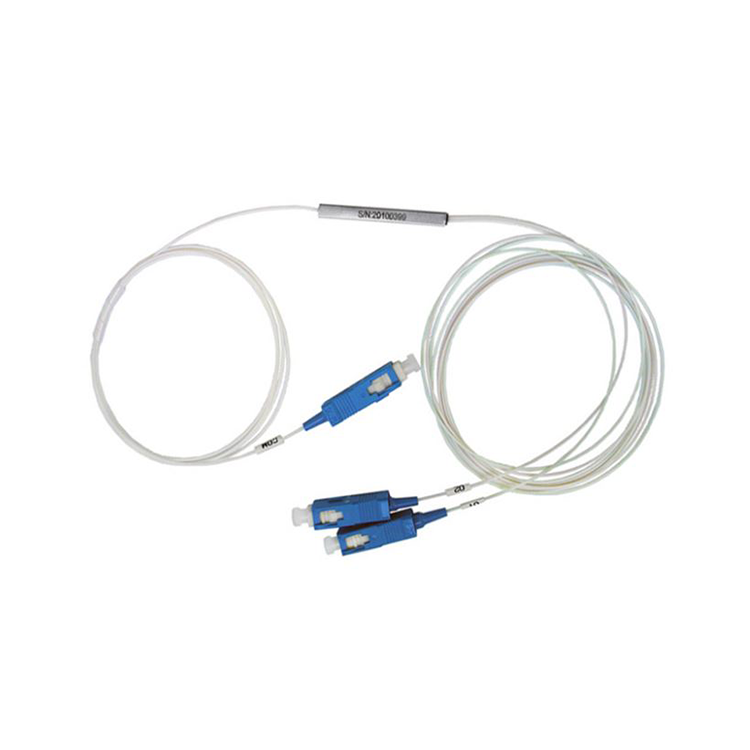

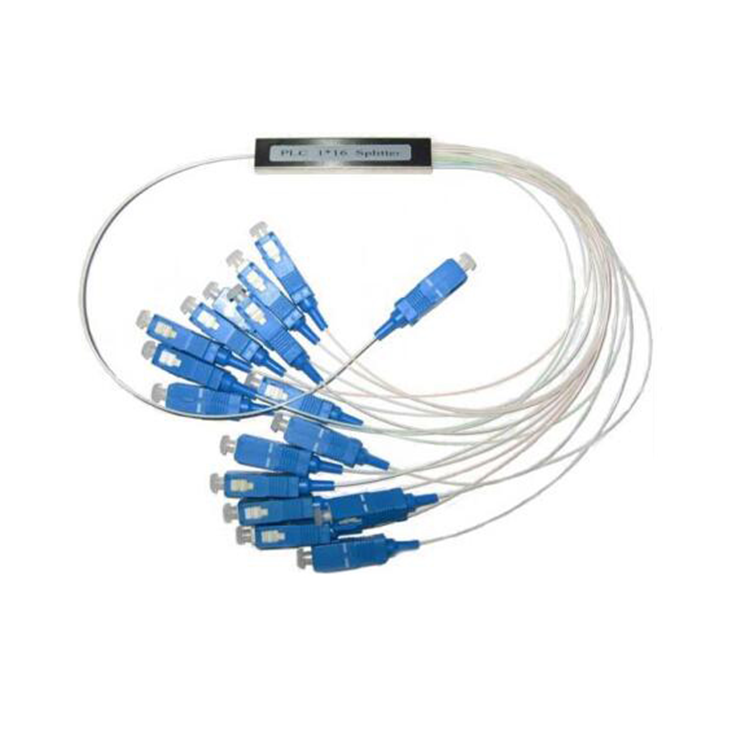

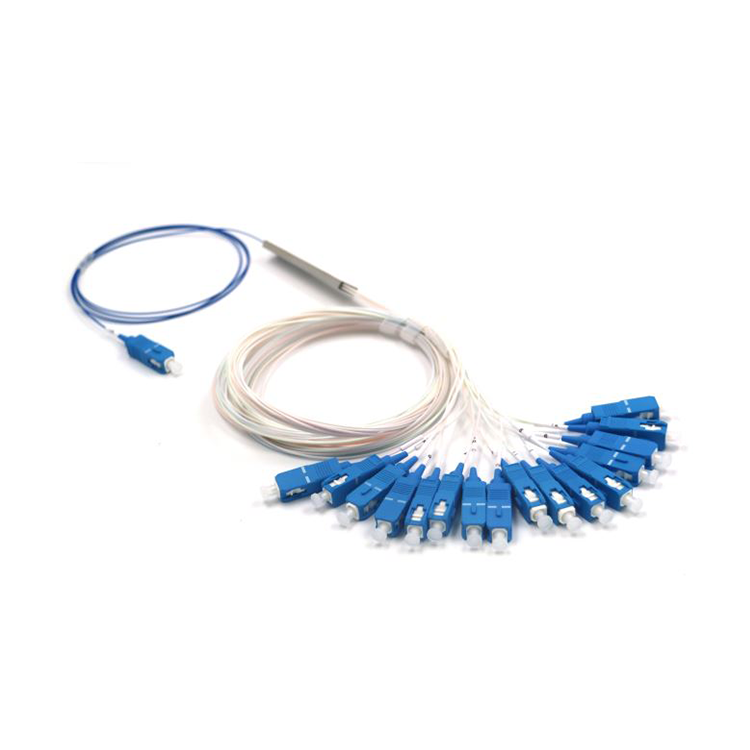

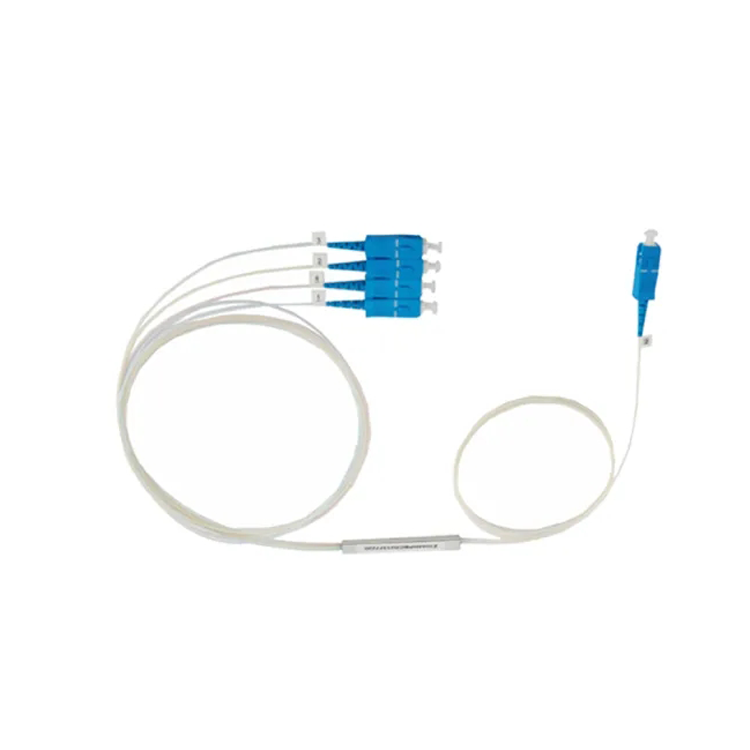

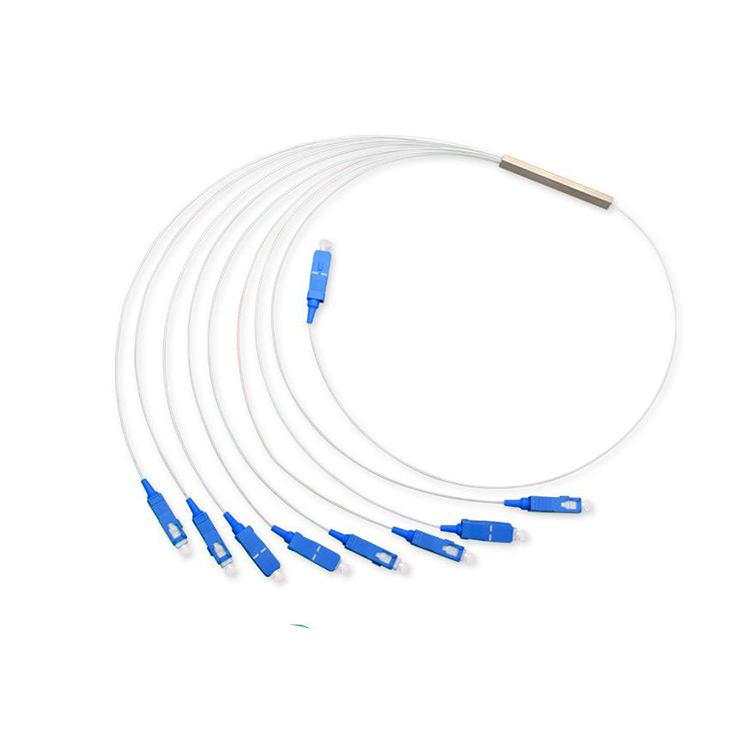

Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Operating wavelength (nm) | 1260-1650 | |||||
Fiber type | G657A or customer specified | |||||
Insertion loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
Loss uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
Return loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
Polarization dependent loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength dependent loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature stability(-40 to 85°C)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Operating temperature | -40 to 85°C | |||||
Storage temperature | -40 to 85°C |
