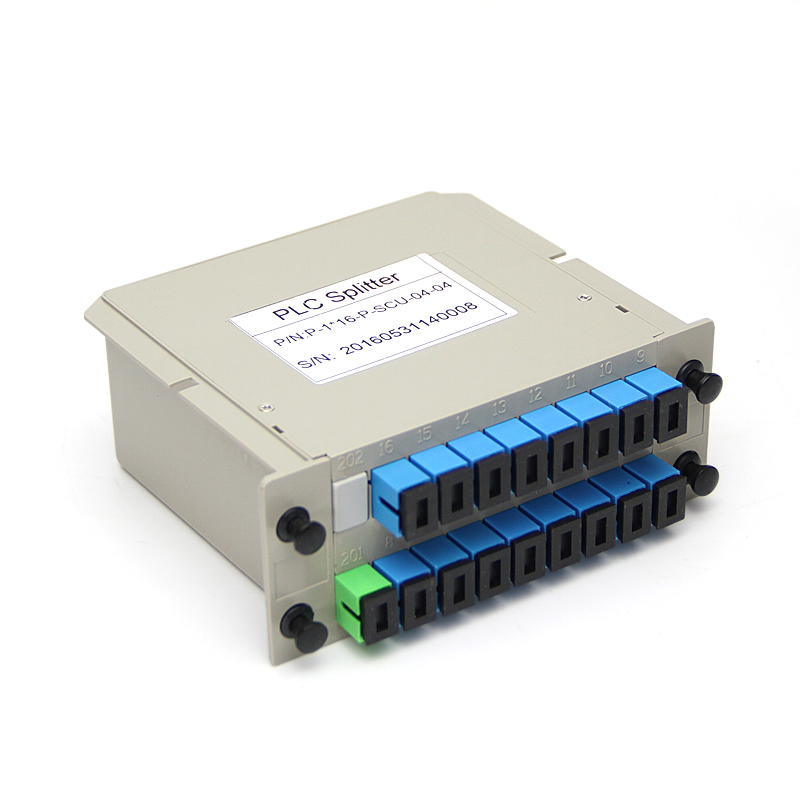

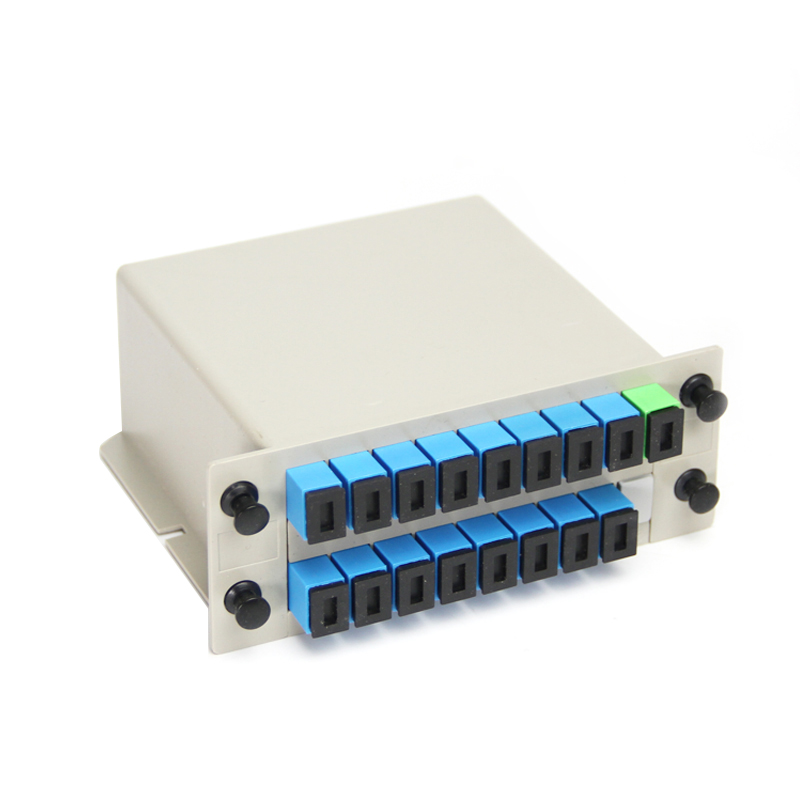

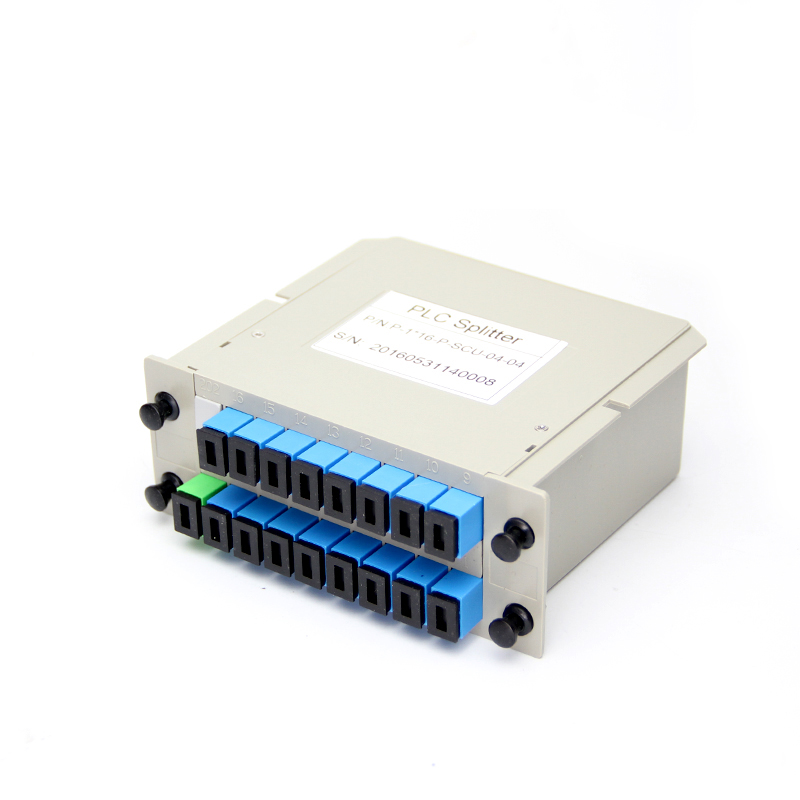

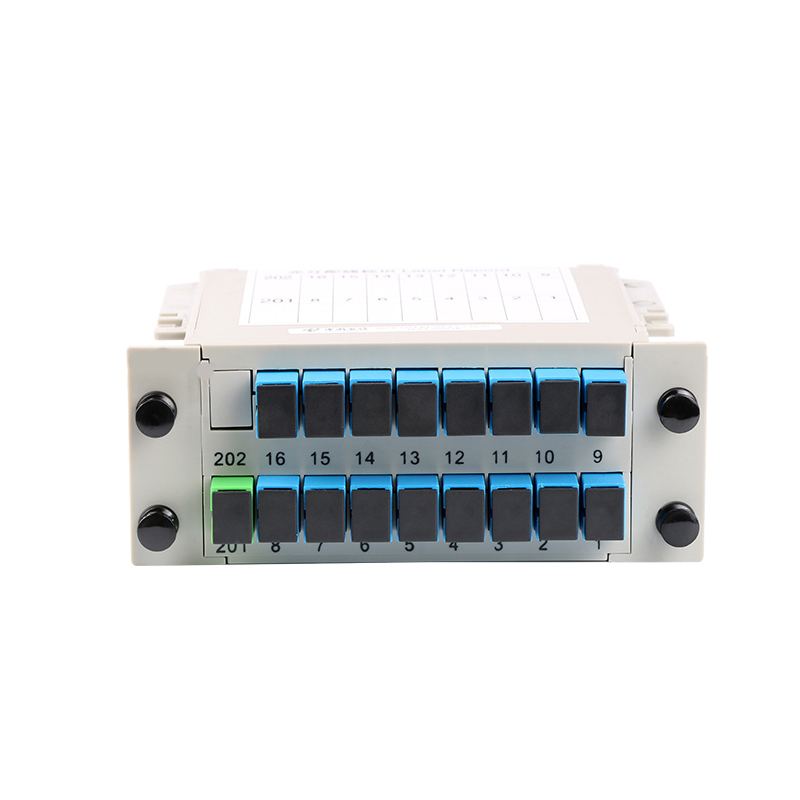

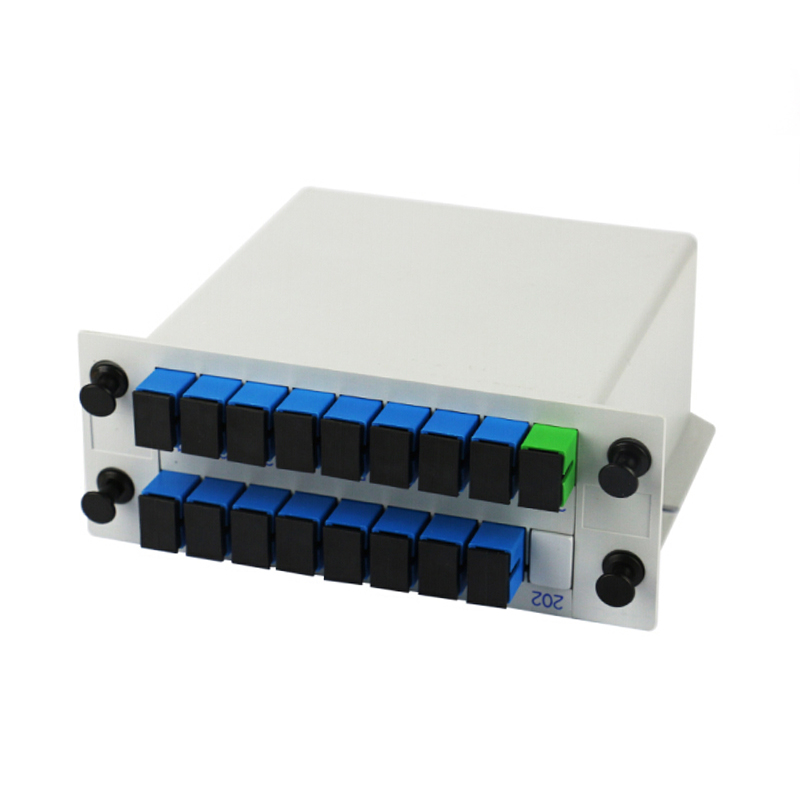

SC UPC 1X16 Optical Fiber Splitter

PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.


Share:
Features

Low Insertion loss and Low PDL

Uniform power splitting

High reliability

Excellent environmental stability

Compact size and various package


Applications

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applictaions in fiber optic systems


Specifications
Types 1x21x41x81x161x32
Test wavelength

1310nm

Working wavelength

1260nm~1650nm

Interface model

SC/UPC

Insertion loss (dB) (P/S level)

3.8/4.0

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.9

Loss uniformity (dB)

0.4

0.6

0.8

1.21.5
Return loss (dB) (P/S level)

55/50

55/5055/5055/5055/50
Polarization dependent loss (dB)

0.2

0.20.20.250.25
Directionality (dB)

55

55

55

55

55

Wavelength dependent loss (dB)

0.3

0.3

0.3

0.3

0.3

Temperature stability (dB)

0.4

0.4

0.4

0.4

0.4

FeaturesGood temperature stability
Low insertion loss, high return loss
Good interchangeability, good repeatability
