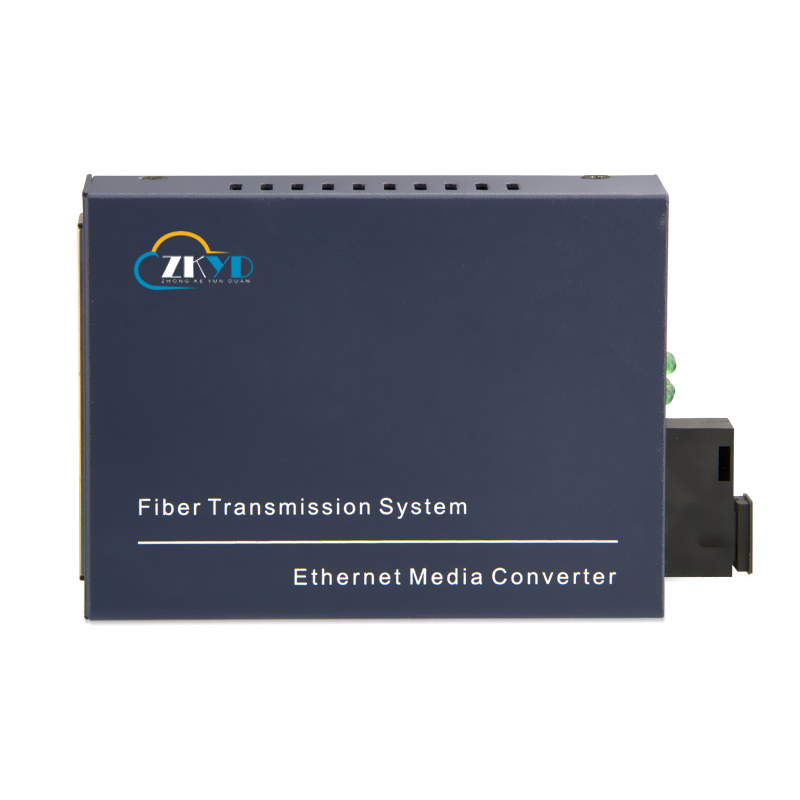

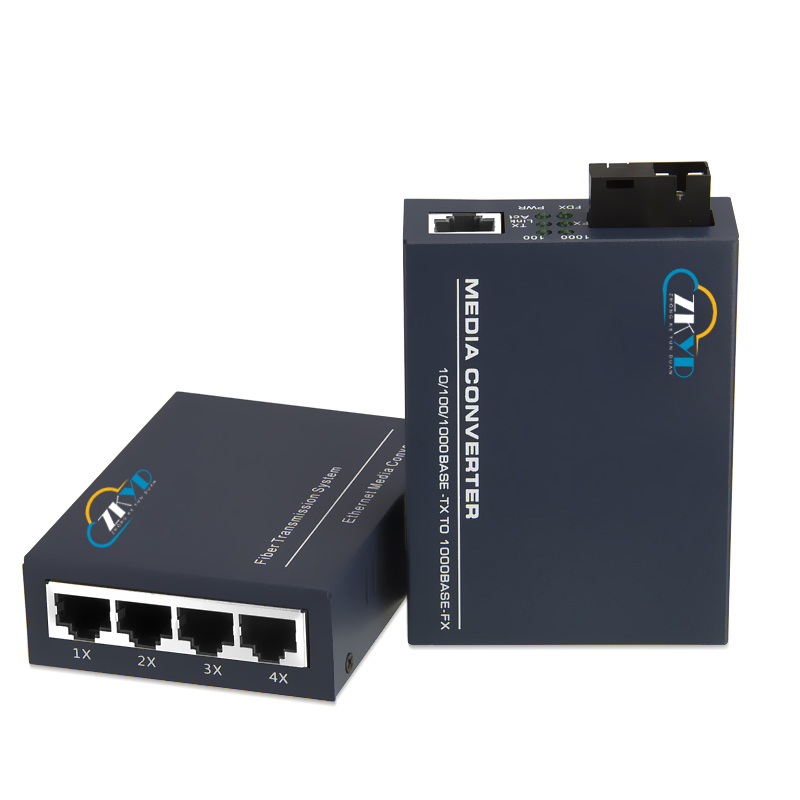

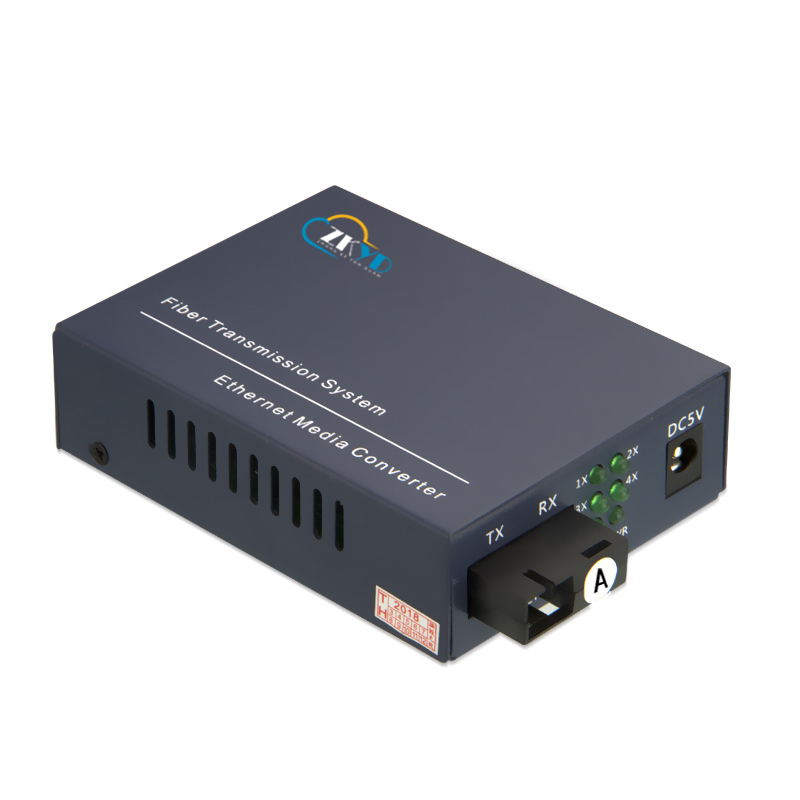

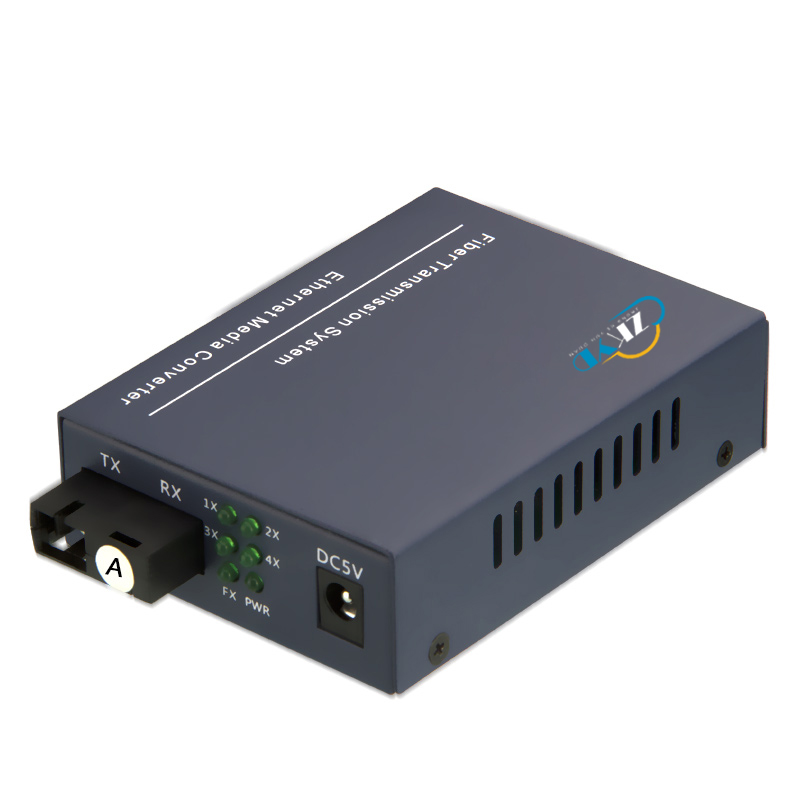

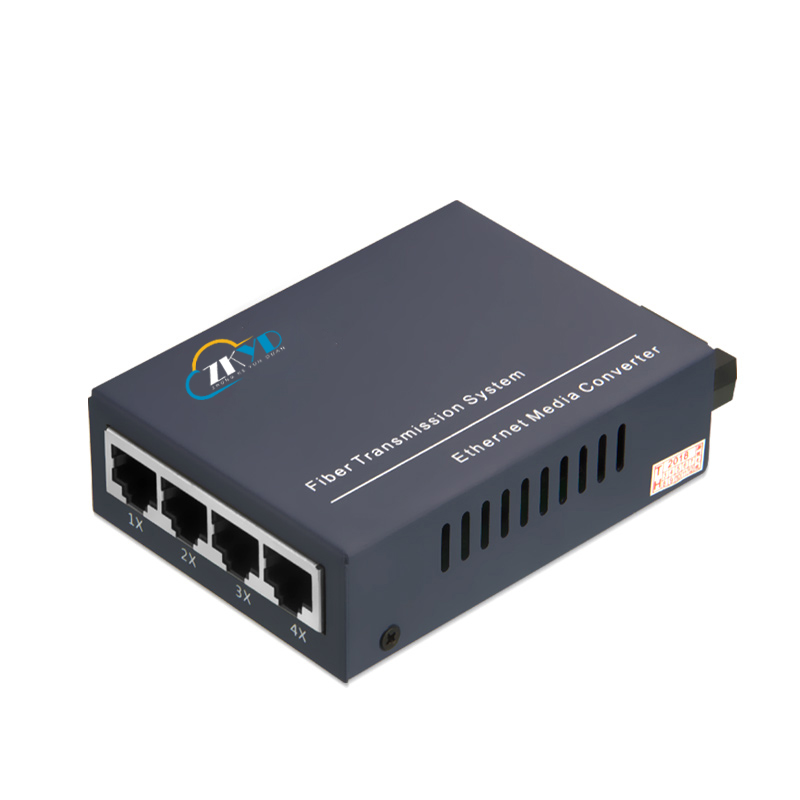

10/100/1000M 1 Fiber Port +4 RJ45 Port Fiber Optic Media Converter

Optical Fiber Media Converter is a kind of quick enthernet Media Converter with the function of photo electricity switch over between 10BASE-TX or 100BASE-TX and 1000BASE-FX.

It can extend the conventional 10M Ethernet or 100M Quick Ethernet to 120KM via the quick Ethernet Fiber-optical Line. The stable and reliable switch supply enables long-term operation and makes it convenient to replace the power supply.

Full-duplex and half-duplex optional. The configuration of DTE and MPR functions makes it convenient to connect the similar products.


Share:
Features

1, Provide one fiber connector and one UTP connector
2, Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.2ab 1000Base-TX, IEEE802.3z 1000Base-FX standard
3, Auto-detection of half/full duplex transfer mode for TX port
4, Auto-negotiation of 10/100Mbps rate and Auto-MDI/MDIX for TX port
5, Provide switch configuration of half/full duplex transfer mode for FX port
6, Extend fiber-optic distance up to 120km with single-mode fiber
7, Easy-to-view LED indicators provides status to easily monitor network activityInternal power supply

Specifications

Size

95 * 70 * 27mm

Transmission rate

10/100/1000Mbps

Fiber type

Single mode single fiber

shell material

Frosted metal

Interface Type

SC

 Support

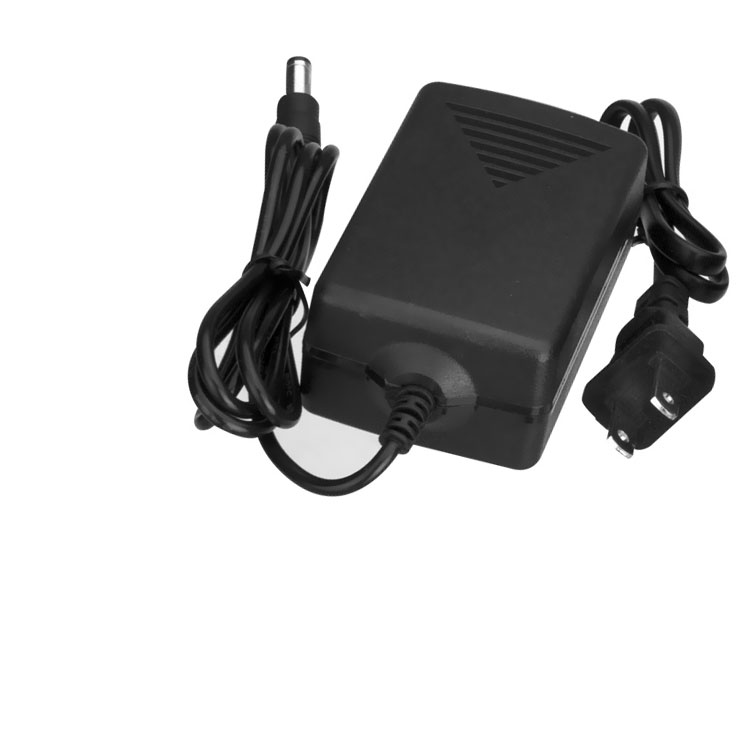

2 transceivers, 2 power, 1 manual
