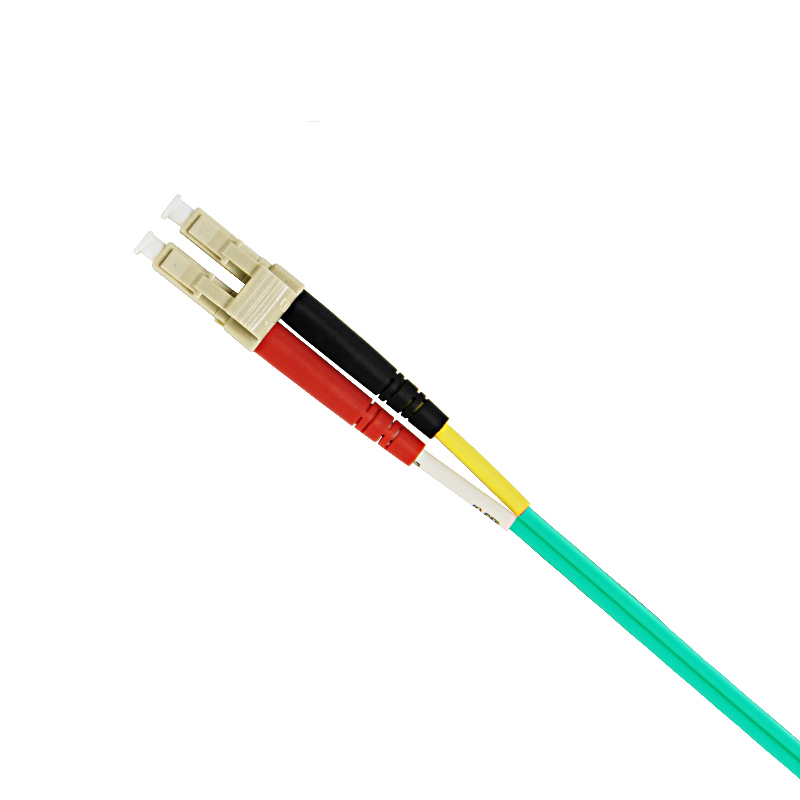

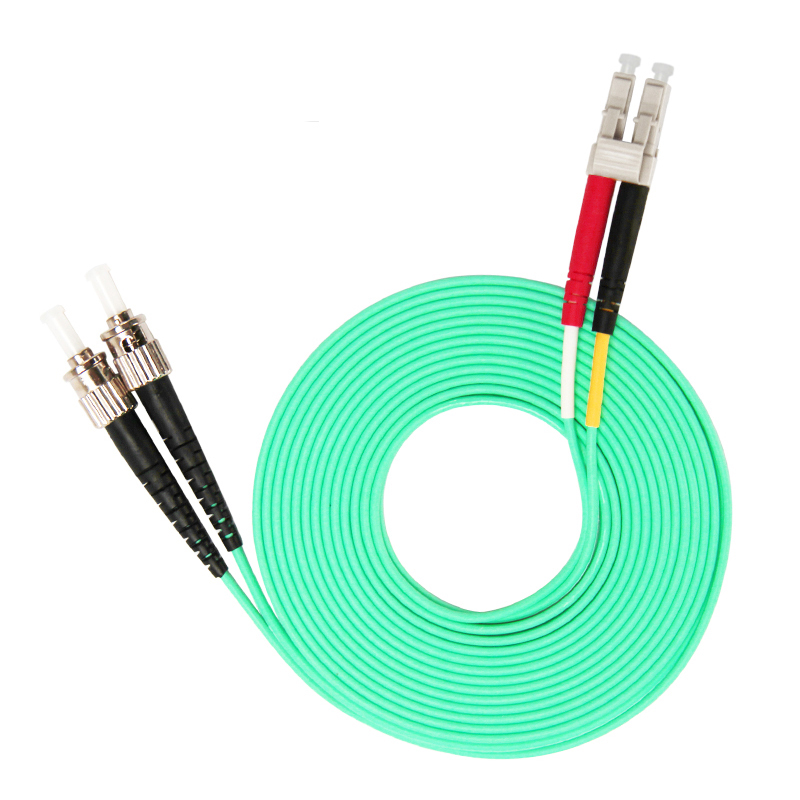

10 Gigabit Multi Mode LC TO ST Fiber Optic Patch Cord

1) Connector type: FC, SC, LC, ST

2) Ferrule End-face: PC, UPC, APC

3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4) Cable Quantity: Simplex, Duplex

5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm

6) Cable Length: 3,5,10,15 meter or customized

7) Cable type: PVC, LSZH.Armored

8) patch cord/pigtailSupport Ordering Parameters:

Inquire Now Next Product

Features

1)Low Insertion loss

2)High return loss

3)Good Repeatability

4)Good Interchange

5)Excellent Environmental Adaptability

Application

1)Communication rooms

2)FTTH (Fiber to The Home)

3)LAN (Local Area Network)

4)FOS (fiber optic sensor)

5)Fiber Optic Communication System

6)Optical fiber connected and transmitted equipment

7)Defense combat readiness

Specifications

onnetor Type	FC-FC FC-SC FC-LC FC-ST LC-LC LC-SC LC-ST SC-SC SC-LT ST-ST
Number of plugs	>1000 times
Tensile strength	≥200N
Bending radius	>3.8cm
Light decay	<0.1dB
Repeatability	Less than 0.2dB
Exchangeability	Less than 0.1dB
Length	3M or Customized
Wavelength	1310nm or 1550nm
Fiber	10G OM3
Fiber	10G OM4
Connector	LC,FC,SC,ST
Insertion Loss	Less than 0.3dB
Return Loss	UPC ≥ 50dB
	SPC ≥ 55dB
	APC ≥ 60dB (typ.65dB)
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
