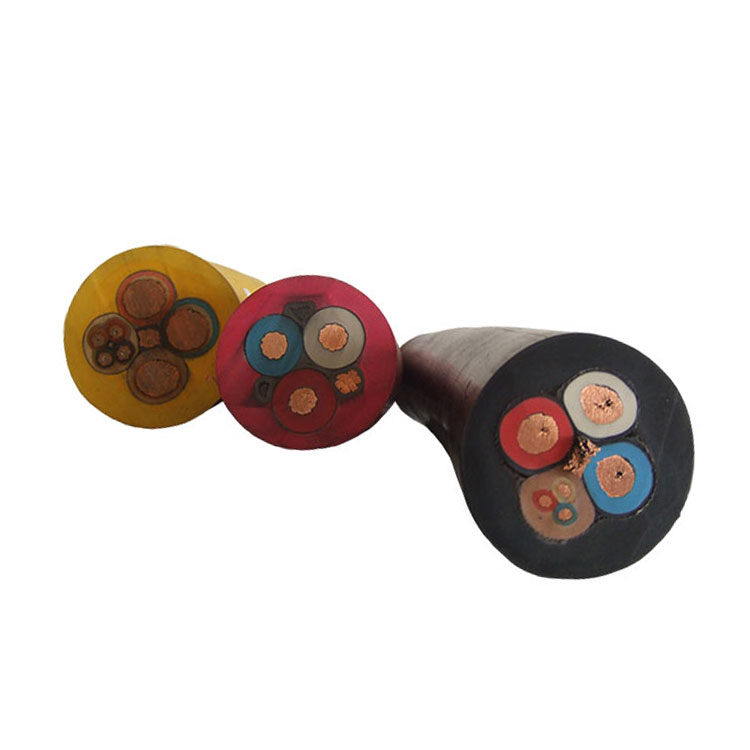

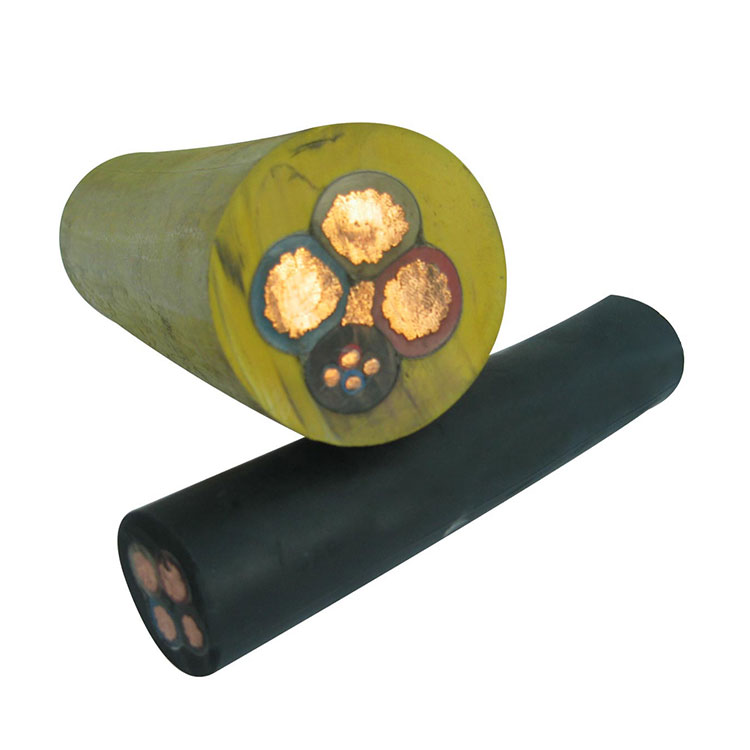

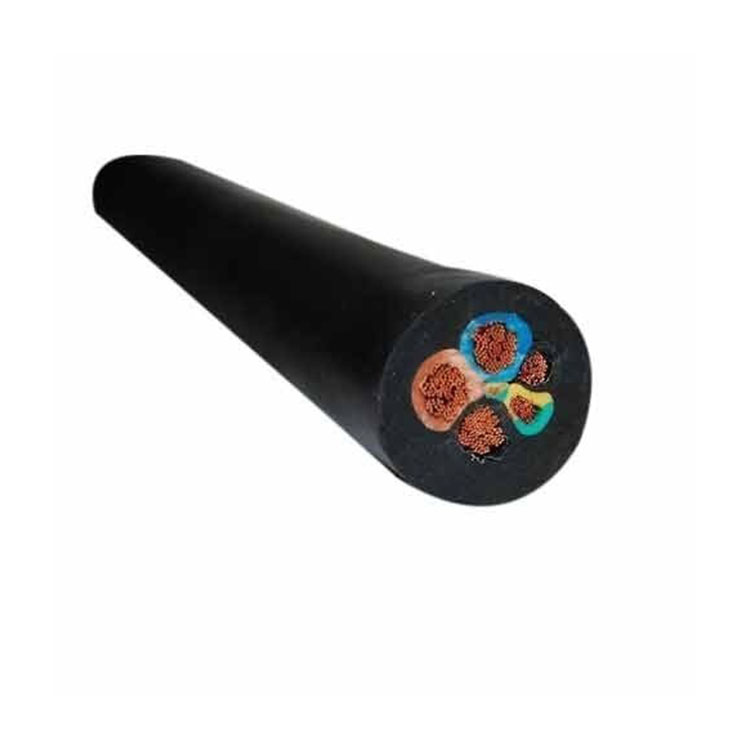

Power Flexible Mining Cable

Rubber Insulated Flexible Mining Cable APPLICATION
Mining cables are often used to transport power deep into a mineshaft for powering and controlling mining equipment. They're often subjected to mechanical abuse, extreme weather, extreme temperatures, moisture, abrasion, corrosive agents and highly explosive atmospheres. Due to the unforgiving environment, special standards are mandated for cables and electrical distribution in both open-pit and underground mining.

Inquire Now Next Product

Features

Rubber Insulated Flexible Mining Cable STANDARD

MT 818-1999 MT386-95 BS6708 ICEA UL MSHA CSA

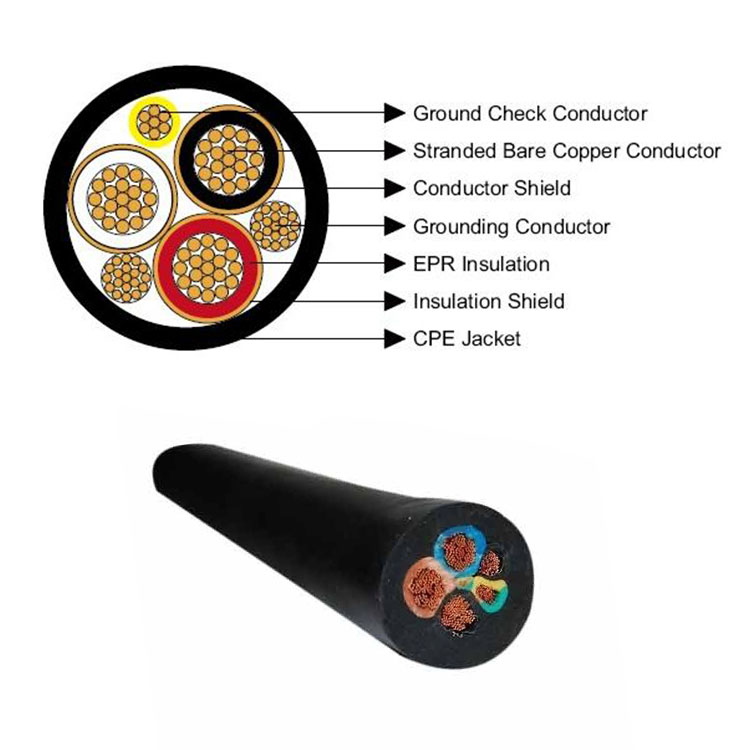

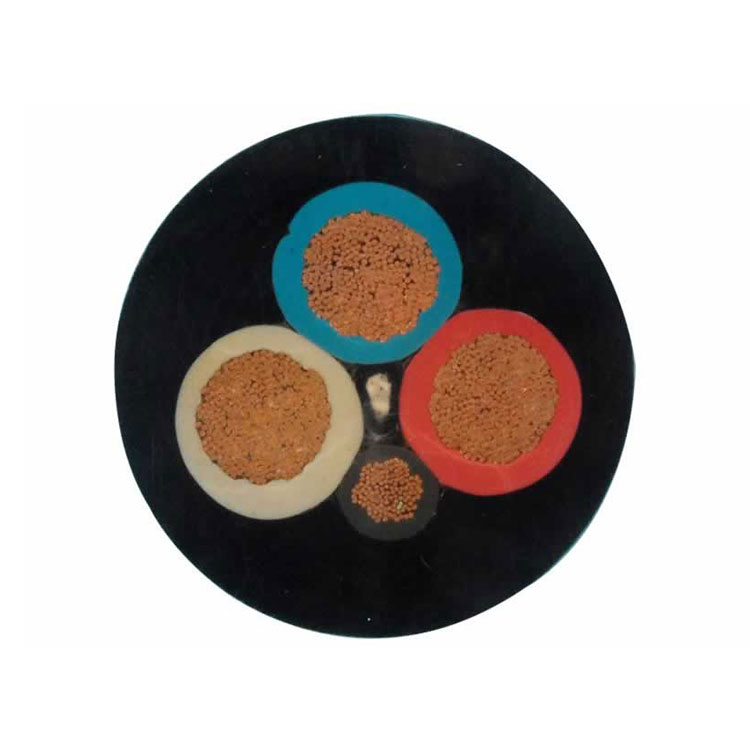

Rubber Insulated Flexible Mining Cable CONSTRUCTION

Conductors: Flexible Tinned Copper

Insulation :90C Ethylene-Propylene Rubber (EPR)

Ground Wires: Flexible Tinned Copper

Ground Check Conductor: Flexible Tinned Copper with yellow insulation

Jacket: Reinforced CPE with permanent surface marking

Specifications

Type	Description	Application
MC-0.38/0.66	Rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCP-0.38/0.66	Shielded, rubber-sheathed flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCP-0.66/1.14	Shielded, rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCPJB-0.66/1.14	Shielded ,monitoring and braiding reinforced type, rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV, it can be dragged directly
MCPJR-0.66/1.14	Shielded ,monitoring and braiding reinforced type, rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV, it must be used in the protective chain panel
MCPT-0.66/1.14	Metallic shielded rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV
MCP-1.9/3.3	Shielded rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MCPT-1.9/3.3	Metallic shielded rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MCPTJ-1.9/3.3	Metallic shielded, monitoring type, rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MY-0.38/0.66	Movable rubber flexible cable for mining	As the power connection used in the mining machine with rated voltage 1.9/3.3kV
