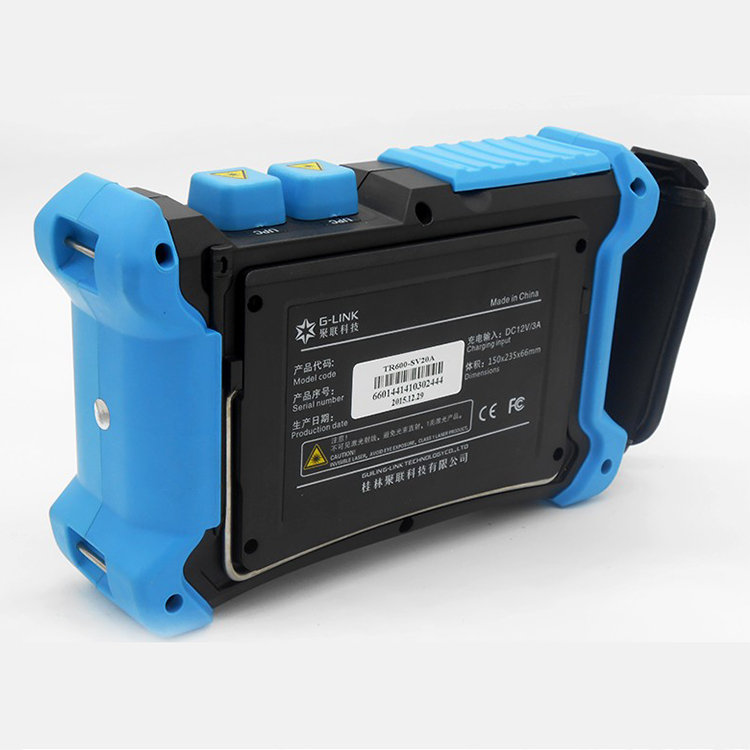

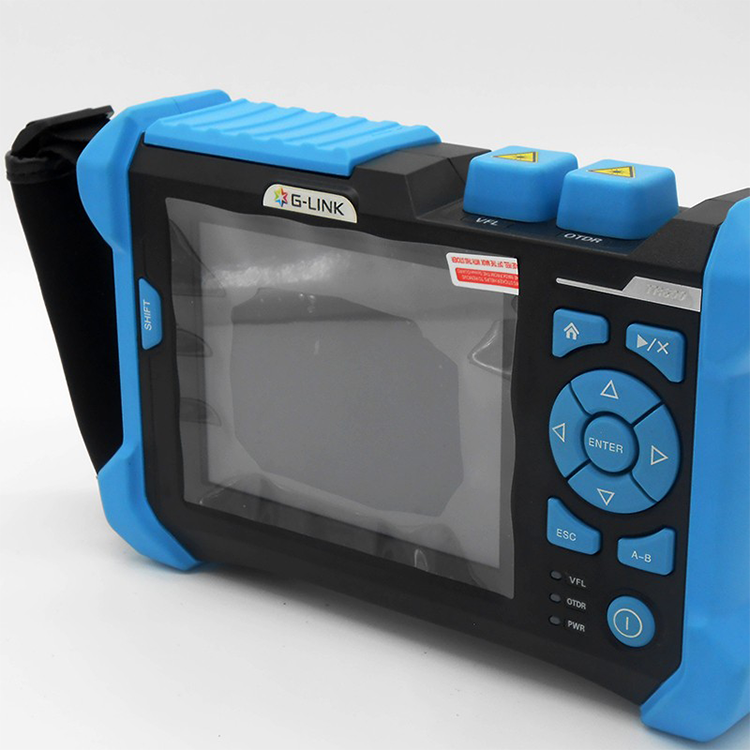

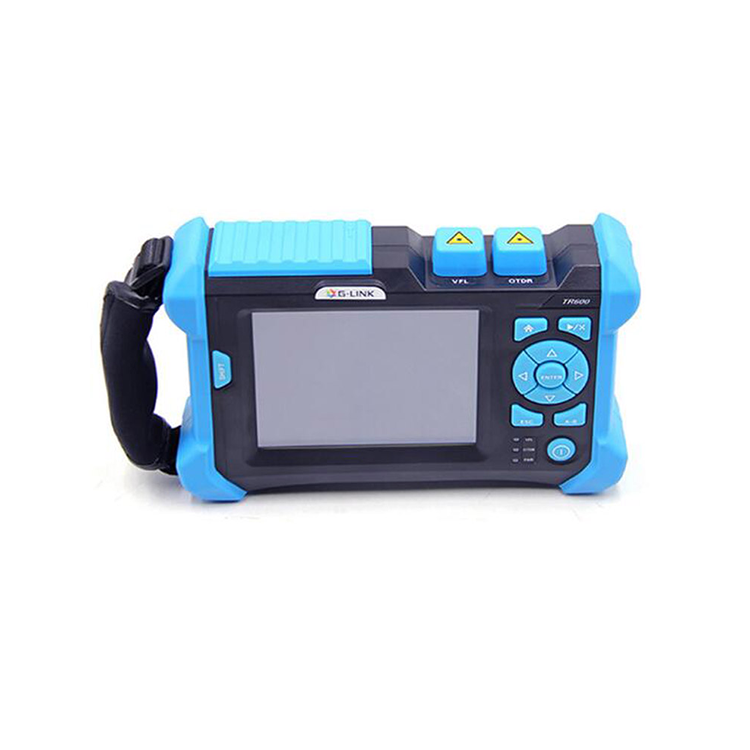

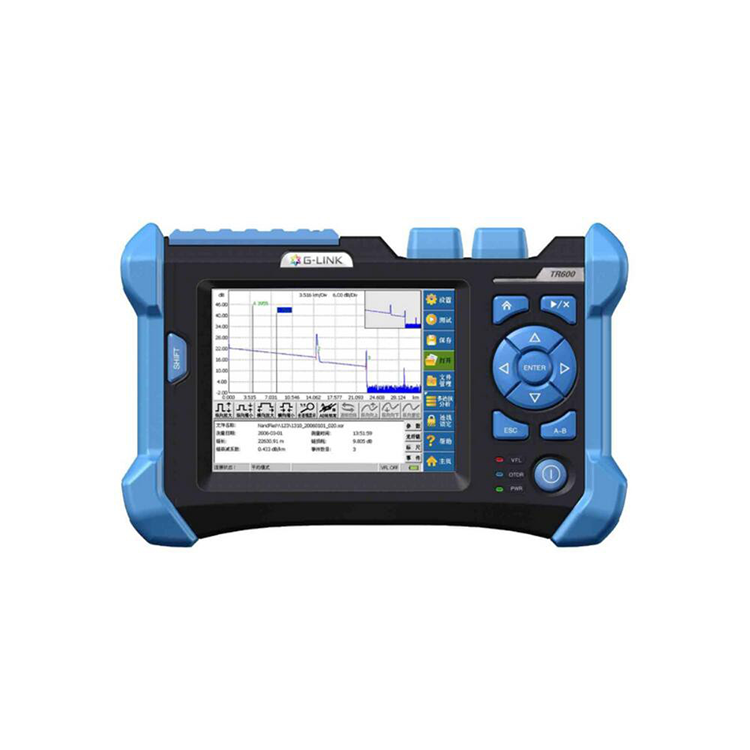

G-Link TR600 Fiber Optic OTDR

It is an ideal test instrument for the fiber testing and troubleshooting. It can test the length of optical fiber and optical fiber cable attenuation coefficient. It can exactly display the loss distribution curve of the optical fiber and cable as well as the loss between two points and the joint loss. It also can test the distance between two points and the position of joint, fault point as well as breaking point. This tester has VFL (Vision Fault Locating) system. So it becomes convenient to test the fault location of jumper wire.

Share:
Specifications

Dynamic range

32/30dB, 1310/1550nm

Event Dead Zone

< 2m

Distance uncertainty

±(0.75m + sample space + measurement distance×0.003%)

Sampling resolution

0.05,0.1,0.2,0.5,1,2,4,8,16m

Distance range

0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512km(SMF);
0.4,0.8,1.6,3.2,6.4,16,32 (MMF of 850nm)

Pulse width

5,10,30,80,160,320,640,1280,5120,10240,20480ns
5,10,30,80,160,320,640,1280 (MMF of 850nm)

Loss threshold

0.01dB

Sampling points

Up to 128k

Linearity

0.05dB/dB

Loss resolution

0.001dB

Memory capacity

≥800traces(build-in)
≥65500traces(1GB SD storage)

Group refractive index setting

1.00000 to 2.00000 (0.00001steps)

Distance unit

km, m, kft, ft

Display

640×480, 6.5 inch TFT-LCD (touch screen)

Interface

USB, SD

Optical connector

FC/SC/LC (universal connector)

Optical Power Meter

Wavelength range: 1270nm to 1700nm
Measurement exfiber range: -60 to +3dBm
Measurement accuracy: 5% ( -10dBm, CW)

Power supply

AC adapter 100 to 240V, 50/60Hz, 1.5A
DC:19V±2V(2A)
Built-in Lithium battery: 4400mAh, operating time ≥8 hours
