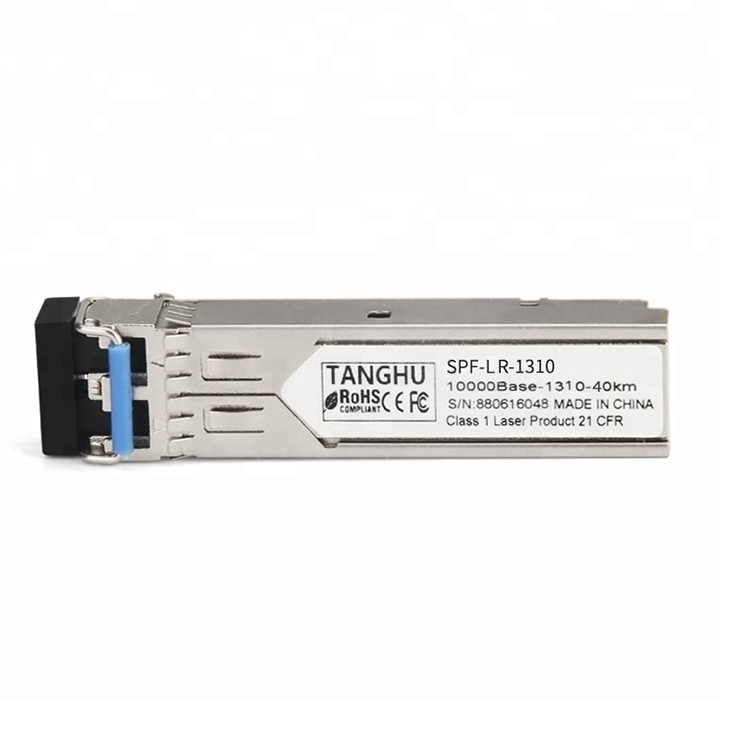

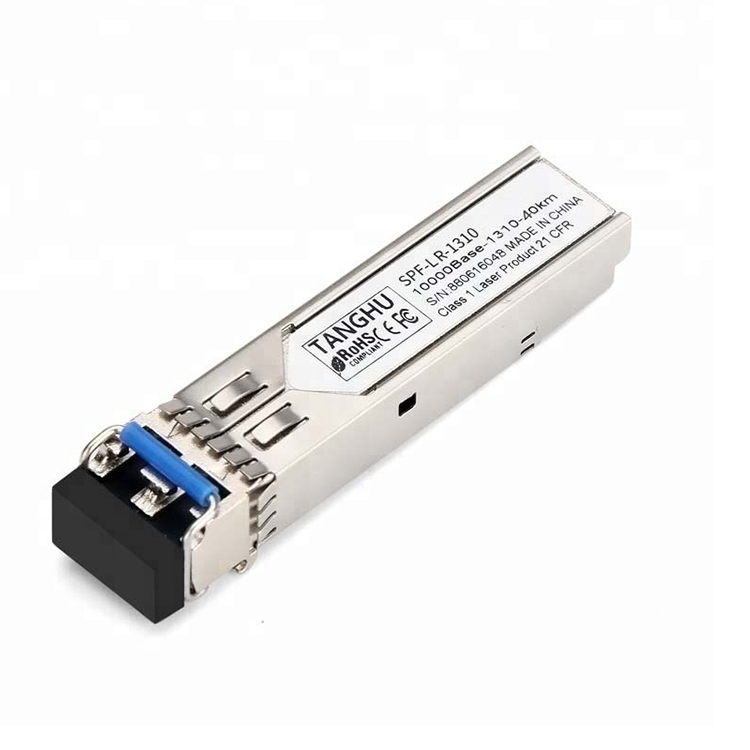

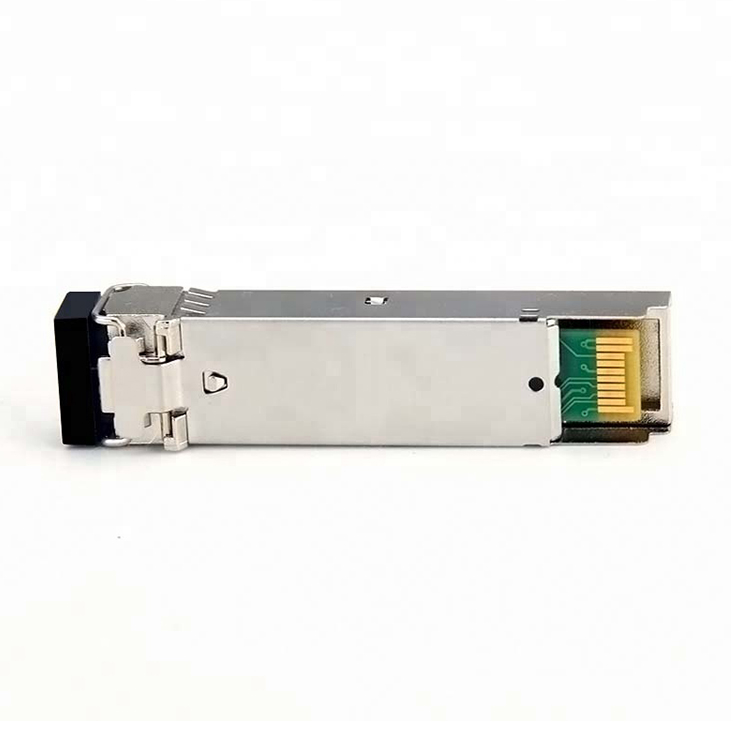

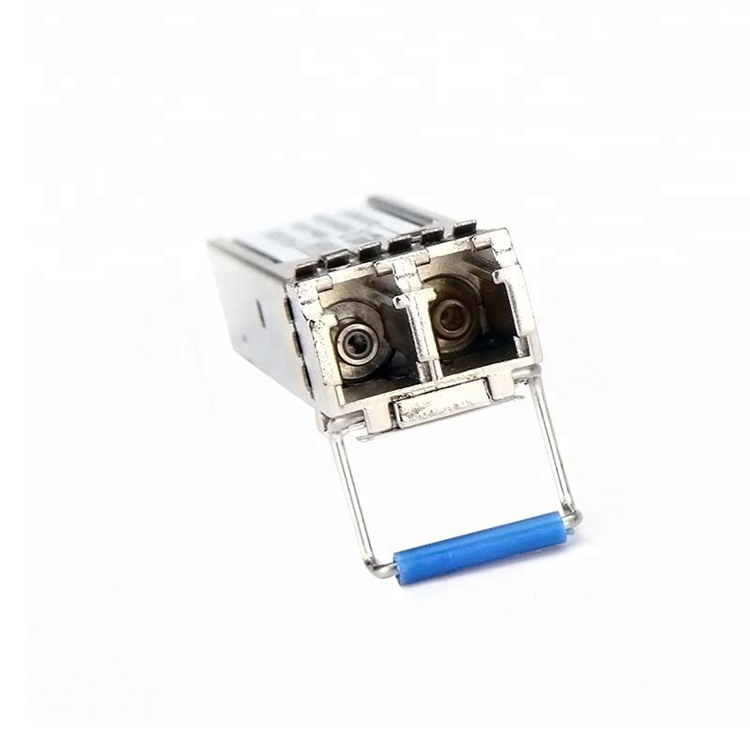

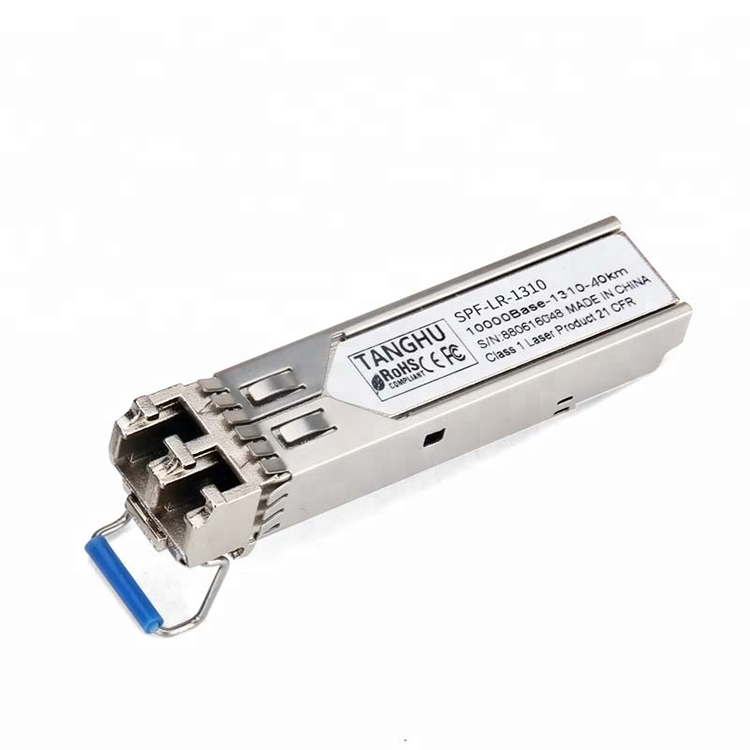

40KM 10G LC Connector Dual Fiber SFP Module

This 10GBase-LR 1310nm DFB SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length of 20/40/60km.

Share:
Features

1.Optical interface compliant to IEEE 802.3ae 10GBASE-LR

2.Electrical interface compliant to SFF-8431

3.1310nm DFB transmitter, PIN photo-detector

4.Applicable for 10km/20km SMF connection

5.All-metal housing for superior EMI performance

6.Advanced firmware allow customer system encryption information to be stored in transceiver

7.Cost effective SFP+ solution, enables higher port densities and greater bandwidth


Applications:

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other optical links


Specifications
Data Rate10GFiber ModeSingle Mode Fiber (SMF)
Types of InterfaceLCTypes of LaserDFP
Operating TemperatureStandard 0~70°C Operating Humidity0%~90% RH (non condensing)
Transmission distance20/40/60kmModes of CommunicationsDuplex
Wavelength1310nmConditionNew
Receiver Sensitivity<-14.4dBmExtinction Ratio>3.5dB
Saturated Optical Power-3dBmPower Consumption<2W
Weight0.024kgPower Supply+3.3V
Hot Pluggable Times200Average Output Power-8.2 ~ -0.5dBm
