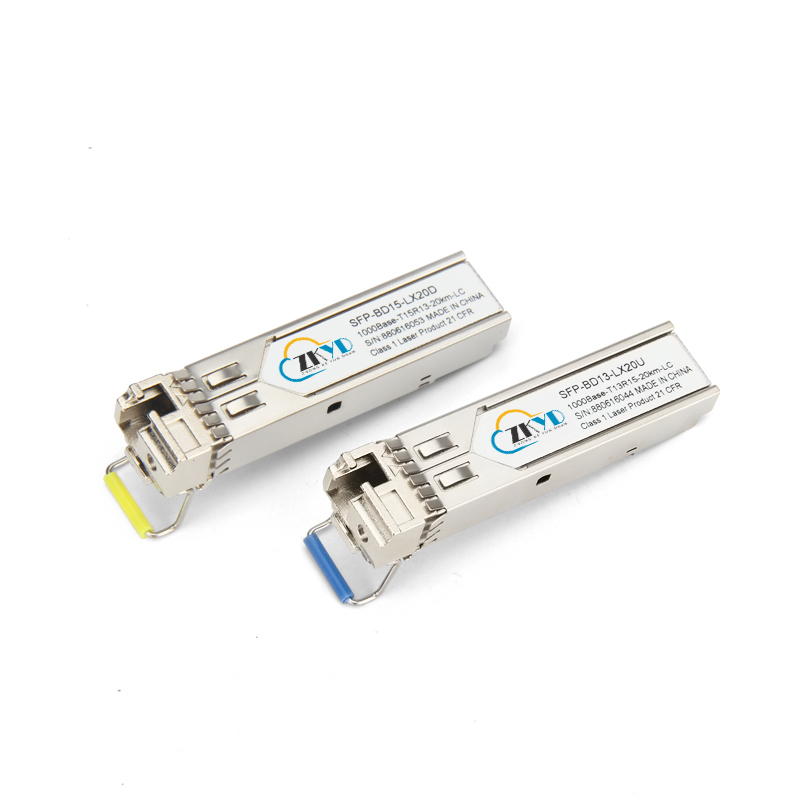

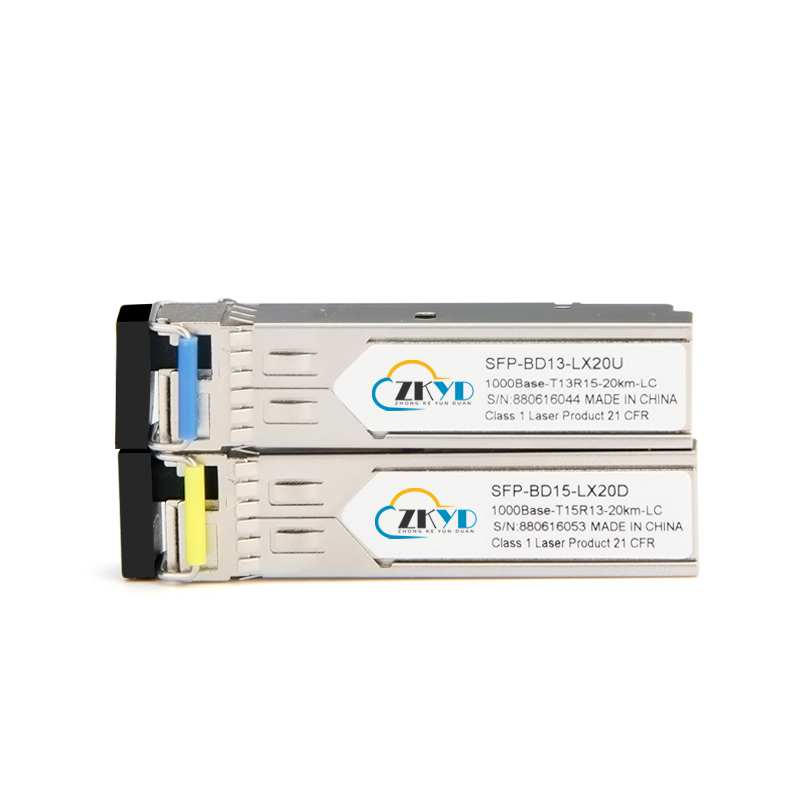

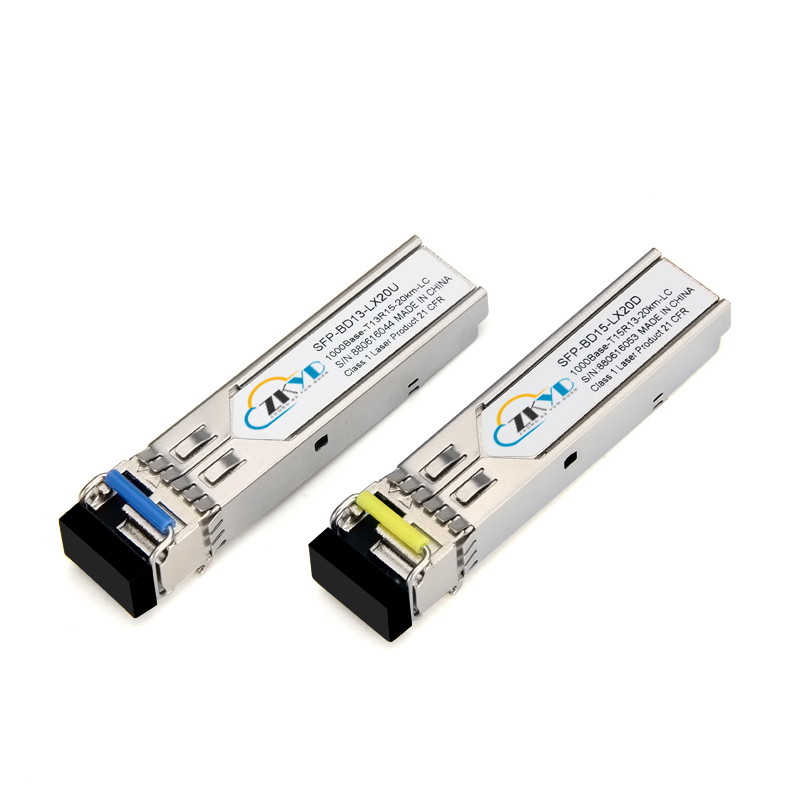

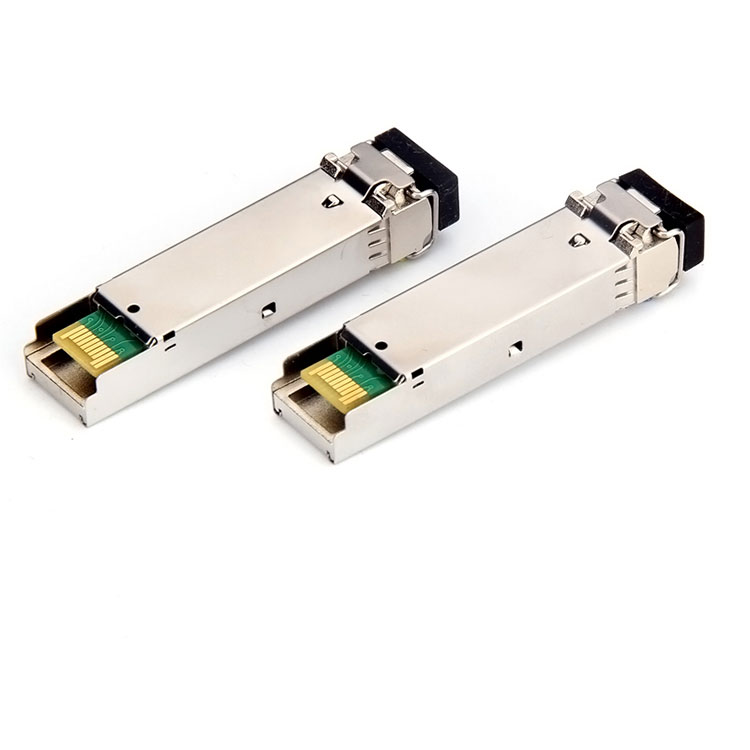

20KM 1000M LC Connector Single Fiber SFP Module

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Inquire Now Next Product

Features

1.Dual data-rate of 1.25Gbps/1.063Gbps operation

2.1310nm DFB laser and PIN photo detector for 3/20/30/40/60/80km transmission

3.Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

4.Digital Diagnostic Monitoring: Internal Calibration or External Calibration

5.Compatible with SONET OC-24-LR-1

6.Compatible with ROHS

7.+3.3V single power supply

8.Operating case temperature:Standard: 0 to +70°C

Applications

1.Gigabit Ethernet

2.Fiber Channel

3.Switch to Switch interface

4.Switched backplane applications

5.Router/Server interface

6.Other optical transmission systems

Specifications

Data Rate	1.25G	Fiber Mode	Single Mode Fiber (SMF)
Types of Interface	LC	Types of Laser	DFB/FP
Operating Temperature	Standard 0~70°C	Operating Humidity	0%~90% RH (non condensing)
Transmission distance	3/20/30/40/60/80km	Modes of Communications	Simplex
Wavelength	1310nm TX/1550 nm RX	Types of Multiplexing	BIDI WDM
Receiver Sensitivity	<-23dBm	Extinction Ratio	>9dB
Form Factor	SFP BIDI	Power Consumption	<3W
Weight	0.024kg	Power Supply	+3.3V
Hot Pluggable Times	200	Average Output Power	-5 ~ -0dBm
