MOREOPM,OLS in one device
PM with 850/1300/1310/1490/1550/1625nm
Measure optical attenuation
Energy save mode;
Reference value setting for every single wavelength;
Power autonomy of 100 hours

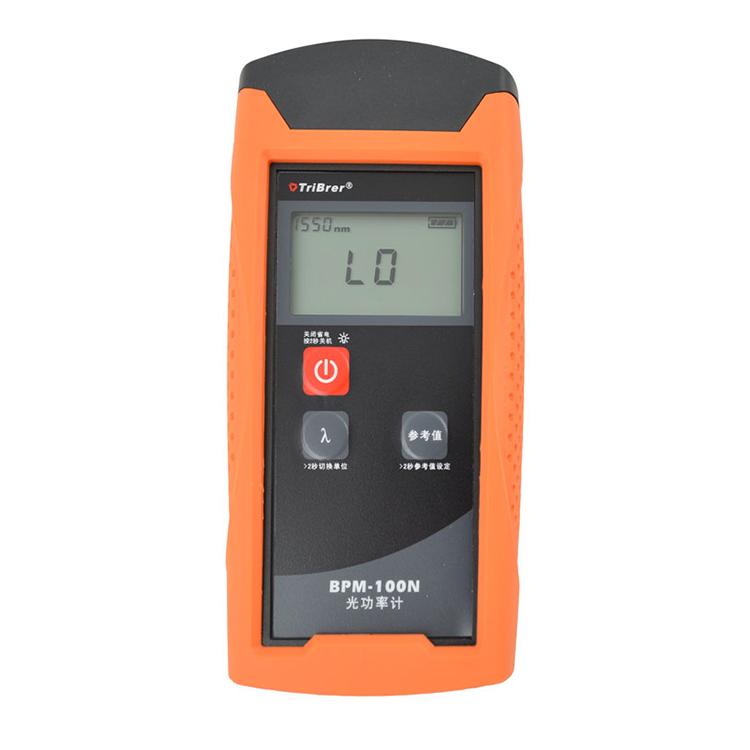

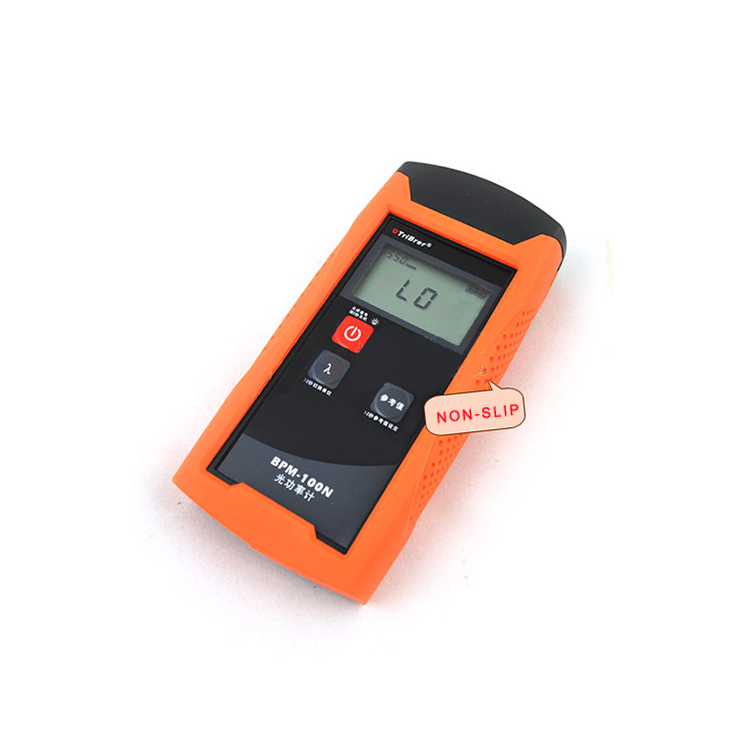

Model | BPM-100NC |
Wavelength response | 700nm-1700nm |
Measuring range | -50 dbm+26 dbm |
Linearity | -2%-+2% |
Calibration wavelength | 850nm/1300nm/1310nm/1490nm/1550nm/1625nm |
Display accuracy | 0.01dB(±2%) |
Connection Type | FC/Universal connector type |
Fiber type | SM MM |
Display | LCD |
Display unit | db dbm mw uw nw |
Display information | Power value, selected wavelength, battery power |
Power off automatically | 10 minutes automatic shutdown |
type of battery | Type A alkaline or rechargeable battery 2 sections |
Continuous working time | >160H |
Charging | Charging function |
Storage temperature | -20--+70C |
Operating temperature | -10---+60C |
Detector type | INGAAS |
Relative humidity | <90% no condensation |
Working elevation | <2500m |
Weight | 174g |
Dimensions | 140mm*62mm*32mm |
