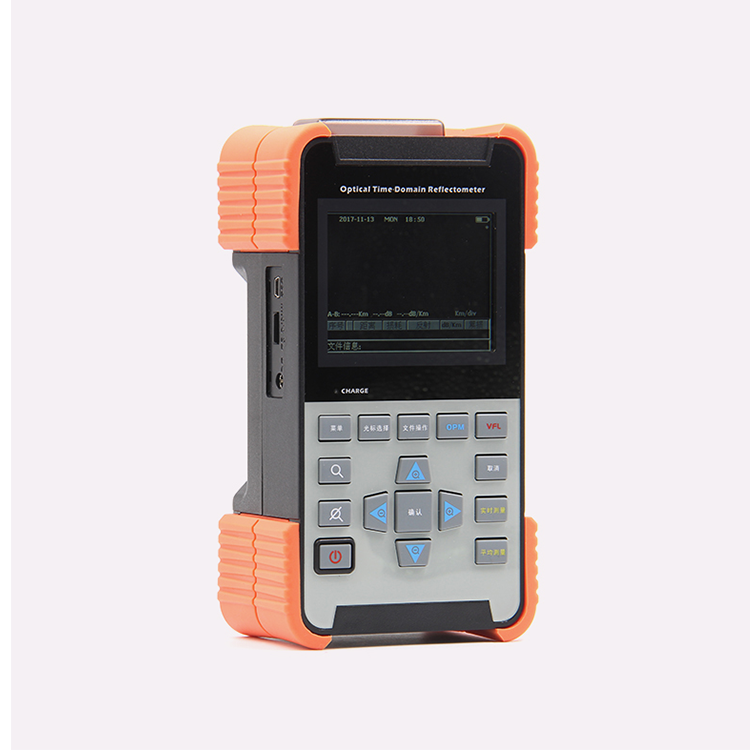

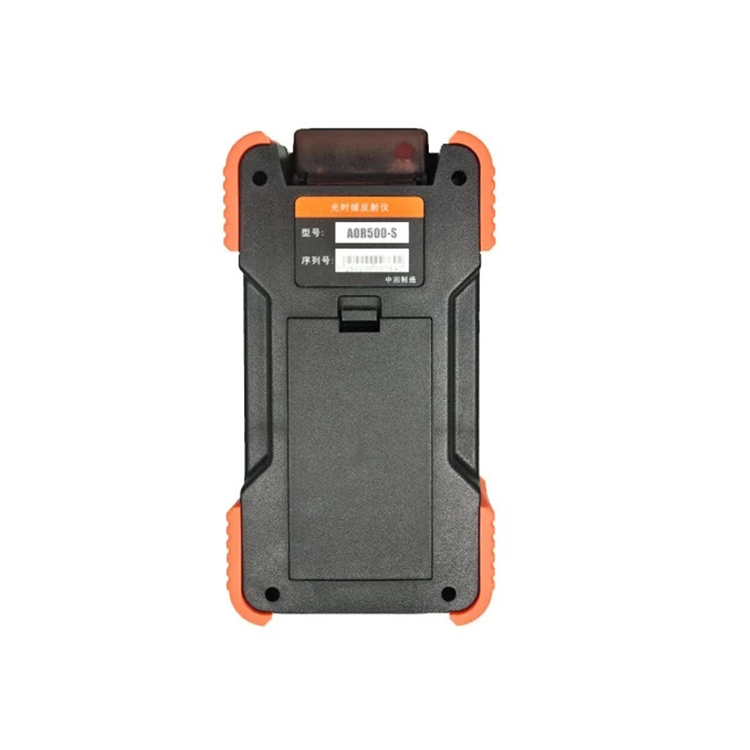

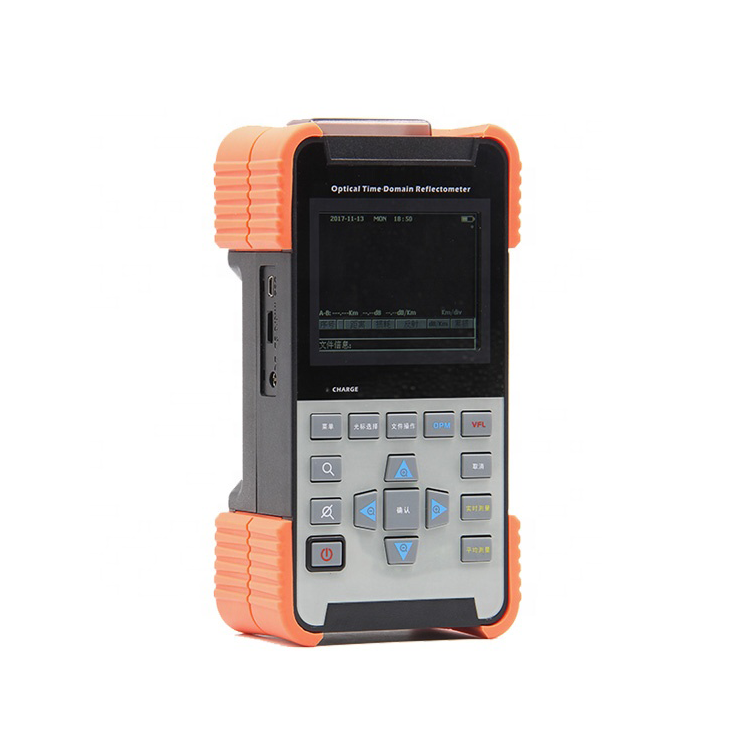

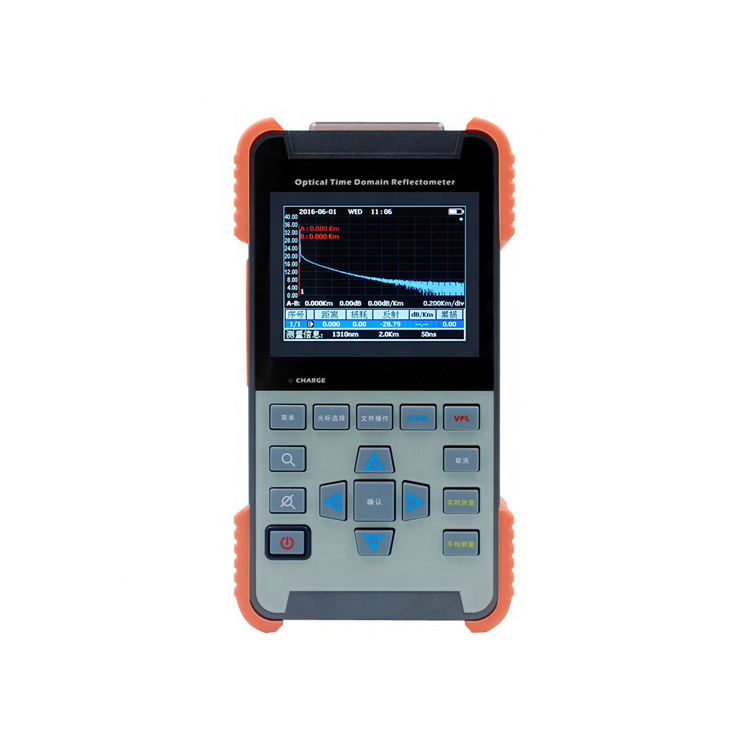

Handheld OTDR AOR500-S

Automatic one-button testing
Easy to operate for beginners and experts
Input laser signal auto detection and self-protection
Integrated PALM design, small, light, easy to carry
High contrast color TFT LCD
USB port for PC connection
Built-in VFL
High speed signal processing, short test time and fast analysis
User-friendly OTDR simulation software shows details of events

Dynamic Range24dB / 22dB28dB / 26dB32dB / 30dB35dB / 34dB/34dB
Wavelength1310/1550nm1310/1550nm1310/1550nm1310/1550/1625nm, 1625nm with filter
Event Dead Zone1.5m
Attenuation Dead Zone8.0m
Pulse Width10ns, 25ns, 50ns, 100ns, 250ns, 500ns, 1us, 2.5us, 5us, 10us
Distance uncertainty±(0.8m ± 0.001% * testing distance ± resolution)
Loss Resolution0.001dB
Min.Distance Resolution1m
Data Storage> 10000 traces (standard 1GB SD card)
Display3.5 inch TFT color LCD
Interface USB
BatteryBuilt-in rechargeable battery
Working Time>10 hrs (Bellcore TR-NWT-001138)

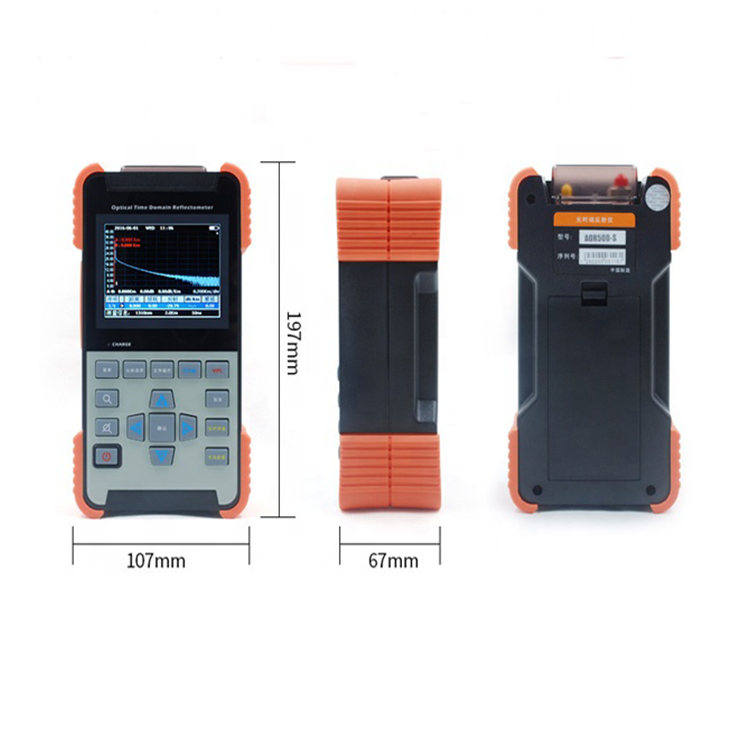

Size(H*W*D)197mm * 107mm * 67mm
WeightAbout 750g
Storage Temperature-20 -- +60 ℃, < 90%RH
Operating Temperature-10 -- +50 ℃, < 90%RH
