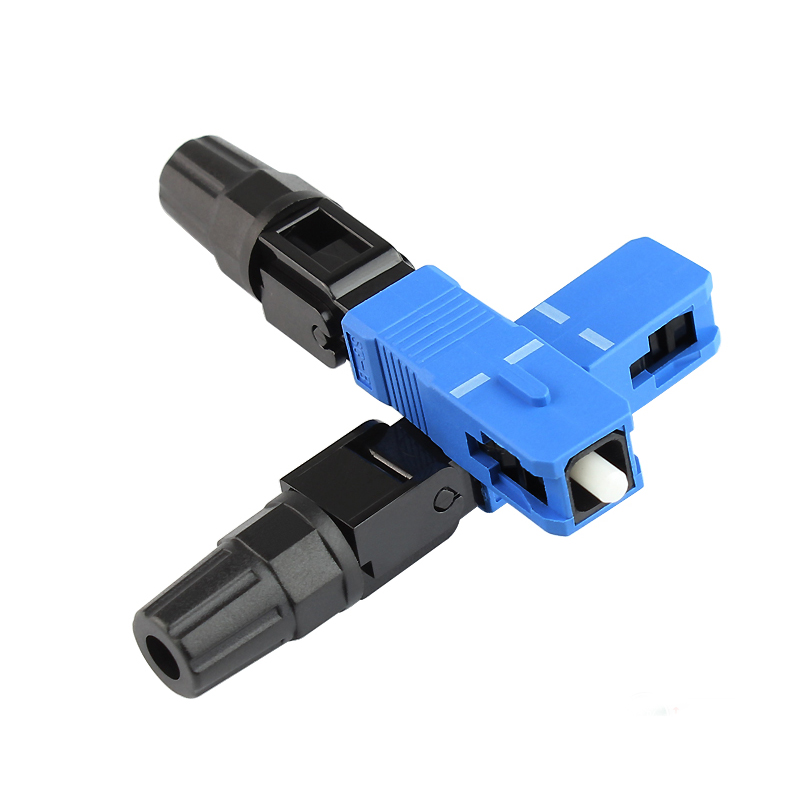

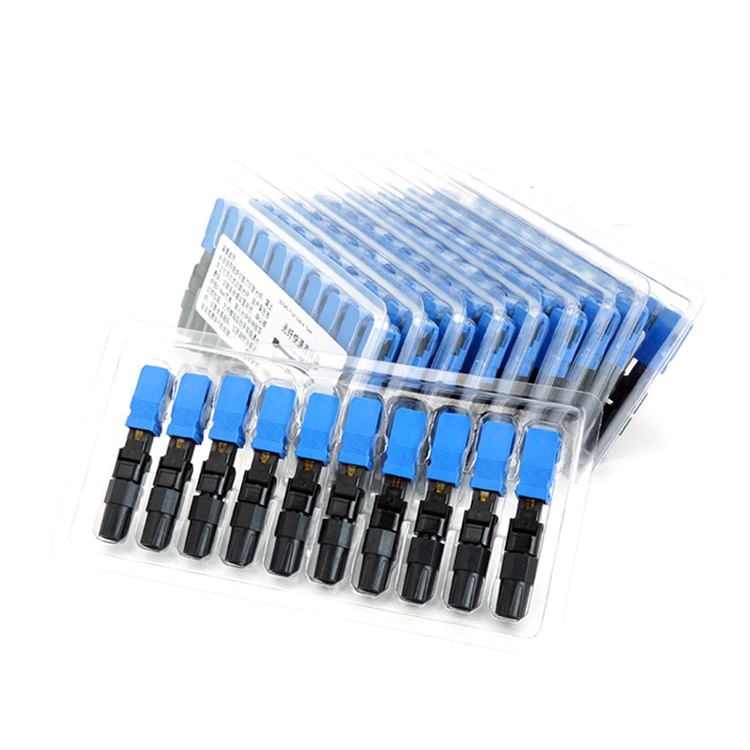

SC UPC Fiber Optical SC Fast Connector

1 Alignment in the inner bore of the ceramic ferrule - high precision alignment

2.C-shaped groove takes the palce of V-shaped groove.

3.Ceramic has low thermal coefficient of expansion - working temperature is ranging from -40 ℃ to +85 ℃

4.Ceramic has high rigidity - connection point without deformation

5. Ceramic has good property—long lifetime

6. Easy assembly and high one-time assembly success rate

7.High lifetime, easy assembly, high reliability and high return loss

8. The quick assembly fiber connector can be assembled and disassembled for many times.

9.Super high one-time assembly success rate

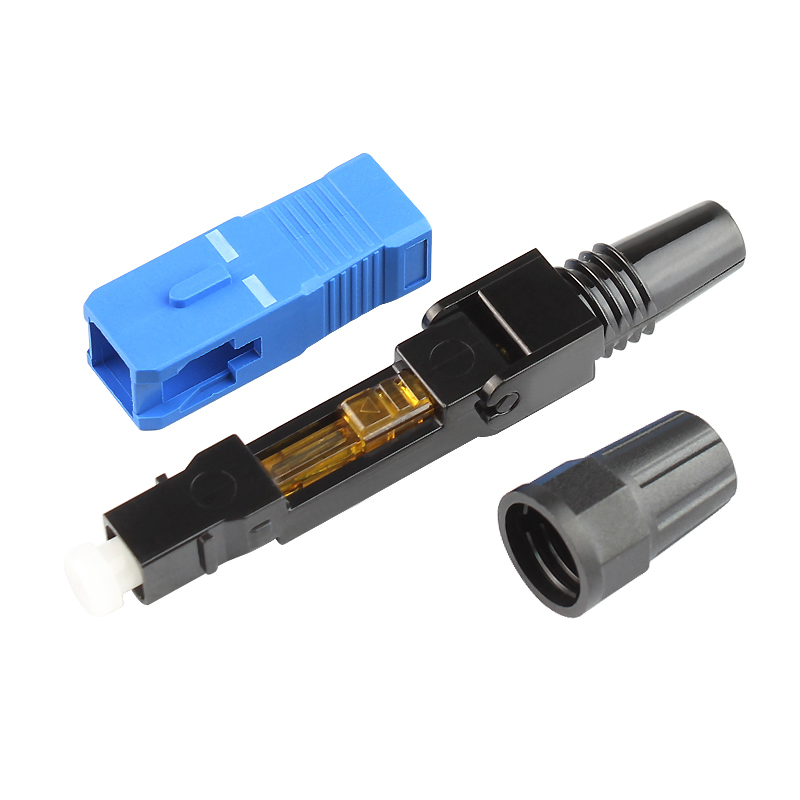

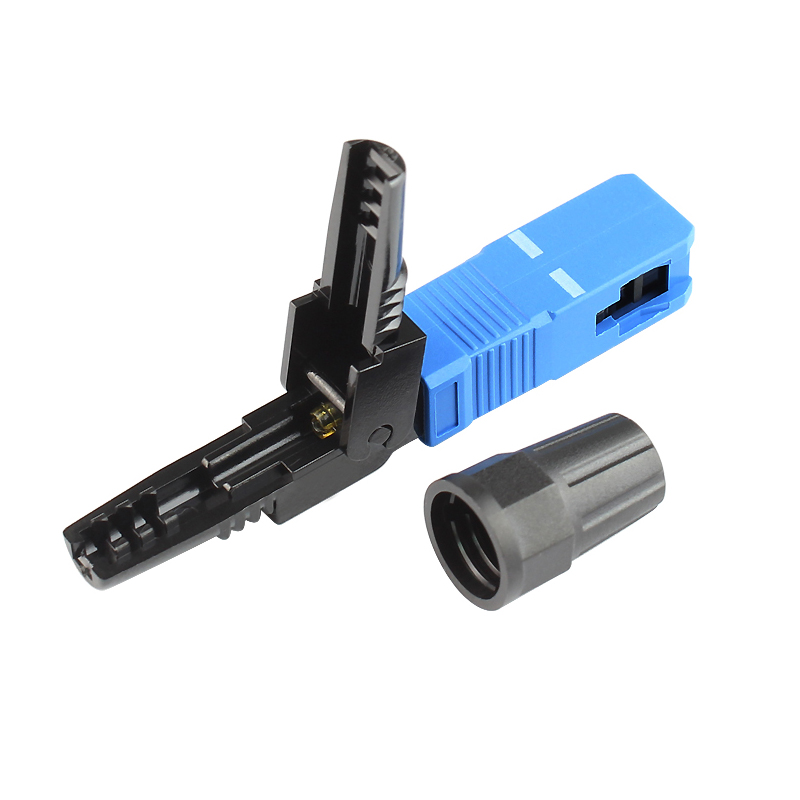

10. The SC fast connector is made of special material. Fibers alignment is done in the inner bore of the ceramic ferrule and fibers are locked by the locker.


Share:
Features

1.CATV
2.Active device termination
3. Telecommunication networks
4.Metro
5. Local Area Networks (LANs)
6. Data processing networks
7. Test equipment
8. Premise installation
9.Wide Area Networks(WANs)

Specifications
ParametersSpecifications
Connector TypeSC/LC/FC/ST
Dimension60mm
Cable Diameters0.9/2.0/3.0mm
Fiber ModeSM/MM
Grinding end-faceUPC/APC
Insertion LossUPCAPC
≤0.3dB≤0.3dB
Return LossUPCAPC
≥45dB≥50dB
Tension Test≥100N
Operating Temperature-40℃~+75℃
