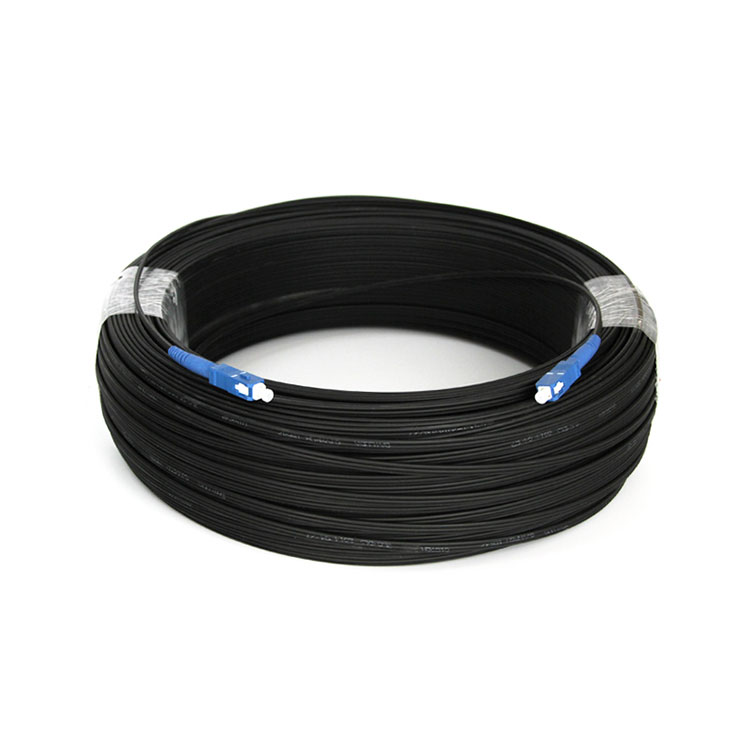

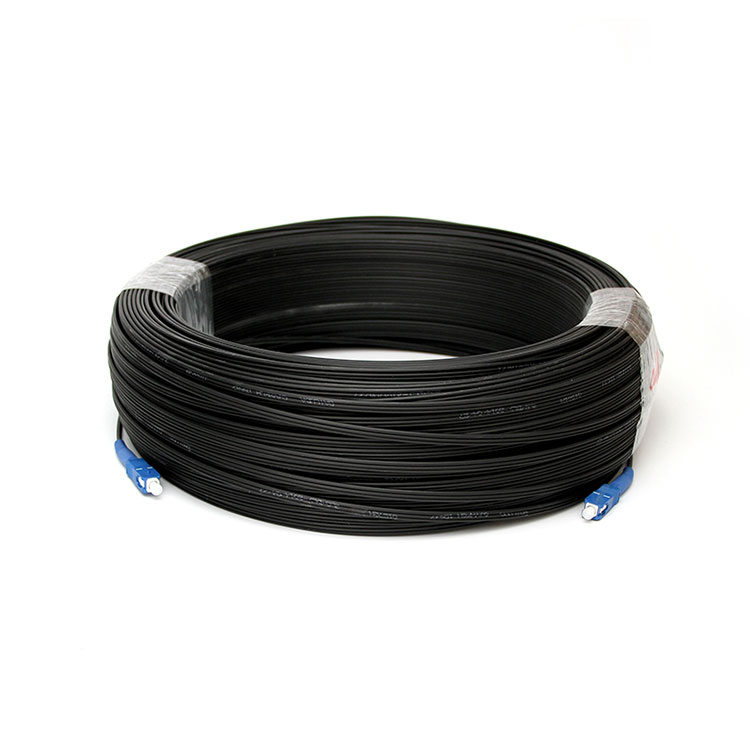

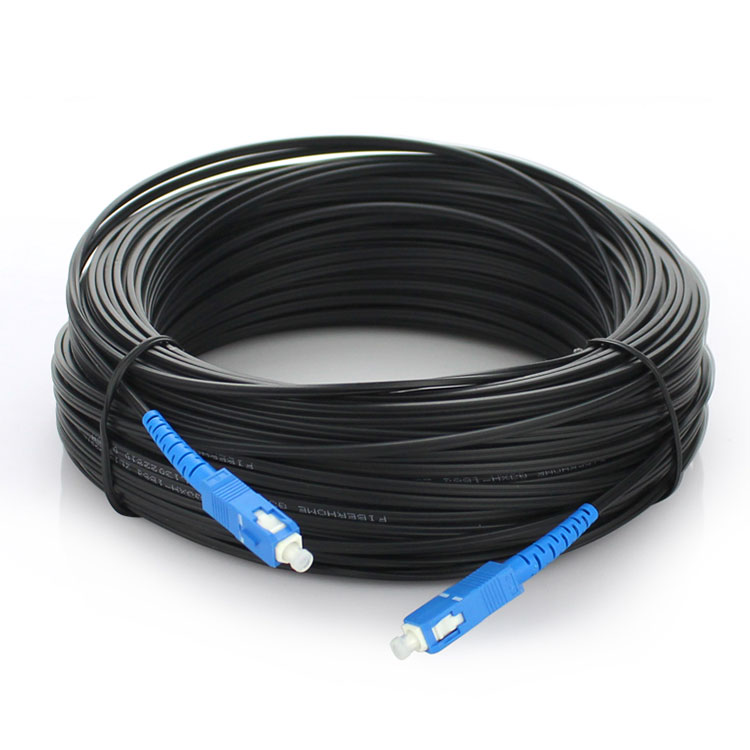

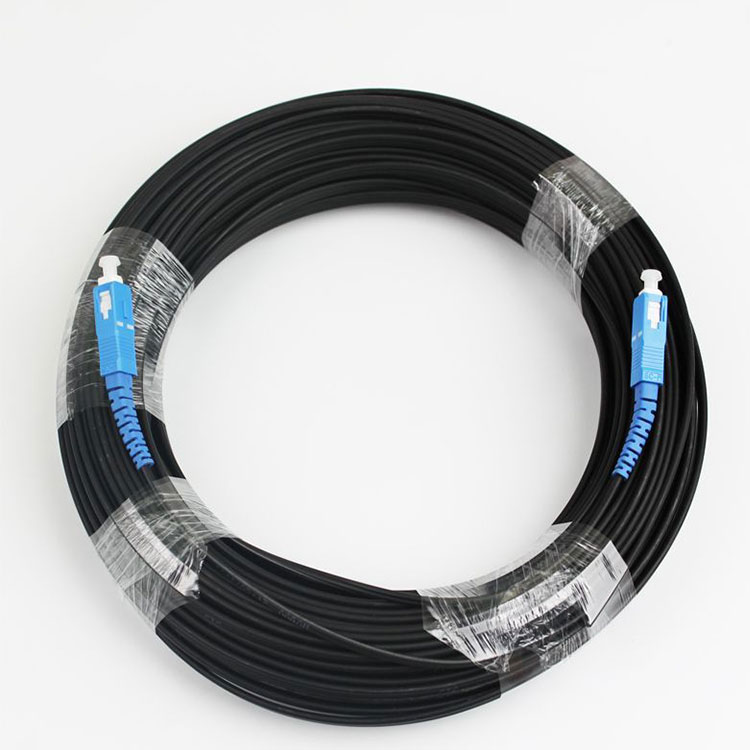

SC to SC Drop Cable Patch Cord

The fiber optic drop cable patch cord has two connectors in each end of the cable to make connection; pigtail cable is one cable with a connector. The connectors are with SC type, ceramic ferrule to be polished as UPC . A SM convertion patch cord is with two different connector. Our produces high performance patch cord with advanced grinding tech, imported processing facilities and scale economies effected.



Share:
Features

Long distance optical transmission network,

Data transmission network,

Image transmission networks,

CATV, optical test instruments,

Photoelectric automatic control system


Specifications
ItemSM(Single Mode)MM(Multimode)
Fiber Cable TypeG652/G655/G657OM1OM2/OM3/OM4
Fiber Diameter (um)9/12562.5/12550/125
Cable OD (mm)0.9/1.6/1.8/2.0/2.4/3.0
Endface TypePCUPCAPCUPCUPC
Typical Insertion Loss (dB)<0.2<0.15<0.2<0.1<0.1
Return Loss (dB)>45>50>60/
Insert-pull Test (dB)<0.2<0.3<0.15
Interchangeability (dB)<0.1<0.15<0.1
Anti-tensile Force (N)>70
Temperature Range (℃)-40~+80
