MOREFC, SC, ST adapters and 2.5mm UPP.
Energy save mode.

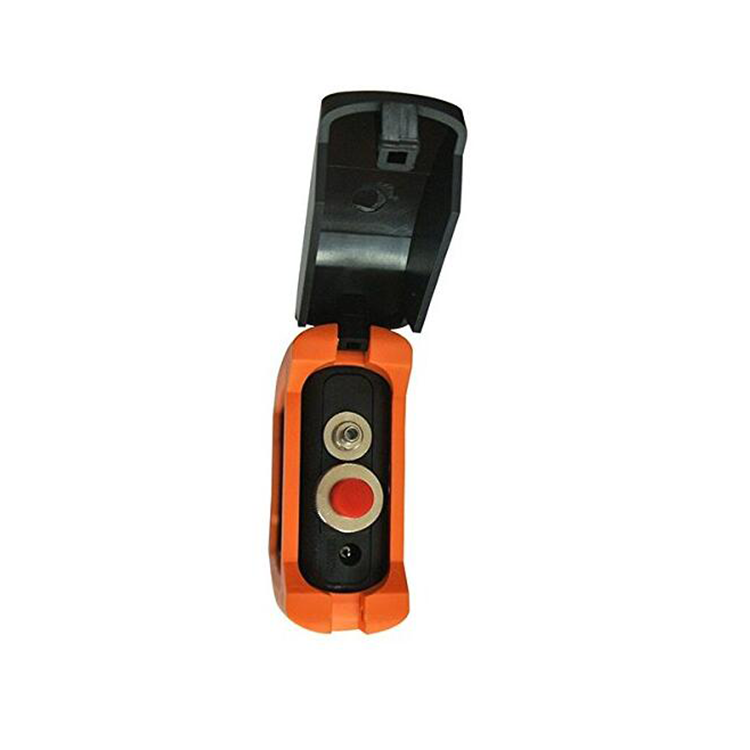

Built in VFL (optional).
Reference value storage.
Power autonomy of 100 hours.
850/1300/1310/1490/1550/1625nm.

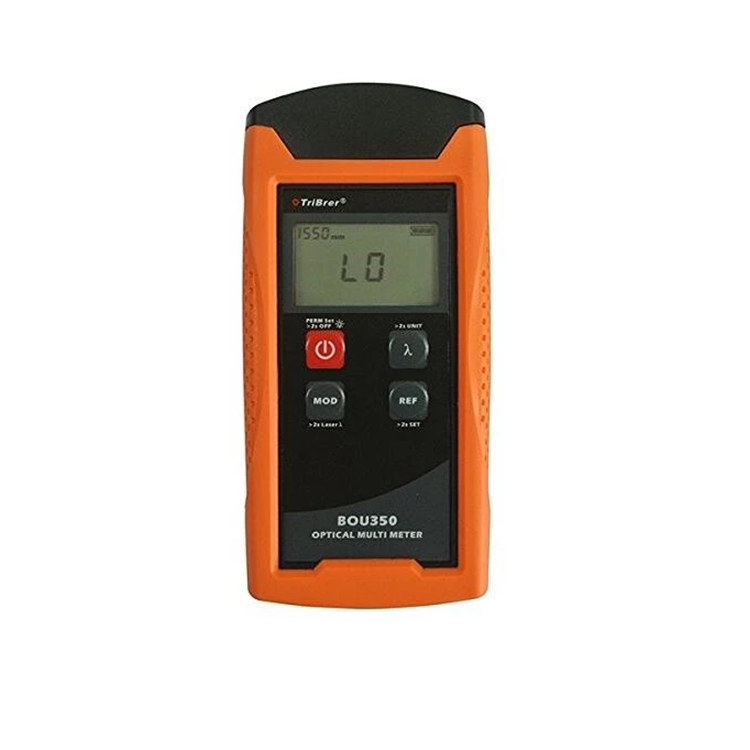

Model | BOU350T | BOU350C |
Display Range | 1310/1490/1550/1625: +10 ~ -70dBm | 1310/1490/1550/1625: +26 ~ -50dBm |
850/1300: +10 ~ -60dBm | 850/1300: +26 ~ -40dBm | |
Accuracy | ± 0.2 dB | |
Calibrated Wavelengths | 850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm | |
Resolution | 0.01dB | |
OPM Connector | FC & 2.5mm UPP (option: SC, ST) | |
Build in VFL(Optional) | 1mW or 10mW or customize | |
REF | Yes | |
Auto Power Off | No operation in 10 minutes (can be canceled), Low battery energy | |
Battery Charge | Yes | |
Battery Life | Above 100 hours | |
Power Supply | AA * 2 batteries or AC/DC power supply adapter |
