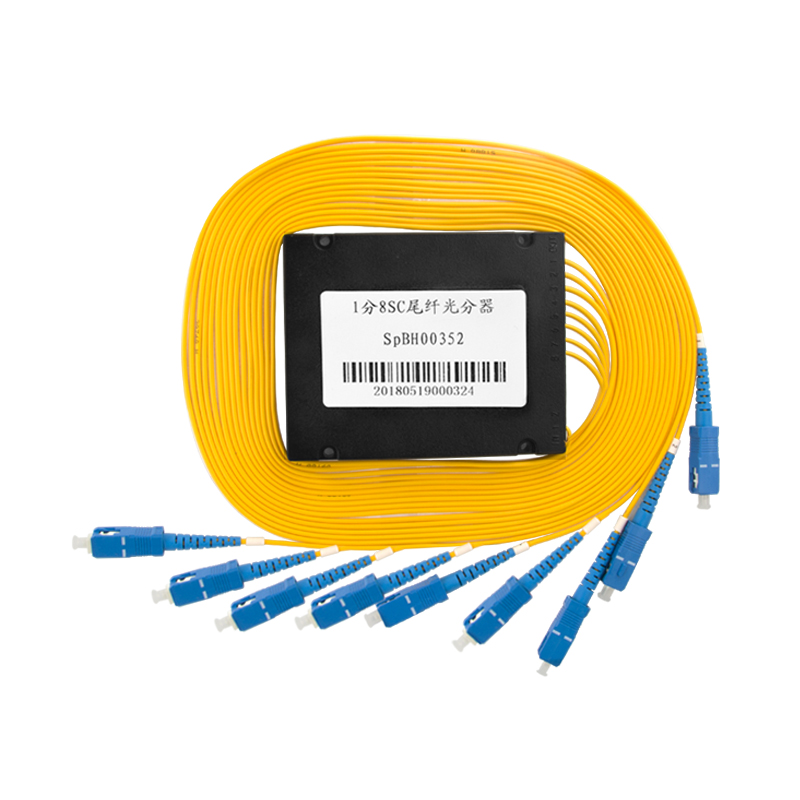

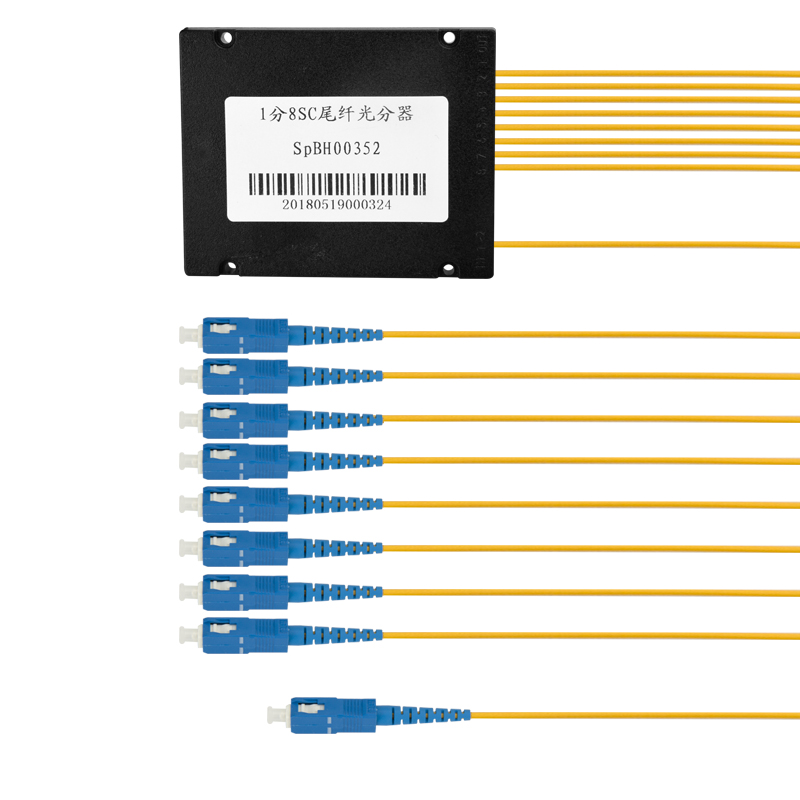

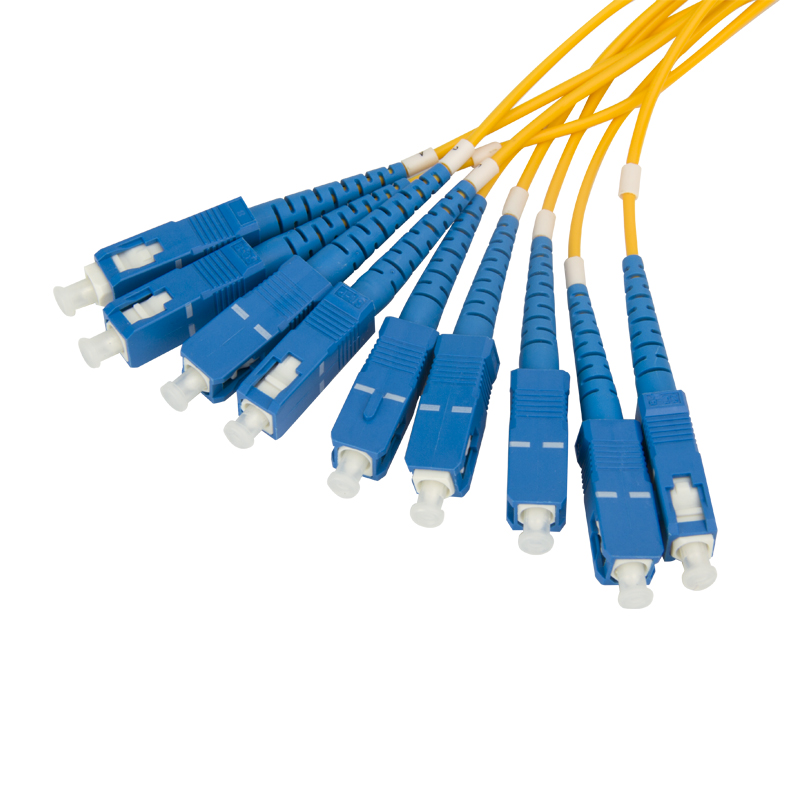

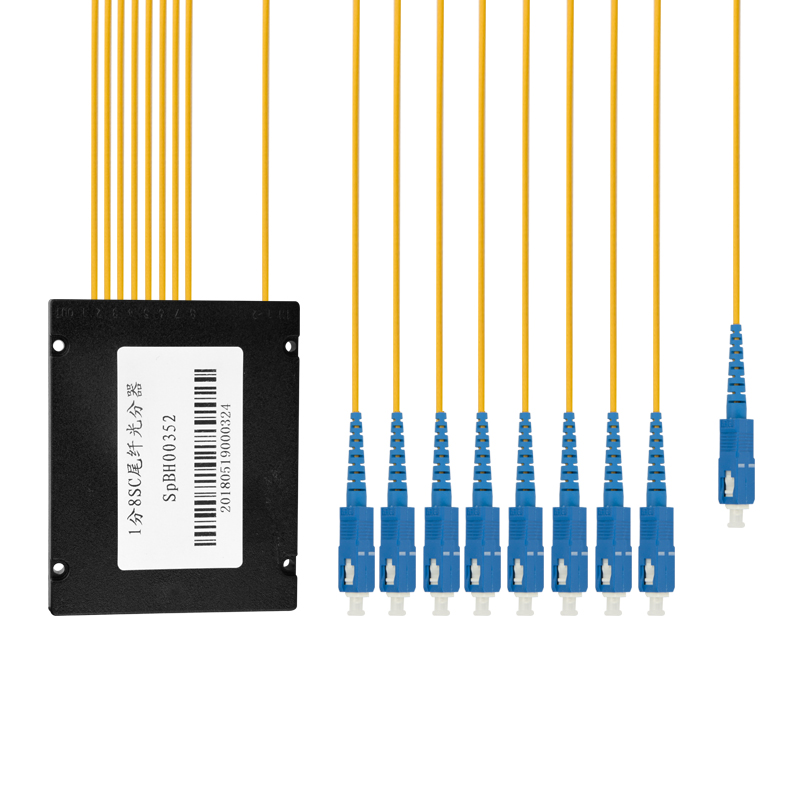

1X8 Fiber Optic PLC Splitter

PLC splitter is based on plannar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently.

Share:
Features

Excellent Mechanical,Small Size

High Reliability

Low insertion Loss and low Polarization Dependent loss

High channel counts

Excellent Environmental Stability and Widely Used


 Applications

FTTH,FTTB,FTTX Systems

LAN,WAN and Metro Networks

Analog/Digital Passive Optical Networks

CATV Networks

Test Equipment

Other applications in fiberoptic systems


Specifications
Types 1x21x41x81x161x32
Test wavelength

1310nm

Working wavelength

1260nm~1650nm

Interface model

SC/UPC

Insertion loss (dB) (P/S level)

3.8/4.0

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.9

Loss uniformity (dB)

0.4

0.6

0.8

1.21.5
Return loss (dB) (P/S level)

55/50

55/5055/5055/5055/50
Polarization dependent loss (dB)

0.2

0.20.20.250.3
Directionality (dB)

55

55

55

55

55

Wavelength dependent loss (dB)

0.3

0.3

0.3

0.5

0.5

Temperature stability (dB)

0.4

0.4

0.4

0.5

0.5

FeaturesGood temperature stability
Low insertion loss, high return loss
Good interchangeability, good repeatability
