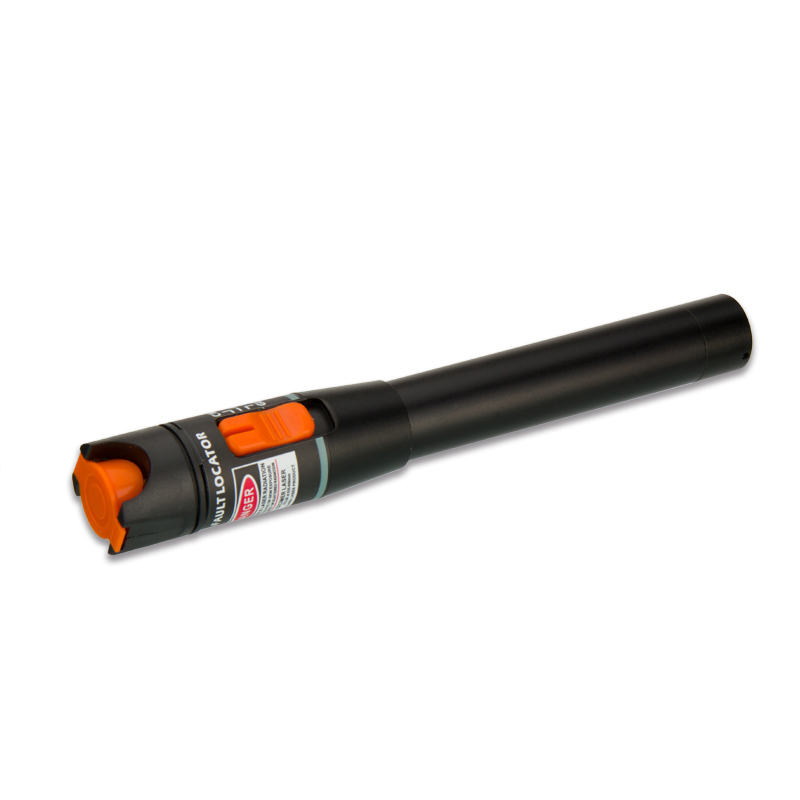

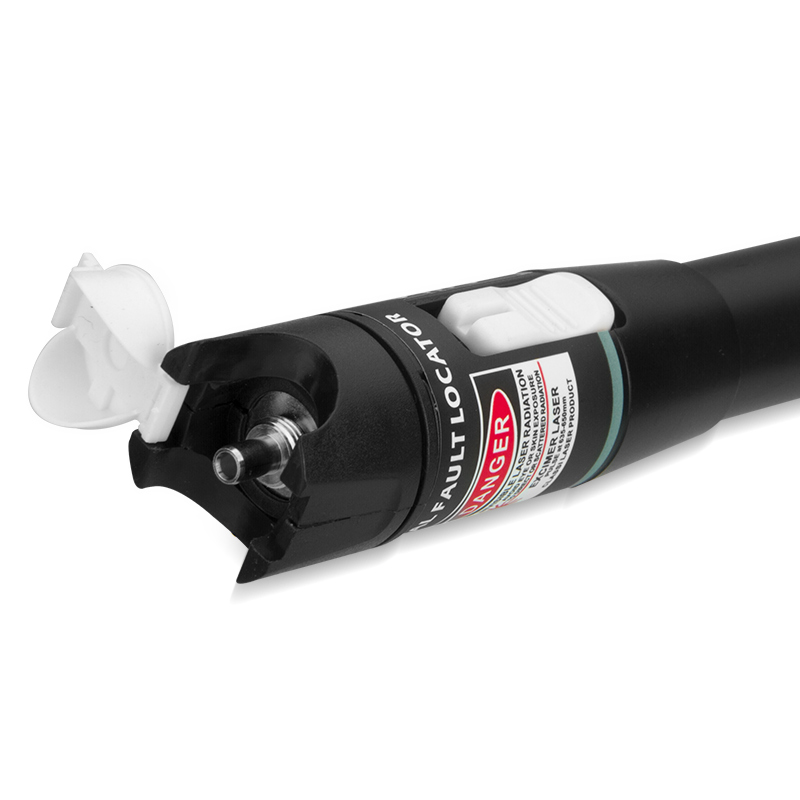

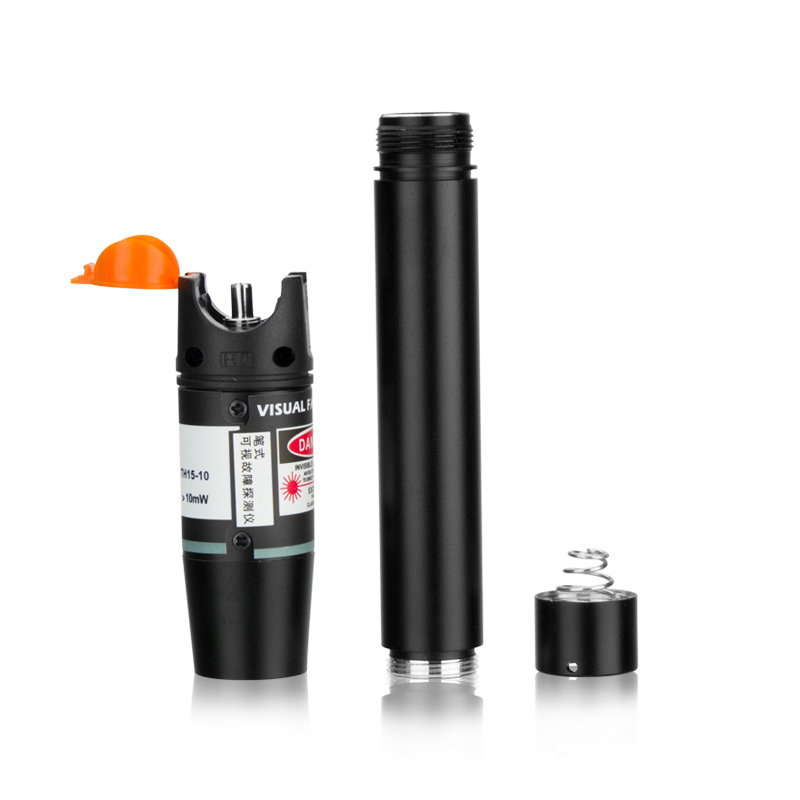

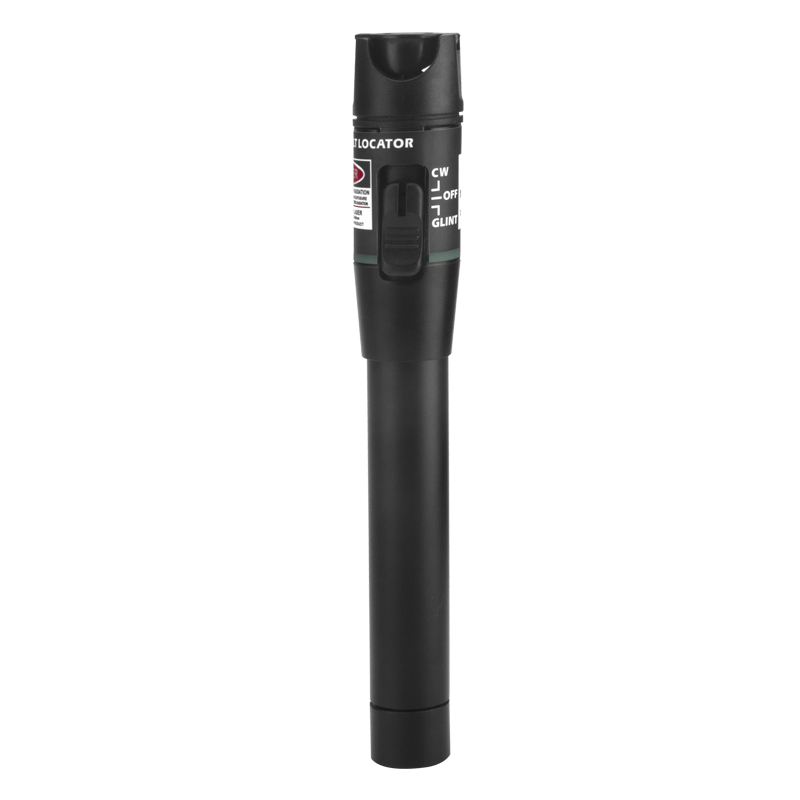

MOREThe Visual Fault Finder is specially designed for field worker who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation.
It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR
Features:
· output of visible red laser
· compact and lightweight, easy to carry
· stable performance, easy to operate
· Light Output (continuous light or pulsed light)
·
Main use:
· multi-core cables for contradistinguish
· Check the optical fiber fault location and high loss caused by microbending section which OTDR can not be found
· At device resetting process, as initial setting light source of instructions
· added fiber converter output beam collimating red light
Lights | LD |
wavelength | 650nm |
Output power | 1mw/5mw/10mw/20mw/30mw |
Distance of fiber identification | 5km/10km/20km/30km |
Output interface | SC/FC/ST |
Working temperature | -10C~ +50C |
Storage temperature | -20C~ +70C |
Length | 180mm |
Diameter | 20mm |
Continuously working time | 18h |
Battery | 2 AA battery |
Weight | 150g |
