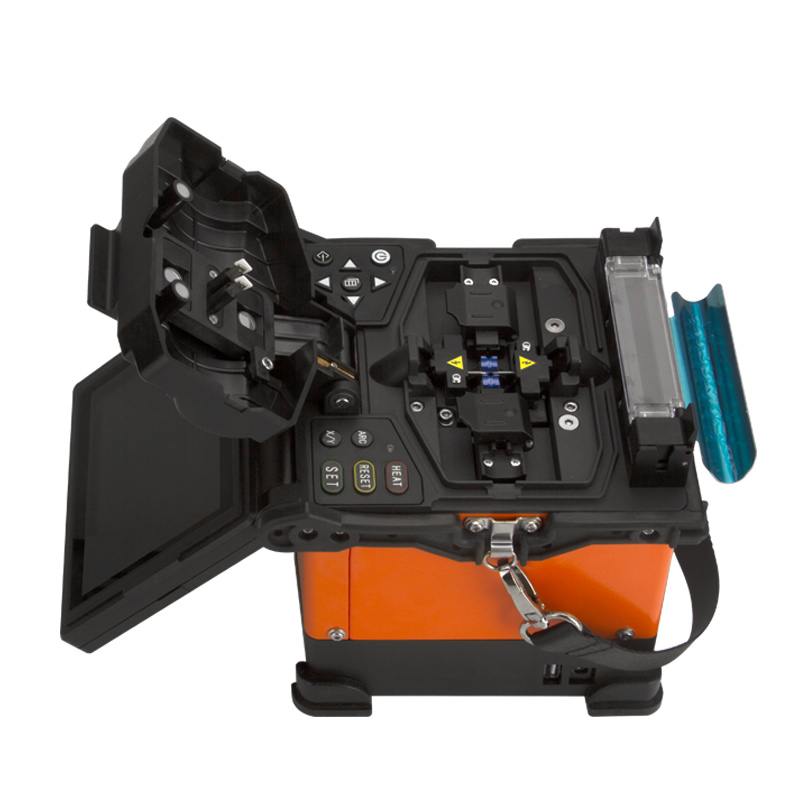

TH600 Fiber Fusion Splicer

Fusion Splicer is a preferred way to join two fibers together by using heat. Whether the fiber was broken or not long enough, a fusion splicer will make your job easier. Splicing fiber optic cable is a fairly simple procedure. Prepared fiber ends are placed in the splicer and automatically aligned and then fused together. This method ensures greater reliability with less light being scattered or reflected back by the splice and with the splice itself being as strong as the original optical fiber.

Inquire Now

Features

The process of fusion splicing normally involves heat to melt or fuse the ends of two optical fibers together. The splicing process begins by preparing each fiber end for fusion.

1, Stripping the fiber

Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing.

2, Cleaning the fiber

The customary means to clean bare fibers is with alcohol and wipes.

3, Cleaving the fiber

The fiber is then cleaved using the score-and-break method so that its end-face is perfectly flat and perpendicular to the axis of the fiber.

4, Splicing the fibers

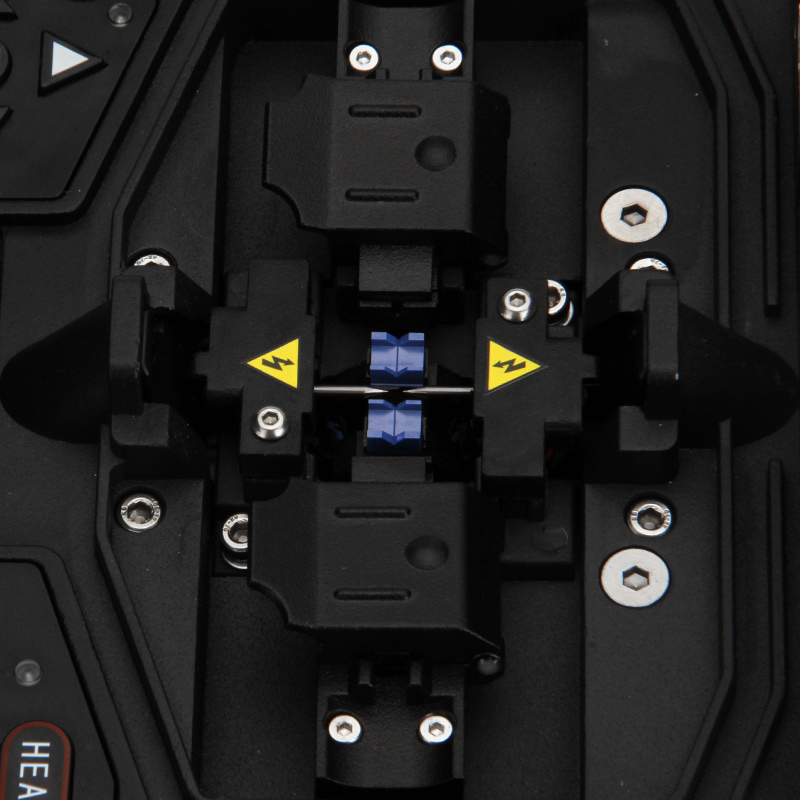

Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y plane, then are fused together.

Specifications

Model	TH-600+ Fusion Splicer
Fiber Type	SM , MM , DS , NZDS
Cladding Diameter	80-150μm
Coating Diameter	160-900μm
Connection loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZ0S)
Return Loss	Greater than 60dB
Fiber Alignment	Fiber core alignment, Cladding alignment, Manual alignment
Operation method	Manual, Automatic
Applicable to optical fiber	Plint cable, and 0.25mm, 0.9mm ordinary fiber SC and other connectors (optional)
Typical Welding time	7s
Heating time	《=26s
Cutting length	8~16mm
Magnification	300/125 times
Image display	High-performance 4.3inch liquid screen with clear and detailed image display
Splice Program	40sets
Storage	4000Sets
Tension Test	1.8-2.2N
Heat Shrink Tubing	60mm, 40mm and a Series of Heat Shrink Tubing
Battery capacity	Typical welding 180 times, charging time is about 3 hours (can be used when charging)
Battery Life	Cycling Recharging 300~500 times, easy to replace
Electrode life	3000 typical values, easy electrode replacement
Interface	USB, convenient data download and software updates
Construction lighting	uilt-in high-brightness, wide-range lighting for night operation
Power supply	Built-in lithium battery 11.1V5800mAh ; external adapter, input: AC100-240V, output: DC13.5/\|4.5A
Working environment Temperature	-10°C~+60°C
Weigh	1.9kg (with battery)
Body size	149mm×120mm×127mm

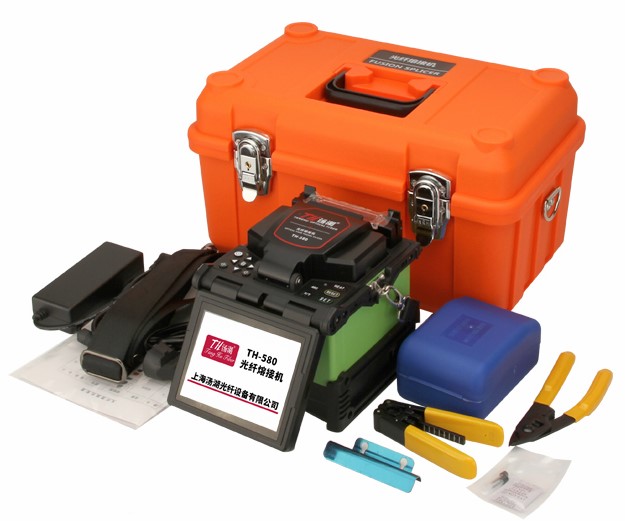

Packing Details

Item	Name	Qty
1	Fusion Splicer	1PC
2	AC Adapter	1PC
3	Fiber Stripper	1PC
4	Spare Electrodes	1Pair
5	Alcohol Pump Bottle	1PC
6	Flat Cable Stripper	1PC
7	Cooling Tray	1PC
8	Fiber Cleaver	1PC
9	Manual	1PC
10	Carrying Case	1PC
