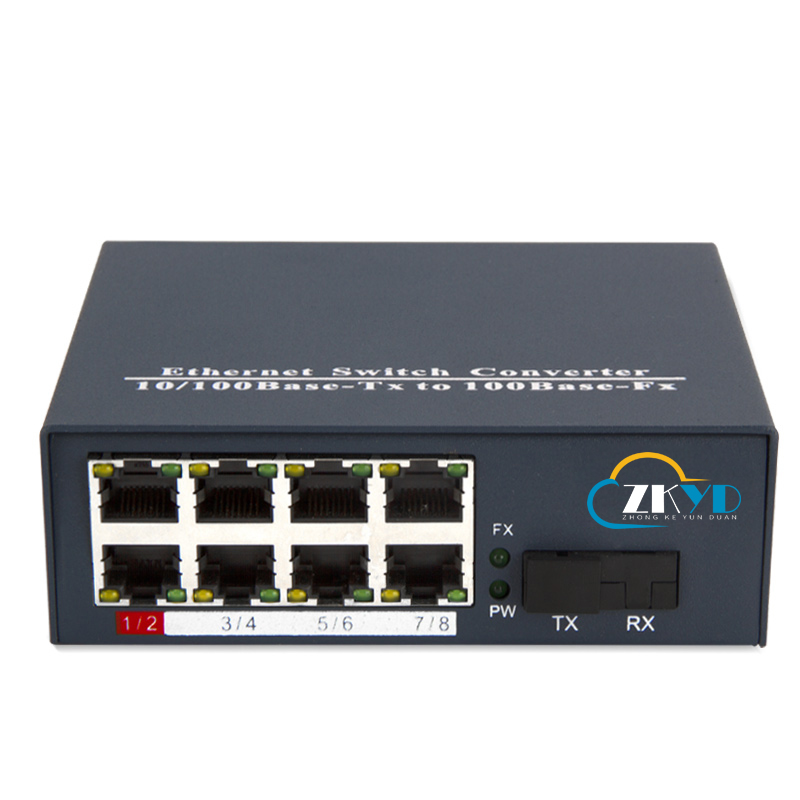

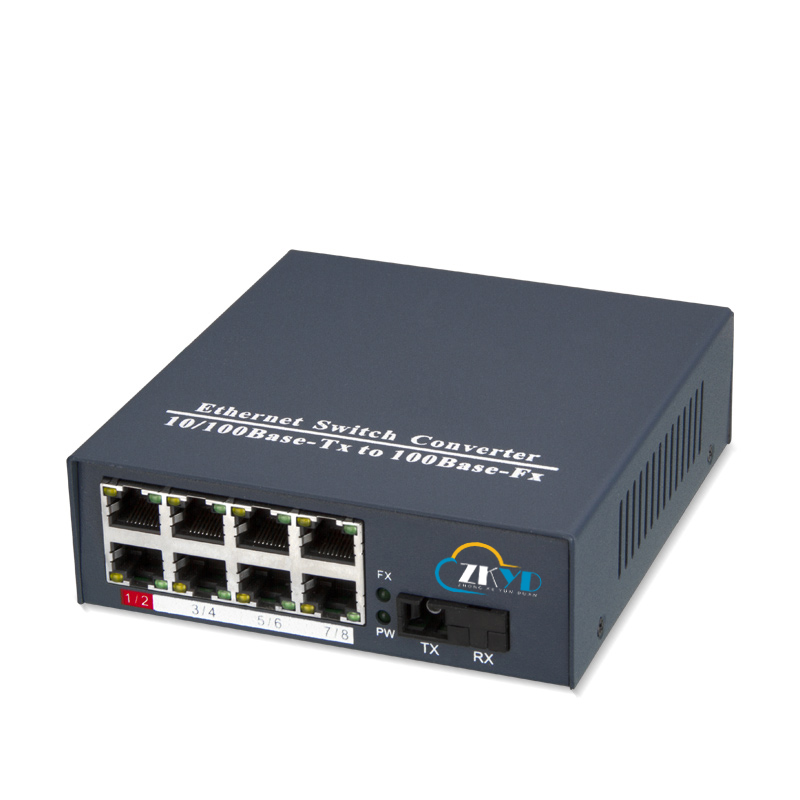

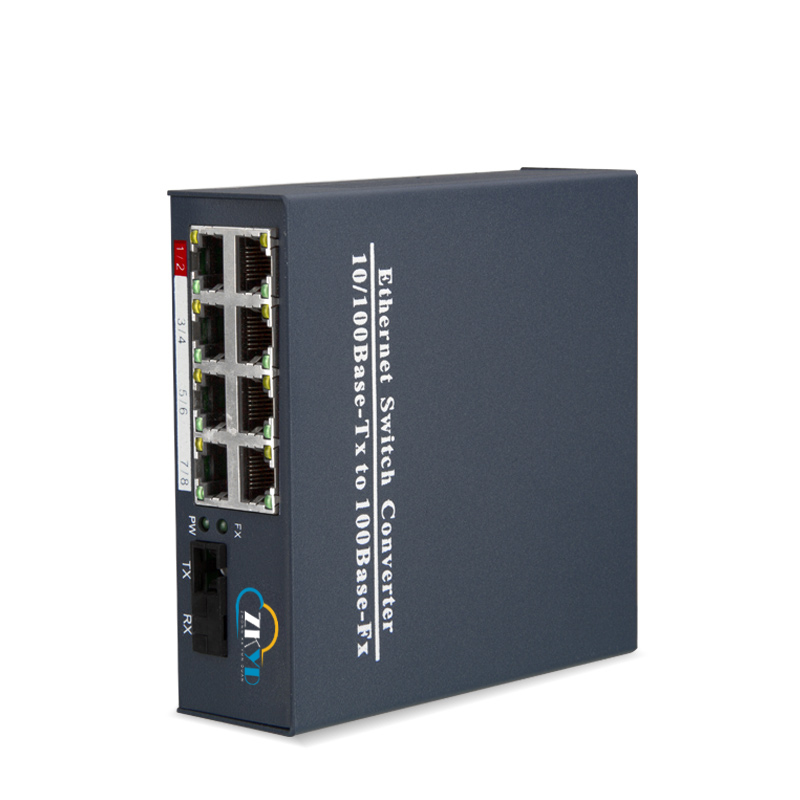

10/100M 1 Fiber Optic Port 8 RJ45 Port Fiber To Ethernet Converter

Optical Fiber Media Converter is a kind of quick enthernet Media Converter with the function of photo electricity switch over between 10BASE-TX or 100BASE-TX and 1000BASE-FX.

It can extend the conventional 10M Ethernet or 100M Quick Ethernet to 120KM via the quick Ethernet Fiber-optical Line. The stable and reliable switch supply enables long-term operation and makes it convenient to replace the power supply.

Full-duplex and half-duplex optional. The configuration of DTE and MPR functions makes it convenient to connect the similar products.

Inquire Now Next Product

Features

1, Provide one fiber connector and one UTP connector
2, Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.2ab 1000Base-TX, IEEE802.3z 1000Base-FX standard
3, Auto-detection of half/full duplex transfer mode for TX port
4, Auto-negotiation of 10/100Mbps rate and Auto-MDI/MDIX for TX port
5, Provide switch configuration of half/full duplex transfer mode for FX port
6, Extend fiber-optic distance up to 120km with single-mode fiber
7, Easy-to-view LED indicators provides status to easily monitor network activityInternal power supply

Specifications

Size	12012538mm
Transmission rate	100MB
Fiber type	Single mode single fiber
shell material	Frosted metal
Interface Type	SC

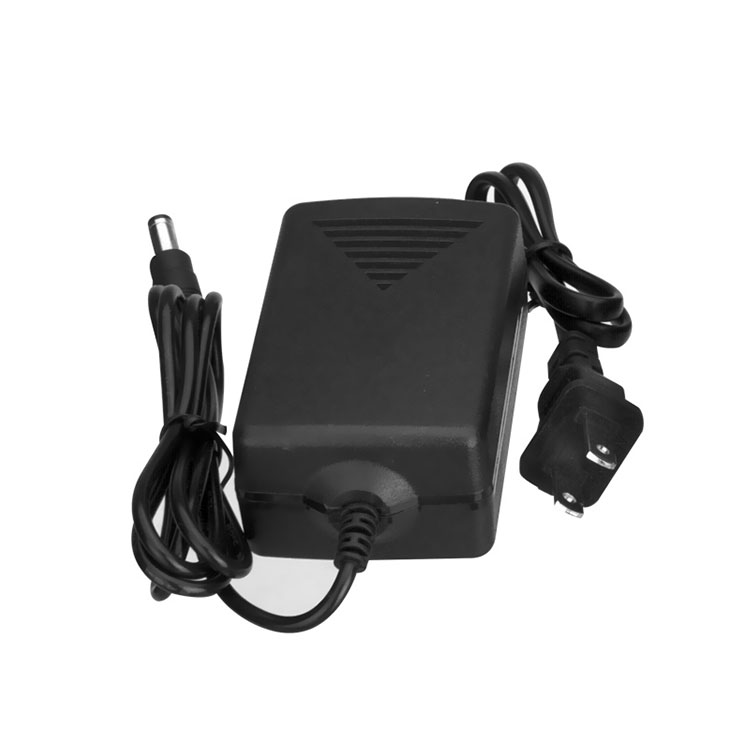

Support	1 transceiver, 1 power , 1 manual
