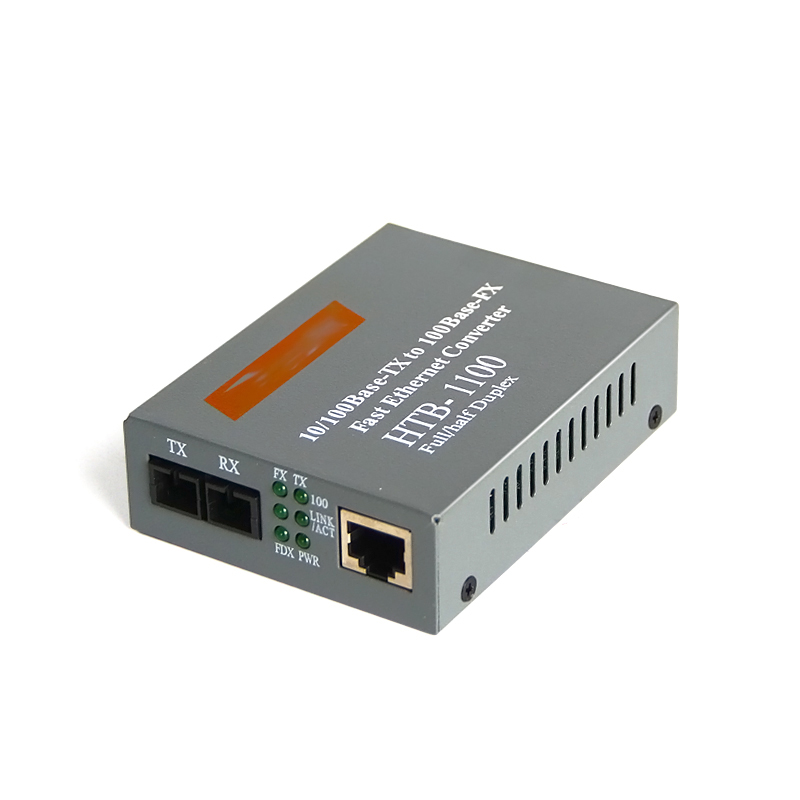

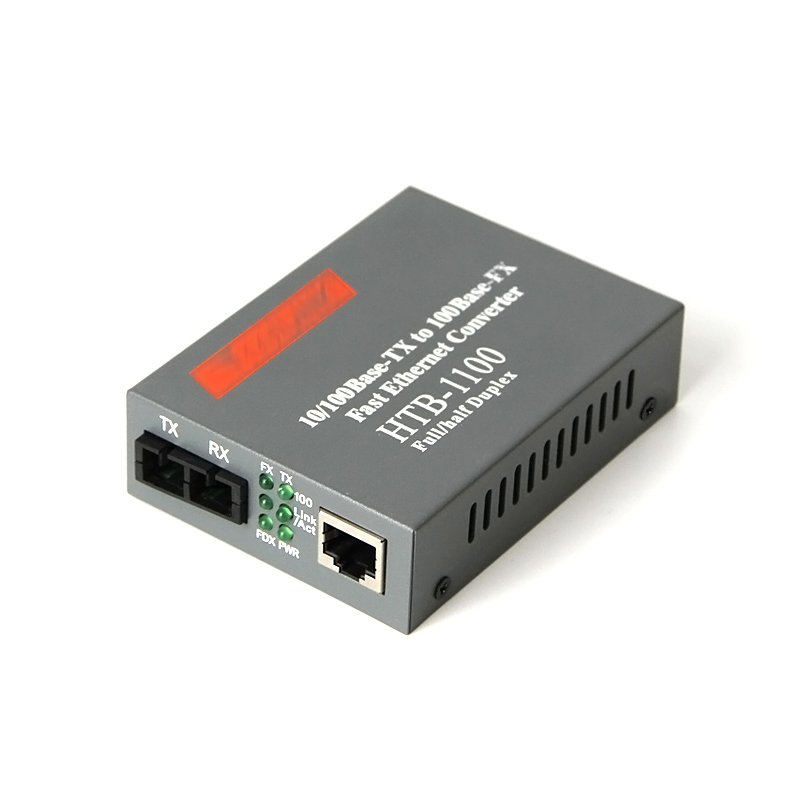

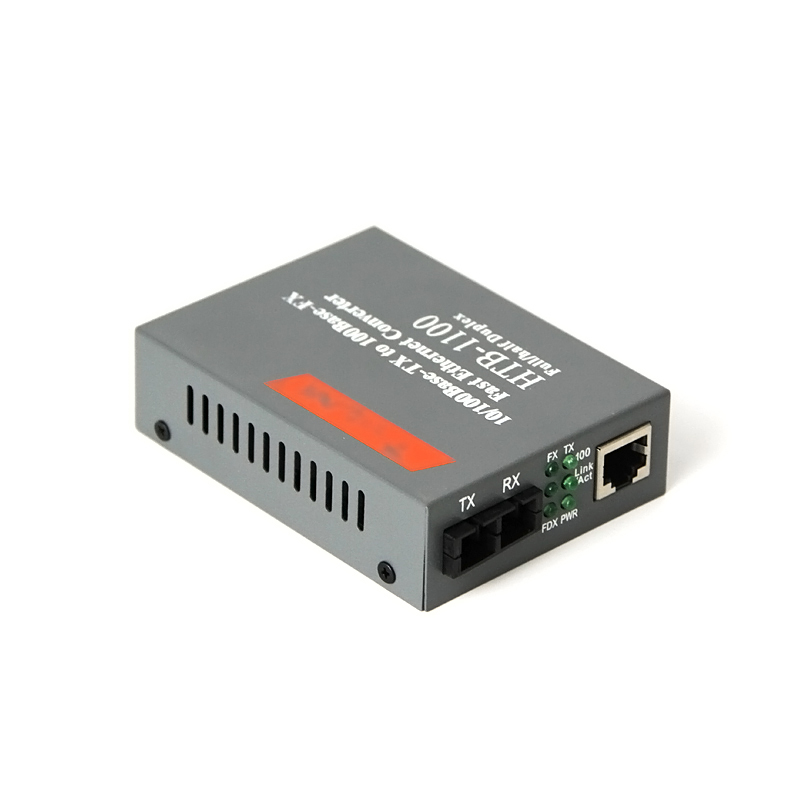

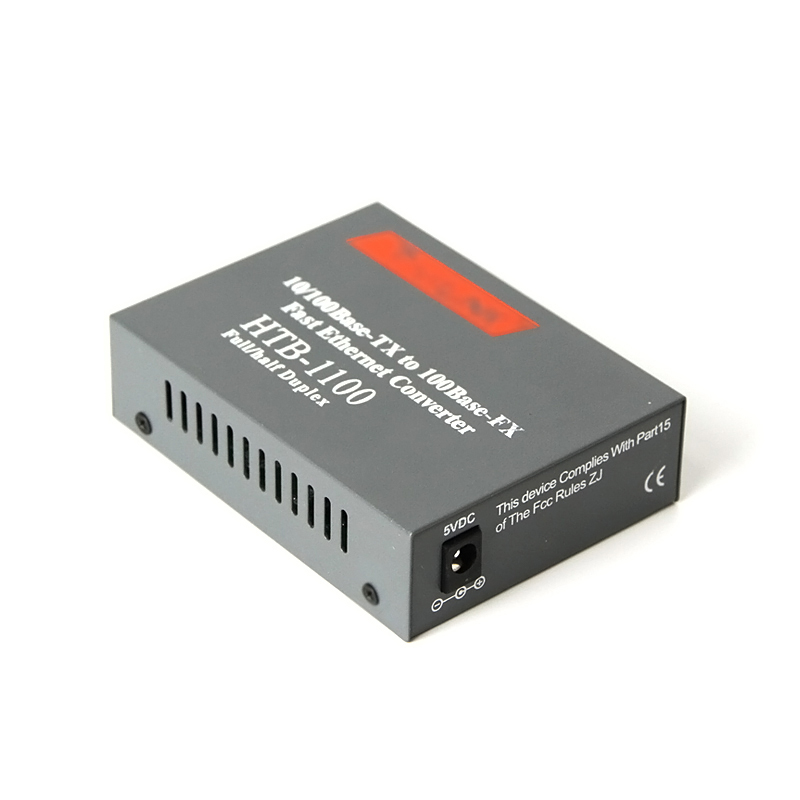

HTB-1100 Multimode Duplex Fiber Optical Media Converter

HTB -1100 is 10/100M adaptive fast Ethernet optical transceiver. It can achieve two different twisted-pair cable and optical fiber transmission medium of transformation, relay base - TX 10/100 and 100 base - FX two different network segments, can satisfy the long distance, high speed and high bandwidth fast Ethernet workgroup user needs.

Inquire Now Next Product

Features

Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards

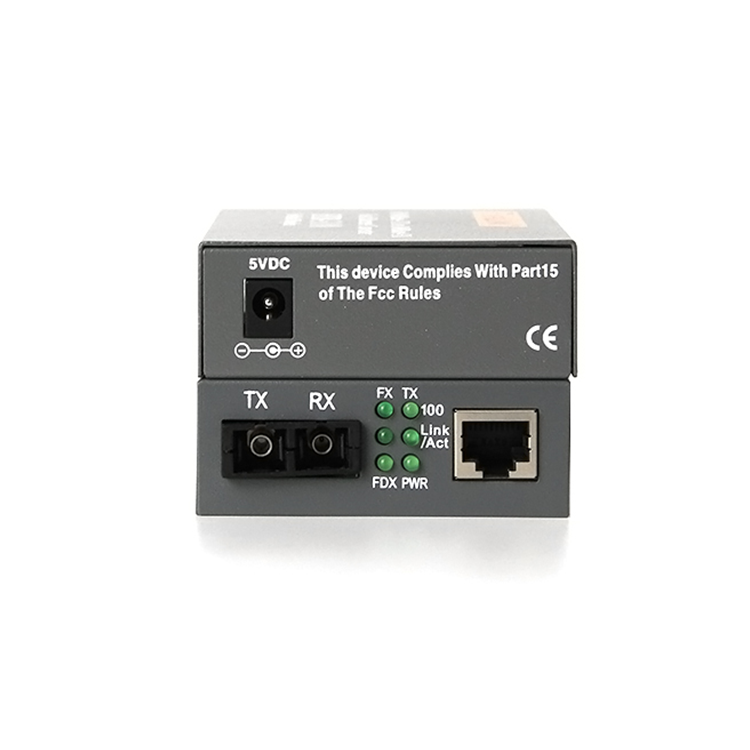

Provides a standard RJ45 interface and two SC fiber interface

LED: Power,FDX/Col,FX link/Act,TX Link/Act,Fx 100,TX 100.

Duplex Mode:Full or Half Duplex Mode

Data transfer rate: 10/100Mbps data transfer rate

Power Requirement: AC 100-240V 50/60HZ DC 5V/2A

Ambient Temperature: 0 to 70 degree

Humidity: 5 per cent to 90 per cent

Dimensions:40*100*140mm

Cable:UTP:Cat.5 UTP Cable

Details:

Fiber Type Multimode

Duplex SC fiber optic interface type

Transmission distance 2Km

Min TX PWR:-17.0dBm

Max TX PWR: -8.0dBm

Sensitivity:-31.0dBm

Link Budget:14.0dBm

Specifications

LED Description:

LED	Colour	Function
FX 100	Green	Lit when 100Base-FX operation
FX Link/ACT	Green	Lit when fiber cable connection with remote device is good. Bliks when any FX traffic is present
Power	Green	Lit when +5V Power is available
FDX/Col	Green	Lit when full duplex mode is enabled. Blinking when collision is present
TX 100	Green	Lit when 100Base-TX cable operation
TX Link/ACT	Green	Lit when TP cable connection with remote device is good. Blinks when any traffic is present
