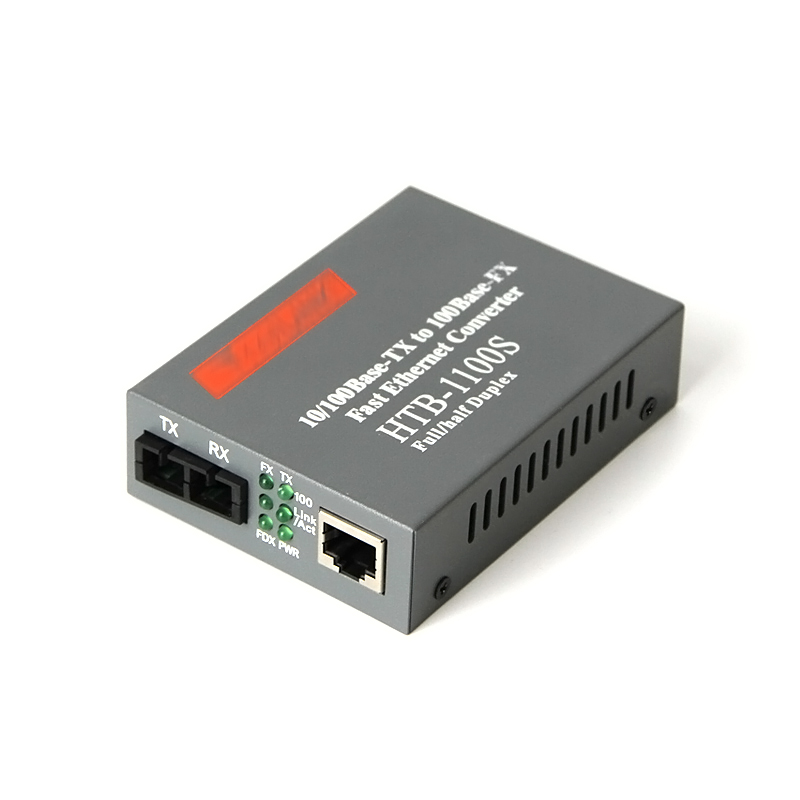

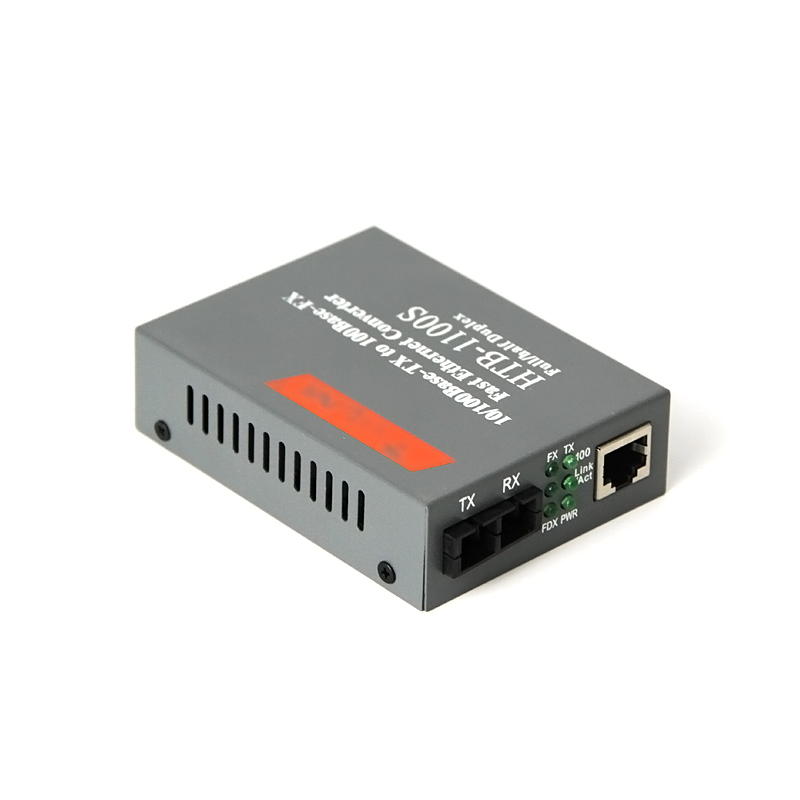

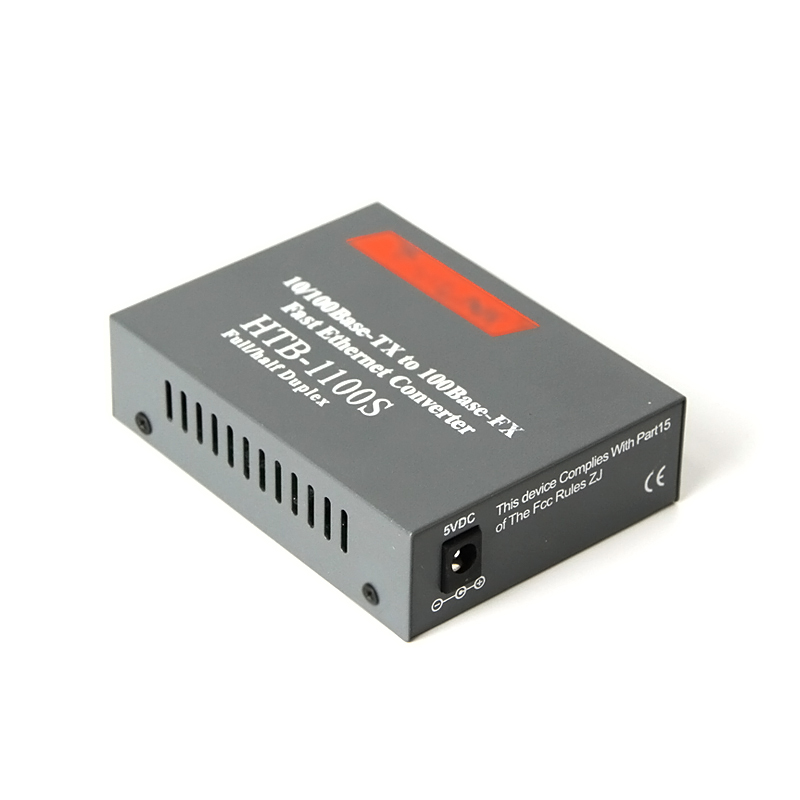

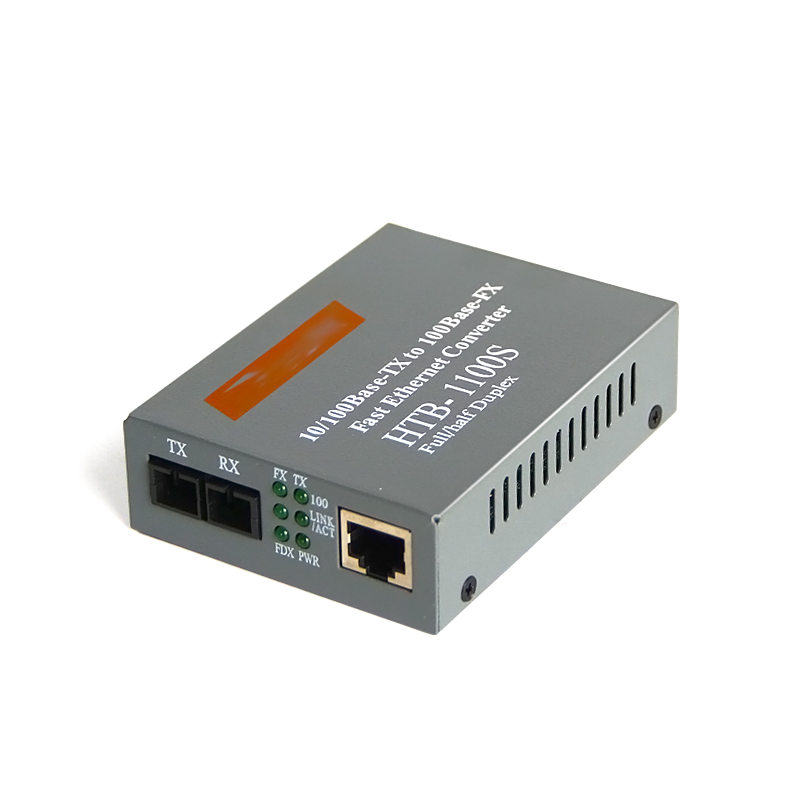

HTB-1100S Single Mode Double Fiber Optical Fiber Media Converter

HTB-1100S Single Mode Double Fiber Optical Fiber Media Converter

HTB -1100S is 10/100M adaptive fast Ethernet optical transceiver. It can achieve two different twisted-pair

cable and optical fiber transmission medium of transformation, relay base - TX 10/100 and 100 base - FX

two different network segments, can satisfy the longdistance, high speed and high bandwidth fast Ethernet workgroup user needs.


Share:
Inquire Now Next Product
Features

Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards

Provides a standard RJ45 interface and two  SC fiber interface

LED: Power,FDX/Col,FX link/Act,TX Link/Act,Fx 100,TX 100.

Duplex Mode:Full or Half Duplex Mode

Data transfer rate: 10/100Mbps data transfer rate

Power Requirement: AC 100-240V 50/60HZ DC 5V/2A

Ambient Temperature: 0 to 70 degree

Humidity: 5 per cent to 90 per cent

Dimensions:40*100*140mm

Cable:UTP:Cat.5 UTP Cable

Fiber Singlemode:9/125um


Specifications
Fiber TypeSingle mode Dual Fiber
Wavelength1310nm
Transmission distance 25Km
Min TX PWR-17.0dBm
Max TX PWR-8.0dBm
Sensitivity-31.0dBm
Link Budget14.0dBm
