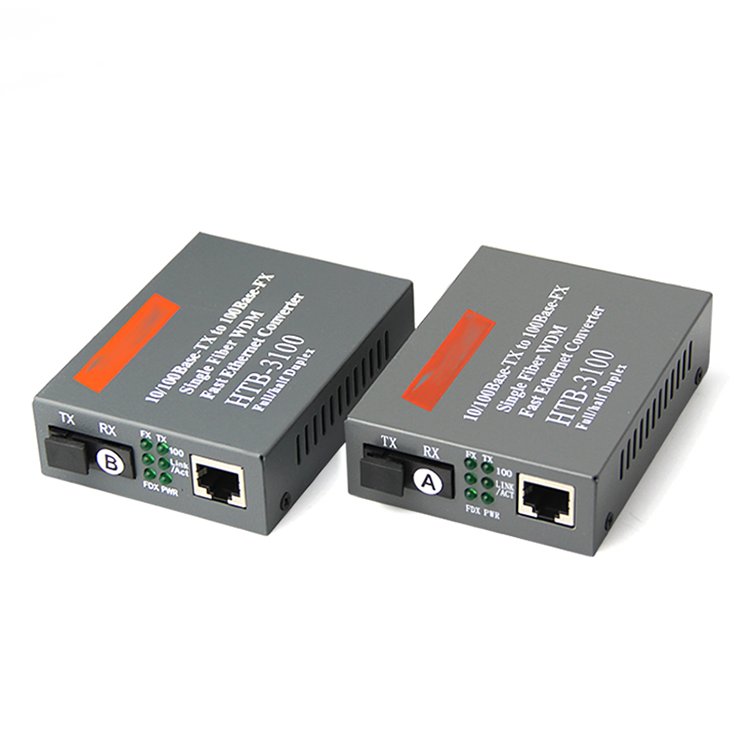

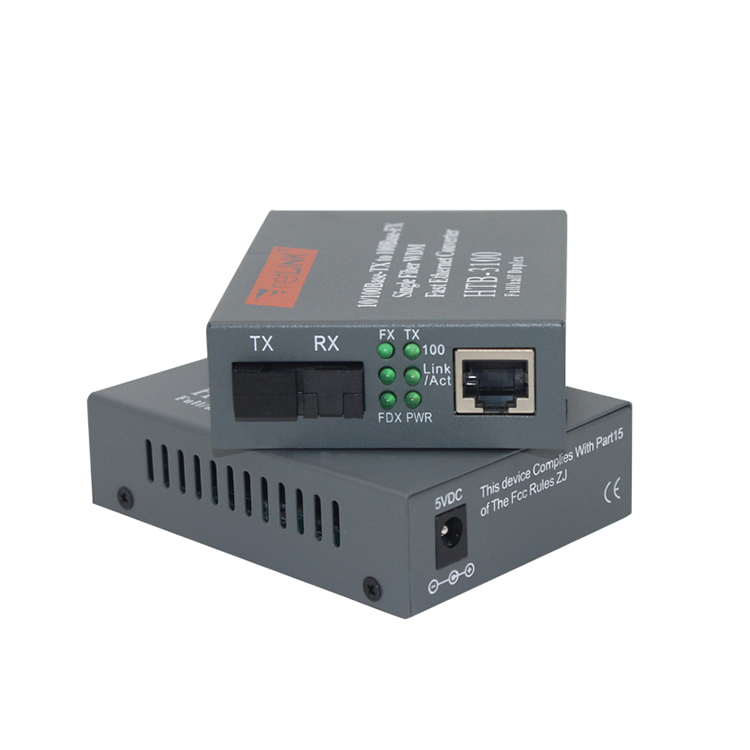

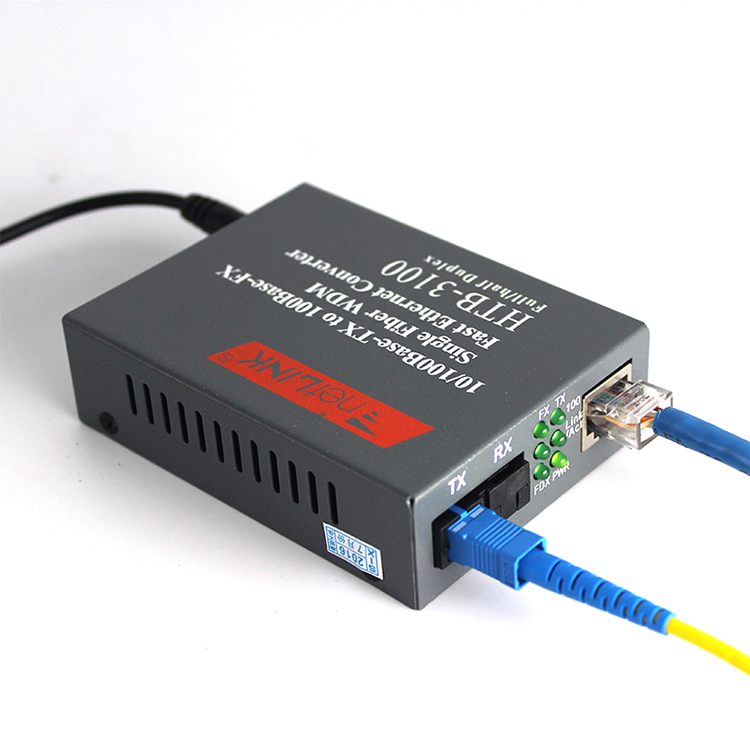

MORENETLINK Series 10/100M SM Single Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 90km through Single Optical Fiber link. The performance and quality of the products are excellent because of adopting latest IC from Taiwan. It must be used in couples, because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe the conditions of network. The Series product with reasonable price is especially designed for network end-users.
MAC address table: 1K
UTP: RJ-45 10/100Mbps;
Fiber: SC 100Mbps
UTP: Cat. 5 UTP (the max distance up to 100m)
Full Duplex: IEEE802.3x
Half Duplex: Backpressure
LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power: AC 110V - 220V to DC 5V; DC48V to DC 5V
Ambient temperature:0 ~ 50℃
Storage temperature:-20 ~ +70℃
Humidity: 5% ~ 90%
Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
Type | Fiber type | connector | Wavelength | TX power | Sensitivity | Max. distance | Link Budget |

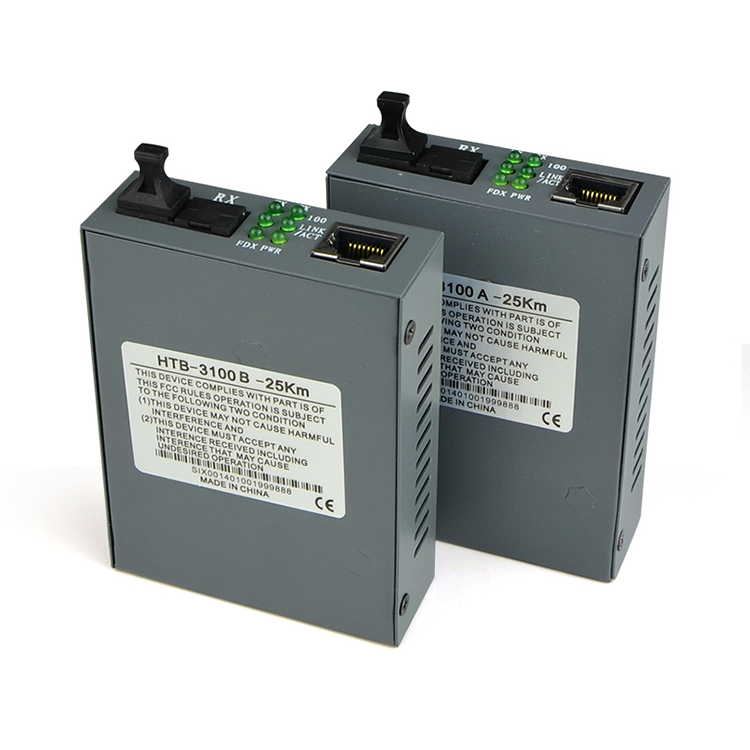

HTB-3100A/B-25 | SM | SC | 1310/1550nm | -14~-6dBm | -32dBm | 25km | 18dBm |
HTB-3100A/B-40 | SM | SC | 1310/1550nm | -5~0 dBm | -35dBm | 40km | 30dBm |
HTB-3100A/B-60 | SM | SC | 1310/1550nm | -8~-2 dBm | -36dBm | 60km | 28dBm |
HTB-3100A/B-80 | SM | SC | 1310/1550nm | -3~0 dBm | -37dBm | 80km | 34dBm |
