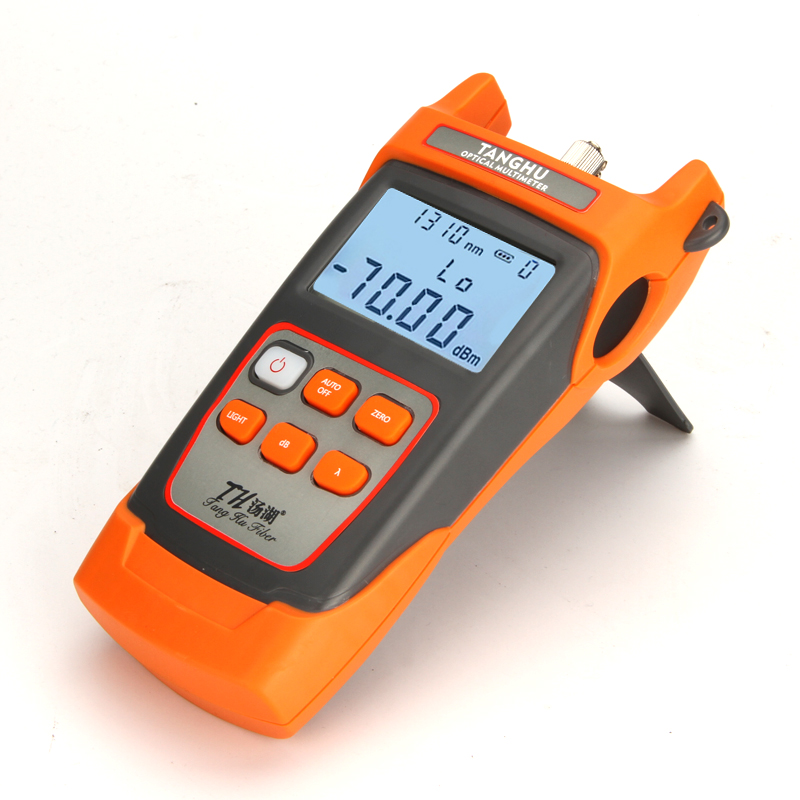

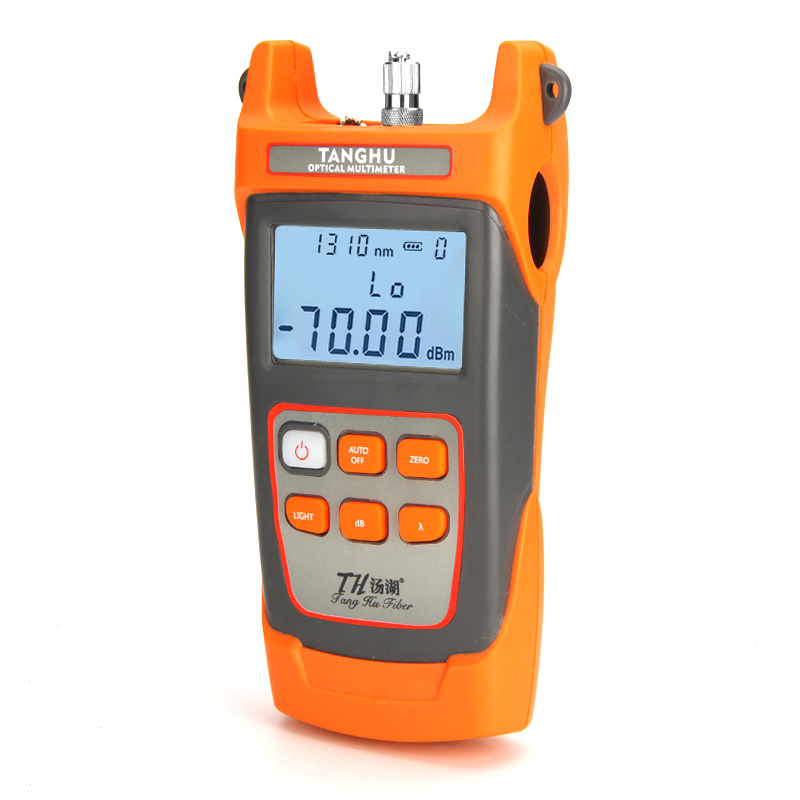

Optical Power Meter

This type of optical power meter is for handheld installation, operation and maintenance of optical fiber network, special design of a precise, durable, convenient portable test instrument. It can be used to identify fiber, measure attenuation and loss, verify continuity and evaluate fiber link transmission quality.

Inquire Now Next Product

Features

-Linear (mW) and nonlinear (dBm) indexes displayed

-Self-calibration function
-Memory of Test Records
-No Warm-up, Quick Start
-Backlight
-120 Hours Continuous Operation
-Pocketsize, Lightweight and Easy-to-use

Specifications

Model	TH880
	800-1700	800-1700
Calibrated Wavelength	850,980,1300,1310,1490,1550,1625,1650nm
Power Range (dBm) (1)	-70 ~ +10	-50 ~ +26
Accuracy	±0.25 dB (5%) @25ºC & -10dBm (±0.5 dB@850nm)
Display Unit	nW/uW/mW/dBm/dB
Data Storage	1000 records
Power Saving	Auto-off after 10 minutes idle
Working temperature	-10~+60℃
Storage temperature	-30~+70℃
Detector Type	InGaAs
Connector	FC (Interchangeable SC/ST)
Power Supply	Lithium Battery/ 3 AA Battery
Battery Life	Continuous operation ≥120 hours; Standby≥250hours
Weight	240g (0.53 lbs)
Dimensions (H × W × T)	186×100×50mm (7.32×3.94×1.97 inch)
Light Source(Optional)	5mw/10mw/20mw/30mw/50mw
