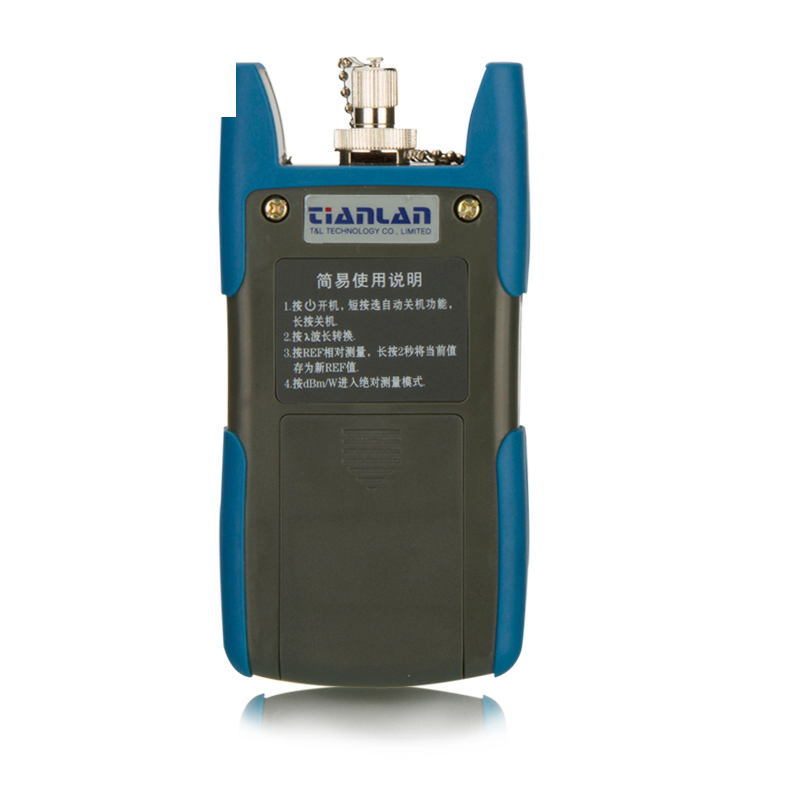

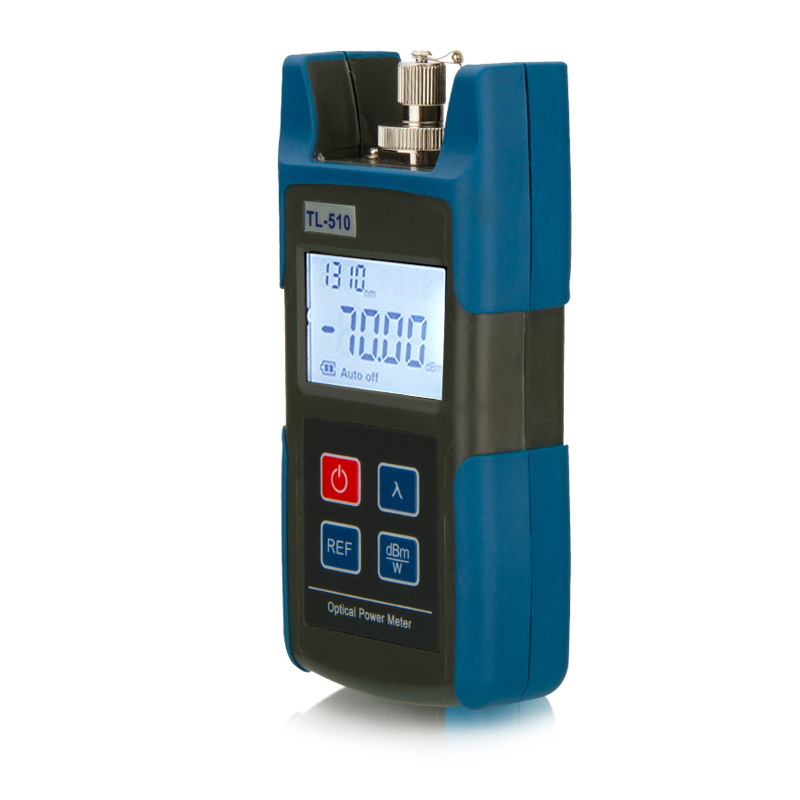

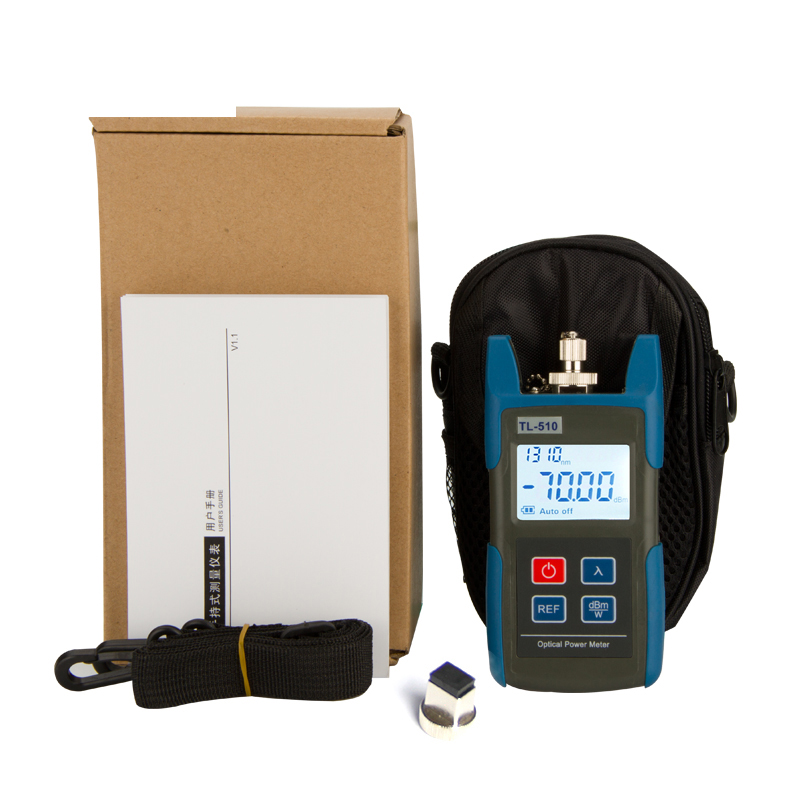

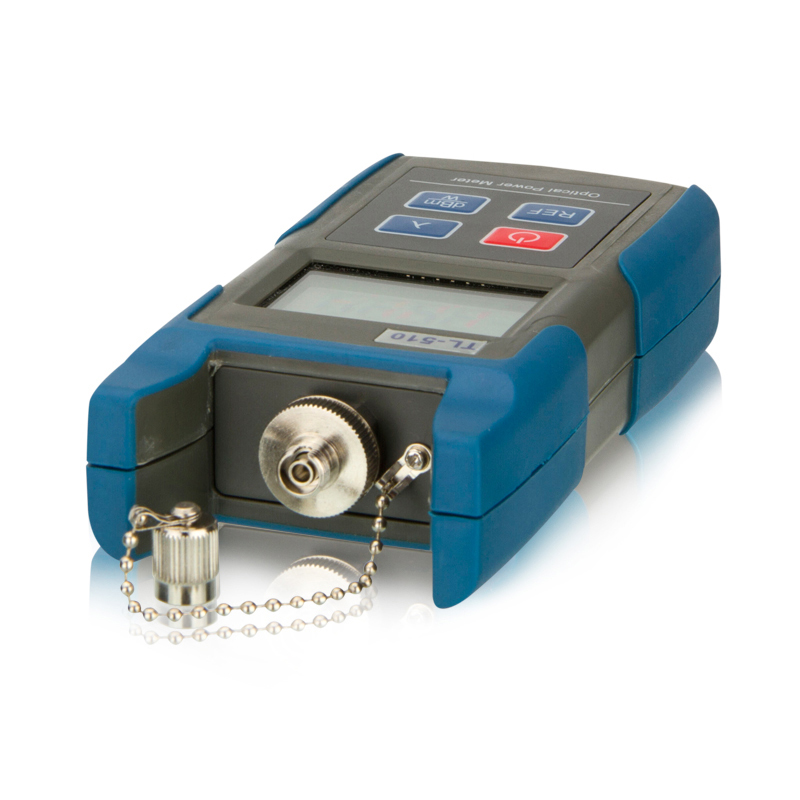

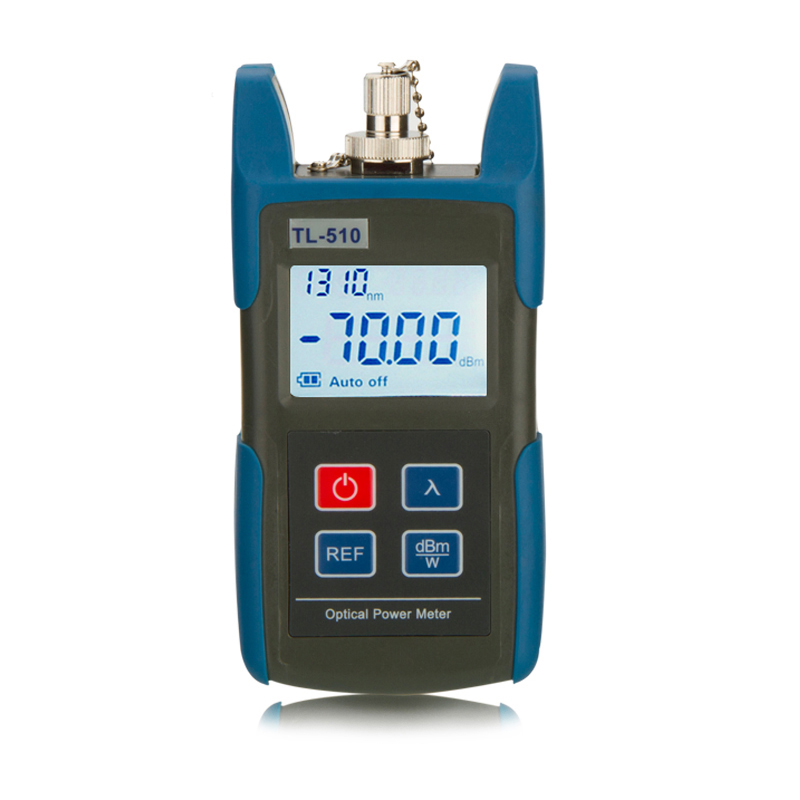

MOREThe TL510 mini handheld optical power meter is an accurate, durable and convenient portable test instrument specially designed for the installation, operation and maintenance of optical network.With the advantage of smart appearance, optional switch backlight display, automatic shutdown function, a wide range of optical power test, accurate test accuracy and a new user self-calibration function and universal interface design.
1. High sensitivity, large dynamic range
2. Common interface design: FC / SC / ST interface, standard FC, SC adapter interface
3. Mini-cabinet protection design, compact and generous, to prevent accidental drop damage to instrument detectors.
4. Fast response without preheating
5. Low voltage function display
6. Automatic shutdown function is optional
7. Auto off backlight function is optional
8. New user self-calibration function
9. Logarithmic power (dBm) and linear power (xW) indicators
10. Large screen and LED backlit display
Power Measurement Range(dBm) | -70~+10 | -50~+26 |
Wavelength Range(nm) | 800~1700 | |
Calibration Wavelength nm | 850,1300,1310,1490,1550,1625 | |
Type of probe | InGaAs | |
Measurement Accuracy | <±3%(-10dBm,22°C) | |
Display resolution dB | Linear Display: 0.1%, logarithmic display: 0.01dBm | |
Working Temperature (°C) | -10~+50 | |
Storage Temperature(°C) | -20~+70 | |
Relative humidity | 90% (+30 °C), non-condensing | |
Optical Interface | FC,SC(ST LC optional) | |
power supply | 3 AAA Battery | |
Battery operating time (h) | 120h | |
Automatic shutdown time (min) | 10 | |
weight g | 200 | |
size mm | 130×63×29 |
