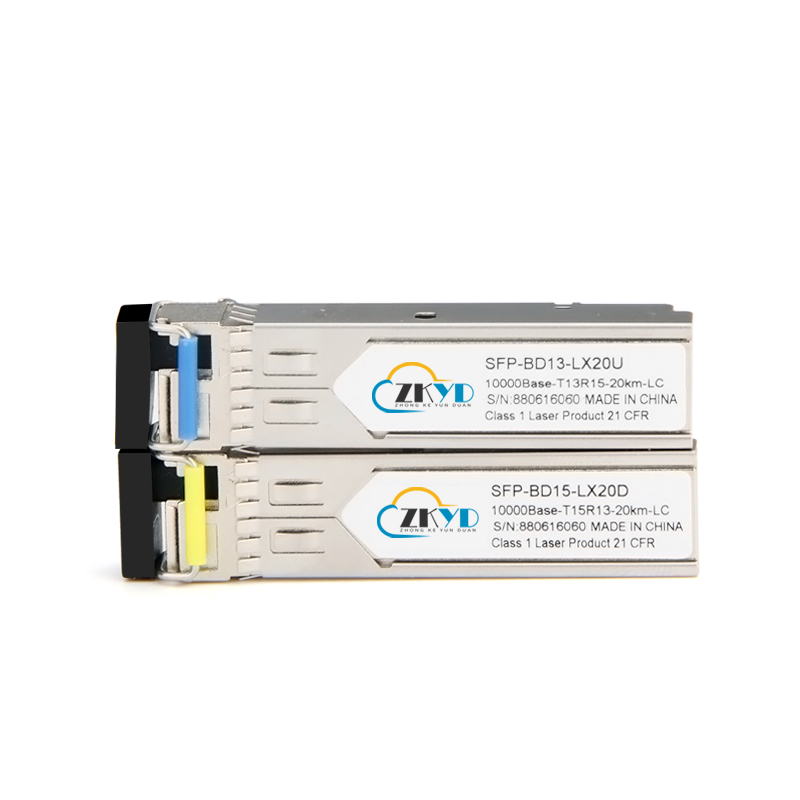

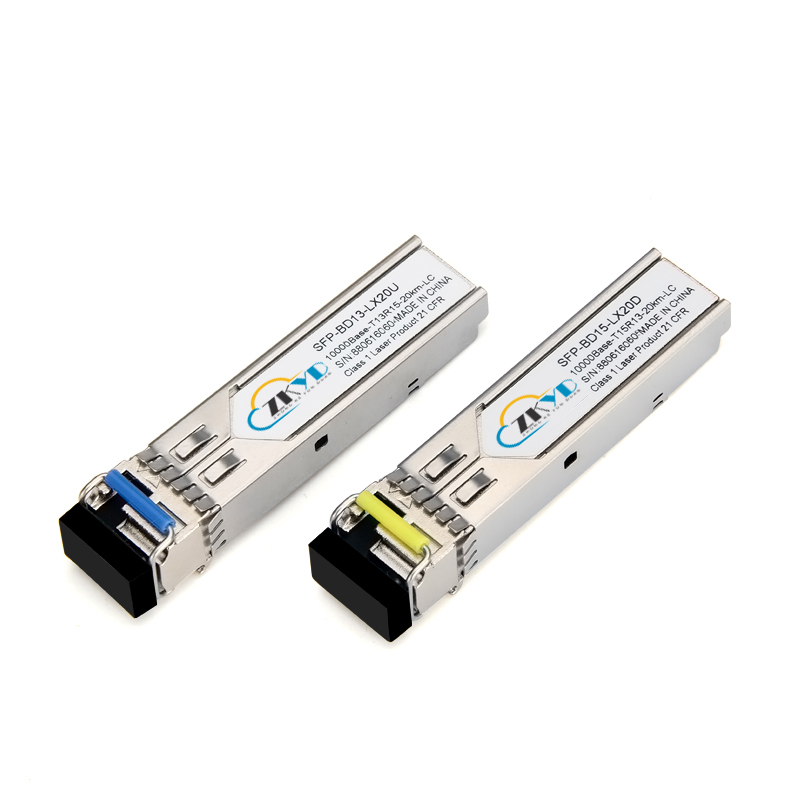

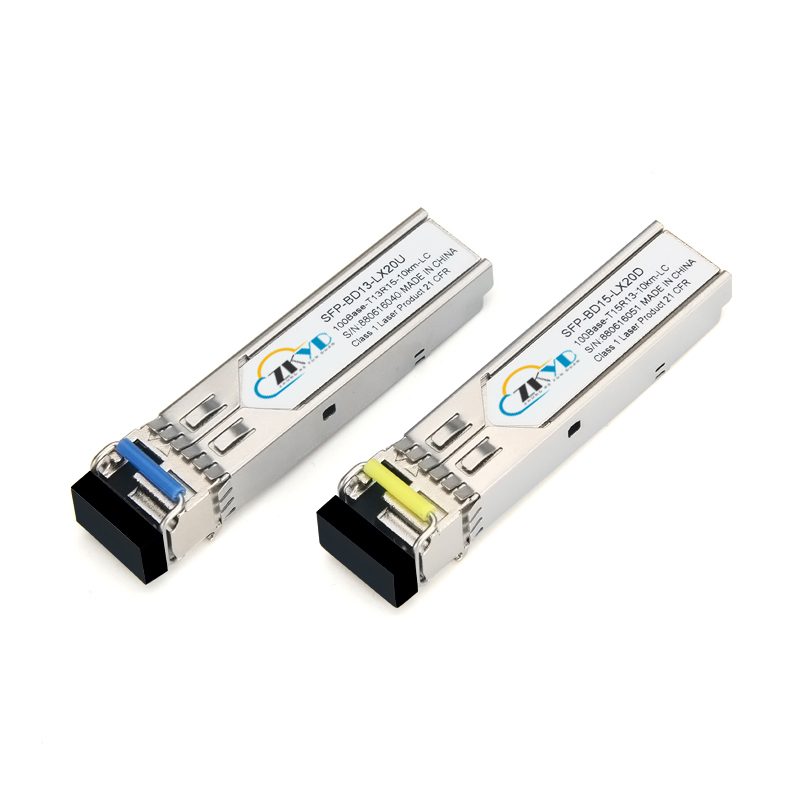

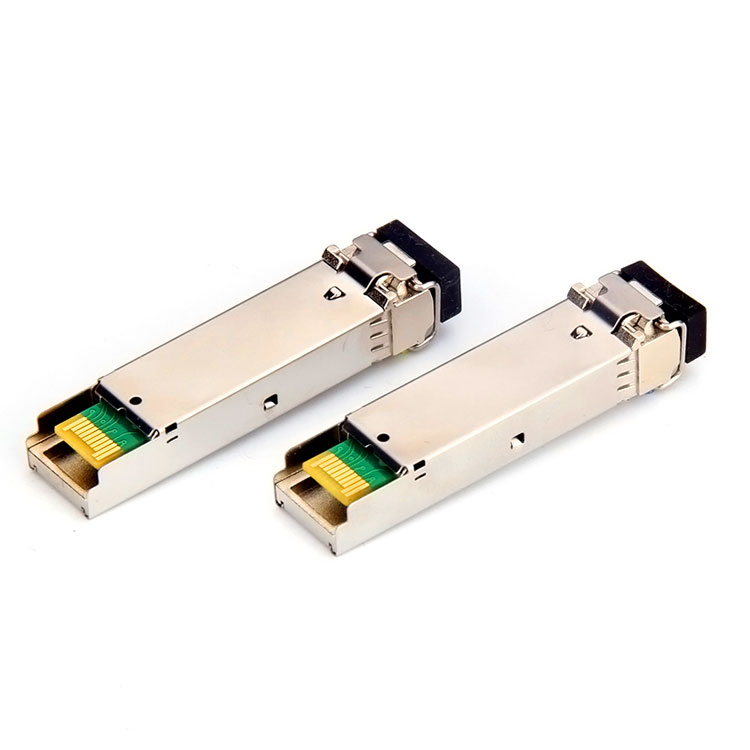

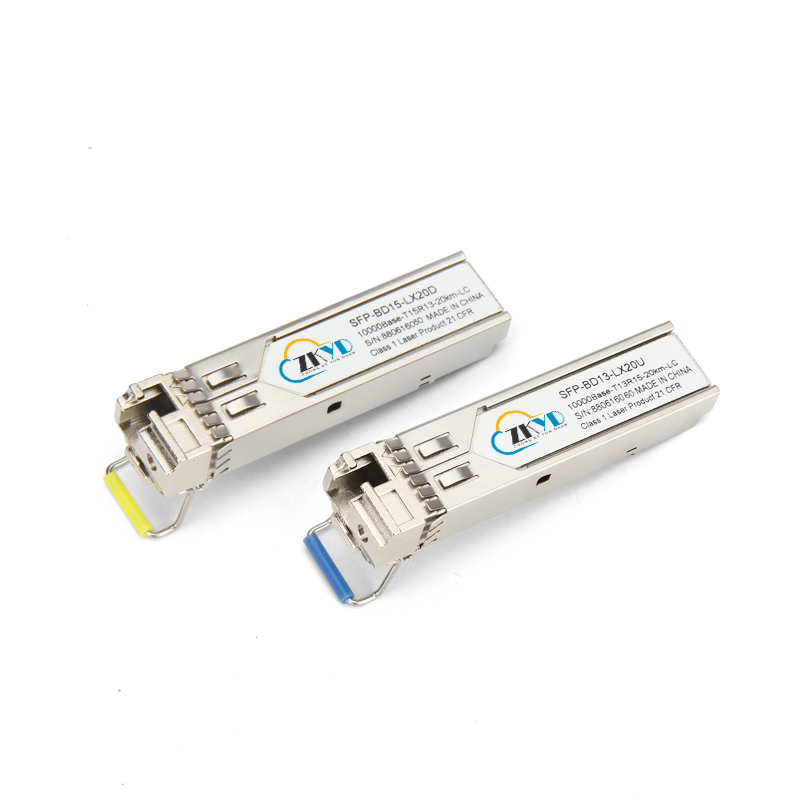

MOREThe module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; the transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
1.Supports 9.95Gb/s to 10.3Gb/s data rates
2.Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
3.Single 3.3V Supply
4.Up to 20km on 9/125um SMF
5.1270nm DFB Laser transmitter,1330nm receiver
6.Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
7.SFP+ MSA SFF-8431 Compliant
8.Digital Diagnostic SFF-8472 Compliant
9.RoHS compliant and Lead Free
10.Operating case temperature: Standard: 0 ~ 70 °C
Applications
1.10GBASE-LR at 10.3125Gbps
2.10GBASE-LW at 9.953Gbps
3.Other Optical Links
Data Rate | 10G | Fiber Mode | Single Mode Fiber (SMF) |
Types of Interface | LC | Types of Laser | DFB |
Operating Temperature | Standard 0~70°C | Operating Humidity | 0%~90% RH (non condensing) |
Transmission distance | 20km | Modes of Communications | Simplex |
Wavelength | 1270nm TX/1330 nm RX | Condition | New |
Receiver Sensitivity | <-14.1dBm | Extinction Ratio | >3.5dB |
Saturated Optical Power | -2-3dBm | Power Consumption | <3W |
Weight | 0.024kg | Power Supply | +3.3V |
Hot Pluggable Times | 200 | Average Output Power | -2 ~ 2dBm |
