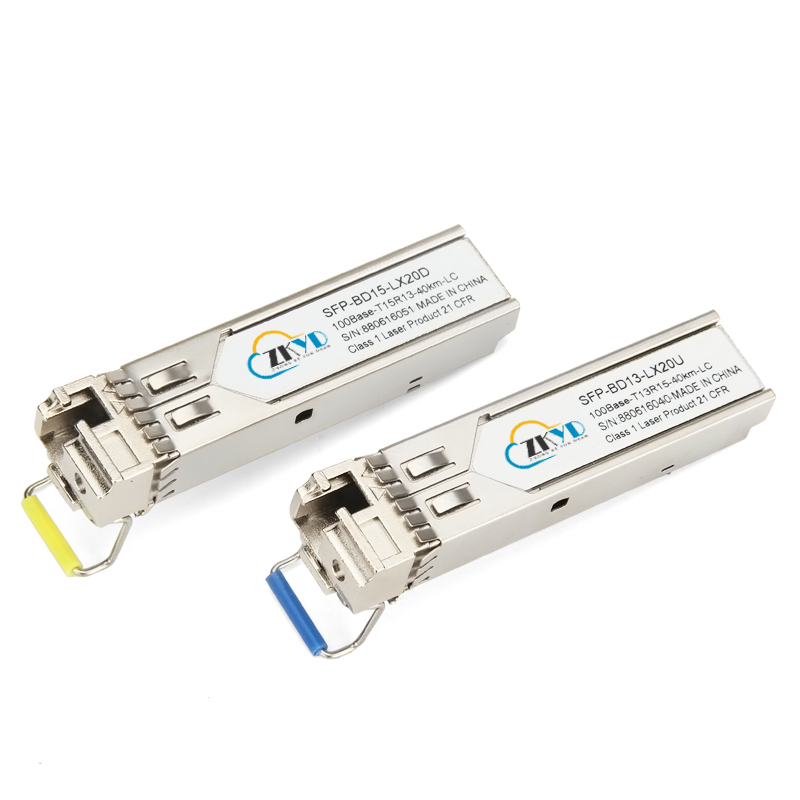

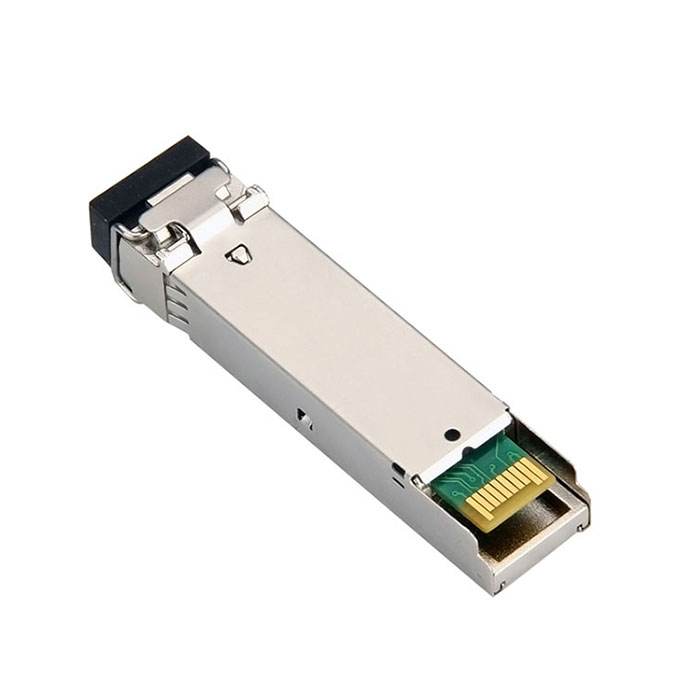

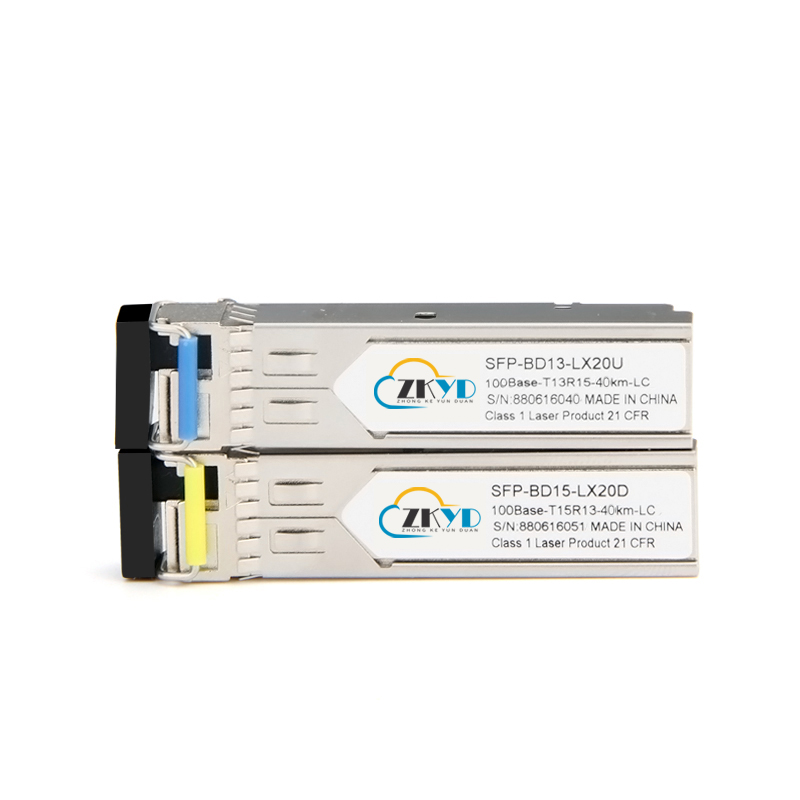

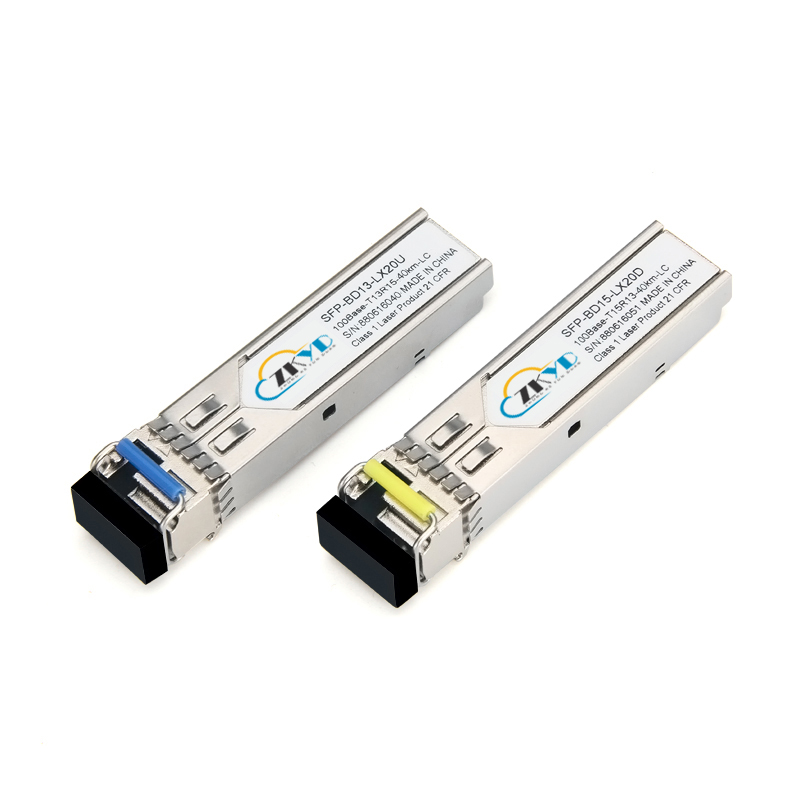

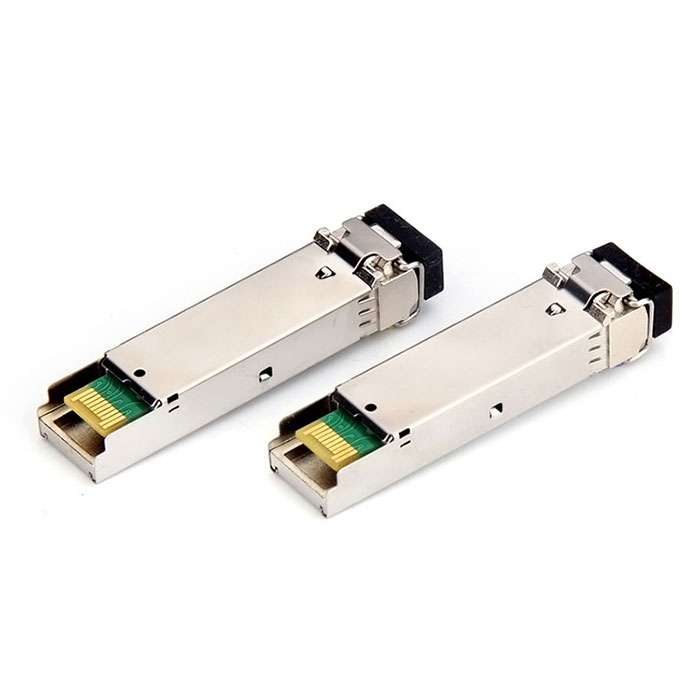

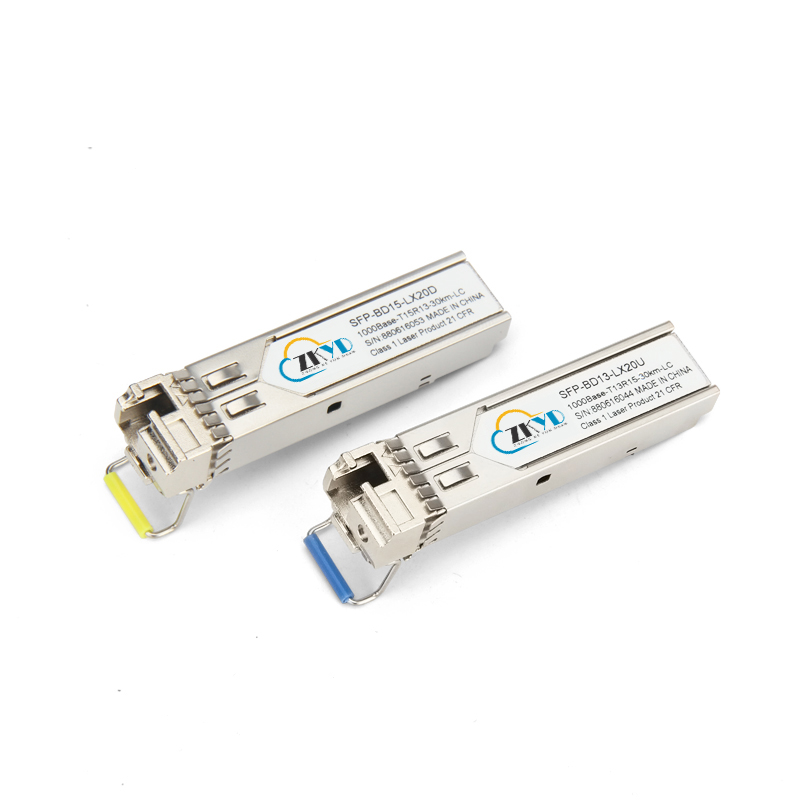

40KM 155M LC Connector Single Fiber SFP Module

The SFP-BIDI transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 3km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Inquire Now Next Product

Features

1.Transmission distance support 2/10/20/30/40/60/80/100km

2.Up to 155Mbps data-rate

3.1310nm FP laser and PIN photo detector for 2km transmission

4.Compliant with SFP MSA and SFF-8472 with simplex LC(SC)receptacle

5.Digital Diagnostic Monitoring: Internal Calibration

6.+3.3V single power supply

7.Operating case temperature:Standard: 0 to +70°C

Applications

1.Switched Backplane Applications

2.Router/Server Interface

3.Other Optical Links

4.Other optical links

Specifications

Data Rate	155M/OC-3/STM-1	Fiber Mode	Single Mode Fiber (SMF)
Types of Interface	LC	Types of Laser	FP/DFB
Operating Temperature	Standard 0~70°C	Operating Humidity	0%~90% RH (non condensing)
Transmission distance	2/10/20/30/40/60/80/100km	Modes of Communications	Simplex
Wavelength	1310nm TX/1550 nm RX	Types of Multiplexing	BIDI WDM
Receiver Sensitivity	<-32dBm	Extinction Ratio	>9dB
Saturated Optical Power	-3dBm	Power Consumption	<3W
Weight	0.024kg	Power Supply	+3.3V
Hot Pluggable Times	200	Average Output Power	-14 ~ -8dBm
