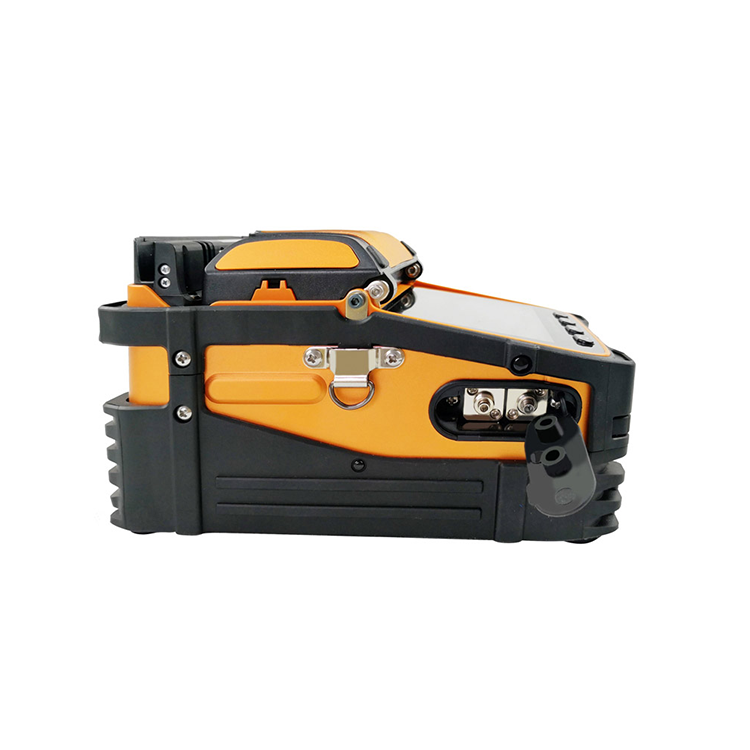

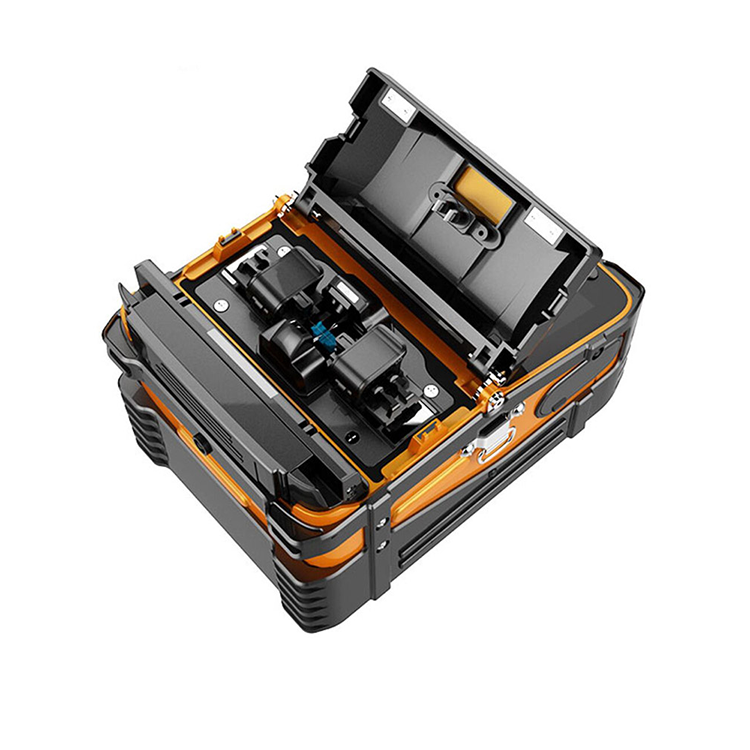

MORESignal Fire Al-9 use the latest core alignment technology with auto too is and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of mediu m and short distance, FTTH project, securty monitoring and other fiber cable splicing projects.

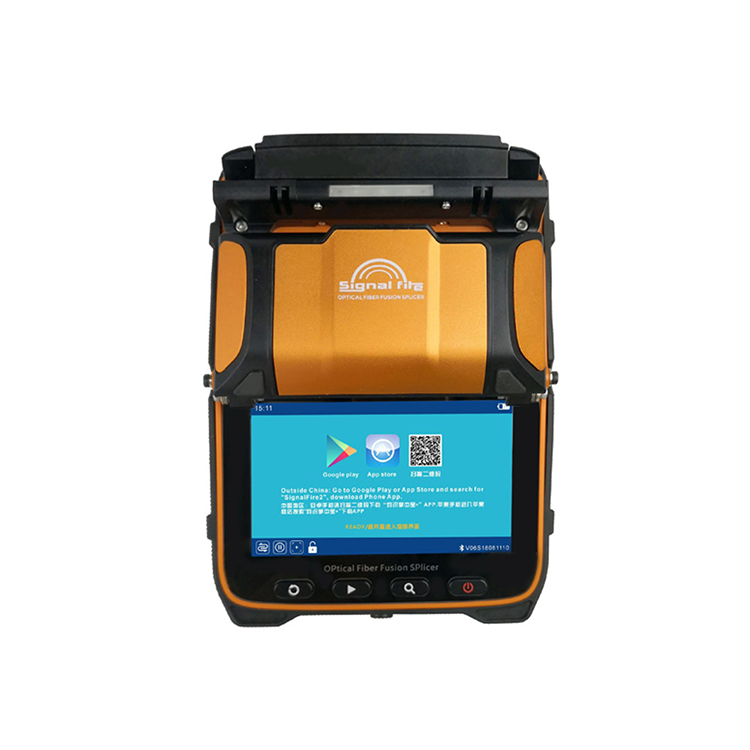

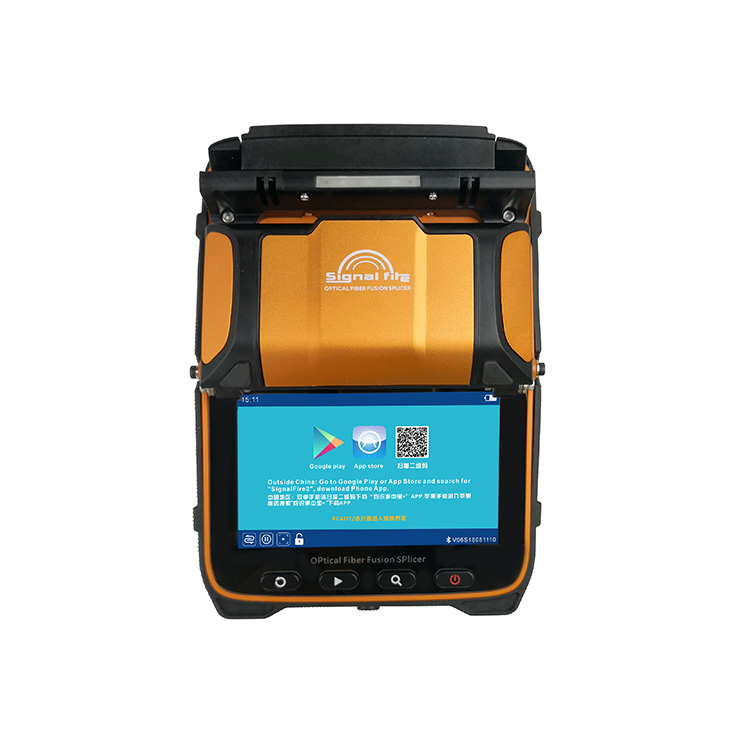

The machine uses industrial quad-core CPU, fast response, is urrently one of the fastest fiber splicing machine in the market: with inch 800x480 high-resolution screen, the operation is simple and intuitively: and up to 300 times focus magni tions, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 sec onds heating.
Fiber alignment | Core/cladding alignment / Manual alignment |
Splicing time | 5S |
Heating time | 15S |
Heating mode | Automatic heating(Preheating) |
Focus mode | Six motors Auto focus |
Applicable Fibers | SM(G.652&G.657),MM(G.651),DS(G.657), NZDS(G.655) |
Control technology | Real-time control and calibration of fusion ARC |
Return loss | Better than 60DB |
Fiber diameter | Cladding Diameter:80-150μm Coating Diameter:100-1000μm |
Fiber Cleave Length | Coating less than 250μm:8-16mm Coating less than 250-1000μm:16mm |
Software updates Length | Automatically update, Update by a key |
Boot time | 1 second |

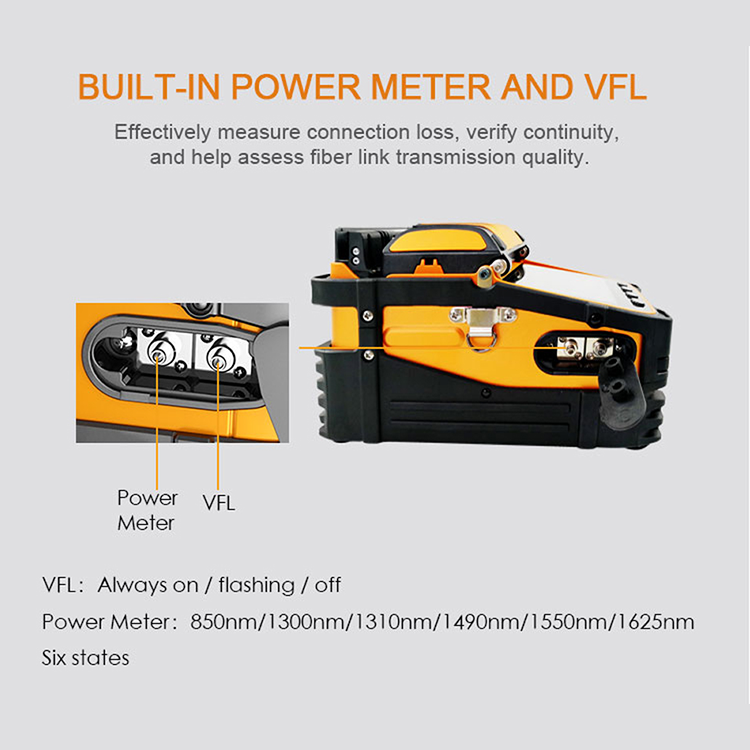

Visual Fault Locator | Power:15mw,2hzflashing And Constantly Bright Mode |
Built-in lighting | easy for night operation |
Tension Test | Standard 2N |
Fiber holders | 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
Magnification | 300 for X or Y view, 150 for X or Y view |
Screen | 5 inch TFT color display |
Splicing Mode | Normal / high precision splicing |
Splicing method | Fully automatic,Step by step splicing |
Built-in battery | 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 200 times |
Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power |
Operating Conditions | Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s |
Shrinkable tube | 60mm,50mm,40mm,25mm |
Product protection | Waterproof, dust proof, shock-resistant |
Optical Power Meter | Wavelength:850nm,1300nm,1310nm,1490nm, 1550nm,1625nm Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range) |
