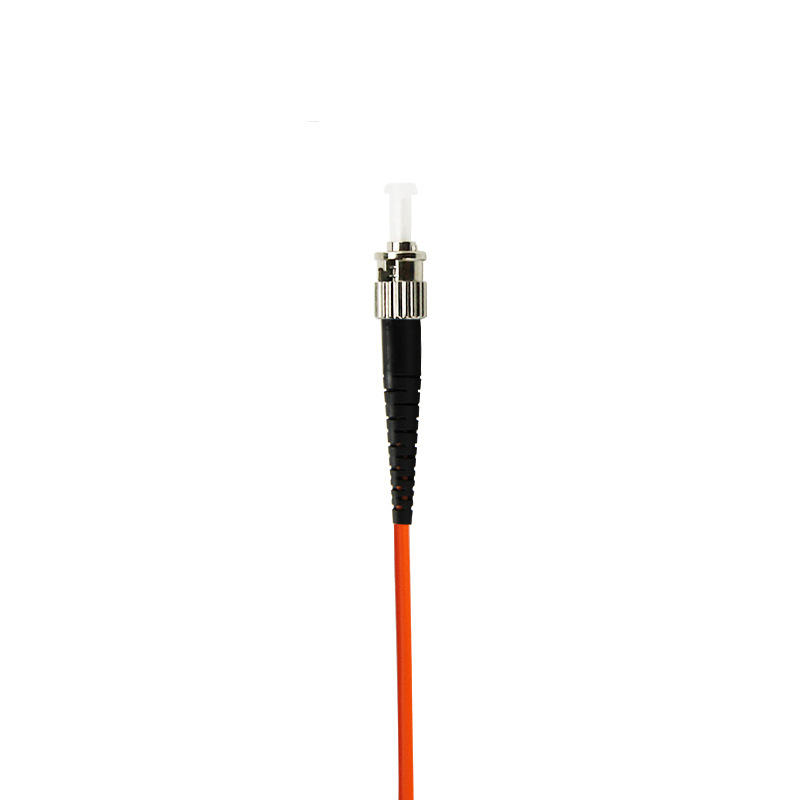

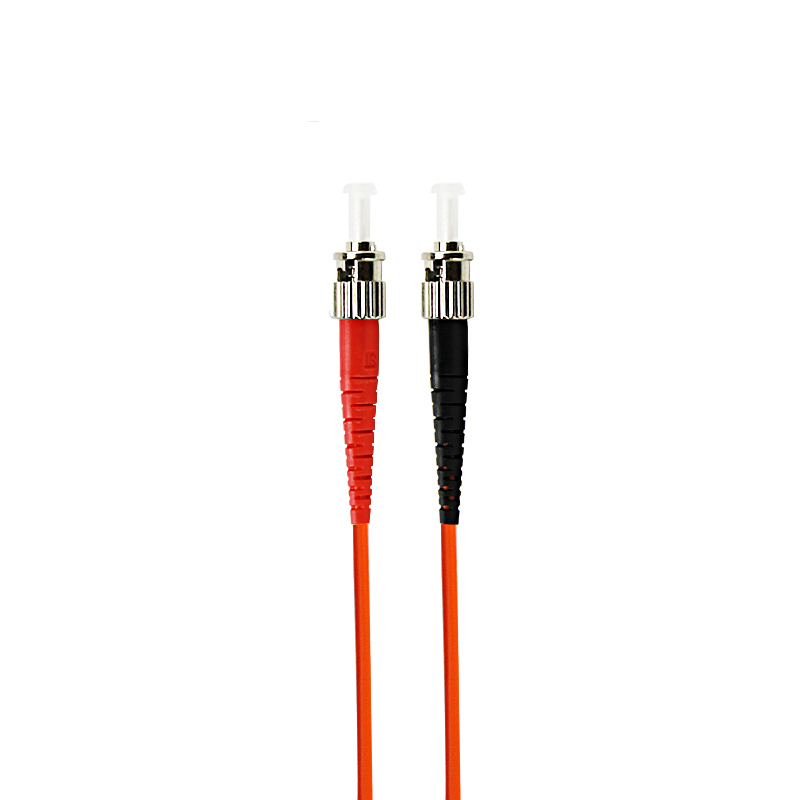

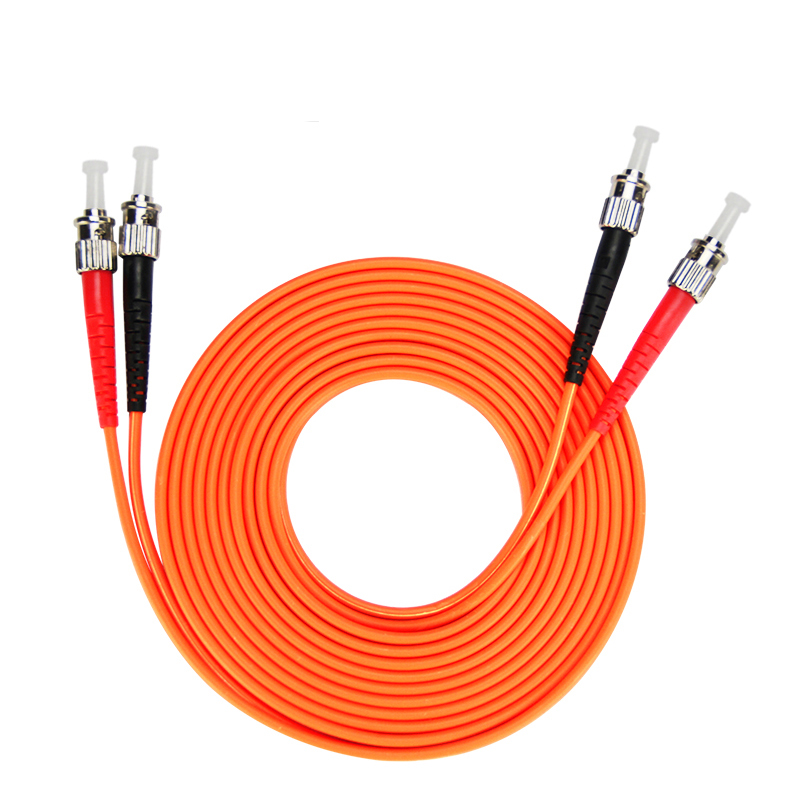

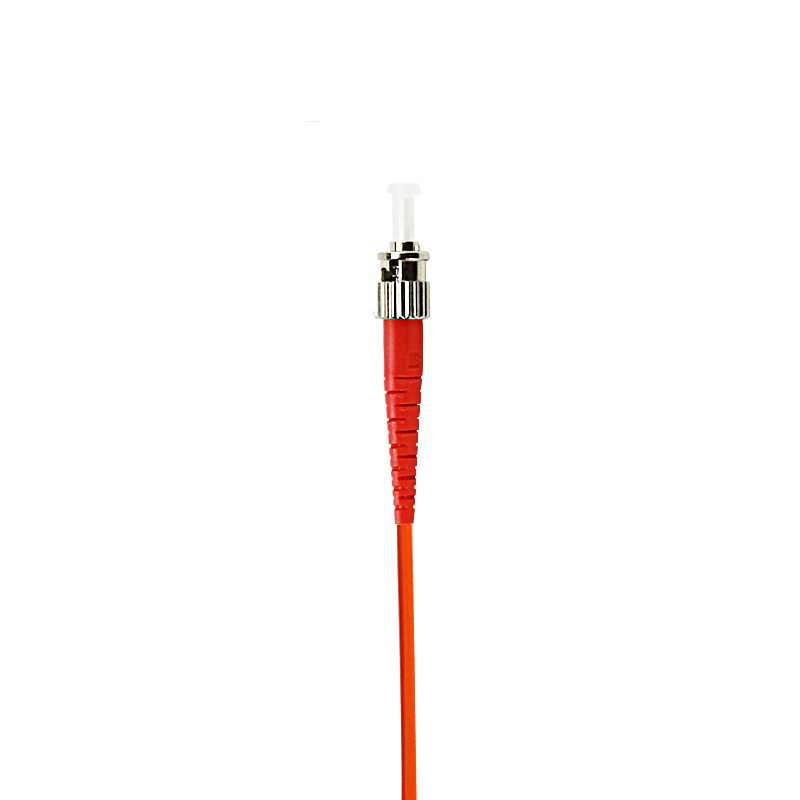

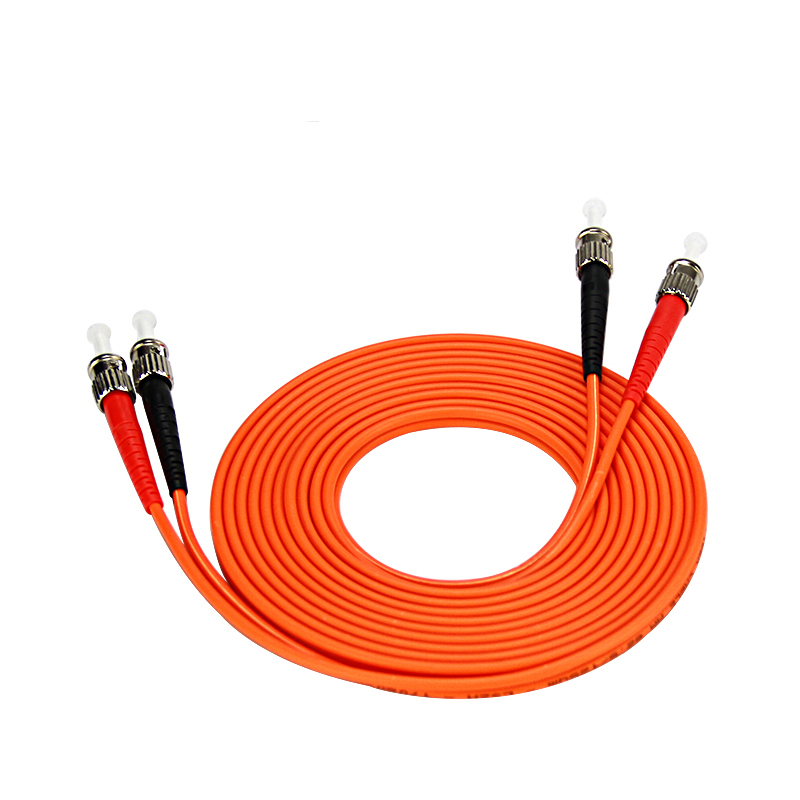

Gigabit Multimode ST To ST Fiber Optic Cable Patch Cord

1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

2) Ferrule End-face: PC, UPC,APC

3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...

5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm

6) Cable Length: 1, 2, 3 meter or customized

7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored

8) Patch cord/pigtail


Share:
Features

Low insertion loss and back reflection loss

Good echangeabilityGood Durability

High temperature stability

CE,ROHS,FCC

Superior quality standard PC/UPC/APC polishing


 Applications

Cabling system, ODF

Optical fiber communication systems

Optical fiber data transmission

Telecom net

Optical fiber sensor

Optical fiber test equipment

Optical fiber communication system

FTTH, LAN,PON & Optical CATV


Specifications
ItemUnitLC/SC/FC/ST Fiber Patch Cord
SMMM
Fiber DiameterUM9/12565.5/12550/125
Polishing
PCUPC  APCPCPC
Insertion LossdB≤0.2≤0.15≤0.2≤0.1≤0.1
Return LossdB≥55≥50≥60≥35dB≥35dB
Insert-pull TestdB≤0.2≤0.2≤0.3≤0.15≤0.15
InterchangeabilitydB≤0.1≤0.1≤0.15≤0.1≤0.1
Temperature Range-40~+80
Durability(1/Matings)≥1000
Tensile Strength (N)≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber9/125um, 50/125um,62.5/125um,ect
Diameter0.9mm 2.0mm, 3.0mm etc
CoresSimplex, duplex, 4cores, 6cores, 8cores, 12cores etc
