Home > Products > Network&Fiber Optic Transceiver > POE Switch

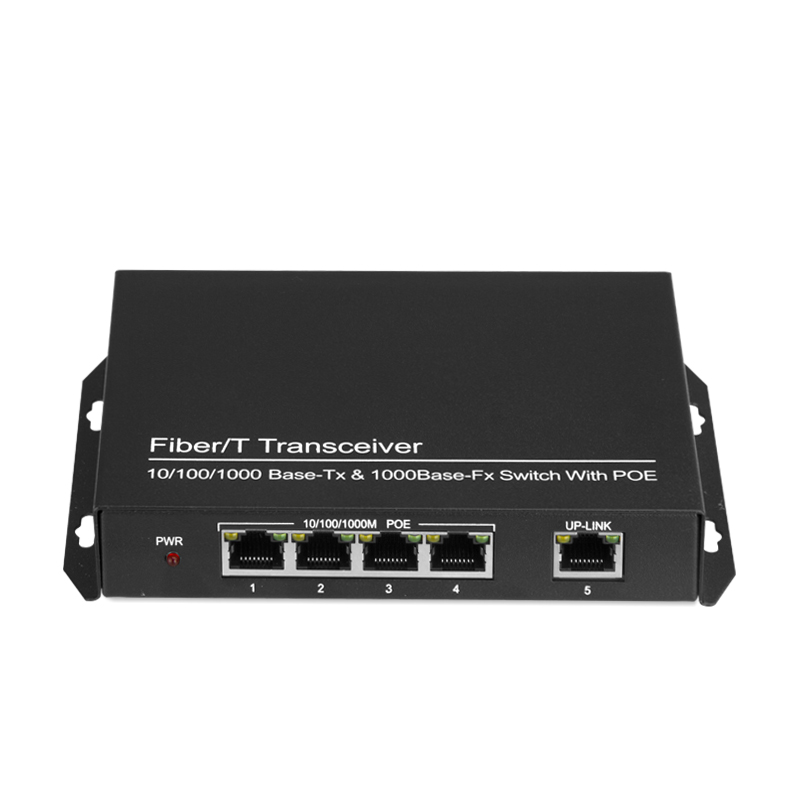

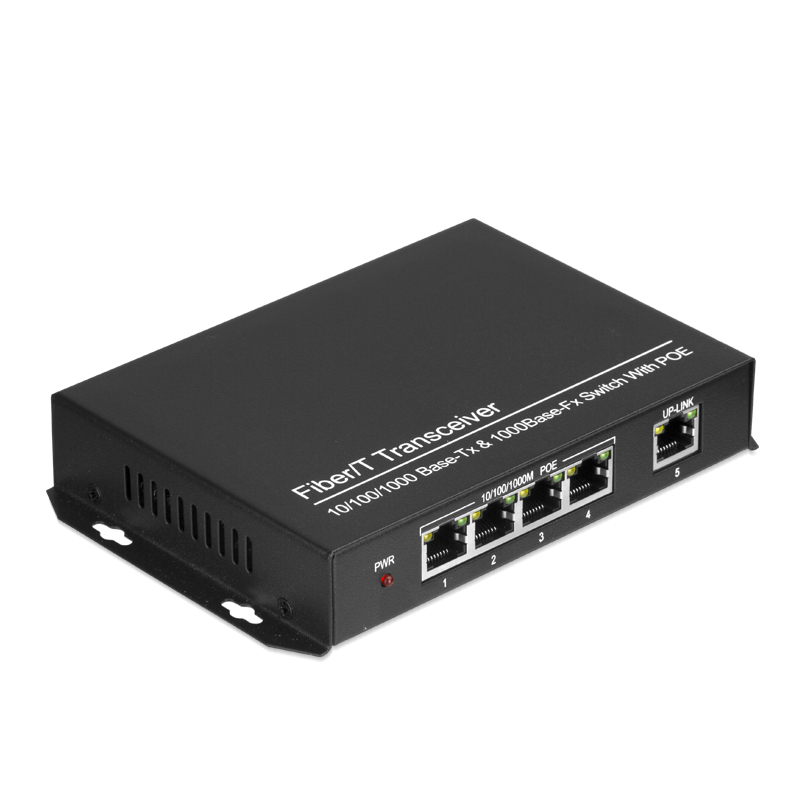

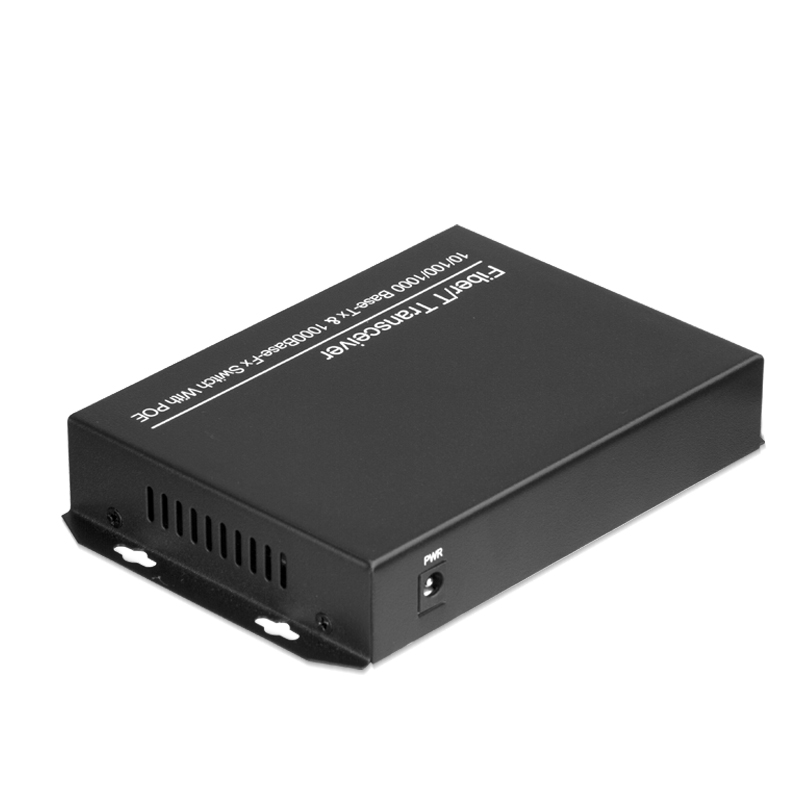

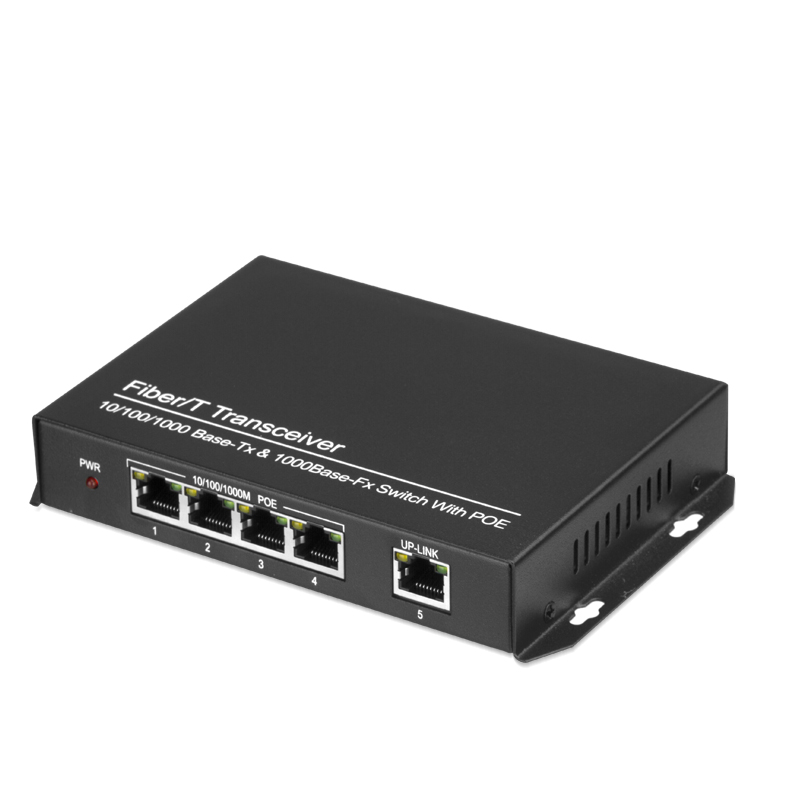

1000M 4 Port POE Network Switch +1 Port 1000M Network

1.Million HD monitoring transmission and power supply

2.Wireless AP layout transmission and power supply

3.Internet telephony transmission, smart home system, urban intelligent traffic monitoring system (ITS)

4.Highway monitoring system, electronic road monitoring

5.Large-scale factory and mine enterprise security monitoring system, network multi-function system

6.Remote multimedia teaching / campus monitoring, video conferencing system

7.Building intercom, wireless communication, video surveillance


Share:
Features

1.Support wireless access point (AP with POE function) and network surveillance camera (with POE function) through Category 5 Ethernet cable

2.5~25 ports support standard IEEE802.3af power supply

3. 5-25 10/100Mbps adaptive RJ45 ports

4. Comply with IEEE802.310Base-T and IEEE802.3u100Base-TX standards

5.Flow control mode: full duplex adopts lEEE802.3x standard, half duplex adopts

Back pressure standard

6. Support port auto flip (Auto MDl/MDlX)

7.Support uplink port lightning protection (port meets secondary lightning protection requirements)

8.Each port theory can reach 15.4W

9. Exchange mechanism using store-and-forward

10.The port supports wire-speed switching, and the line speed can be reached within the range of 64~1536 frames.


Specifications



Single port maximum output15.4W
Size160*105*30mm
Weight0.8kg

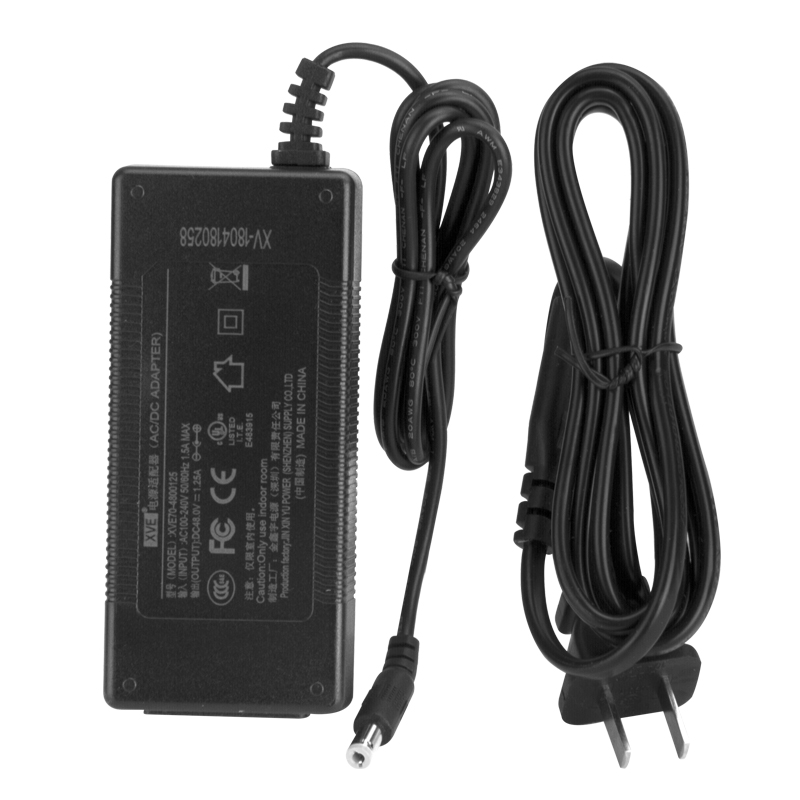

Total power60W (built-in power supply)
Power supply distance0-100 meters
StandardIEEE80 2.3
