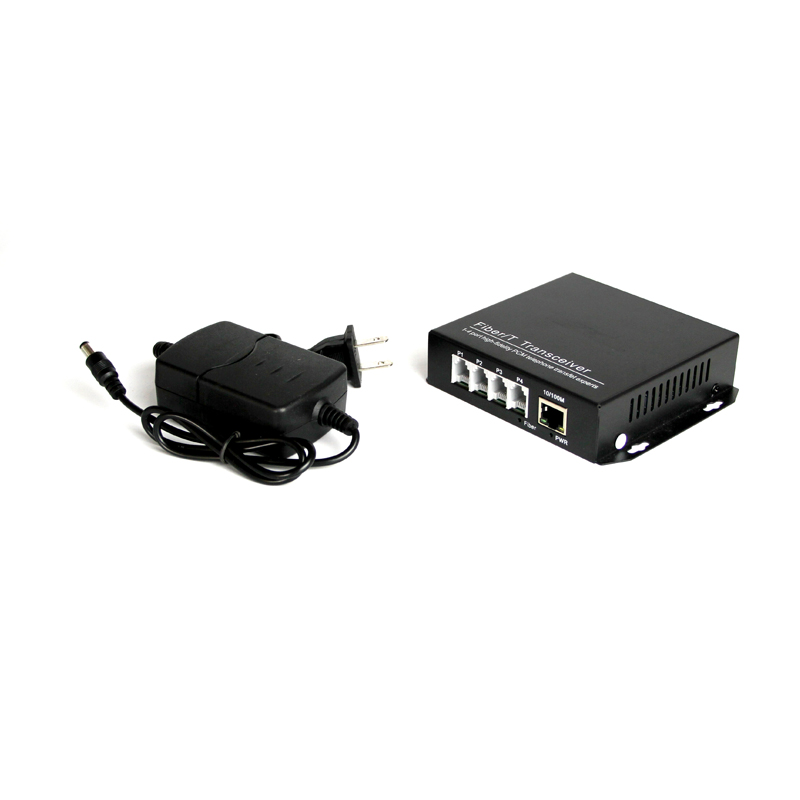

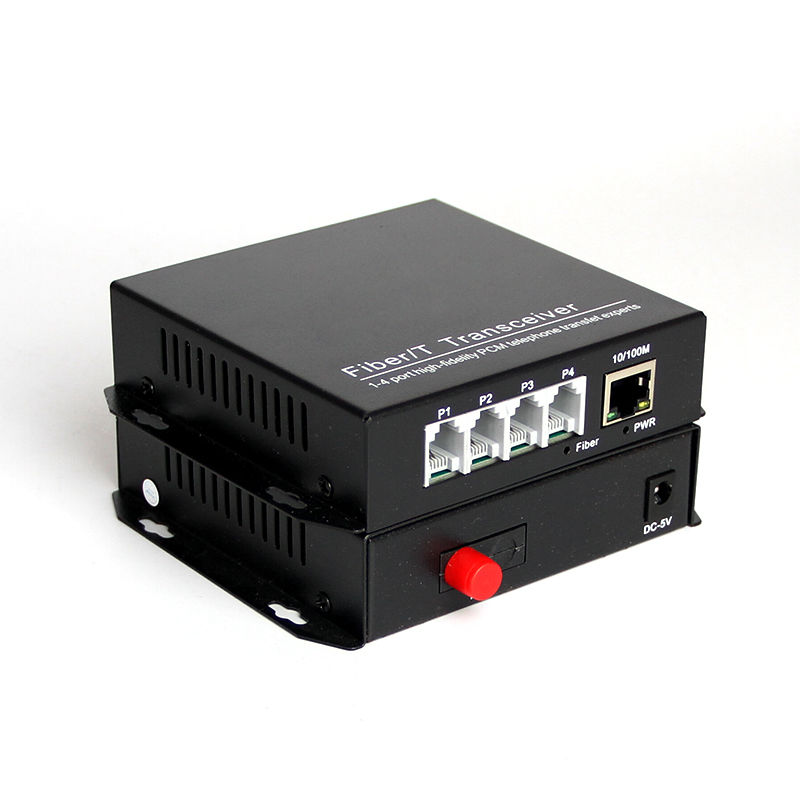

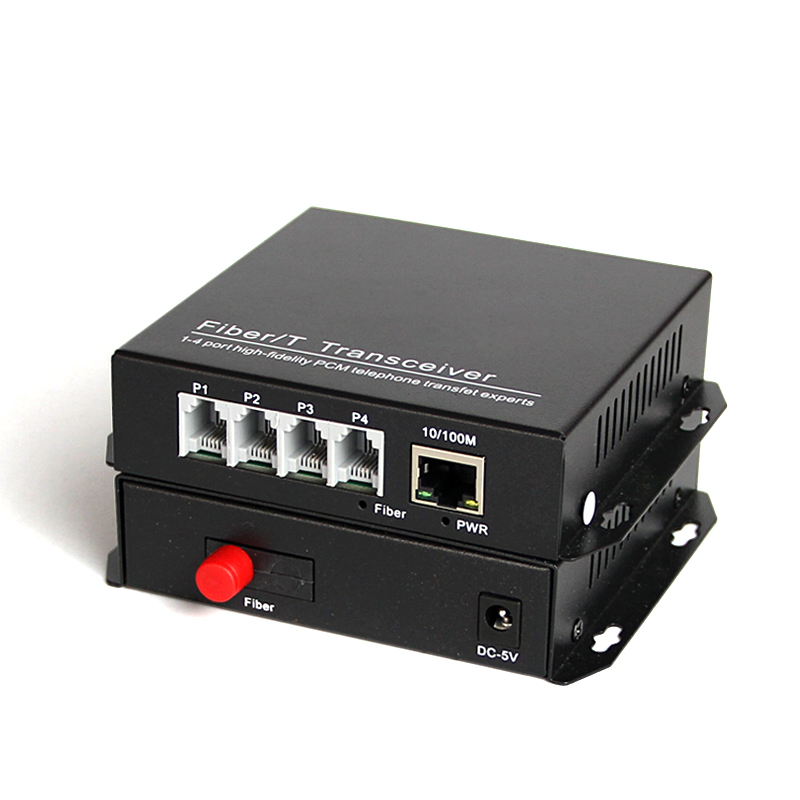

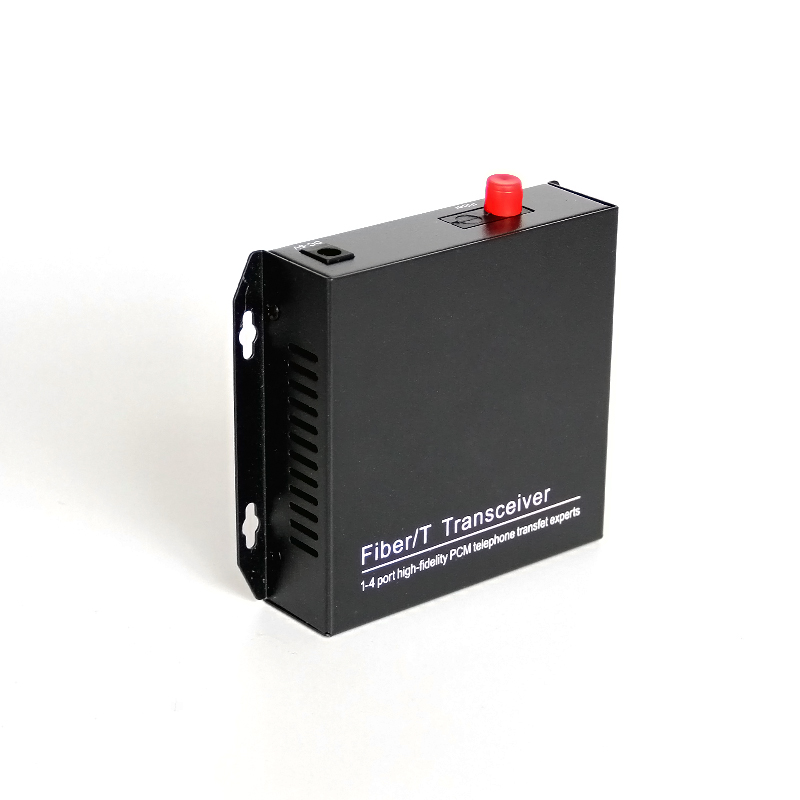

1 Channel Telephone + 1 Port 10/100M Ethernet Telephone To Fiber Converter

1. Voice Bandwidth: 8KHZ

2. Codec: PCM codec, each voice channel 256Kb / S, in line with ITU-T G.711

3. Signaling Control: Transparent support any in-band signaling, in line with ITU-T G.732

4. Interface communication terminals: ordinary telephone or PBX, PBX (PBX), a public telephone line PSTN network

5. Connection: point-phone hotline, telephone and switch mode

6. Ringing voltage: 75V, ringing frequency: 25HZ / 50Hz (FXS)

7. Impedance: 200Ω + 680Ω || 0.1μF (FXO) ; 200Ω + 560Ω || 0.1μF (FXS)

8. Fiber Interface Type: single-FC type connector

9. Transmission distance: single-mode 0-20KM


Share:
Features

Ethernet RJ45 port specifications:

Rate: 10M/100M, full duplex, half duplex fully adaptive

Actual transmission bandwidth: 50Mbps per network port

Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)

Physical interface: RJ45, support AUTO-MDIX (cross line straight line adaptive)


 Power supply:

Suitable working voltage AC90~260V, DC5V/2A.

US/EU/UK/AU power supply adaptor is available.


Specifications
Fiber interfaceFC interface
Voice codingPCM coding, 64Kbps per voice
Fiber typeSingle mode single fiber
Power supplyExternal power adapter
Working voltageAC90-260V
Applicable environmentCommunication operators, governments, enterprises and institutions
