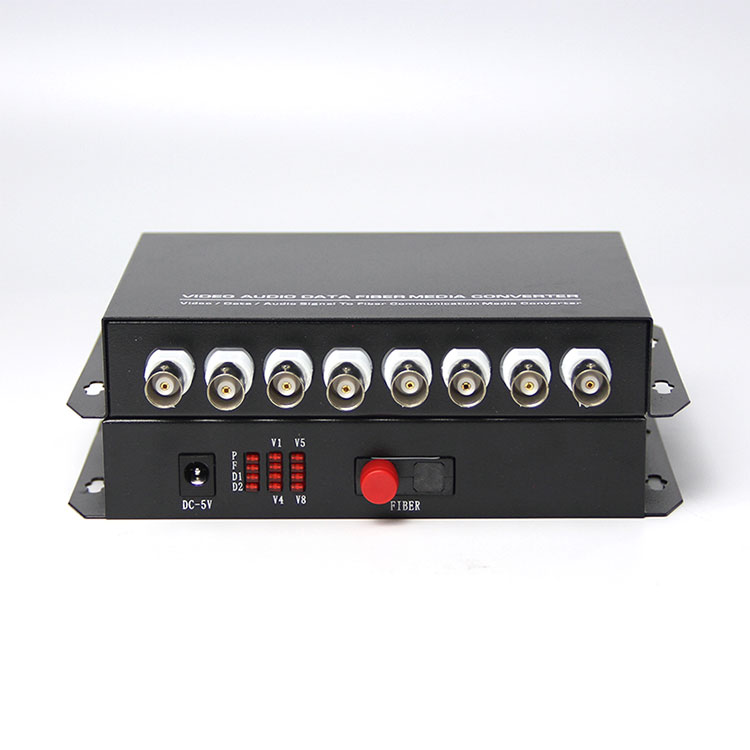

8 Channel AHD HD CVI Fiber Optic To BNC CVI Digital Video Converter

8 Channel AHD HD CVI Fiber Optic To BNC CVI Digital Video Converter

1. Video : 1/2/4/8/16/Channel

2. Video Interface: BNC

3. Video Bandwidth 8MHz;

4. Video format compatible PAL, NTSC, SECAM;

5. The sender input level: > 500mVp-p

6. The receiver rise and fall times:<0.8ns


Share:
Inquire Now Next Product
Features

Optical index:

1. Optical Interface : FC

2. Wavelength : 1310/1550m

3. Optical power: -8 ~ -3dBm

4. Receiver Sensitivity: -22dBm

5. Transmission distance : single-mode fiber type :0-20KM


For the environment:

Security Systems

Radio and television transmission

Video monitoring

Building control systems

Train/High speed road monitoring

Intelligent Traffic Monitoring System (ITS)

Remote multimedia teaching / campus monitoring

Long-distance radio and television transmission system


Specifications
Support Cameras:CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
Video1/2/4/8/16/Channel
Video InterfaceBNC
Optical fiber interfaceFC interface
