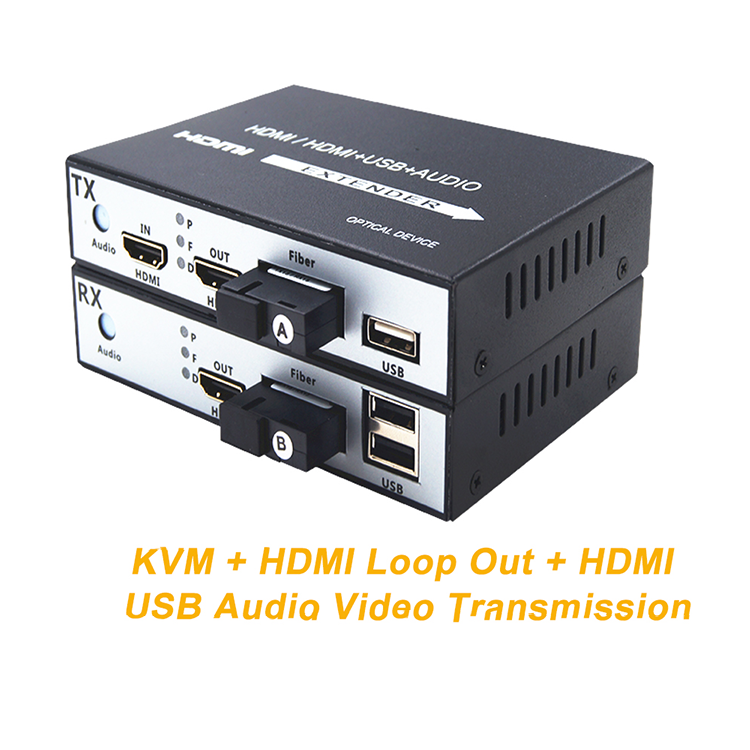

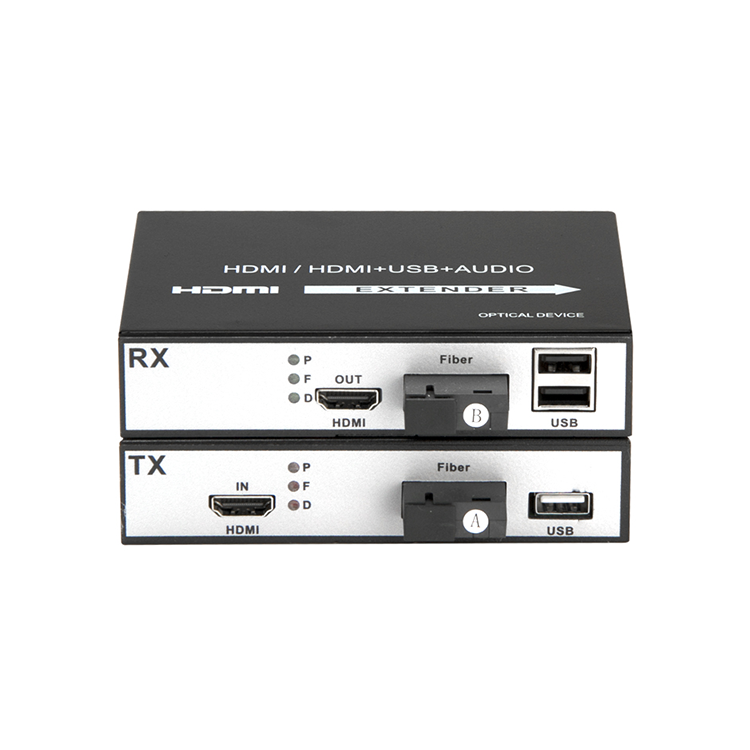

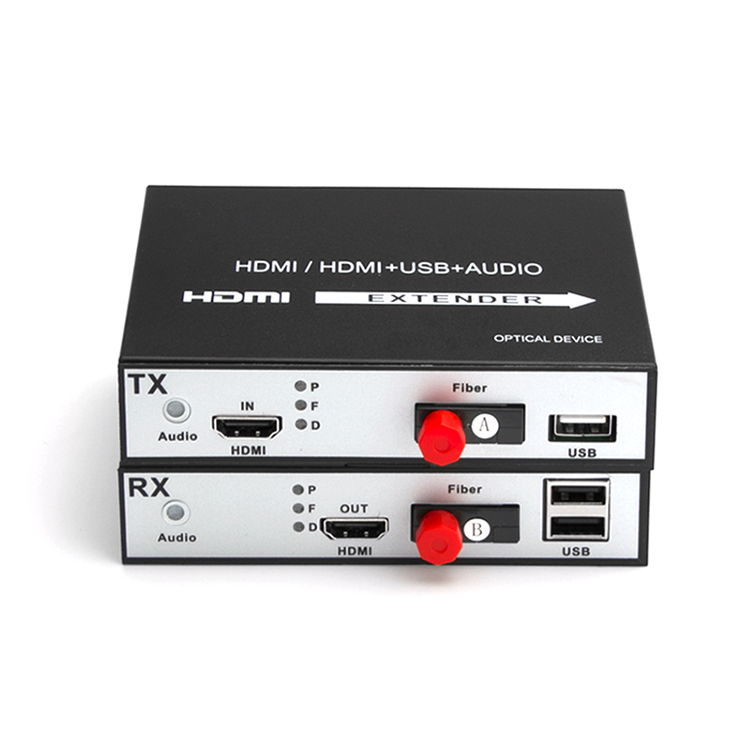

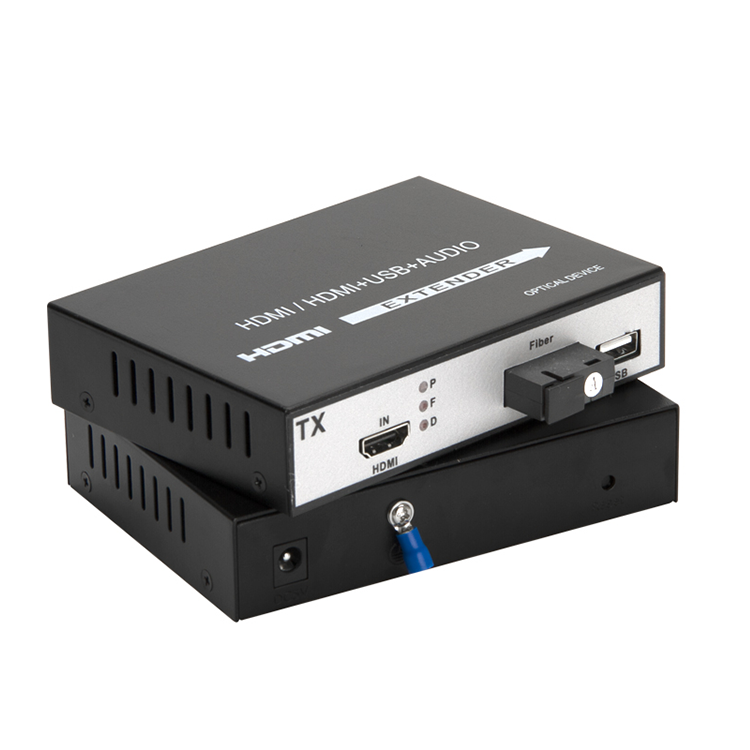

MOREFiber optic extender provides extension of HDMI video audio signal long distances over one SC fiber optic cable, it supports high resolution up to 1920*1080@60Hz and new H.264 technology. It also supports USB KVM and HDMI loop out function.The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Long range transmission:up to 20 km over a single-mode SC fiber optic cable;up to 300 m over multi-mode SC fiber optic cable;
Video resolution: up to 1920*1080P@60Hz;
Audio sampling rate: 32kHz, 44.1kHz and 48kHz ;
Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
Compressed mode:Newest H.264 technology;
Male to male: one TX to one RX applicataion;
USB 2.0:USB KVM remote control,work with keyboard and mouse etc;
High-speed USB 2.0: up to 480Mbps
HDMI Loop Out:The transmitter with one HDMI loop output;
Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;
TCP IP : support one to many application,match many kinds of display devices;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Built-in ESD protection system:make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
Plug and Play:Simple to install.
Standards | HDMI 1.3; HDCP 1.2 |
Fiber interface | SC Connector |
Wavelength | 1310nm, 1510nm |
Power supply | DC 5V/2A |
Power dissipation | MAX 5W |
Temperature | -5℃ ~ +70℃ |
Humidity | Operating: 5% ~ 90% |
Dimension | 113*80*28mm |
