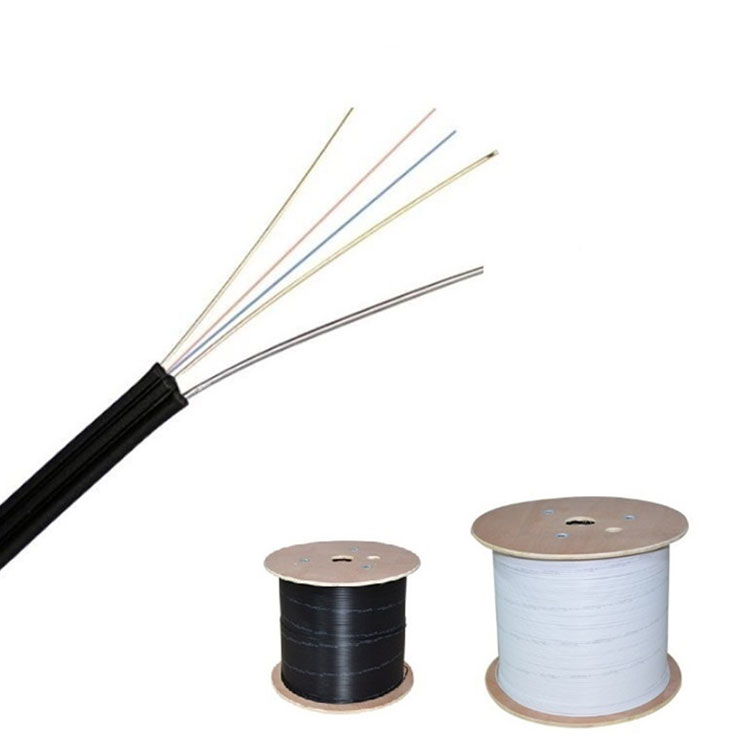

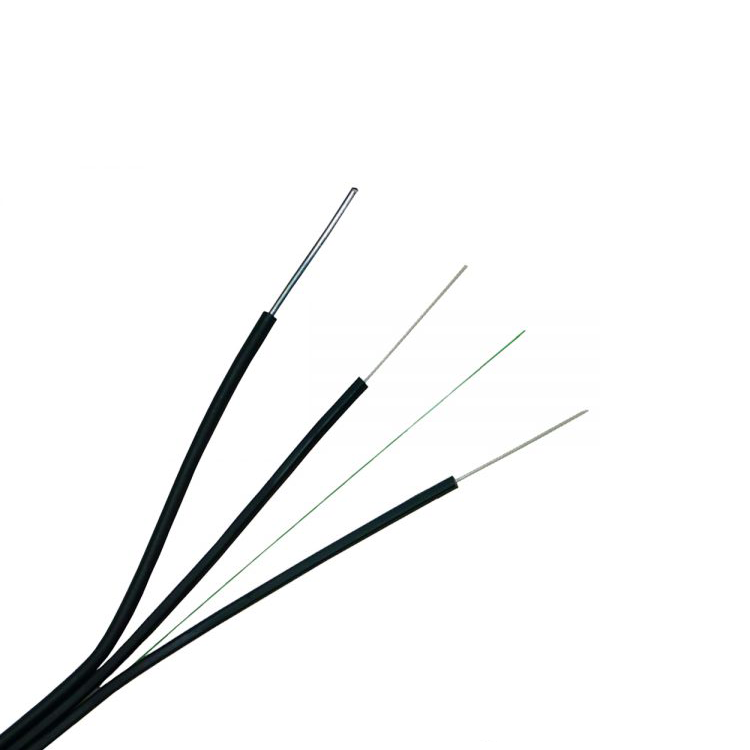

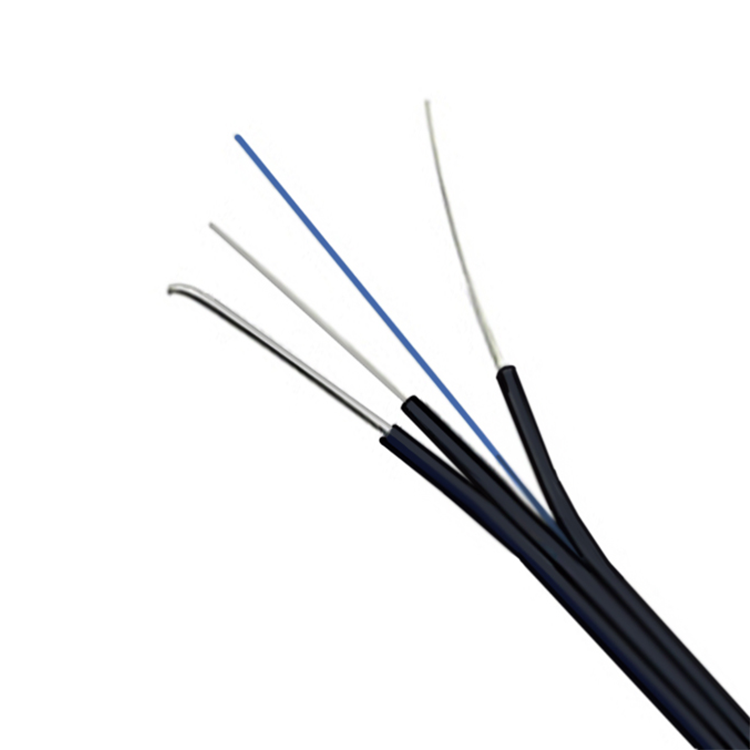

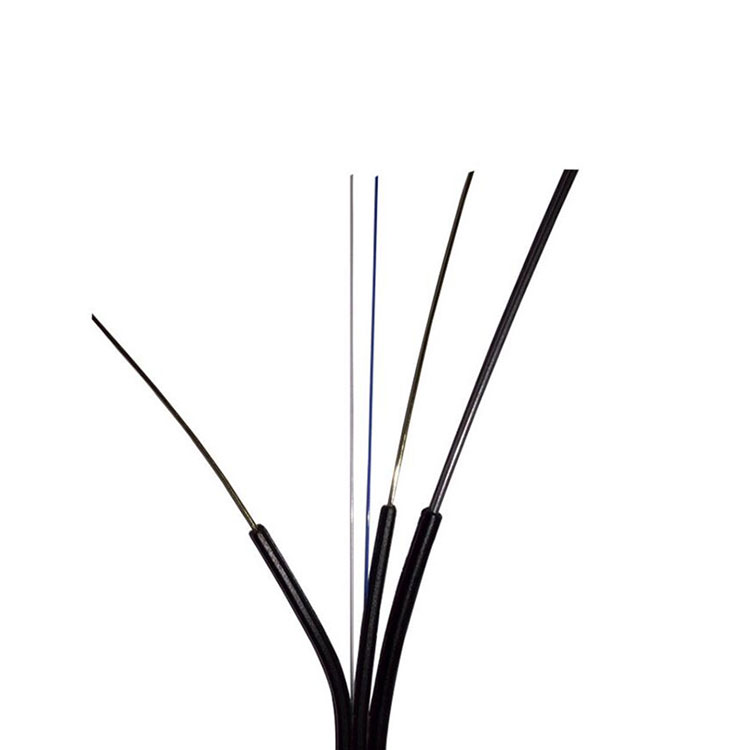

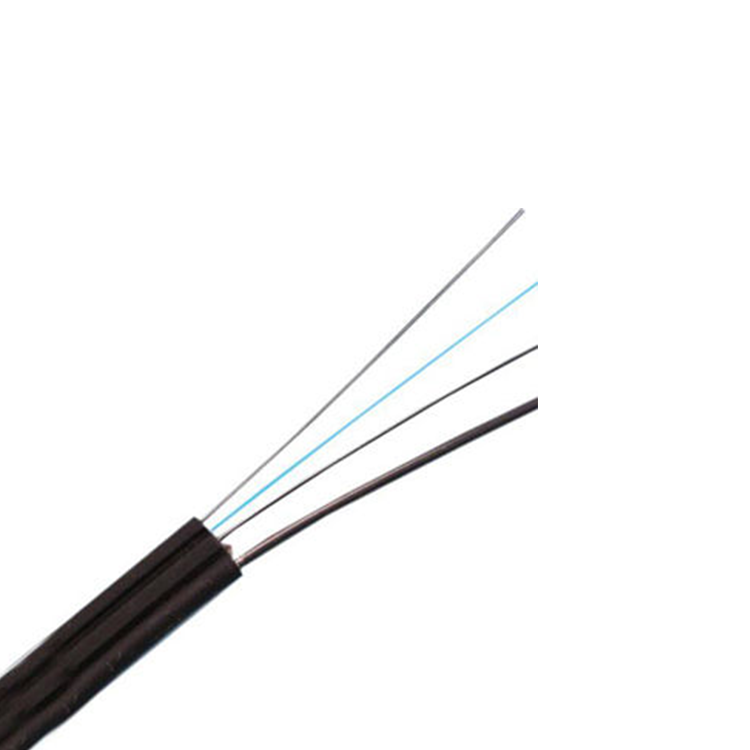

1 2 4 Core FTTH Indoor Outdoor Fiber Optic Drop Cable

The FTTH indoor cable is centered on the optical communication unit, with two parallel non-metallic reinforcing elements (FRP) placed on both sides, and finally, a black or colored low-smoke halogen-free sheath is extruded.

Share:
Features

Special bend-resistant fiber to provide greater bandwidth and enhance network transmission characteristics;

Two parallel FRPs make the cable have good compression resistance and protect the fiber;

The cable has a simple structure, light weight and strong practicability;

 Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;

 Low-smoke, halogen-free flame retardant jacket, environmentally friendly.


Specifications

Fiber count

1/2/4/6/8/12

Color Of fiber

Blue Orange Green Brown

Fiber Type

G652D/G657A1/G657A2

Strength member

Steel wire/FRP/KFRP

Supporting messenger wire

1.0MM*x1 steel wire

Outer sheath

LSZH Lower smoke zero halogen frame retardant & UV Anti

Cable Diameter dimensions

2.0( Height) × 5.0W ± 0.1 mm(width)

Operation temperature range

-20 ℃ to + 70 ℃

Installation temperature range

-20 ℃ to + 60 ℃

Transport and storage temperature range

-20 ℃ to + 70 ℃

Tension Load (N)

Short term :800N  Long term :500N

Crush Load(N)

Long term 1000 N/100mm  Short term:2200N/100mm

Minimal installation bending radius

30 x OD

Minimal operation bending radius

15 x OD

Cable marking

The marking length 1meter apart , as required
