12 16 24 32 36 48 72 Core OPGW Power Optical Fiber

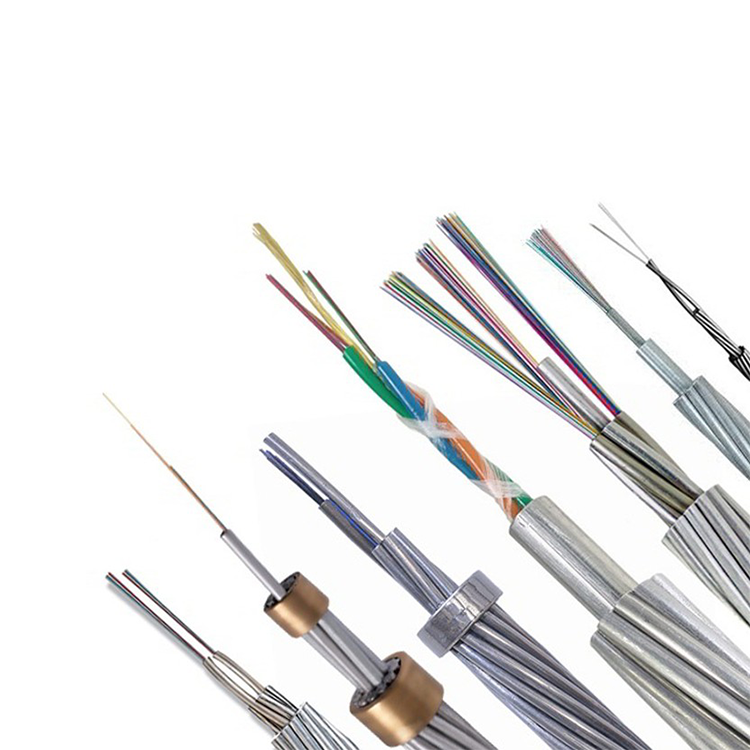

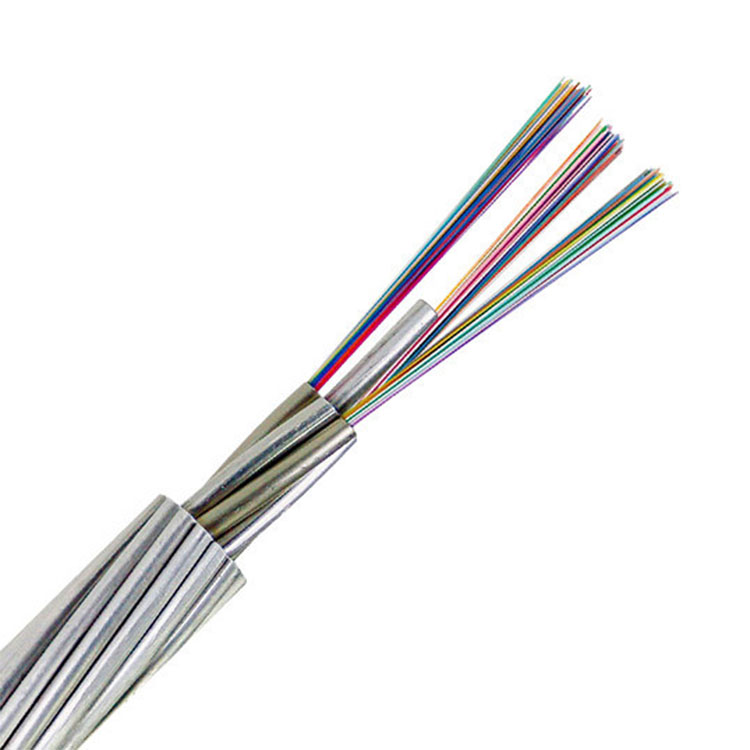

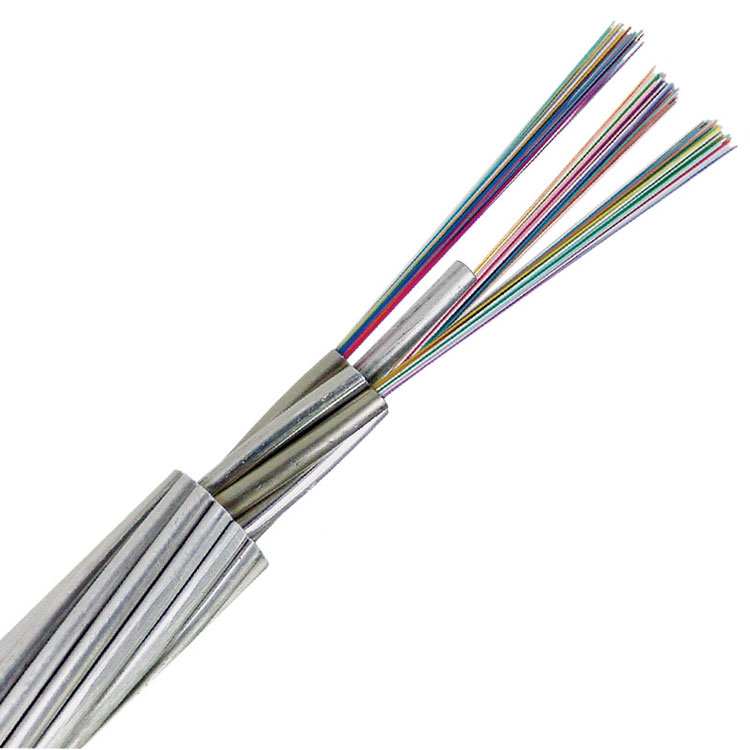

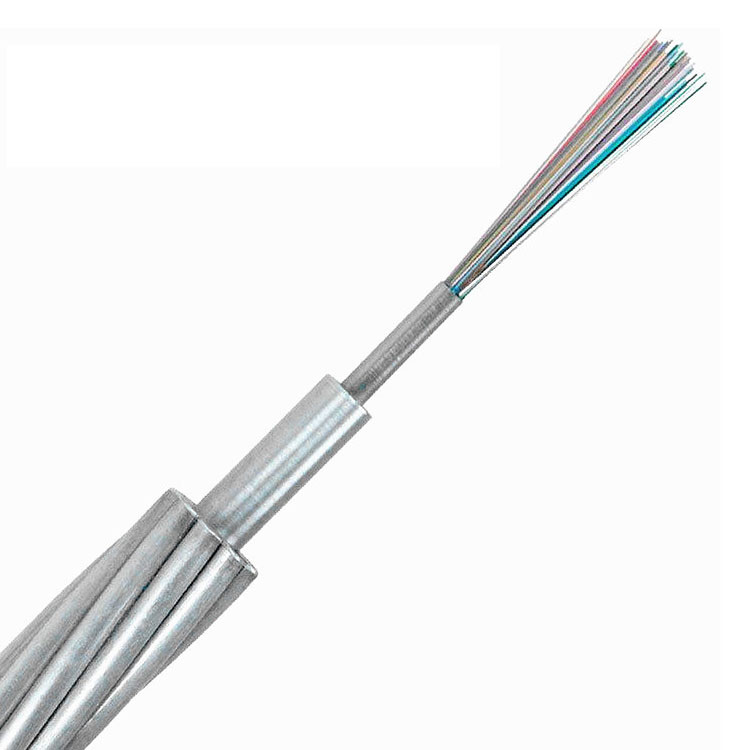

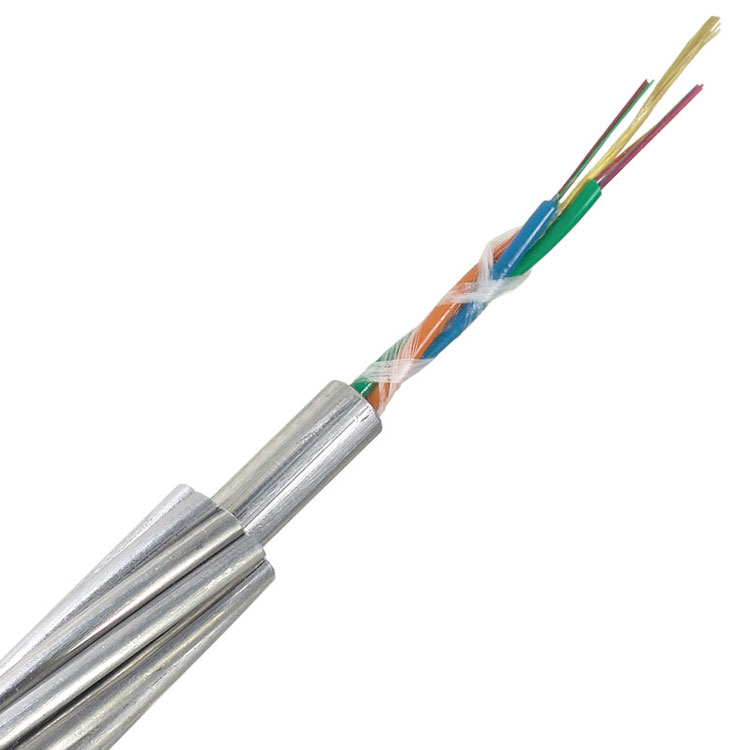

OPGW is a type of cable structure with composite of optical transmission and overhead ground wire for power transmission. Its working in power transmission line both as optical fiber cable and overhead ground wire which can provide protection of lightning strike and conducting short circuit currency.The OPGW consist of stainless steel tube optical unit, aluminum cladding steel wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customers requirements.

Inquire Now Next Product

Features

Adapt to replace the aged ground wire and new structure of

high voltage ground wire

lighting protection and conduct the short circuit current

Optical fiber communication ability

Specifications

Cable model	OPGW-60	OPGW-70	OPGW-90	OPGW-110	OPGW-130
Number /diameter(mm) of stainless steel tube	1/3.5	2/2.4	2/2.6	2/2.8	1/3.0
Number /diameter of AL wire(mm)	0/3.5	12/2.4	12/2.6	12/2.8	12/3.0
Number /diameter of ACS wire(mm)	6/3.5	5/2.4	5/2.6	5/2.8	6/3.0
Diameter of Cable (mm)	10.5	12.0	13.0	14.0	15.0
RTS(KN)	75	45	53	64	80
Cable weight (kg/km)	415	320	374	432	527
DC resistance(200C W/km)	1.36	0.524	0.448	0.386	0.327
Modulus of elasticity(Gpa)	162.0	96.1	95.9	95.6	97.8
coefficient of Linear thermal expansion(1/×10-6)	12.6	17.8	17.8	17.8	17.2
Short circuit capacity (kA²s)	24.0	57.3	78.9	105.8	150.4
Max. operation temperature (C)	200	200	200	200	200
