4/6/8/12/ 24 Cores GYXTW Fiber Optic Cable

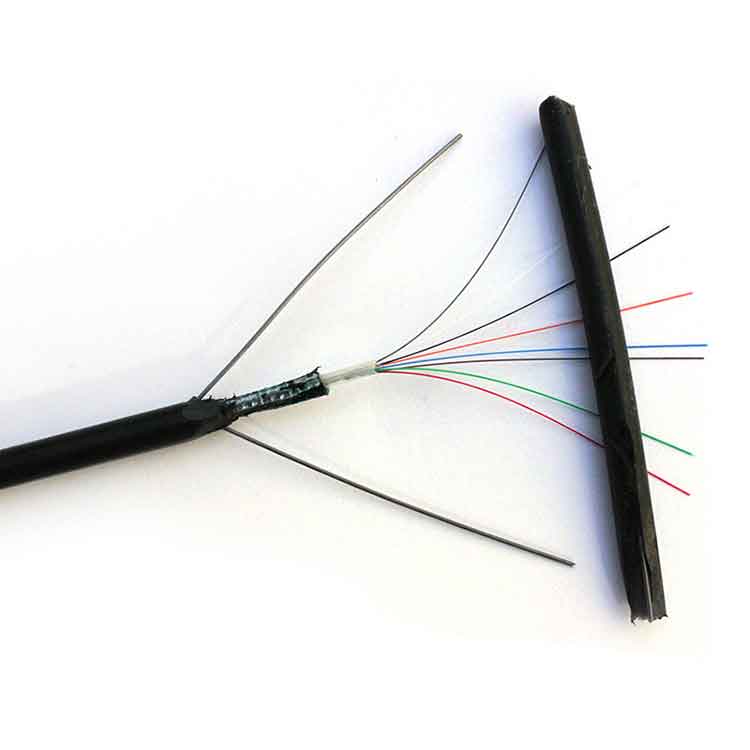

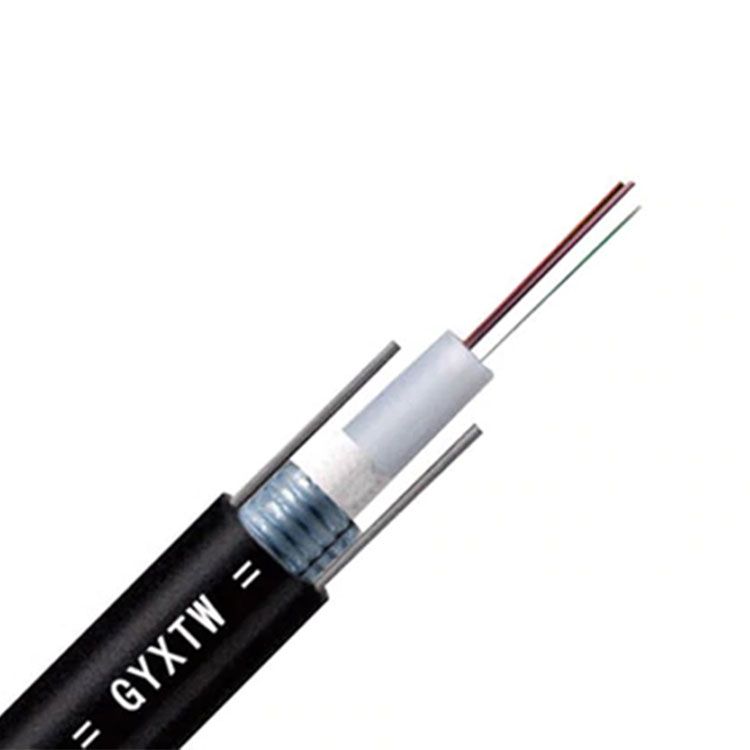

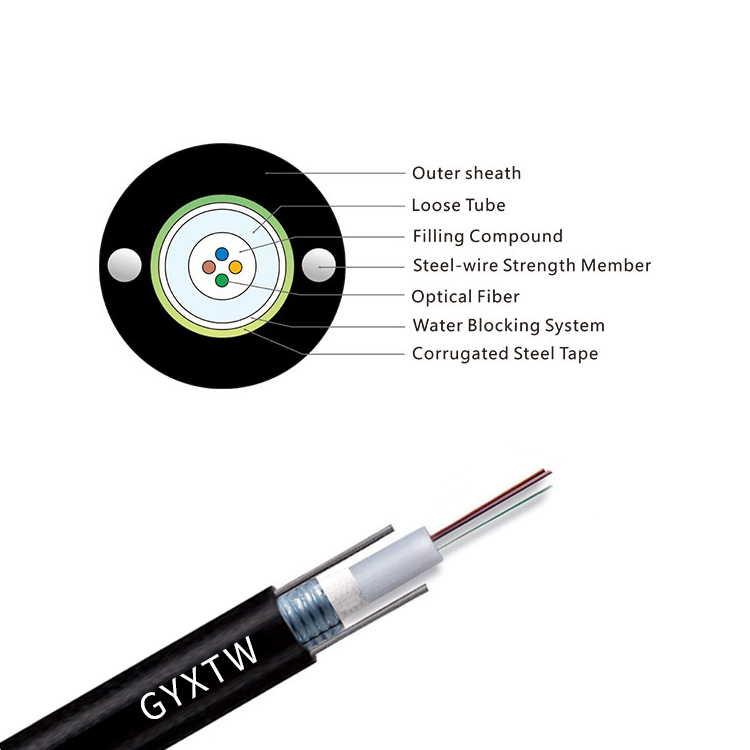

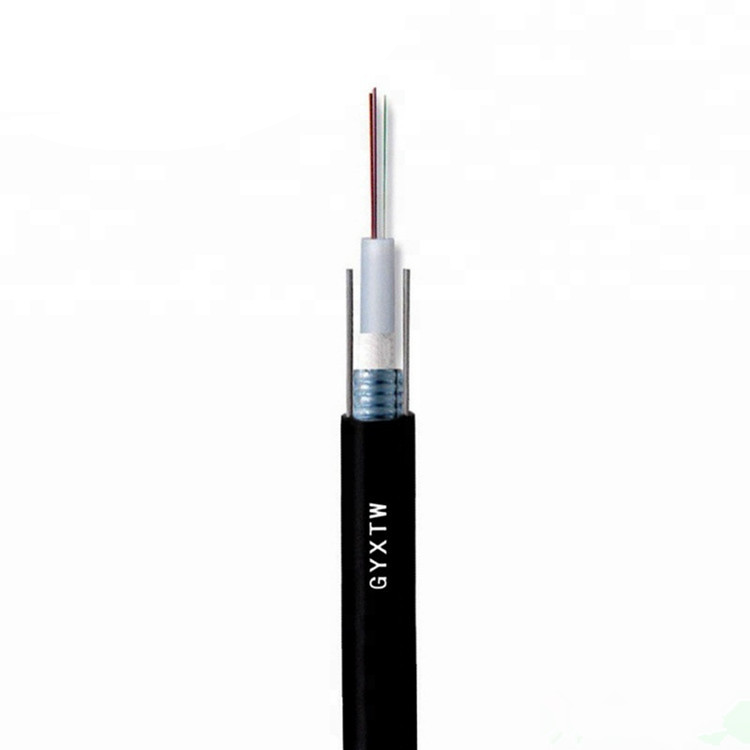

TangHu GYXTW central bundle tube cable is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.

Inquire Now Next Product

Features

· Has good mechanical and temperature properties.

· The loose tube material itself has good hydrolysis resistance and high strength.

· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.

· Double coated steel strip (PSP) improves the moisture resistance of the cable.

· Two parallel wires ensure the tensile strength of the cable.

· Small diameter, light weight and easy to lay.

· Long delivery length

Specifications

Optical properties:

		G.652	G.655	50/125μm	62.5/125μm
attenuation (+20°C)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable cut-off wavelength	≤1260nm	≤1480nm

Structural parameters:

Cable model	Number of fibers	Cable diameter mm	Cable weight kg/km	Allowable stretching force Long/short term N	Allowable crushing force Long/short term N/100mm	Bending radius Static/dynamic mm
GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D
