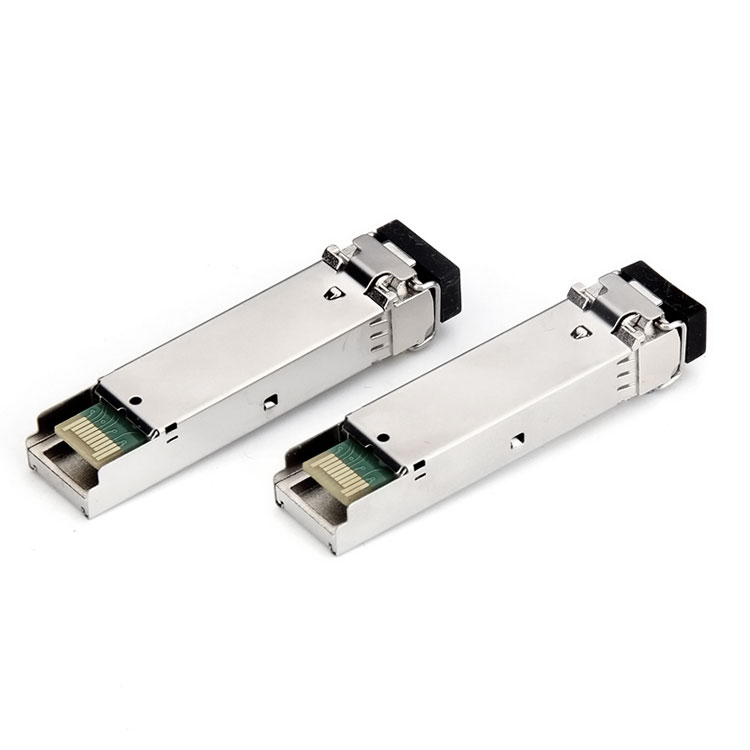

MORE10G SFP+ BIDI 80KM transceiver is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.1Gbps,it designed to be compliant with SFF-8472 and SFP+ MSA.
The module data link up to 80km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
1.SFP MSA package with single LC connector
2.Typical bidi 1490/1550nm and 1550nm/1490nm
3.APD receiver for high sensitivity
4.Very low EMI and excellent ESD protection
5.Digital Diagnostic Monitor Interface
6.Up to 80km distance
7.Compliant with SFP+ MSA
8.High transmission margin
9.+3.3V single power supply
10.Below <1.5W power consumption
Application:
1.10GBASE-BX 10.3125Gb/s Ethernet
2.10GBASE-BX 9.953Gb/s Ethernet
3.SONET OC-192 &SDH STM I-64.1
Transmission rate | 10G |
Transmission distance | 40km |
Fiber type | Single Fiber |
Transmission wavelength | 1310/1550nm |
Interface type | LC interface |
