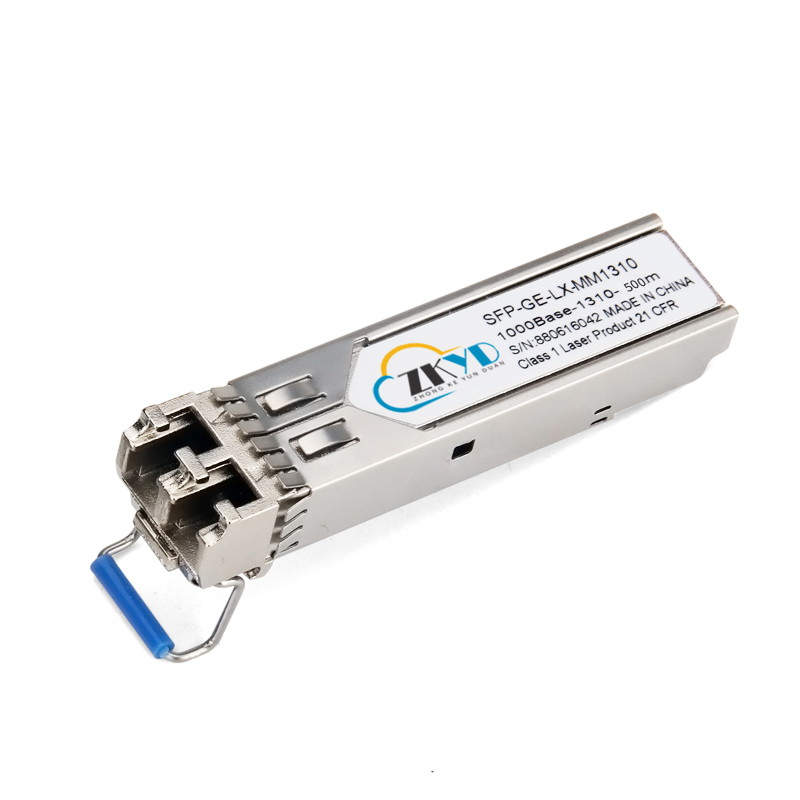

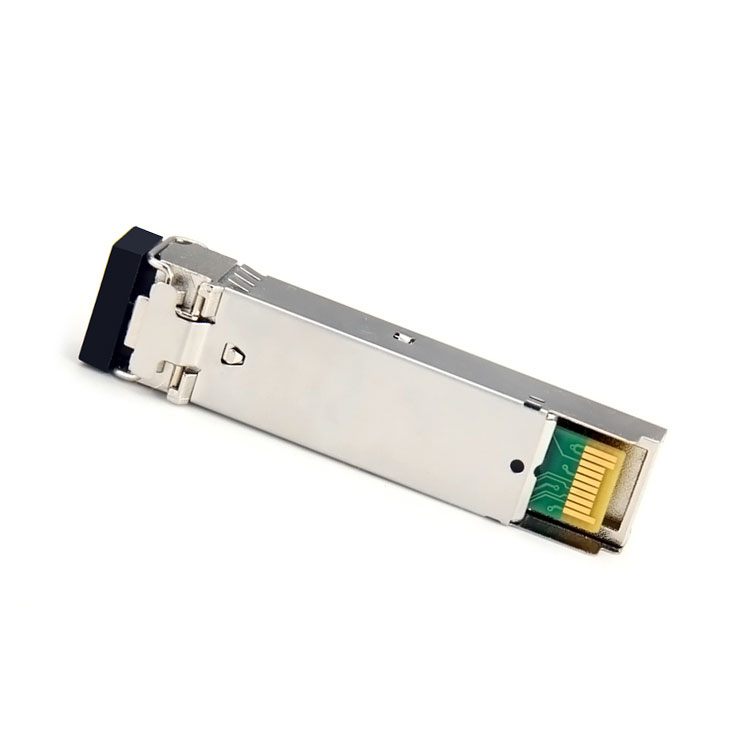

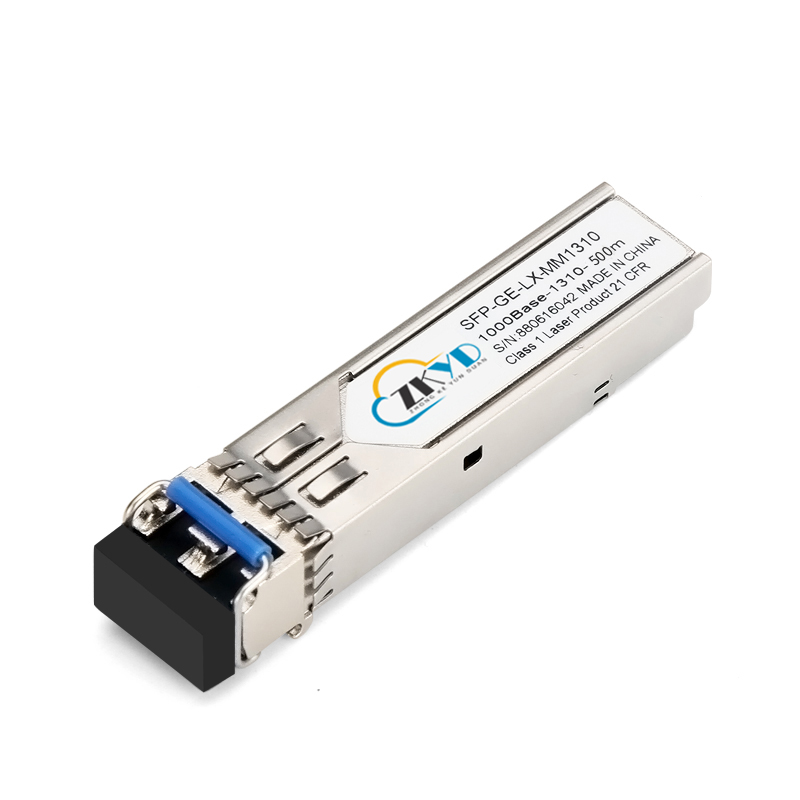

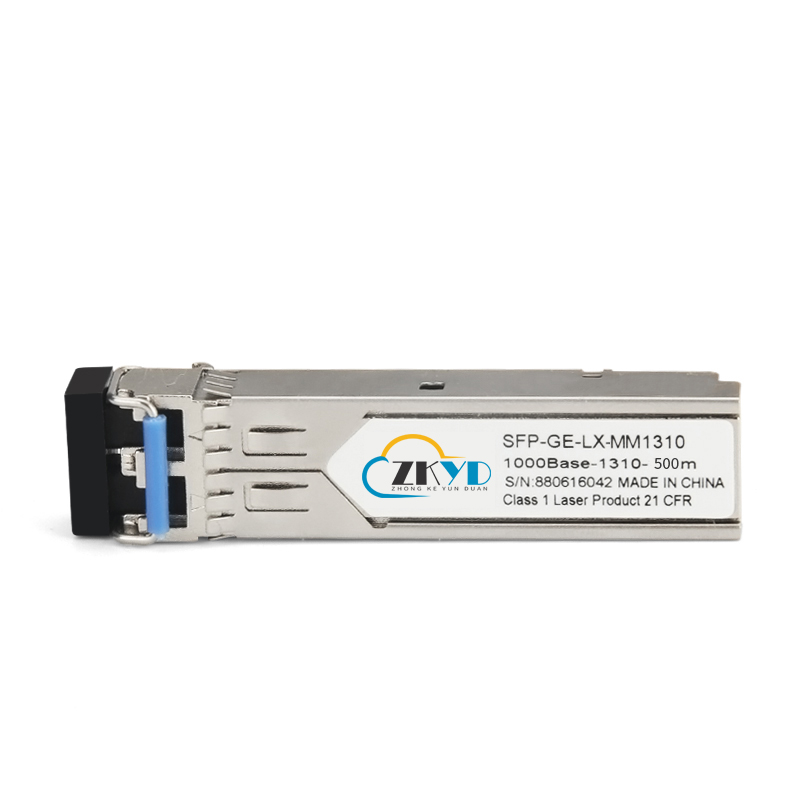

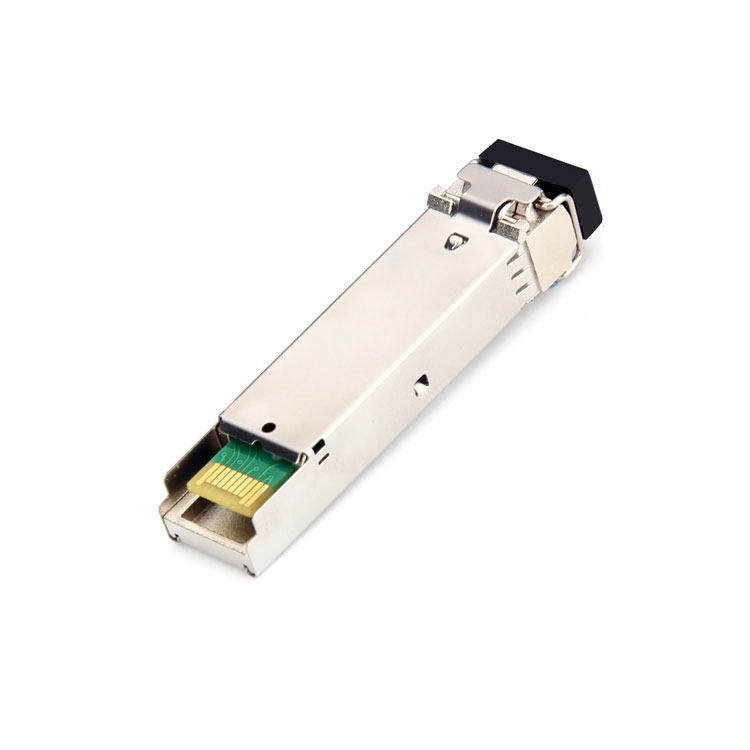

500M 1.25G LC Connector Dual Fiber SFP Module

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 500m transmission distance with MMF.

The transceiver consists of three sections: a LED laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Inquire Now Next Product

Features

1.Dual data-rate of 1.25Gbps/1.063Gbps operation

2.1310nm LED laser and PIN photo detector for 500m transmission with MMF

3.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

4.Digital Diagnostic Monitoring: Internal Calibration or External Calibration

5.Compatible with SONET OC-24-LR-1

6.Operating case temperature:Standard: 0 to +70°C, Industrial: -40 to +85°C

Applications:

1.Gigabit Ethernet

2.Fiber Channel

3.Switch to Switch interface

4.Switched backplane applications

5.Router/Server interface

6.Other optical transmission systems

Specifications

Data Rate	1.25G	Fiber Mode	Multi Mode Fiber (MMF)
Types of Interface	LC	Types of Laser	FP
Operating Temperature	Standard 0~70°C	Operating Humidity	0%~90% RH (non condensing)
Transmission distance	500m	Modes of Communications	Duplex
Wavelength	1310nm	Hot Pluggable Times	200
Receiver Sensitivity	<-23dBm	Extinction Ratio	>9dB
Saturated Optical Power	-3dBm	Power Consumption	<3W
Weight	0.024kg	Power Supply	+3.3V
Hot Pluggable Times	200	Average Output Power	-12 ~ -5dBm
