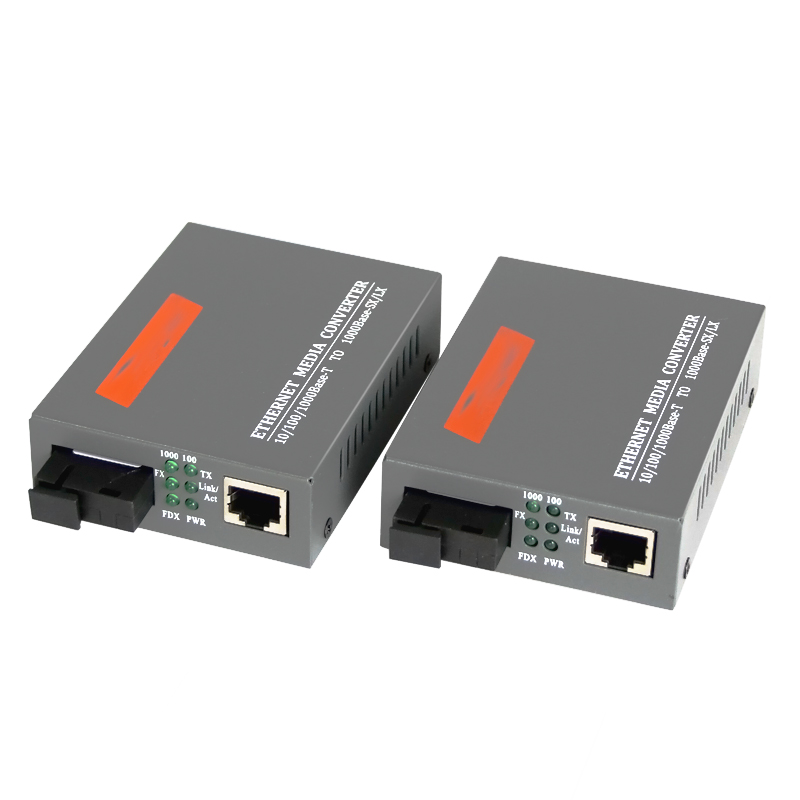

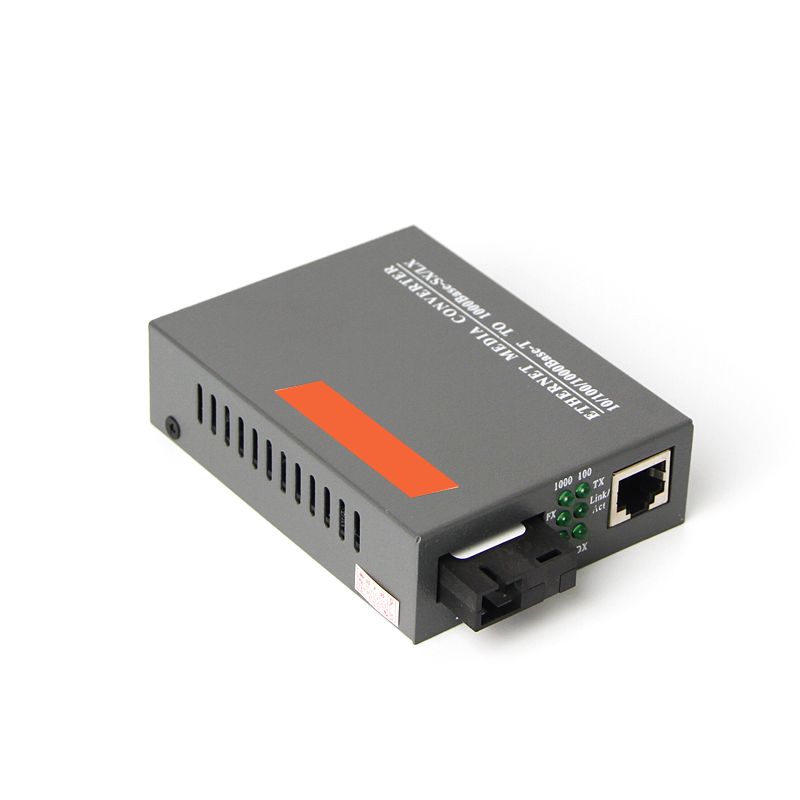

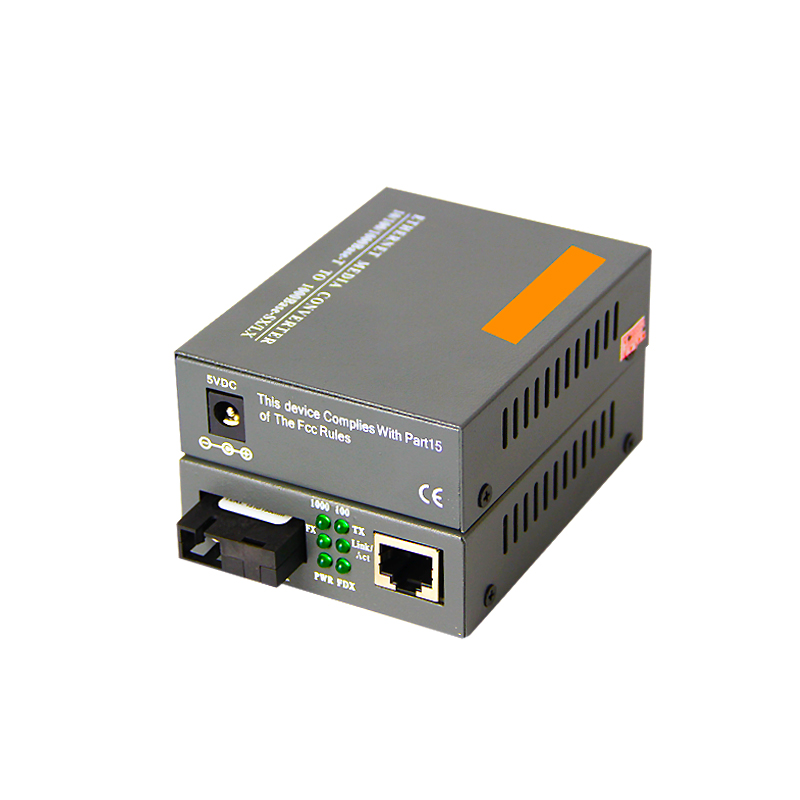

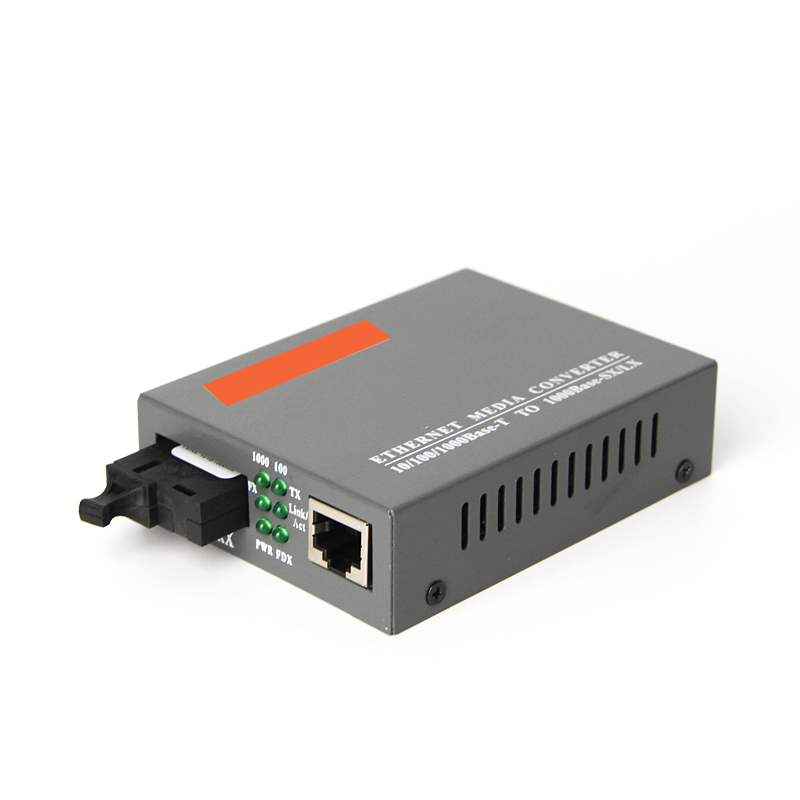

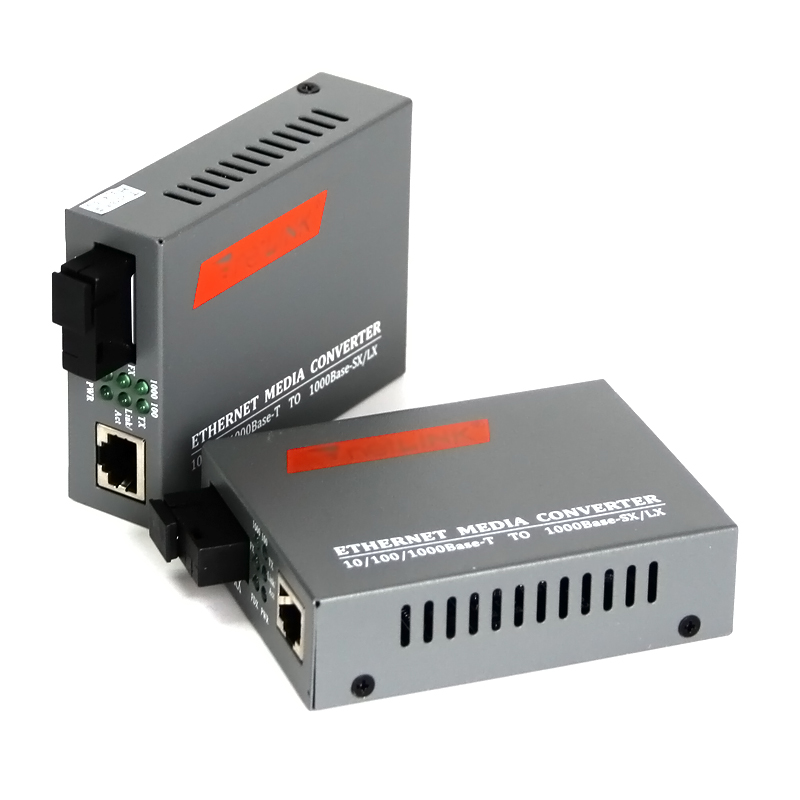

HTB-GS-03 A/B Fiber Optic Media Converter

Provide one SC fiber connector and one UTP connector

Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/IEEE802.3u 100Base-FX,IEEE802.3z 1000Base-FX Standard.

Auto-detection of half/full duplex transfer mode for Tx port

Auto-negotiation of 10/100/1000Mbps rate and Auto-MDI/MDIX for Tx port

Provide switch configuration of half/full duplex transfer mode for Fx port

Extend fiber distance up to 20km for single-mode fiber

6 LED display for Power, FDX/Col, FX (Link/Act), TX (Link/Act), FX 1000, TX 100

Easy-to-view LED indicators provides status to easily monitor network activity
