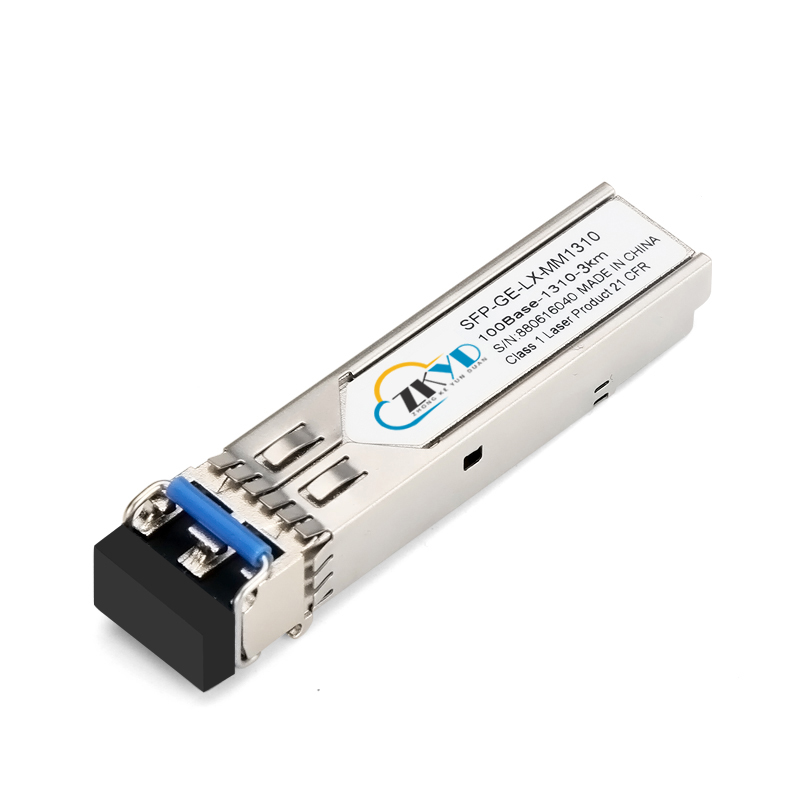

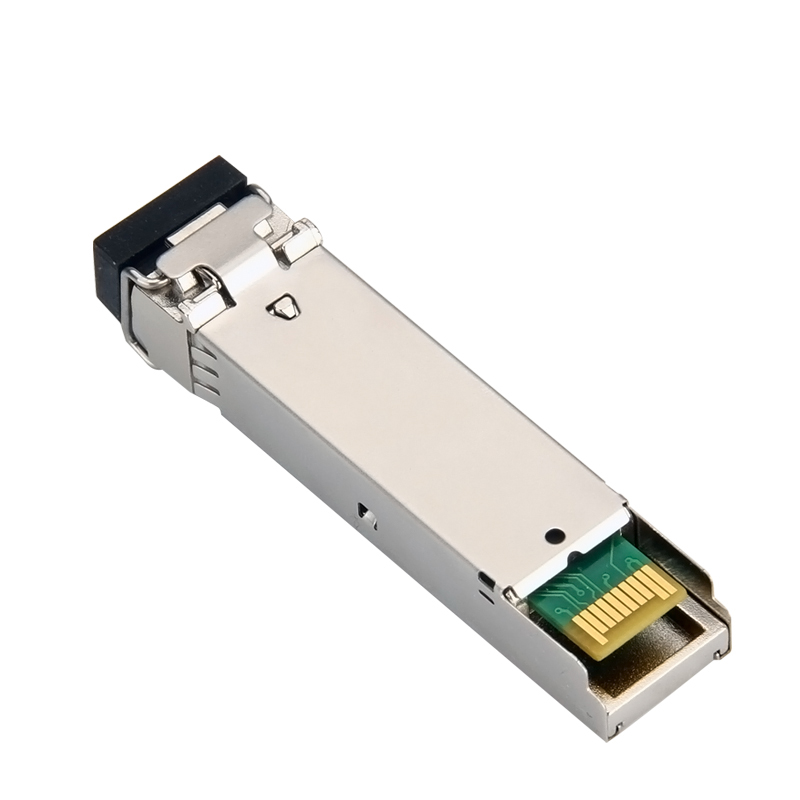

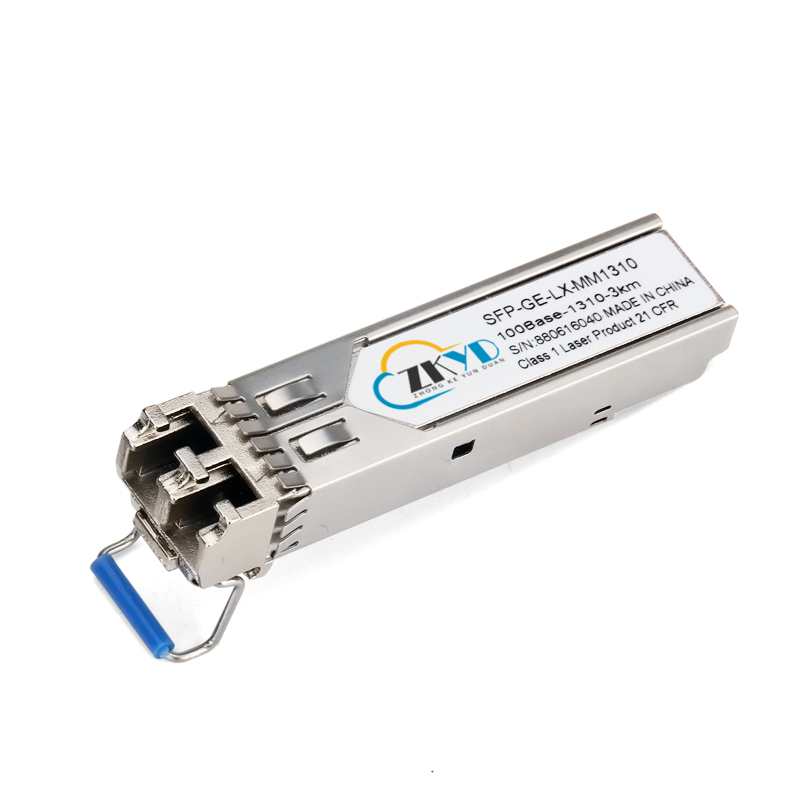

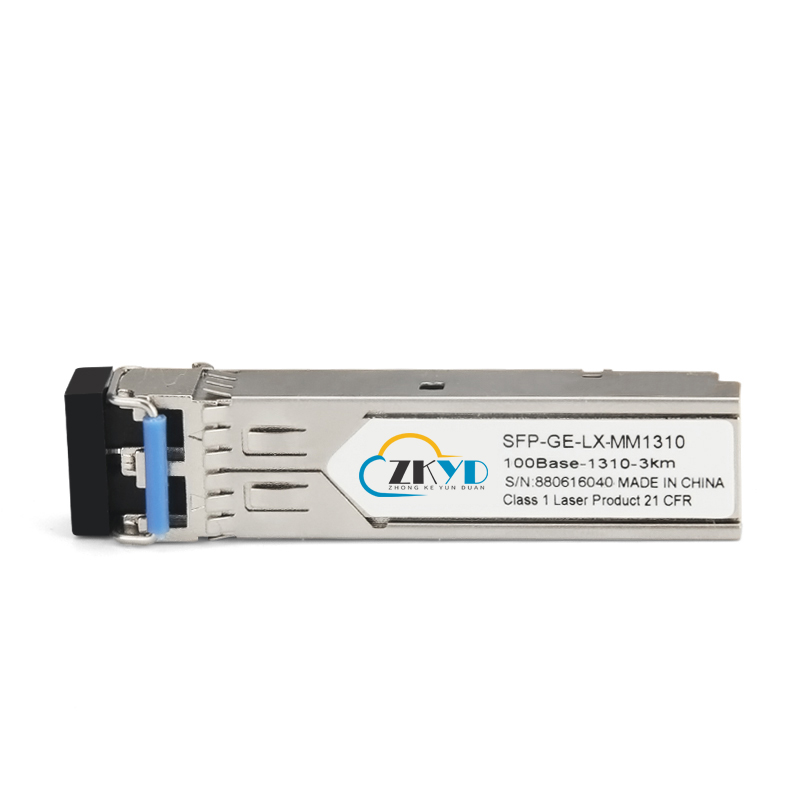

3KM 155MB LC Connector Dual Fiber SFP Module

The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 3km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.

Inquire Now Next Product

Features

1.Up to 155Mbps data-rate

2.1310nm FP laser and PIN photo detector for 3km transmission with MMF

3.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

4.Digital Diagnostic Monitoring: Internal Calibration or External Calibration

5.Compatible with RoHS

6.+3.3V single power supply

7.Operating case temperature: Standard: 0 to +70°C; Industrial: -40 to +85°C

Applications:

SDH STM-1, S-1.1,L-1.1, L-1.2

SONET OC-3 IR1,LR1,LR2

Fast Ethernet

Data Rate	155M/OC-3/STM-1	Fiber Mode	Multi Mode Fiber (MMF)
Types of Interface	LC	Types of Laser	FP
Operating Temperature	Standard 0~70°C	Operating Humidity	0%~90% RH (non condensing)
Transmission distance	3km	Modes of Communications	Duplex
Wavelength	1310nm	Condition	New
Receiver Sensitivity	<-32dBm	Extinction Ratio	>9dB
Saturated Optical Power	-3dBm	Power Consumption	<3W
Weight	0.024kg	Power Supply	+3.3V
Hot Pluggable Times	200	Average Output Power	-14 ~ -8dBm
